Smart City Brake Support
WARNING: SCBS is only a supplementary system to reduce damage in the event
of a collision , however the SCBS has limitations. Do not rely solely on the SCBS .
Always keep your eyes on the road .
SCBS system can be turned off using Safety Settings
in MAZDA CONNECT. (see page 16)
Laser Sensor
SMART CITY BRAKE SUPPORT (SCBS) SYSTEM (if equipped)
The Smart City Brake Support (SCBS) system is designed to reduce
damage in the event of a collision by automatically applying the vehicle’s
braking system when the system’s laser sensor detects an imminent
collision with the vehicle ahead:
• When your vehicle speed is 2 to 18 mph (4 to 30 km/h).
• The system determines that a collision with a vehicle ahead is unavoidab\
le.
• It may be possible to avoid a collision if the relative speed between
your vehicle and the vehicle ahead is less than 12.5 mph (20 km/h).
• When the driver depresses the brake pedal while the system is in the
operation range at about 2 to 18 mph (4 to 30 km/h), the brakes are applied
firmly and quickly to assist. (SCBS Automatic Brake is displayed in the Multi-
information Display)
• SCBS automatic brake is released approximately 2 seconds after the
vehicle comes to a stop.
Refer to your Owner’s Manual for complete details.
1880737_16a_Mazda_CX-3_061615.indd 196/16/15 2:27 PM

20
Smart Brake Support
SMART BRAKE SUPPORT (SBS) (if equipped)
The Smart Brake Support (SBS) is a system which alerts the driver
of a possible collision using an indicator and warning sound in the
instrument cluster while the vehicle is being driven at about 10 mph
(15 km/h) or faster and the system’s radar sensor determines that
your vehicle may hit a vehicle ahead. Furthermore, if the radar sensor
determines that a collision is unavoidable, the automatic brake control
is performed to reduce damage in the event of a collision. In addition,
when the driver depresses the brake pedal, the brakes operate more
quickly to assist the driver.
Refer to your Owner’s Manual for complete details.
Radar sensorLaser sensor
Collision Warning
If there is the possibility of a collision with a vehicle ahead,
the beep sounds continuously and a warning is indicated in
the multi-information display. SBS system can be turned off using Safety Settings in MAZDA CONNECT.
(see page 16)
WARNING: SBS is only a supplementary system to reduce damage in the
event of a collision, however the SBS has limitations. Do not rely solely on the
SBS, Always keep your eyes on the road.
1880737_16a_Mazda_CX-3_061615.indd 206/16/15 2:27 PM
www.MazdaUSA.com

21
Lane Departure Warning System
LANE DEPARTURE WARNING SYSTEM (LDWS) (if equipped)
The LDWS recognizes painted lane lines on a road using the forward
sensing camera (FSC) installed to the windshield. If the vehicle deviates
from its lane at speeds above 44 mph, the system alerts the driver using
the following indicators.
Use the LDWS
switch to turn
system ON or OFF
Indicator LightActive Driving Display Condition
The painted lane lines
on the road are not
recognized or the vehicle
speed is less than 44 mph
The painted lane
lines are recognized
at vehicle speeds of
44 mph or more
Flashes +
warning sound OR
Warning is triggered
when vehicle deviates
from its lane
No indicator light
LDWS OFF
WARNING: LDWS is only a supplementary system to
warn the driver that the vehicle may be deviating from
its lane, however the LDWS has limitations. Do not
rely solely on the LDWS. Relying solely on the LDWS
may cause an unexpected accident resulting in death
or serious injury. Always pay attention to the direction
in which the vehicle is traveling and drive safely.
NOTE: Any driver input (e.g., turn signal, steering or acceleration) will cancel warning.
1880737_16a_Mazda_CX-3_061615.indd 216/16/15 2:27 PM

22
Distance Recognition Support System

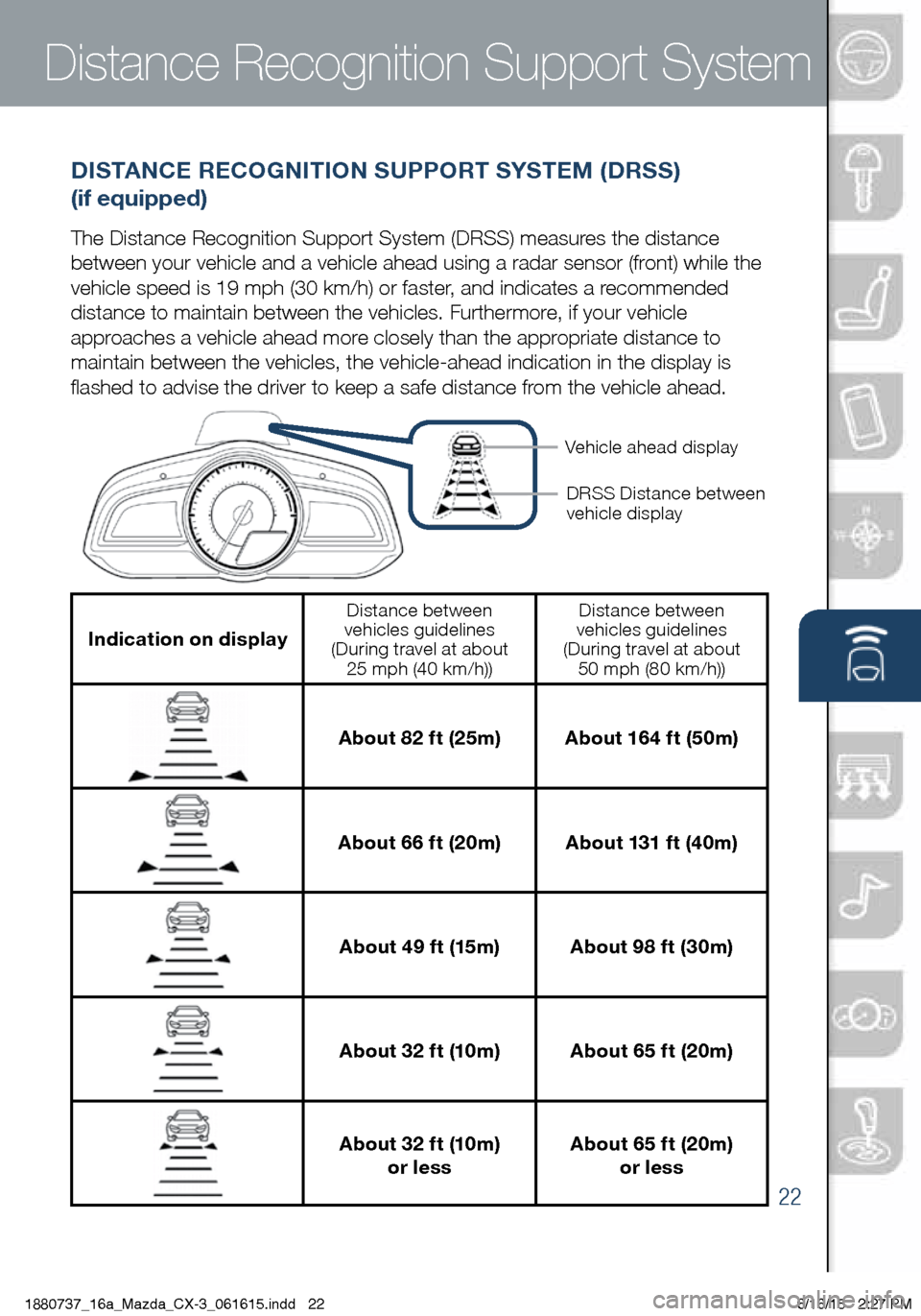

DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS)
(if equipped)
The Distance Recognition Support System (DRSS) measures the distance
between your vehicle and a vehicle ahead using a radar sensor (front) while the
vehicle speed is 19 mph (30 km/h) or faster, and indicates a recommended
distance to maintain between the vehicles. Furthermore, if your vehicle
approaches a vehicle ahead more closely than the appropriate distance to
maintain between the vehicles, the vehicle-ahead indication in the displ\
ay is
flashed to advise the driver to keep a safe distance from the vehicle ahead.
Indication on display
Distance between
vehicles guidelines
(During travel at about 25 mph (40 km/h)) Distance between
vehicles guidelines
(During travel at about 50 mph (80 km/h))
About 82 ft (25m) About 164 ft (50m)
About 66 ft (20m) About 131 ft (40m)
About 49 ft (15m) About 98 ft (30m)
About 32 ft (10m) About 65 ft (20m)
About 32 ft (10m)
or less About 65 ft (20m)
or less
DRSS Distance between
vehicle display
Vehicle ahead display
1880737_16a_Mazda_CX-3_061615.indd 226/16/15 2:27 PM
www.MazdaUSA.com

23
Blind Spot Monitoring System
BLIND SPOT MONITORING (BSM) (if equipped)
The BSM system is designed to assist the driver by monitoring blind spots
on both sides of the vehicle to the rear in certain situations such as when
changing lanes on roads and freeways.
Turning BSM System Off
Turning the BSM system off will turn off both the light
and sound indicators. To manually turn the BSM
system off, push the BSM OFF switch on the dash.
The BSM OFF indicator in the instrument cluster will
turn on to indicate when the BSM system is off. The
BSM system will automatically turn on the next time the vehicle is started.
• If your vehicle speed is 7 mph (11 km/h) or more, the BSM will warn
you of vehicles in the detection area by illuminating the BSM warning
lights located on the left and right door mirrors.
• If you operate a turn signal in the direction of an illuminated BSM warning
light, the system will also warn you with a beep and warning light flash.
• BSM sensors are located under the left and right rear bumper areas.
The BSM system may not operate properly if the rear bumper gets dirty,
so keep the rear bumper area clean and free of bumper stickers.
Your Vehicle
Detection Areas
Refer to your
Owner’s Manual for
complete details.
NOTE: • The BSM can assist the driver in confirming the safety of the surroundings,
but is not a complete substitute.
• The driver is responsible for ensuring safe lane changes and other maneuvers.
• Always pay attention to the direction in which the vehicle is traveling and the
vehicle’s surroundings.
• The BSM does not operate when the vehicle speed is lower than about
7 mph (11 km/h).
WARNING: BSM is only a supplementary system to help aid in monitoring blind
spots , however BSM has limitations. The system may not detect all vehicles,
especially a motorcycle. Do not rely solely on the BSM . Relying solely on the BSM
may cause an unexpected accident resulting in death or serious injury. Make sure to
look over your shoulder before changing lanes.
1880737_16a_Mazda_CX-3_061615.indd 236/16/15 2:28 PM

24
REAR CROSS TRAFFIC ALERT (RCTA) (if equipped)
The RCTA is designed to alert the driver of oncoming traffic when
backing out of a parking spot. RCTA is active when your vehicle is in
reverse and your vehicle speed is 0 to 6 mph (10 km/h).
When BSM sensors detect an object moving 3 to 18 mph (5 to 30 km/h),
RCTA will notify the driver with indicators and sound:
• Rear View Monitor and outside mirror flashing indications.
• Beep sound (same as BSM).
Refer to your Owner’s Manual for complete details.
Object Detected Object Detected
WARNING: RCTA is only a supplementary system to help aid when backing up ,
however R C TA has limitations. The system does not detect all vehicles, especially
a motorcycle . Do not rely solely on the R C TA . Relying solely on the R C TA may
cause an unexpected accident resulting in serious injury. Always back up slowly.
Rear View Monitor
Rear Cross Traffic Alert
Settings
button for rear
view monitor.
Image is
for reference.
1880737_16a_Mazda_CX-3_061615.indd 246/16/15 2:28 PM
www.MazdaUSA.com

25
NOTE: The DRL (Daytime Running Lights) automatically turn on when the ignition
is switched ON. To disable/enable this feature see your Authorized Mazda Dealer.
NOTE: • You can adjust the timing of the Auto Headlights OFF and the sensitivity of the
Auto Light Control.
Lights
LIGHTING CONTROL/TURN SIGNAL LEVER
: Turns tail,
parking, and
dashboard
lights on.
Pull
to Flash
High Beams
Push for

High Beams
AUTO: The light
sensor automatically
determines when to turn
the headlights on or off.: Turns fog lights
on only when
headlights are on.
Three-Flash Turn Signal: To signal
a lane change, push the turn signal lever
up or down halfway and release. The turn
signal indicator will flash three times.
: Turns tail, parking, dashboard, and
headlights on.
1880737_16a_Mazda_CX-3_061615.indd 256/16/15 2:28 PM

26
Wipers
CAUTION: If the ignition is ON, turn the AUTO wipers OFF when going
through a car wash, or while cleaning or touching the windshield.
WINDSHIELD WIPER/WASHER CONTROL LEVER
AUTO: The rain sensor senses the amount of rainfall and turns the wipers
on or off. Rotate inne r ring away from you (clockwise) for more (
) sensitivity
(requires less rain to turn wipers on) and toward you (counterclockwise)
for less (
) sensitivity (requires more rain to turn wipers on).
NOTE: Vehicles not equipped with AUTO wipers will have INT wipers. Set
the lever to INT and choose an interval timing by rotating the ring between
fast and slow.
Pull lever
to dispense
windshield
washer fluid
1
2
3HI LO
AUTO
OFF
MIST
Rear Window

Wiper/Washer
(Hatchback)
INT: Intermittent
ON: Normal speed
:
Washer/wip er
(hold as desired)
1880737_16a_Mazda_CX-3_061615.indd 266/16/15 2:28 PM
www.MazdaUSA.com

27
Adaptive Front Lighting System
Push AFS OFF to turn
system off or on. When
off, the AFS OFF indicator
in the instrument panel
will turn on.
Without AFS
NOTE:
• With AFS, it is normal to see the headlights move and hear the sound of the
headlight leveling motors at the front of the vehicle when the ignition is ON.
• The system will need to be reset if the vehicle battery has been disconnected
or the system fuse has been replaced. Please refer to your Owner’s Manual for
easy to follow resetting instructions.
ADAPTIVE FRONT-LIGHTING SYSTEM (AFS) (if equipped)
The adaptive front-lighting system (AFS) automatically turns the
headlight beam to the right or left in conjunction with the direction of
the steering wheel.
The AFS improves the direction of headlight illumination while cornering, and
only works when the vehicle is moving.
With AFS
1880737_16a_Mazda_CX-3_061615.indd 276/16/15 2:28 PM

28
To turn HBC on:
1 Turn the headlight
switch to the
AUTO position.
2 Push the headlight
lever forward to the
High Beam position.
When the HBC system is
on, the HBC indicator light
in the instrument cluster
will illuminate (
GREEN).
The High Beam indicator
light will turn on (
BLUE)
when the HBC system
switches to high beam
and will turn off when the
HBC system switches
to low beam.
HIGH BEAM CONTROL (HBC) (if equipped)
With HBC, the headlights are switched to high beams at speeds
above 18 mph (30 km/h) when there are no vehicles in front of your
vehicle or approaching in the opposite direction.
The HBC system switches to low beam when:
• You are approaching a vehicle or a vehicle is approaching in
the opposite direction.
• Driving on roads lined with street lights or well-lit cities and towns.
• At speeds lower than 12 mph (20 km/h).
AUTO
FORWARD
High Beam Control
1880737_16a_Mazda_CX-3_061615.indd 286/16/15 2:28 PM
www.MazdaUSA.com
