When Driving
i-ACTIVSENSE
CAUTION

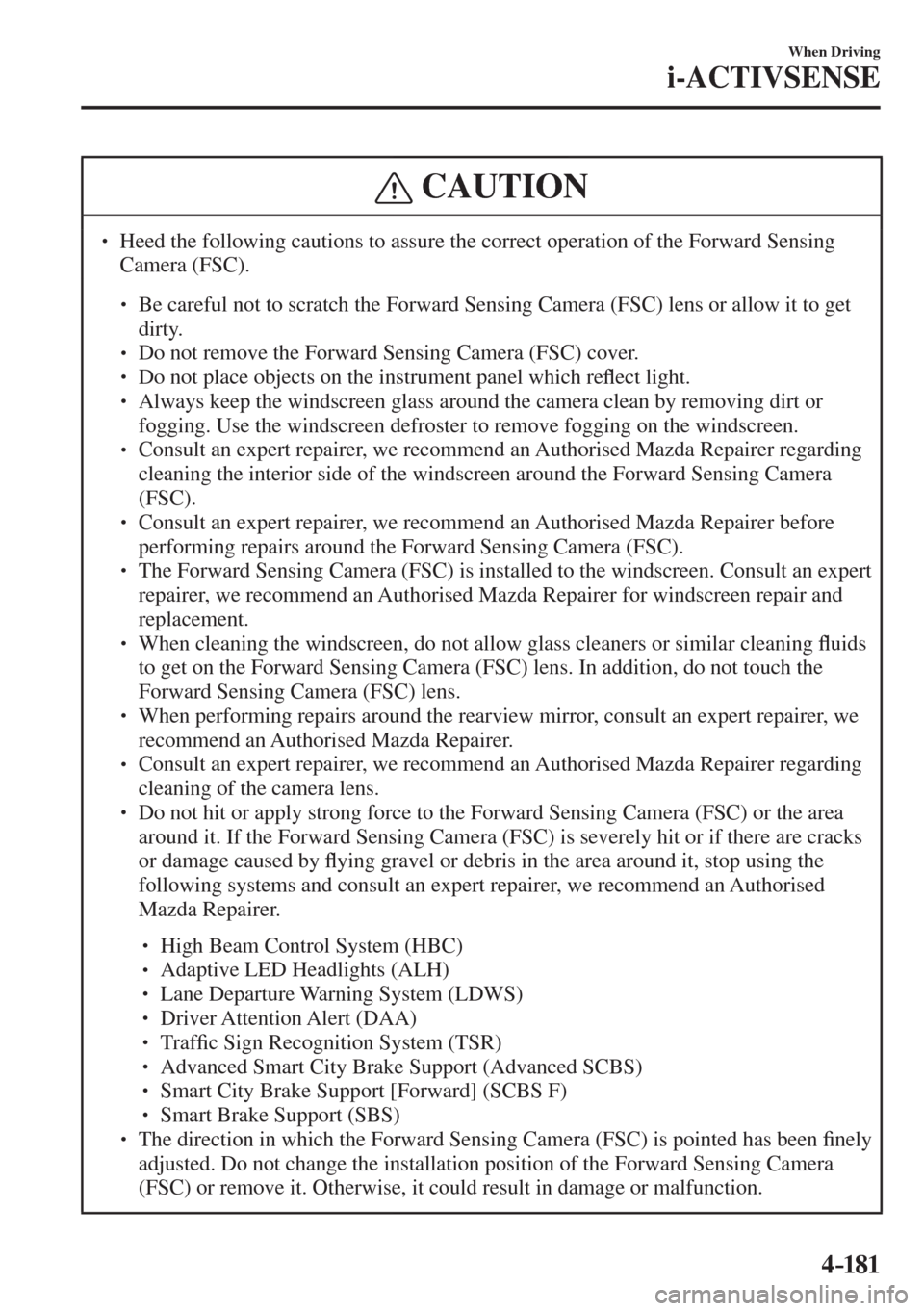

Heed the following cautions to assure the correct operation of the Forward Sensing
Camera (FSC).
Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get
dirty.
Do not remove the Forward Sensing Camera (FSC) cover.
Do not place objects on the instrument panel which re À ect light.
Always keep the windscreen glass around the camera clean by removing dirt or
fogging. Use the windscreen defroster to remove fogging on the windscreen.
Consult an expert repairer, we recommend an Authorised Mazda Repairer regarding
cleaning the interior side of the windscreen around the Forward Sensing Camera
(FSC).
Consult an expert repairer, we recommend an Authorised Mazda Repairer before
performing repairs around the Forward Sensing Camera (FSC).
The Forward Sensing Camera (FSC) is installed to the windscreen. Consult an expert
repairer, we recommend an Authorised Mazda Repairer for windscreen repair and
replacement.
When cleaning the windscreen, do not allow glass cleaners or similar cleaning À uids
to get on the Forward Sensing Camera (FSC) lens. In addition, do not touch the
Forward Sensing Camera (FSC) lens.
When performing repairs around the rearview mirror, consult an expert repairer, we
recommend an Authorised Mazda Repairer.
Consult an expert repairer, we recommend an Authorised Mazda Repairer regarding
cleaning of the camera lens.
Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area
around it. If the Forward Sensing Camera (FSC) is severely hit or if there are cracks
or damage caused by À ying gravel or debris in the area around it, stop using the
following systems and consult an expert repairer, we recommend an Authorised
Mazda Repairer.
High Beam Control System (HBC)
Adaptive LED Headlights (ALH)
Lane Departure Warning System (LDWS)
Driver Attention Alert (DAA)
Traf ¿ c Sign Recognition System (TSR)
Advanced Smart City Brake Support (Advanced SCBS)
Smart City Brake Support [Forward] (SCBS F)
Smart Brake Support (SBS)
The direction in which the Forward Sensing Camera (FSC) is pointed has been ¿ nely
adjusted. Do not change the installation position of the Forward Sensing Camera
(FSC) or remove it. Otherwise, it could result in damage or malfunction.
Page 322 of 723
4–182
When Driving
i-ACTIVSENSE
CAUTION
Always use tyres for all wheels that are of the speci ¿ ed size, and the same
manufacturer, brand, and tread pattern. In addition, do not use tyres with signi ¿ cantly
different wear patterns on the same vehicle as the system may not operate normally.
The Forward Sensing Camera (FSC) includes a function for detecting a soiled
windscreen and informing the driver, however, depending on the conditions, it may not
detect plastic shopping bags, ice or snow on the windscreen. In such cases, the system
cannot accurately determine a vehicle ahead and may not be able to operate normally.
Always drive carefully and pay attention to the road ahead.
NOTE
In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects
correctly, and each system may be unable to operate normally.
The height of the vehicle ahead is low.
You drive your vehicle at the same speed as the vehicle ahead.
Headlights are not turned on during the night or when going through a tunnel.
Page 323 of 723
4–183
When Driving
i-ACTIVSENSE
NOTE

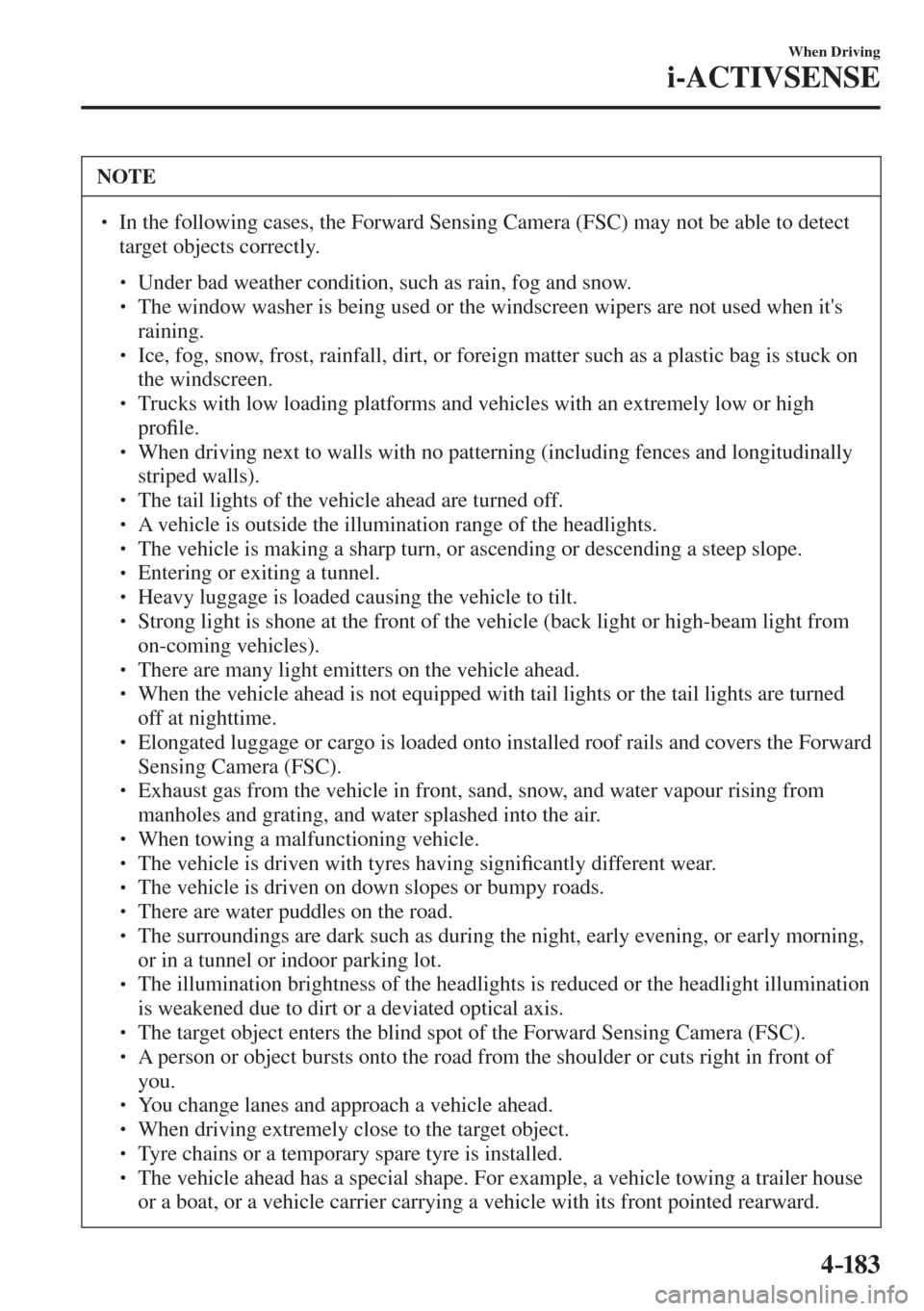

In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly.
Under bad weather condition, such as rain, fog and snow.
The window washer is being used or the windscreen wipers are not used when it's
raining.
Ice, fog, snow, frost, rainfall, dirt, or foreign matter such as a plastic bag is stuck on
the windscreen.
Trucks with low loading platforms and vehicles with an extremely low or high
pro ¿ le.
When driving next to walls with no patterning (including fences and longitudinally
striped walls).
The tail lights of the vehicle ahead are turned off.
A vehicle is outside the illumination range of the headlights.
The vehicle is making a sharp turn, or ascending or descending a steep slope.
Entering or exiting a tunnel.
Heavy luggage is loaded causing the vehicle to tilt.
Strong light is shone at the front of the vehicle (back light or high-beam light from
on-coming vehicles).
There are many light emitters on the vehicle ahead.
When the vehicle ahead is not equipped with tail lights or the tail lights are turned
off at nighttime.
Elongated luggage or cargo is loaded onto installed roof rails and covers the Forward
Sensing Camera (FSC).
Exhaust gas from the vehicle in front, sand, snow, and water vapour rising from
manholes and grating, and water splashed into the air.
When towing a malfunctioning vehicle.
The vehicle is driven with tyres having signi ¿ cantly different wear.
The vehicle is driven on down slopes or bumpy roads.
There are water puddles on the road.
The surroundings are dark such as during the night, early evening, or early morning,
or in a tunnel or indoor parking lot.
The illumination brightness of the headlights is reduced or the headlight illumination
is weakened due to dirt or a deviated optical axis.
The target object enters the blind spot of the Forward Sensing Camera (FSC).
A person or object bursts onto the road from the shoulder or cuts right in front of
you.
You change lanes and approach a vehicle ahead.
When driving extremely close to the target object.
Tyre chains or a temporary spare tyre is installed.
The vehicle ahead has a special shape. For example, a vehicle towing a trailer house
or a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.
Page 324 of 723
4–184
When Driving
i-ACTIVSENSE
NOTE
If the Forward Sensing Camera (FSC) cannot operate normally due to backlight or fog,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction.
High Beam Control System (HBC) warning light (amber)
Adaptive LED Headlights (ALH) warning light (amber)
Lane Departure Warning System (LDWS) warning light
Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)
If the Forward Sensing Camera (FSC) cannot operate normally due to high
temperatures, the system functions related to the Forward Sensing Camera (FSC) are
temporarily stopped and the following warning lights turn on. However, this does not
indicate a malfunction. Cool down the area around the Forward Sensing Camera (FSC)
such as by turning on the air conditioner.
High Beam Control System (HBC) warning light (amber)
Adaptive LED Headlights (ALH) warning light (amber)
Lane Departure Warning System (LDWS) warning light
Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)
If the Forward Sensing Camera (FSC) detects that the windscreen is dirty or foggy,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
problem. Remove the dirt from the windscreen or press the defroster switch and defog
the windscreen.
High Beam Control System (HBC) warning light (amber)
Adaptive LED Headlights (ALH) warning light (amber)
Lane Departure Warning System (LDWS) warning light
Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)
If there are recognizable cracks or damage caused by À ying gravel or debris on the
windscreen, always have the windscreen replaced. Consult an Authorised Mazda
Repairer for replacement.
Page 325 of 723
4–185
When Driving
i-ACTIVSENSE
NOTE
(With Advanced Smart City Brake Support (Advanced SCBS))
The Forward Sensing Camera (FSC) recognises pedestrians when all of the
following conditions are met:
The height of a pedestrian is about 1 to 2 meters.
An outline such as the head, both shoulders, or the legs can be determined.
In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly:
Multiple pedestrians are walking, or there are groups of people.
A pedestrian is close to a separate object.
A pedestrian is crouching, lying, or slouching.
A pedestrian suddenly jumps into the road right in front of the vehicle.
A pedestrian opens an umbrella, or is carrying large baggage or articles.
A pedestrian is in a dark location such as during the night, or blends into the
background by wearing clothes matching the background colour.
Page 326 of 723
4–186
When Driving
i-ACTIVSENSE
*Some models.
Radar Sensor (Front) *
Your vehicle is equipped with a radar sensor (front).
The following systems also use the radar sensor (front).
Mazda Radar Cruise Control (MRCC)
Distance Recognition Support System (DRSS)
Smart Brake Support (SBS)
The radar sensor (front) functions by detecting the radio waves re À ected off a vehicle ahead
or an obstruction sent from the radar sensor.
The radar sensor (front) is mounted behind the front emblem.
Radar sensor (front)
If the Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Light (amber)
is illuminated, the area around the radar sensor may be dirty. Refer to “Warning Guidance”
in the centre display (Type B audio).
Refer to If a Warning Light Turns On or Flashes on page 7-49 .
Page 327 of 723
4–187
When Driving
i-ACTIVSENSE
CAUTION
Heed the following precautions to assure correct operation of each system.
Do not adhere stickers (including transparent stickers) to the surface of the radiator
grille and front emblem in and around the radar sensor (front), and do not replace
the radiator grille and front emblem with any product that is not a genuine product
designed for use with the radar sensor (front).
The radar sensor (front) includes a function for detecting soiling of the radar sensor's
front surface and informing the driver, however, depending on the conditions, it may
require time to detect or it may not detect plastic shopping bags, ice or snow. If this
occurs, the system may not operate correctly, therefore always keep the radar sensor
(front) clean.
Do not install a grille guard.
If the front part of the vehicle has been damaged in a vehicle accident, the position of
the radar sensor (front) may have moved. Stop the system immediately and always
have the vehicle inspected at an Authorised Mazda Repairer.
Do not use the front bumper to push other vehicles or obstructions such as when
pulling out of a parking space. Otherwise, the radar sensor (front) could be hit and its
position deviated.
Do not remove, disassemble, or modify the radar sensor (front).
For repairs, replacement or paint work around the radar sensor (front), consult an
Authorised Mazda Repairer.
Do not modify the suspension. If the suspension are modi ¿ ed, the vehicle's posture
could change and the radar sensor (front) may not be able to correctly detect a vehicle
ahead or an obstruction.
Page 328 of 723
4–18 8
When Driving
i-ACTIVSENSE
NOTE
Under the following conditions, the radar sensor (front) may not be able to detect
vehicles ahead or obstructions correctly and each system may not operate normally.
The rear surface of a vehicle ahead does not re À ect radio waves effectively, such as
an unloaded trailer or an automobile with a loading platform covered by a soft top,
vehicles with a hard plastic tailgate, and round-shaped vehicles.
Vehicles ahead with low vehicle height and thus less area for re À ecting radio waves.
Visibility is reduced due to a vehicle ahead casting off water, snow, or sand from its
tyres and onto your windscreen.
The luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.
Ice, snow, or soiling is on the front surface of the front emblem.
During inclement weather such as rain, snow, or sand storms.
When driving near facilities or objects emitting strong radio waves.
Under the following conditions, the radar sensor (front) may not be able to detect
vehicles ahead or obstructions.
The beginning and end of a curve.
Roads with continuous curves.
Narrow lane roads due to road construction or lane closures.
The vehicle ahead enters the radar sensor's blind spot.
The vehicle ahead is running abnormally due to accident or vehicle damage.
Roads with repeated up and down slopes
Driving on poor roads or unpaved roads.
The distance between your vehicle and the vehicle ahead is extremely short.
A vehicle suddenly comes close such as by cutting into the lane.
To prevent incorrect operation of the system, use tyres of the same speci ¿ ed size,
manufacturer, brand, and tread pattern on all four wheels. In addition, do not use
tyres with signi ¿ cantly different wear patterns or tyre pressures on the same vehicle
(Including the temporary spare tyre).
If the battery power is weak, the system may not operate correctly.
If the vehicle is driven on a road with little traf ¿ c and few vehicles ahead or
obstructions for the radar sensor (front) to detect, the sensor detects that the radar
sensor (front) is dirty and the Smart Brake Support/Smart City Brake Support (SBS/
SCBS) Warning Light (amber) may be temporarily turned on. However, it does not
indicate a malfunction.
Page 329 of 723
4–189
When Driving
i-ACTIVSENSE
*Some models.
Radar Sensors (Rear) *
Your vehicle is equipped with radar sensors (rear). The following systems also use the radar
sensors (rear).
Blind Spot Monitoring system (BSM)
Rear Cross Traf ¿ c Alert (RCTA)
The radar sensors (rear) function by detecting the radio waves re À ected off a vehicle
approaching from the rear or an obstruction sent from the radar sensor.
Radar sensors (rear)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Always keep the surface of the rear bumper near the radar sensors (rear) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
Refer to Exterior Care on page 6-58 .
CAUTION
If the rear bumper receives a severe impact, the system may no longer operate normally.
Stop the system immediately and have the vehicle inspected at an expert repairer, we
recommend an Authorised Mazda Repairer.
Page 330 of 723
4–190
When Driving
i-ACTIVSENSE
NOTE
The detection ability of the radar sensors (rear) has limitations. In the following cases,
the detection ability may lower and the system may not operate normally.
The rear bumper near the radar sensors (rear) has become deformed.
Snow, ice or mud adheres to the radar sensors (rear) on the rear bumper.
Under bad weather conditions such as rain, snow and fog.
Under the following conditions, the radar sensors (rear) cannot detect target objects or
it may be dif ¿ cult to detect them.
Stationary objects on a road or a road side such as small, two-wheeled vehicles,
bicycles, pedestrians, animals, and shopping carts.
Vehicle shapes which do not re À ect radar waves well such as empty trailers with a
low vehicle height and sports cars.
Vehicles are shipped with the direction of the radar sensors (rear) adjusted for each
vehicle to a loaded vehicle condition so that the radar sensors (rear) detect approaching
vehicles correctly. If the direction of the radar sensors (rear) has deviated for some
reason, have the vehicle inspected at an expert repairer, we recommend an Authorised
Mazda Repairer.
For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork,
and replacement near the radar sensors, consult an expert repairer, we recommend an
Authorised Mazda Repairer.
Turn off the system while pulling a trailer or while an accessory such as a bicycle
carrier is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the
radar will be blocked causing the system to not operate normally.
The radar sensors are regulated by the relevant radio wave laws of the country in
which the vehicle is driven. If the vehicle is driven abroad, authorization from the
country in which the vehicle is driven may be required.
