MAZDA MODEL CX-3 2017 Owner's Manual - RHD (UK, Australia) (in English)

4–161
When Driving
i-ACTIVSENSE

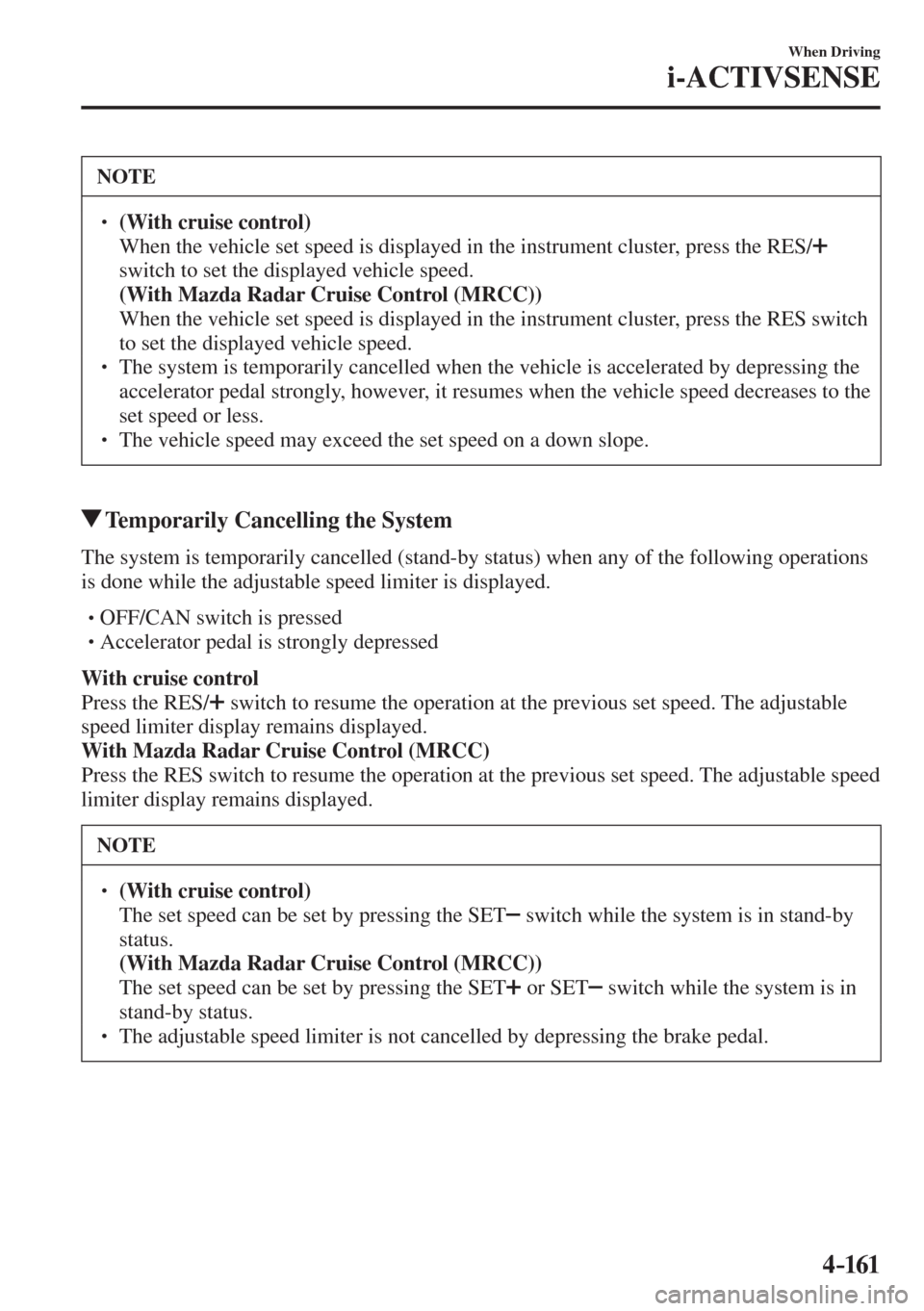

NOTE
  (With cruise control)  When the vehicle set speed is displayed in the instrument cluster, press the RES /
switch to set the displayed vehicle speed.
 (With Mazda Radar Cruise Control (MRCC))  When the vehicle set speed is displayed in the instrument cluster, press the RES switch
to set the displayed vehicle speed.
  The system is temporarily cancelled when the vehicle is accelerated by depressing the
accelerator pedal strongly, however, it resumes when the vehicle speed decreases to the
set speed or less.
  The vehicle speed may exceed the set speed on a down slope.
Temporarily Cancelling the System
The system is temporarily cancelled (stand-by status) when any of the following operations
is done while the adjustable speed limiter is displayed.



 OFF/CAN switch is pressed



 Accelerator pedal is strongly depressed

With cruise control
Press the RES /
switch to resume the operation at the previous set speed. The adjustable
speed limiter display remains displayed.
With Mazda Radar Cruise Control (MRCC)
Press the RES switch to resume the operation at the previous set speed. The adjustable speed
limiter display remains displayed.
NOTE
  (With cruise control)  The set speed can be set by pressing the SET switch while the system is in stand-by
status.
 (With Mazda Radar Cruise Control (MRCC))  The set speed can be set by pressing the SET or SET switch while the system is in
stand-by status.
  The adjustable speed limiter is not cancelled by depressing the brake pedal.

4–162
When Driving
i-ACTIVSENSE
*Some models.
Advanced Smart City Brake Support (Advanced SCBS)
(Except Indonesia, Malaysia, and Thailand)
*
The Advanced Smart City Brake Support (Advanced SCBS) alerts the driver of a possible
collision using the display and a warning sound when the Forward Sensing Camera (FSC)
detects a vehicle ahead or pedestrian and determines that a collision with the object is
unavoidable while the vehicle is driven at a vehicle speed of about 4 to 80 km/h (2 to
50 mph) if the object is a vehicle ahead and about 10 to 80 km/h (6.2 to 50 mph) if the
object is a pedestrian. In addition, the system reduces damage in the event of a collision by
operating the brake control (SCBS brake) when the system determines that a collision is
unavoidable. In addition, when the driver depresses the brake pedal, the brakes are applied
¿ rmly and quickly to assist. (Brake Assist (Advanced SCBS brake assist))


Forward Sensing
Camera (FSC)

WARNING
Do not rely completely on the Advanced Smart City Brake Support (Advanced SCBS)
system:

 The Advanced Smart City Brake Support (Advanced SCBS) system is only designed
to reduce damage in the event of a collision. Over reliance on the system leading to
the accelerator pedal or brake pedal being mistakenly operated could result in an
accident.
  The Advanced Smart City Brake Support (Advanced SCBS) system operates in
response to a vehicle ahead or a pedestrian. The system does not operate in response
to obstructions such as a wall, 2-wheeled vehicles, or animals.

4–163
When Driving
i-ACTIVSENSE
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
 The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Advanced Smart City Brake Support (Advanced SCBS) System
Operation on page 4-165 on how to turn off the Advanced Smart City Brake Support
(Advanced SCBS) system.

4–16 4
When Driving
i-ACTIVSENSE
NOTE
  The Advanced Smart City Brake Support (Advanced SCBS) system will operate under
the following conditions.



 The engine is running.



 The Smart City Brake Support (SCBS) warning light (amber) does not illuminate.



 (Object is vehicle ahead)
 The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).



 (Object is a pedestrian)
 The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).



 The Advanced Smart City Brake Support (Advanced SCBS) system is not turned off.

 Under the following conditions, the Advanced Smart City Brake Support (Advanced
SCBS) system may not operate normally:



 The Advanced Smart City Brake Support (Advanced SCBS) system will not operate
if the driver is deliberately performing driving operations (accelerator pedal and
steering wheel).



 If there is the possibility of partial contact with a vehicle ahead.



 The vehicle is driven on a slippery road surface such as wet roads or icy or snow-
bound roads.



 The braking performance is adversely affected due to cold temperatures or wet
brakes.



 The vehicle is driven at the same speed as the vehicle ahead.



 The accelerator pedal is depressed.



 The brake pedal is depressed.



 The steering wheel is being operated.



 The selector lever is being operated.

 In the following cases, the Advanced Smart City Brake Support (Advanced SCBS)
may operate.



 Objects on the road at the entrance to a curve.



 Vehicles passing in the opposite lane while making a curve.



 When passing through a toll gate.



 When passing through low gates, narrow gates, car washing machines, or tunnels.



 If you suddenly come close to a vehicle ahead.



 2-wheeled vehicles, animals, or standing trees.

 (Manual transaxle)  If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed,
the engine stops.

4–165
When Driving
i-ACTIVSENSE

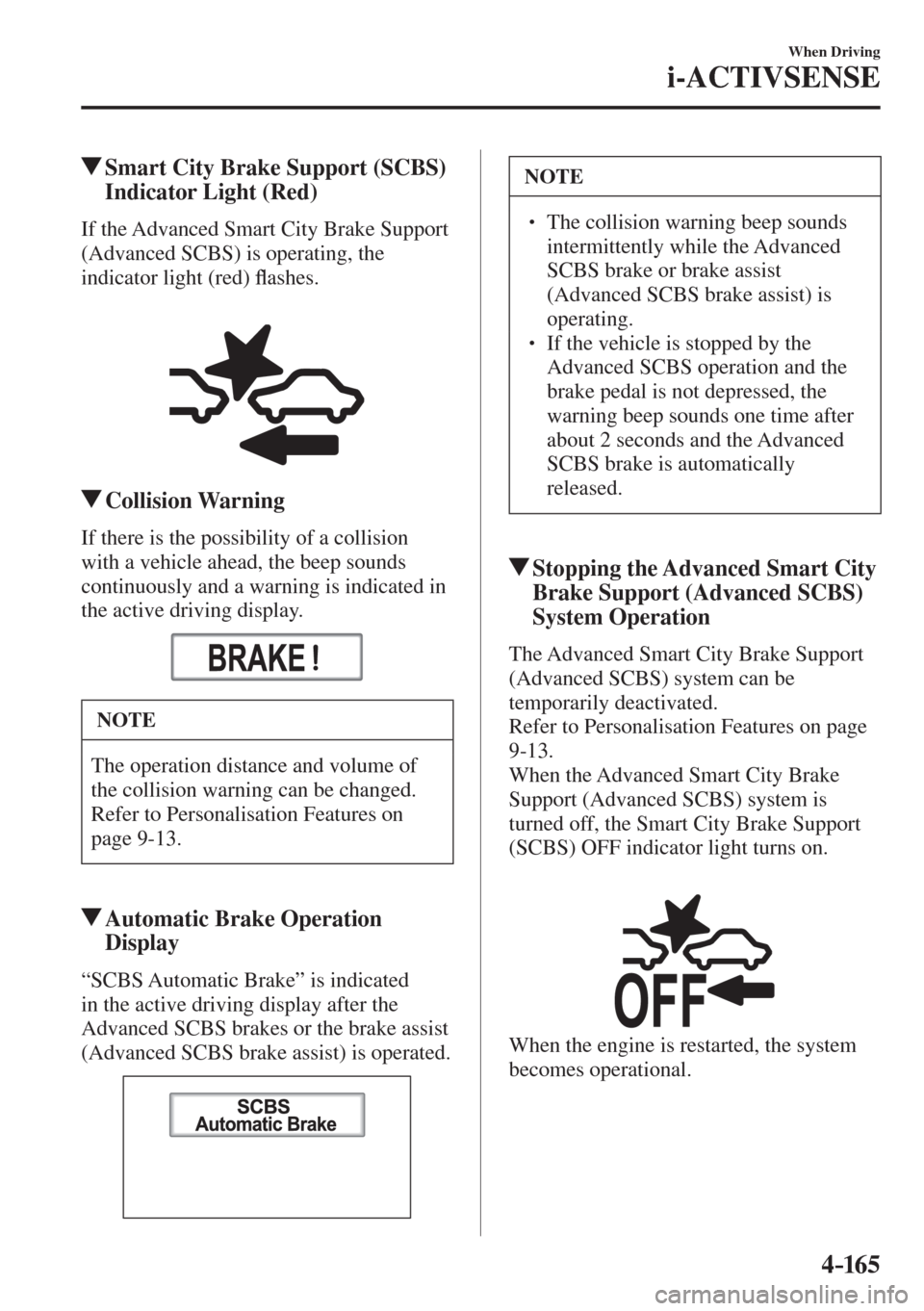

Smart City Brake Support (SCBS)
Indicator Light (Red)
If the Advanced Smart City Brake Support
(Advanced SCBS) is operating, the
indicator light (red) À ashes.



Collision Warning
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the active driving display.


NOTE
The operation distance and volume of
the collision warning can be changed.
Refer to Personalisation Features on
page 9-13 .
Automatic Brake Operation
Display
“SCBS Automatic Brake” is indicated
in the active driving display after the
Advanced SCBS brakes or the brake assist
(Advanced SCBS brake assist) is operated.


NOTE
  The collision warning beep sounds
intermittently while the Advanced
SCBS brake or brake assist
(Advanced SCBS brake assist) is
operating.
  If the vehicle is stopped by the
Advanced SCBS operation and the
brake pedal is not depressed, the
warning beep sounds one time after
about 2 seconds and the Advanced
SCBS brake is automatically
released.
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
System Operation
The Advanced Smart City Brake Support
(Advanced SCBS) system can be
temporarily deactivated.
Refer to Personalisation Features on page
9-13 .
When the Advanced Smart City Brake
Support (Advanced SCBS) system is
turned off, the Smart City Brake Support
(SCBS) OFF indicator light turns on.



When the engine is restarted, the system
becomes operational.

4–16 6
When Driving
i-ACTIVSENSE
*Some models.
Smart City Brake Support [Forward] (SCBS F)
(Indonesia, Malaysia, and Thailand)
*
The Smart City Brake Support [Forward] (SCBS F) system alerts the driver of a possible
collision using an indication in the display and a warning sound when the Forward Sensing
Camera (FSC) detects a vehicle ahead and determines that a collision with a vehicle ahead
is unavoidable while the vehicle is being driven at a vehicle speed of about 4 to 80 km/h (2
to 50 mph). In addition, the system reduces damage in the event of a collision by operating
the brake control (SCBS brake) when the system determines that a collision is unavoidable
while the vehicle is being driven at a vehicle speed of about 4 to 30 km/h (2 to 18 mph). It
may also be possible to avoid a collision if the relative speed between your vehicle and the
vehicle in front of you is less than about 20 km/h (12 mph). In addition, when the driver
depresses the brake pedal while the system is in the operation range at about 4 to 30 km/h (2
to 18 mph), the brakes are applied ¿ rmly and quickly to assist. (Brake Assist (SCBS brake
assist))


Forward Sensing
Camera (FSC)

WARNING
Do not rely completely on the Smart City Brake Support [Forward] (SCBS F) system:
 The Smart City Brake Support [Forward] (SCBS F) system is only designed to
reduce damage in the event of a collision. Over reliance on the system leading to
the accelerator pedal or brake pedal being mistakenly operated could result in an
accident.
  The Smart City Brake Support [Forward] (SCBS F) is a system which operates
in response to a vehicle ahead. The system may not be able to detect or react to
2-wheeled vehicles or pedestrians.

4–167
When Driving
i-ACTIVSENSE
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
 The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Smart City Brake Support [Forward] (SCBS F) system Operation
on page 4-169 on how to turn off the Smart City Brake Support [Forward] (SCBS F)
system.

4–16 8
When Driving
i-ACTIVSENSE
NOTE
  The Smart City Brake Support [Forward] (SCBS F) system will operate under the
following conditions.



 The engine is running.



 The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system warning
light (amber) does not illuminate.



 (Rear-end collision warning)
 The vehicle speed is about 4 to 80 km/h (2 to 50 mph).



 (Brake control (SCBS brake))
 The vehicle speed is about 4 to 30 km/h (2 to 18 mph).



 The Smart City Brake Support [Forward] (SCBS F) system is not turned off.

 Under the following conditions, the Smart City Brake Support [Forward] (SCBS F)
system may not operate normally:



 The Smart City Brake Support [Forward] (SCBS F) system will not operate if the
driver is deliberately performing driving operations (accelerator pedal and steering
wheel).



 If there is the possibility of partial contact with a vehicle ahead.



 The vehicle is driven on a slippery road surface such as wet roads or icy or snow-
bound roads.



 The braking performance is adversely affected due to cold temperatures or wet
brakes.



 The vehicle is driven at the same speed as the vehicle ahead.



 The accelerator pedal is depressed.



 The brake pedal is depressed.



 The steering wheel is being operated.



 The selector lever is being operated.

 In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the Smart City Brake Support [Forward] (SCBS F) may operate.



 Objects on the road at the entrance to a curve.



 Vehicles passing in the opposite lane while making a curve.



 Metal objects, bumps, or protruding objects on the road.



 When passing through a toll gate.



 When passing through low gates, narrow gates, car washing machines, or tunnels.



 If you suddenly come close to a vehicle ahead.



 2-wheeled vehicles, pedestrians, animals or standing trees.



 Vehicle is driven with some of the tyres having signi¿ cant wear.

 (Manual transaxle)  If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed,
the engine stops.

4–169
When Driving
i-ACTIVSENSE

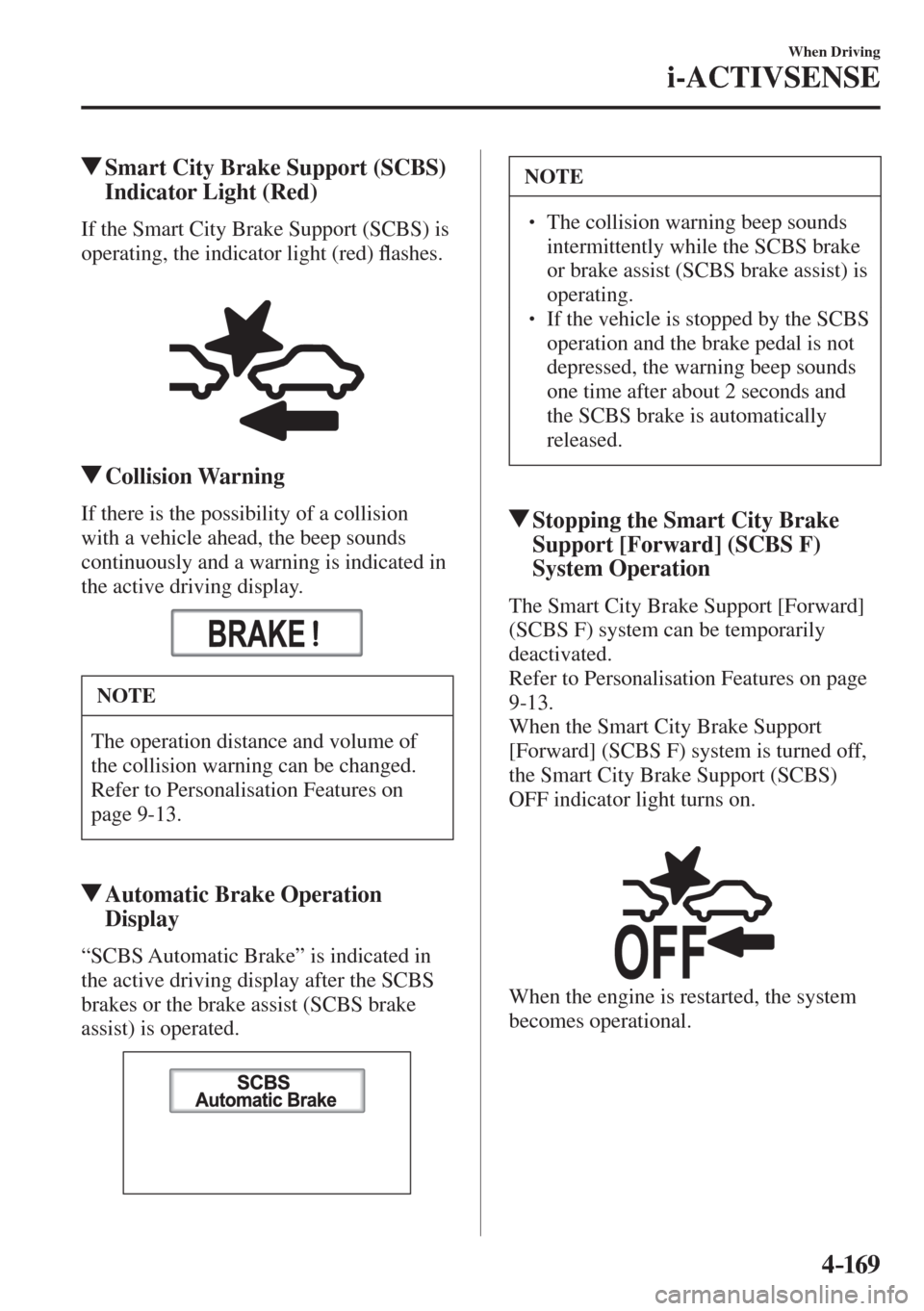

Smart City Brake Support (SCBS)
Indicator Light (Red)
If the Smart City Brake Support (SCBS) is
operating, the indicator light (red) À ashes.



Collision Warning
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the active driving display.


NOTE
The operation distance and volume of
the collision warning can be changed.
Refer to Personalisation Features on
page 9-13 .
Automatic Brake Operation
Display
“SCBS Automatic Brake” is indicated in
the active driving display after the SCBS
brakes or the brake assist (SCBS brake
assist) is operated.


NOTE
  The collision warning beep sounds
intermittently while the SCBS brake
or brake assist (SCBS brake assist) is
operating.
  If the vehicle is stopped by the SCBS
operation and the brake pedal is not
depressed, the warning beep sounds
one time after about 2 seconds and
the SCBS brake is automatically
released.
Stopping the Smart City Brake
Support [Forward] (SCBS F)
System Operation
The Smart City Brake Support [Forward]
(SCBS F) system can be temporarily
deactivated.
Refer to Personalisation Features on page
9-13 .
When the Smart City Brake Support
[Forward] (SCBS F) system is turned off,
the Smart City Brake Support (SCBS)
OFF indicator light turns on.



When the engine is restarted, the system
becomes operational.

4–170
When Driving
i-ACTIVSENSE
*Some models.
Smart City Brake Support [Reverse] (SCBS R) *
The Smart City Brake Support [Reverse] (SCBS R) is a system which is designed to reduce
damage in the event of a collision by operating the brake control (SCBS brake) when the
system’s ultrasonic sensors detect an obstruction at the rear of the vehicle while driving
at a speed of about 2 to 8 km/h (2 to 4 mph) and the system determines that a collision is
unavoidable.

ReverseUltrasonic sensor (rear)
