4–91
When Driving
i-ACTIVSENSE
y Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be dif ¿ cult to detect them.
y The vehicle speed when reversing is about 10 km/h (6.3 mph) or faster.
y The radar sensor (rear) detection area is obstructed by a nearby wall or parked
vehicle. (Reverse the vehicle to a position where the radar sensor detection area is no
longer obstructed.)
Your vehicle
y A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
y The vehicle is parked on a slant.
Your vehicle
y Directly after pressing the Blind Spot Monitoring (BSM) switch and the system
becomes operable.
y In the following cases, it may be dif ¿ cult to view the illumination/ À ashing of the Blind
Spot Monitoring (BSM) warning lights equipped on the door mirrors.
y Snow or ice adheres to the door mirrors.
y The front door glass is fogged or covered in snow, frost or dirt.
y Turn off the Rear Cross Traf ¿ c Alert (RCTA) system while pulling a trailer or while an
accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise,
the radio waves emitted by the radar will be blocked causing the system to not operate
normally.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 212 of 582
4–92
When Driving
i-ACTIVSENSE
*Some models.
Mazda Radar Cruise Control (MRCC) *
The Mazda Radar Cruise Control (MRCC) system is designed to maintain headway control *1
according to the vehicle speed using a radar sensor (front) to detect the distance to a vehicle
ahead, and by presetting the vehicle speed between 30 km/h (19 mph) and 145 km/h (90
mph), the driver is freed from having to constantly use the accelerator or brake pedals.
*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the Mazda Radar Cruise Control (MRCC) system.
Additionally, if your vehicle starts closing in on the vehicle ahead because, for example, the
vehicle ahead brakes suddenly, a warning sound and a warning indication in the display are
activated simultaneously to alert you to maintain a suf ¿ cient distance between the vehicles.
Use the Mazda Radar Cruise Control (MRCC) system on expressways and other highways
which do not require a lot of repeated acceleration and deceleration.
WARNING
Do not rely completely on the Mazda Radar Cruise Control (MRCC) system and always
drive carefully:
The Mazda Radar Cruise Control (MRCC) system is designed to reduce load on the
driver, and although it maintains a constant vehicle speed, or specifi cally, it maintains
a constant distance between your vehicle and the detected vehicle ahead according to
the vehicle speed, the system has detection limitations depending on the type of vehicle
ahead and its conditions, the weather conditions, and the road conditions. Additionally,
the system may be unable to decelerate suffi ciently to avoid hitting the vehicle ahead
if the vehicle ahead applies the brakes suddenly or another vehicle cuts into the driving
lane, which could result in an accident. Always verify the safety of the surrounding area
and depress the brake pedal or accelerator pedal while keeping a safer distance from
vehicles ahead or on-coming vehicles.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 213 of 582
4–93
When Driving
i-ACTIVSENSE
Do not use the Mazda Radar Cruise Control (MRCC) system in the following locations.
Otherwise, it could lead to an accident:
¾ Roads with sharp curves and where vehicle traffi c is heavy and there is insuffi cient
space between vehicles. Roads where frequent and repetitive acceleration and
deceleration occur (Driving under these conditions using the Mazda Radar Cruise
Control (MRCC) system is not possible).
¾ When entering and exiting interchanges, service areas, and parking areas of highways
(If you exit a highway while headway control is in use, the vehicle ahead will no longer
be tracked and your vehicle may accelerate to the set speed).
¾ Slippery roads such as ice or snow-bound roads (The tires could spin causing you to
lose vehicle control).
¾ Long descending slopes (to maintain distance between vehicles, the system
automatically and continuously applies the brakes which could result in the loss of
brake power).
For the purposes of safety, switch the Mazda Radar Cruise Control (MRCC) system off
when it is not being used.
CAUTION
If the vehicle is towed or you are towing something, switch the Mazda Radar Cruise
Control (MRCC) system off to prevent an incorrect operation.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 214 of 582
4–94
When Driving
i-ACTIVSENSE
N O T E
y The Mazda Radar Cruise Control (MRCC) system operates when all of the following
conditions are met.
y The vehicle speed is about 30 km/h (19 mph) to 145 km/h (90 mph).
y The Mazda Radar Cruise Control (MRCC) system is turned on.
y The parking brake is not applied.
y The Smart Brake Support (SBS) is not malfunctioning.
y The Dynamic Stability Control (DSC) is operating normally.
y The selector lever is in the drive (D) position or manual (M) position (manual mode).
y In the following cases, the warnings may not activate even if your vehicle starts closing in
on the vehicle ahead.
y You are driving at the same speed as the vehicle ahead.
y Directly after the Mazda Radar Cruise Control (MRCC) system has been set.
y When the accelerator pedal is depressed or directly after the accelerator pedal is
released.
y Another vehicle cuts into the driving lane.
y The following are not detected as physical objects.
y Vehicles approaching in the opposite direction
y Pedestrians
y Stationary objects (stopped vehicles, obstructions)
y If a vehicle ahead is traveling at an extremely low speed, the system may not detect it
correctly.
y During headway control travel, do not set the system on two-wheeled vehicles such as
motorcycles and bicycles.
y Do not use the Mazda Radar Cruise Control (MRCC) system under conditions in which
the close proximity warnings are frequently activated.
y During headway control travel, the system accelerates and decelerates your vehicle in
conjunction with the speed of the vehicle ahead. However, if it is necessary to accelerate
for a lane change or if the vehicle ahead brakes suddenly causing you to close in on the
vehicle rapidly, accelerate using the accelerator pedal or decelerate using the brake
pedal depending on the conditions.
y While the Mazda Radar Cruise Control (MRCC) system is in use, it does not cancel
even if the selector lever is operated and any intended engine braking will not occur. If
deceleration is required, lower the vehicle speed setting or depress the brake pedal.
y The brake lights are illuminated while the Mazda Radar Cruise Control (MRCC)
automatic braking is operating.
y The Mazda Radar Cruise Control (MRCC) warning light (amber) turns on when the
system has a malfunction. Refer to Warning/Indicator Lights on page 4-24 .
y The headway control operation can be canceled and the system can be switched to only
cruise control. Refer to Cruise Control Function on page 4-100 .
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 215 of 582
4–95
When Driving
i-ACTIVSENSE
Mazda Radar Cruise Control (MRCC) Display Indication
The setting status and operation conditions of the Mazda Radar Cruise Control (MRCC)
system are indicated in the active driving display.
Vehicle ahead display
MRCC Distance between vehicle display
MRCC Set vehicle
speed
Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead because the vehicle applies the brakes
suddenly while you are traveling in headway control, the warning sound activates and
the brake warning is indicated in the display. Always verify the safety of the surrounding
area and depress the brake pedal while keeping a safer distance from the vehicle ahead.
Additionally, always keep a safer distance from the vehicles behind you.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 216 of 582
4–96
When Driving
i-ACTIVSENSE

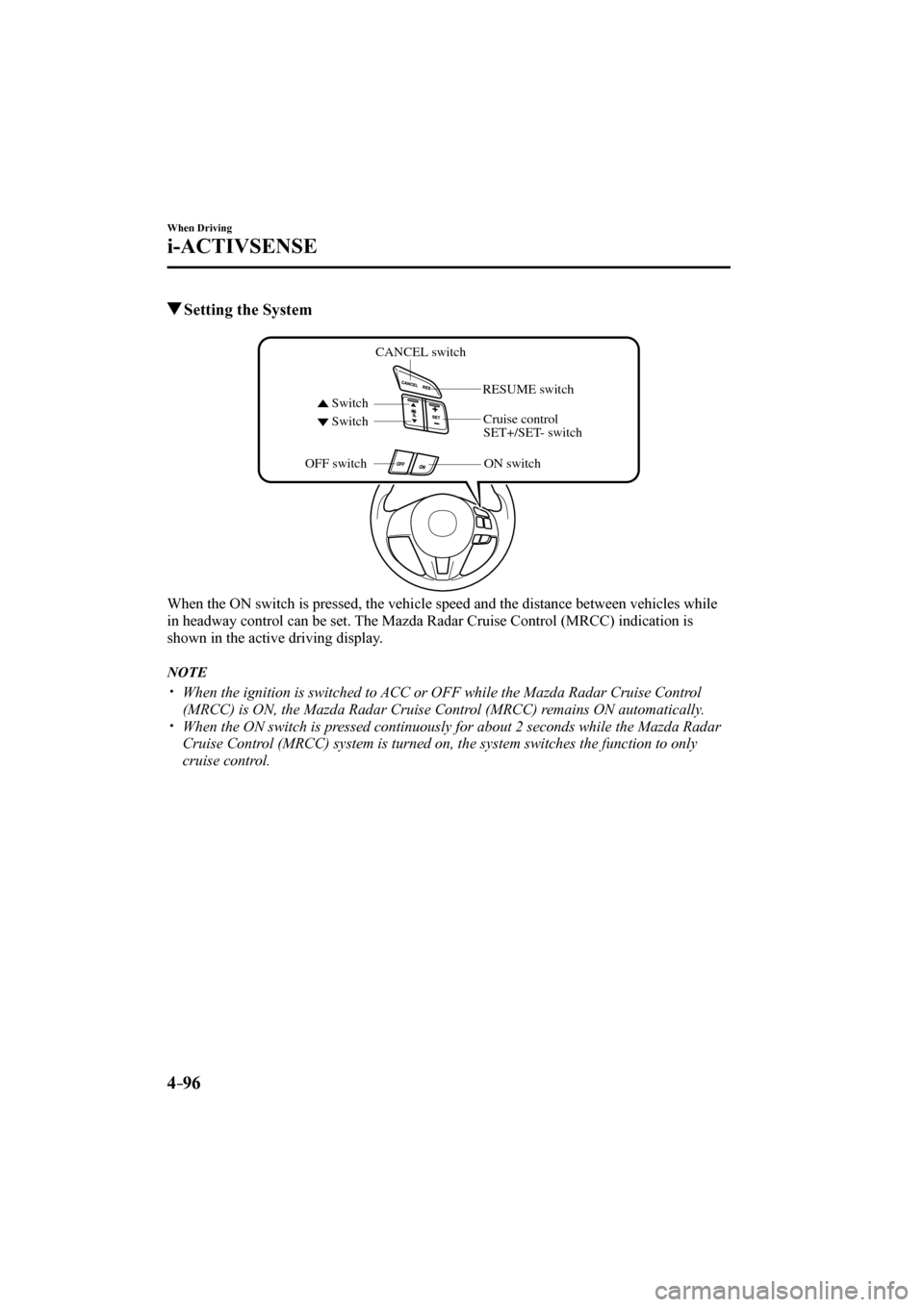

Setting the System
CANCEL switch
Switch SwitchRESUME switch
OFF switch ON switch
Cruise control
SET+/SET- switch
When the ON switch is pressed, the vehicle speed and the distance between vehicles while
in headway control can be set. The Mazda Radar Cruise Control (MRCC) indication is
shown in the active driving display.
N O T E
y When the ignition is switched to ACC or OFF while the Mazda Radar Cruise Control
(MRCC) is ON, the Mazda Radar Cruise Control (MRCC) remains ON automatically.
y When the ON switch is pressed continuously for about 2 seconds while the Mazda Radar
Cruise Control (MRCC) system is turned on, the system switches the function to only
cruise control.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 217 of 582
4–97
When Driving
i-ACTIVSENSE
How to Set the Speed
1. Adjust the vehicle speed to the desired
setting using the accelerator pedal.
2. Headway control begins when the
SET
or SET switch is pressed. The
set speed and the inter-vehicle distance
display ¿ lled with white lines are
displayed. The Mazda Radar Cruise
Control (MRCC) indicator light (green)
is indicated simultaneously.
Travel status Display
During travel at constant
speed
During travel under
headway control
N O T E
y If a vehicle ahead is detected while
traveling at a constant speed, the
vehicle-ahead indication is displayed
and headway control is performed.
Additionally, when a vehicle ahead is
no longer detected, the vehicle-ahead
indication turns off and the system
switches back to travel at constant
speed.
y Headway control is not possible if
the vehicle ahead is driving faster
than the set speed. Adjust the system
to the desired vehicle speed using the
accelerator pedal.
How to Set the Distance Between
Vehicles During Headway Control
The distance between vehicles is set to a
shorter distance each time the
switch is
pressed. The distance between vehicles is
set to a longer distance by pressing the
switch. The distance-between-vehicles can
be set to 4 levels; Long, medium, short,
and extremely short distance.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 218 of 582
4–98
When Driving
i-ACTIVSENSE
Distance-between-
vehicles guideline
(at 80 km/h (50 mph)
vehicle speed) Indication on display
Long (about 50 m (164 ft))
Medium (about 40 m
(131 ft))
Short (about 30 m (98 ft))
Extremely short (about
25 m (82 ft))
N O T E
y The distance between vehicles differs
depending on the vehicle speed, and the
slower the vehicle speed, the shorter the
distance.
y When the ignition is switched to ACC
or OFF and then the engine is started
again, the system automatically sets
the distance between vehicles to the
previous setting.
Changing the Set Vehicle Speed
Changing the set vehicle speed using the
SET switch
Press the SET
switch to accelerate.
Press the SET
switch to decelerate.
The set vehicle speed changes as follows
each time the SET switch is pressed.
Short press 1 km/h (1 mph)
Long press 10 km/h (5 mph)
N O T E
For example, the set vehicle speed is
changed by pressing the SET switch four
times as follows:
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 219 of 582
4–99
When Driving
i-ACTIVSENSE
To accelerate using the accelerator
pedal
Depress the accelerator pedal and press
and release the SET
or SET switch at
the desired speed. If a switch cannot be
operated, the system returns to the set
speed when you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
N O T E
y When accelerating using the SET
switch while in headway control, the set
vehicle speed can be adjusted but
acceleration is not possible. If there is
no longer a vehicle ahead, acceleration
continues until reaching the set vehicle
speed. Check the set vehicle speed by
viewing the set vehicle speed display in
the active driving display.
y When depressing the accelerator pedal,
the inter-vehicle distance display in the
active driving display changes to the
white-line display.
y The minimum settable speed is 30 km/h
(19 mph). If the set vehicle speed
reaches 30 km/h (19 mph) using the
switch operation, constant speed travel
is maintained at about 30 km/h (19
mph) even if the SET
switch is
pressed. The Mazda Radar Cruise
Control (MRCC) system is not canceled.
To Deactivate
The Mazda Radar Cruise Control (MRCC)
is canceled when the OFF switch is
pressed.
When the system is temporarily
canceled
In the following cases, the Mazda Radar
Cruise Control (MRCC) system is
temporarily canceled. The Mazda Radar
Cruise Control (MRCC) indicator light
(green) turns off simultaneously.
y The CANCEL switch is pressed.
y The brake pedal is depressed.
y The parking brake is applied.
y The selector lever is shifted to park (P),
neutral (N) or reverse (R).
y In the following cases, the beep sounds
one time.
y
The vehicle speed decreases to less
than 25 km (16 mph).
y
The DSC has operated.
y
The TCS has operated for a certain
period of time.
y
The Smart City Brake Support (SCBS)
has operated.
y
The Smart Brake Support (SBS) has
operated.
y
When traveling on a down slope for a
long period of time.
y
There is a problem with the system.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 220 of 582
4–10 0
When Driving
i-ACTIVSENSE
N O T E
y The Mazda Radar Cruise Control
(MRCC) system may be canceled during
rain, fog, snow or other inclement
weather conditions, or the front surface
of the radiator grille is dirty.
y If you have temporarily canceled the
Mazda Radar Cruise Control (MRCC),
you can return to your previously set
speed by pressing the RES switch and
after all of the operation conditions
have been met.
y If the OFF switch is pressed to cancel
the Mazda Radar Cruise Control
(MRCC), the system does not return to
the previously set speed even if the RES
switch is pressed.
Cruise Control Function
While this function is operating, the
headway control operation is canceled and
only the cruise control function operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise control function on
expressways and other highways which do
not require a lot of repeated acceleration
and deceleration.
WARNING
Do not use the cruise control function in
the following locations:
Otherwise, it could lead to an accident.
¾ Roads with sharp curves and where
vehicle traffi c is heavy and there is
insuffi cient space between vehicles.
(Driving under these conditions
using the cruise control function is
not possible)
¾ Steep down slopes (Set speed may
be exceeded because suffi cient
engine braking cannot be applied)
¾ Slippery roads such as ice or snow-
bound roads (Tires could spin
causing you to lose vehicle control)
Always drive carefully:
The warnings and brake control
will not operate after the headway
control function is canceled and the
system is switched to only the cruise
control function. Depress the brake
pedal to decelerate according to the
surrounding conditions while keeping
a safer distance from the vehicle ahead
and always driving carefully.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
