MAZDA MODEL CX-3 2017 Owners Manual (in English)
Manufacturer: MAZDA, Model Year: 2017, Model line: MODEL CX-3, Model: MAZDA MODEL CX-3 2017Pages: 582, PDF Size: 7.09 MB
Page 371 of 582
5–113
Interior Features
Bluetooth®
*Some models.
Bluetooth ® Audio Device
Information Display
If a Bluetooth ® audio device is connected,
the following information is displayed in
the audio display.
AVRCP Ver.
lower than 1.3 AVRCP
Ver. 1.3
Device name X X
Title — X
Artist name — X
Album name — X
File number — X
Playback time — X
Folder number — —
X: Available
—: Not available
N O T E
Some information may not display
depending on the device, and if the
information cannot be displayed, “ NO
TITLE ” is indicated.
Bluetooth ® Audio (Type B) *
Applicable Bluetooth ® speci ¿ cation
(Recommended)
Ver. 1.1/1.2/2.0
EDR/2.1 EDR/3.0
(conformity)
Response pro ¿ le
y A2DP (Advanced Audio Distribution
Pro ¿ le) Ver. 1.0/1.2
y AVRCP (Audio/Video Remote Control
Pro ¿ le) Ver. 1.0/1.3/1.4
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 372 of 582
5–114
Interior Features
Bluetooth®
A2DP is a pro ¿ le which transmits only
audio to the Bluetooth ® unit. If your
Bluetooth ® audio device corresponds
only to A2DP, but not AVRCP, you
cannot operate it using the control panel
of the vehicle's audio system. In this
case, only the operations on the mobile
device are available the same as when a
portable audio device for a non-compliant
Bluetooth
® device is connected to the
AUX terminal.
Function A2DP AVRCP
Ver. 1.0 Ver. 1.3 Ver. 1.4
Playback X X X X
Pause X X X X
File (Track)
up/down — X X X
Reverse — — X X
Fast-
forward — — X X
Text display — — X X
Repeat — — Depends
on
device Depends
on
device
Shuf À e — — Depends
on
device Depends
on
device
Scan — — Depends
on
device Depends
on
device
Folder up/
down — — — Depends
on
device
X: Available
—: Not available
N O T E
y The battery consumption of Bluetooth ®
audio devices increases while
Bluetooth
® is connected.
y If a general mobile phone device is
USB connected during music playback
over the Bluetooth
® connection, the
Bluetooth ® connection is disconnected.
For this reason, you cannot have music
playback over a Bluetooth
® connection
and music playback using a USB
connection at the same time.
y The system may not operate normally
depending on the Bluetooth ® audio
device.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 373 of 582
5–115
Interior Features
Bluetooth®
How to Use the Bluetooth ® Audio System
Switching to Bluetooth ® audio mode
To listen to music or voice audio recorded to a Bluetooth
® audio device, switch to the
Bluetooth ® audio mode to operate the audio device using the audio system control panel.
Any Bluetooth ® audio device must be paired to the vehicle's Bluetooth ® unit before it can be
used.
Refer to Bluetooth
® Preparation (Type B) on page 5-90 .
1. Turn on the Bluetooth ® audio device's power.
2. Switch the ignition to ACC or ON.
3. Select the
icon on the home screen to display the Entertainment screen.
4. When
is selected, switches to the Bluetooth ® audio mode to begin playback.
N O T E
y If Bluetooth ® audio is used after using Pandora ® , Aha™ or Stitcher™ radio, the
application on the mobile device has to be closed ¿ rst.
y If the Bluetooth ® audio device does not begin playback, select the icon.
y If the mode is switched from Bluetooth ® audio mode to another mode (radio mode), audio
playback from the Bluetooth ® audio device stops.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 374 of 582
5–116
Interior Features
Bluetooth®
Playback
To listen to a Bluetooth
® audio device over the vehicle's speaker system, switch the mode to
Bluetooth ® audio mode. (Refer to “Switching to Bluetooth ® audio mode”)
After switching to the Bluetooth ® audio mode, the following icons are displayed in the
lower part of the display. Icons which can be used differ depending on the version of the
Bluetooth
® audio device which you are currently using.
Icon Function
Displays the Entertainment menu. Use to switch to a different audio source.
(AVRCP Ver. 1.4 only)
Displays the top level folder/ ¿ le list.
Select the folder which you want to select.
The ¿ les in the selected folder are displayed.
Select the ¿ le you want to play.
(AVRCP Ver. 1.3 or higher)
Replays the song currently being played repeatedly.
When selected again, the songs in the folder are played repeatedly.
Select it again to cancel.
Icons change when the song is repeated or the folder is repeated.
(AVRCP Ver. 1.3 or higher)
Plays songs in the folder in random order.
When selected again, the songs on the device are played in random order.
Select it again to cancel.
Icons change during folder shuf À e or device shuf À e.
Scans the titles in a folder and plays the beginning of each song to aid in ¿ nding a desired
song.
When selected again, the beginning of each song on the device is played.
When selected again, the operation is canceled and the song currently being played
continues.
Returns to the beginning of the previous song.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.
Plays the Bluetooth
® audio. When selected again, playback is temporarily stopped.
Advances to the beginning of the next song.
Long-press to fast forward. It stops when you remove your hand from the icon or the
commander knob.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-40 .
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 375 of 582
5–117
Interior Features
Bluetooth®
Example of use (When searching for a
song from the top level of a device)
1. Select the
icon to display the
folder/ ¿ le list at the top level.
2. When the folder is selected, folders/ ¿ le
lists in the folder are displayed.
When the playlist is selected, the ¿ le
list is displayed.
3. Select the desired song.
N O T E
Select to move to a folder one level
higher.
Bluetooth ® Audio Device
Information Display
If a Bluetooth ® audio device is connected,
the following information is displayed in
the center display.
AVRCP
Ve r. l o w e r
than 1.3 AVRCP
Ver. 1.3 AVRCP
Ver. 1.4 or
higher
Device name X X X
Remaining
battery
charge of
device X X X
Song name — X X
Artist name — X X
Album name — X X
Playback
time — X X
Genre name — X X
Album art
image — — —
X: Available
—: Not available
N O T E
Some information may not display
depending on the device, and if the
information cannot be displayed,
“Unknown - - -” is indicated.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 376 of 582
5–118
Interior Features
Bluetooth®
*Some models.
How to Use Pandora ® *
What is Pandora ® ?
Pandora
® *1 is free personalized Internet radio. Simply enter a favorite artist, track, genre,
and Pandora ® will create a personalized station that plays their music and more like it.
Rate songs by giving thumbs-up and thumbs-down feedback to further re ¿ ne your station,
discover new music and help Pandora
® play only music you like.
*1 Pandora ® , the Pandora ® logo, and the Pandora ® trade dress are trademarks or registered
trademarks of Pandora Media, Inc., used with permission.
N O T E
To operate Pandora ® from your Bluetooth ® device, perform the following in advance:
y Create Pandora ® account on the Web.
y Create Pandora ® station using Pandora ® application.
y Install Pandora ® application on your device.
Playback
Select the
icon on the home screen to display the Entertainment screen. When is
selected, the following icons are indicated in the bottom part of the center display.
Icon Function
Displays the Entertainment menu. Use to switch to a different audio source.
Displays the station list.
Use to switch to other stations.
Thumbs-Down
Press the icon to tell Pandora ® not to play this track.
Thumbs-Up
Press the icon to tell Pandora ® “you like this track” and it helps to bring in more tracks
like it to your station.
Bookmarking
Bookmarks the song or artist currently being played.
Plays the track. When selected again, playback is temporarily stopped.
Goes to the next song.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 377 of 582
5–119
Interior Features
Bluetooth®
Icon Function
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-40 .
N O T E
y The skip function may not be available depending on the device.
y The number of skips is limited by Pandora ® .
y If the icon is selected when the skip song function is running, the next song is skipped.
Selection from station list
Selection can be made from a programmed
radio station list.
1. Select the icon.
2. Select the desired radio station.
N O T E
When is selected, songs randomly
selected from the radio station list are
played.
Selecting the sort method
The displayed order of the station list can
be changed.
1. Select the icon.
2. Select
.
3. Select
to display in the order
starting from the newly created station.
4. Select
to display in alphabetical
order.
N O T E
The displayed order of cannot be
changed.
Bookmarking
You can bookmark song or artist to check
out later on the Web.
1. Select the icon.
2. Select
to bookmark the
song.
3. Select
to bookmark the
artist.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 378 of 582
5–120
Interior Features
Bluetooth®
How to Use Aha™
What is Aha™?
A h a
*1 is an application which can be used to enjoy various Internet content such as Internet
radio and podcasts.
Stay connected to your friends activities by getting updates from Facebook and Twitter.
Using the location-based service, nearby services and destinations can be searched or real-
time local information can be obtained.
For details on Aha, refer to “http://www.aharadio.com/”.
*1 Aha, the Aha logo, and the Aha trade dress are trademarks or registered trademarks of
Harman International Industries, Inc., used with permission.
N O T E
y The service content provided by Aha varies depending on the country in which the user
resides. In addition, the service is not available in some countries.
y To operate Aha from your Bluetooth ® device, perform the following in advance:
y Install the Aha application to your device.
y Create an Aha account for your device.
y Log onto Aha using your device.
y Select the preset station on your device.
Playback
Select the
icon on the home screen to display the Entertainment screen. When is
selected, the following icons are displayed at the bottom of the center display. The displayed
icon differs depending on the selected station.
In addition, icons other than the following icons may be displayed.
Icon Function
Displays the Entertainment menu. Use to switch to a different audio source.
Displays the main menu.
Use to switch to other stations.
Displays the content list.
Use to switch to other desired content on the station.
Shout
Records voice.
Records voice and posts it as playable audio to Facebook and other social stations.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D

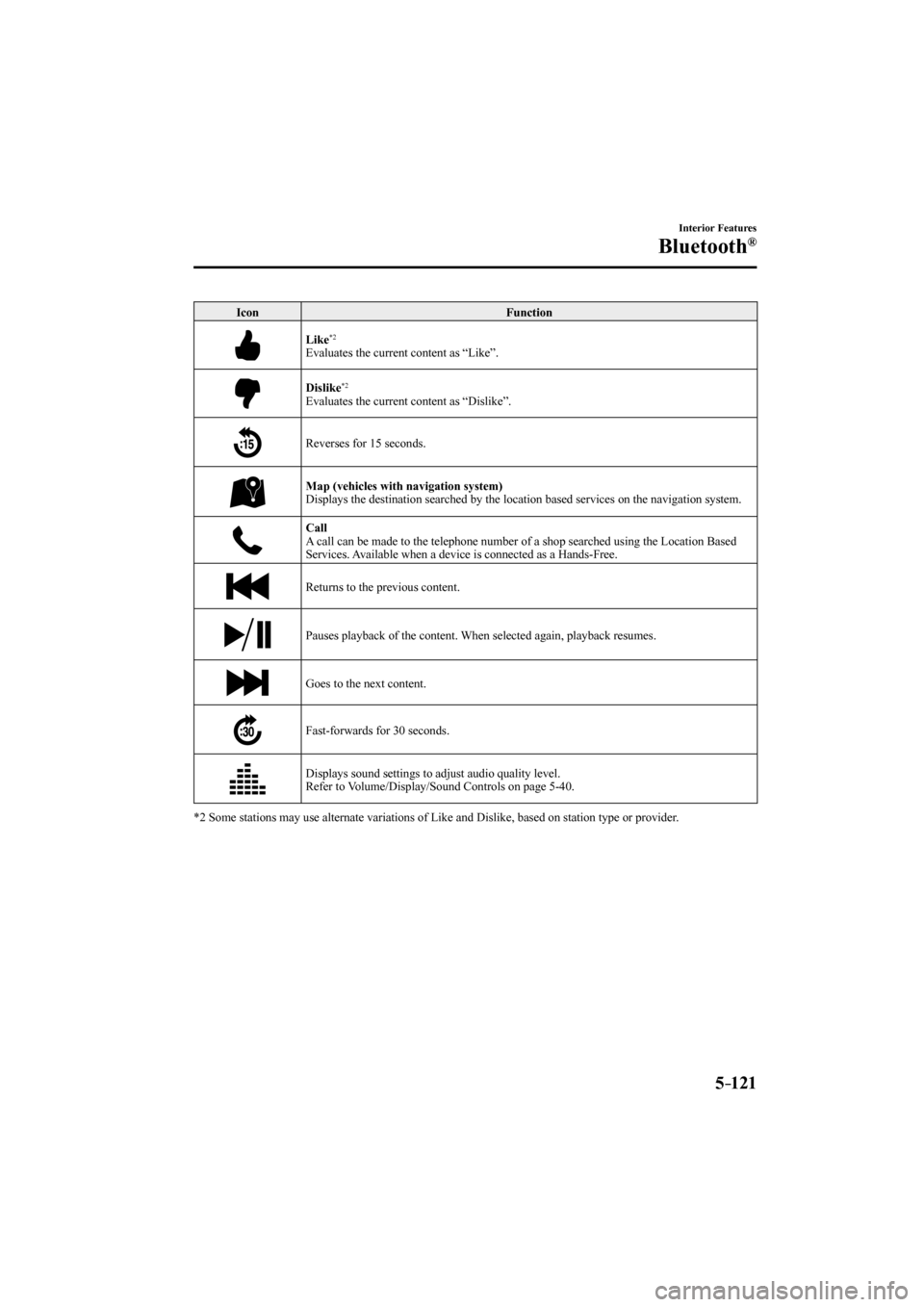

Page 379 of 582
5–121
Interior Features
Bluetooth®
Icon Function
Like
*2
Evaluates the current content as “Like”.
Dislike
*2
Evaluates the current content as “Dislike”.
Reverses for 15 seconds.
Map (vehicles with navigation system)
Displays the destination searched by the location based services on the navigation system.
Call
A call can be made to the telephone number of a shop searched using the Location Based
Services. Available when a device is connected as a Hands-Free.
Returns to the previous content.
Pauses playback of the content. When selected again, playback resumes.
Goes to the next content.
Fast-forwards for 30 seconds.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-40 .
*2 Some stations may use alternate variations of Like and Dislike, based on station type or provider.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 380 of 582
5–122
Interior Features
Bluetooth®
Main menu
Select the
icon.
Switch the tab and select the station category.
Tab Function
Presets Displays the preset station list set on the device.
Select the preset station name to play the station content.
Nearby Select the desired station.
Guidance is provided to the searched destination near the vehicle's position.
You can designate desired categories previously set using the ¿ lter setting
on your device.
N O T E
The available Location Based Services may differ because the services depend on the
content provided by Aha™.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
