5–133
Interior Features
Interior Equipment
CAUTION
¾ To prevent accessory socket damage or
electrical failure, pay attention to the
following:
¾ Do not use accessories that require
more than 120 W (DC 12 V, 10 A).
¾ Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
¾ Close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.
¾ Correctly insert the plug into the
accessory socket.
¾ Do not insert the cigarette lighter into
the accessory socket.
¾ Noise may occur on the audio playback
depending on the device connected to
the accessory socket.
¾ Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be aff ected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off . If the
problem is not resolved, consult an
Authorized Mazda Dealer.
N O T E
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups
or drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be
hit and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 392 of 582
5–134
Interior Features
Interior Equipment

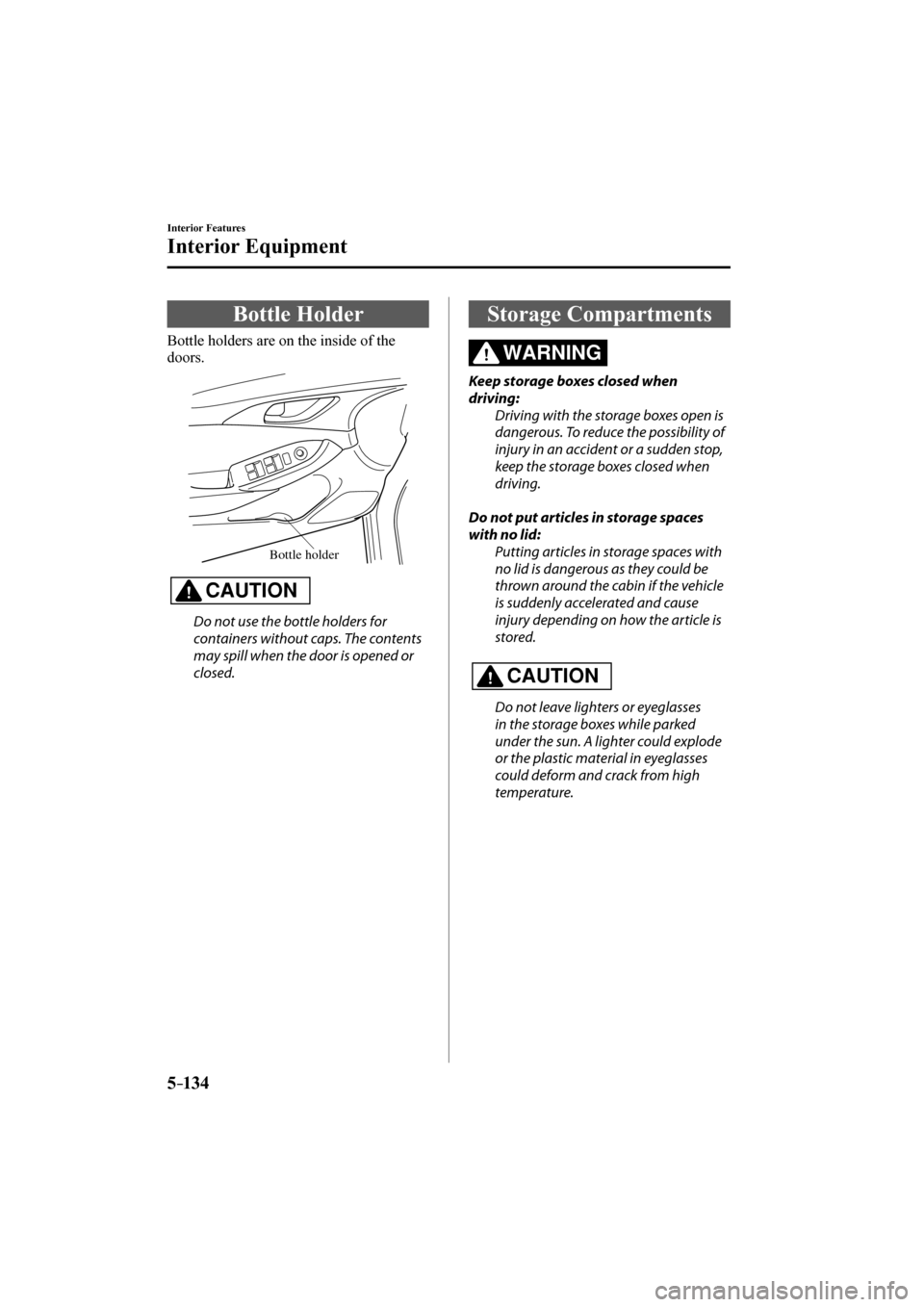

Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 393 of 582
5–135
Interior Features
Interior Equipment
*Some models.
Overhead Console *
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment,
¿ rmly press in the center of the glove
compartment lid.
Center Console Tray
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
A cup or small items can be placed on
the center console tray using the center
console divider.
The center console tray is large enough to
place a small item when the center console
divider is not in use.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 394 of 582
5–136
Interior Features
Interior Equipment
*Some models.
Cargo Securing Loops
WARNING
Make sure luggage and cargo is secured
before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
Luggage Board *
When using the luggage board in the
upper level
CAUTION
Make sure the luggage board is
securely inserted into the grooves.
Otherwise, the luggage board may
detach while the vehicle is being driven
or during sudden braking resulting
in injury or damage to the luggage
board.
Insert the luggage board into the left and
right grooves.
GrooveLuggage board
Luggage board
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 395 of 582
5–137
Interior Features
Interior Equipment
*Some models.
When using the luggage board in the
lower level *
By placing the luggage board on top of the
luggage mat, more space is available for
placing taller items.
1. Lift up the luggage board and pull it
outward.
2. Place the luggage board on top of the
luggage mat.
Luggage mat
Luggage board
N O T E
When using the luggage board on the
lower level, make sure that it is placed
horizontally. The front part of the luggage
board folds up on vehicles equipped with
the sub-woofer. The luggage board can be
placed horizontally by sliding it towards
the vehicle front until the front part of the
luggage board folds up.
Rear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can fl y off and hit an occupant
in the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 396 of 582
5–138
MEMO
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 397 of 582
6–1
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ........................................................................ 6-2
Introduction ................................................................................... 6-2
Scheduled Maintenance ..................................................................... 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) ........ 6-4
Scheduled Maintenance (Mexico) .............................................. 6-13
Maintenance Monitor .................................................................. 6-20
Owner Maintenance ......................................................................... 6-22
Owner Maintenance Precautions ................................................ 6-22
Hood ............................................................................................ 6-24
Engine Compartment Overview ................................................. 6-26
Engine Oil ................................................................................... 6-27
Engine Coolant ............................................................................ 6-30
Brake Fluid .................................................................................. 6-32
Window Washer Fluid ................................................................. 6-32
Body Lubrication ........................................................................ 6-33
Wiper Blades ............................................................................... 6-34
Battery ......................................................................................... 6-37
Key Battery Replacement ........................................................... 6-39
Tires............................................................................................. 6-42
Light Bulbs .................................................................................. 6-46
Fuses ........................................................................................... 6-53
Appearance Care.............................................................................. 6-59
Exterior Care ............................................................................... 6-59
Interior Care ................................................................................ 6-65
