Front Passenger Air Bag Deactivation Switch*

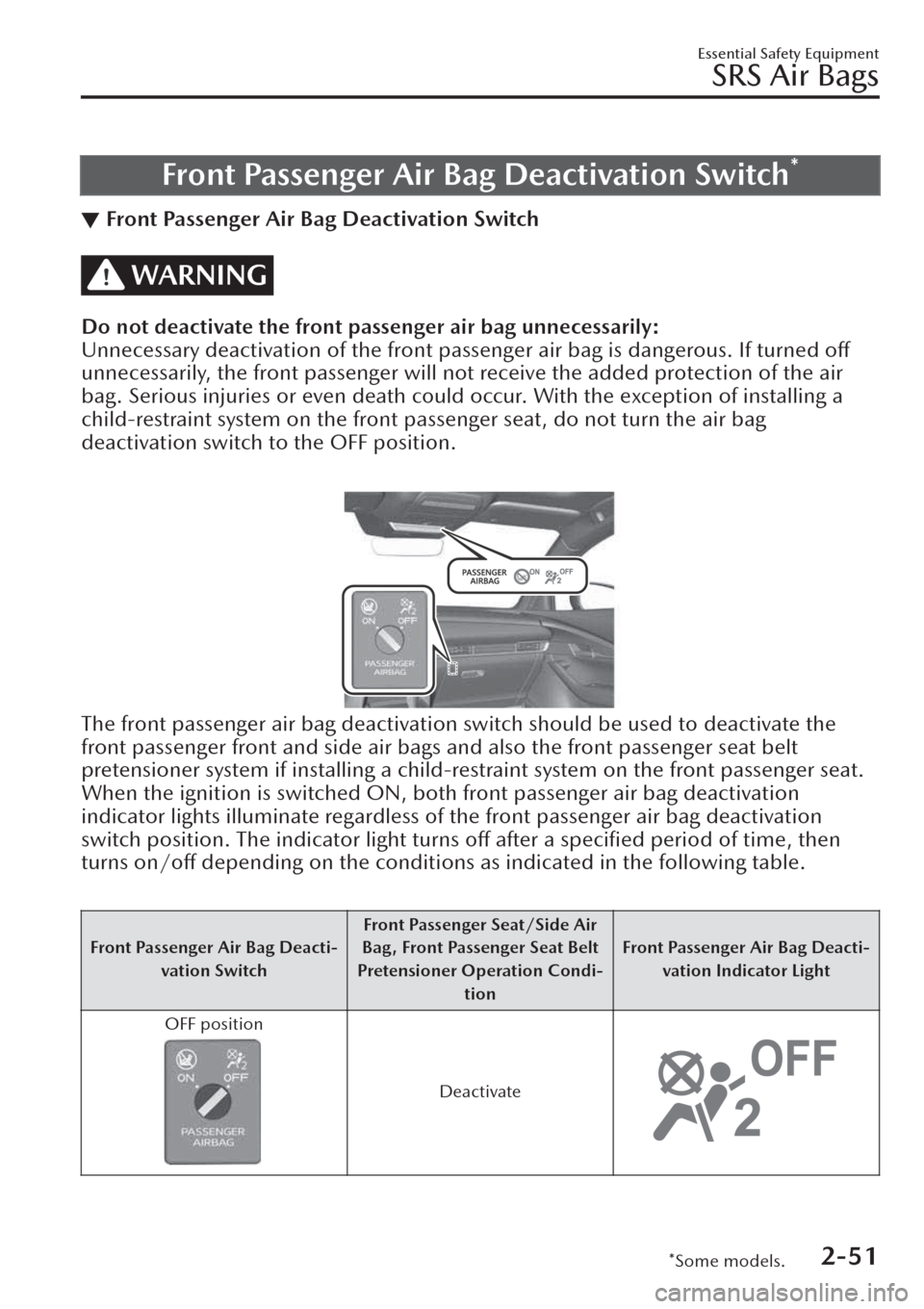

▼Front Passenger Air Bag Deactivation Switch
WARNING
Do not deactivate the front passenger air bag unnecessarily:
Unnecessary deactivation of the front passenger air bag is dangerous. If turned
off
unnecessarily, the front passenger will not receive the added protection of the air
bag. Serious injuries or even death could occur. With the exception of installing a
child-restraint system on the front passenger seat, do not turn the air bag
deactivation switch to the OFF position.

The front passenger air bag deactivation switch should be used to deactivate the
front passenger front and side air bags and also the front passenger seat belt
pretensioner system if installing a child-restraint system on the front passenger seat.
When the ignition is switched ON, both front passenger air bag deactivation
indicator lights illuminate regardless of the front passenger air bag deactivation
switch position. The indicator light turns off after a specified period of time, then
turns on/off depending on the conditions as indicated in the following table.

Front Passenger Air Bag Deacti-
vation SwitchFront Passenger Seat/Side Air
Bag, Front Passenger Seat Belt
Pretensioner Operation Condi-
tionFront Passenger Air Bag Deacti-
vation Indicator Light
OFF position
Deactivate
Essential Safety Equipment
SRS Air Bags
*Some models.2-51

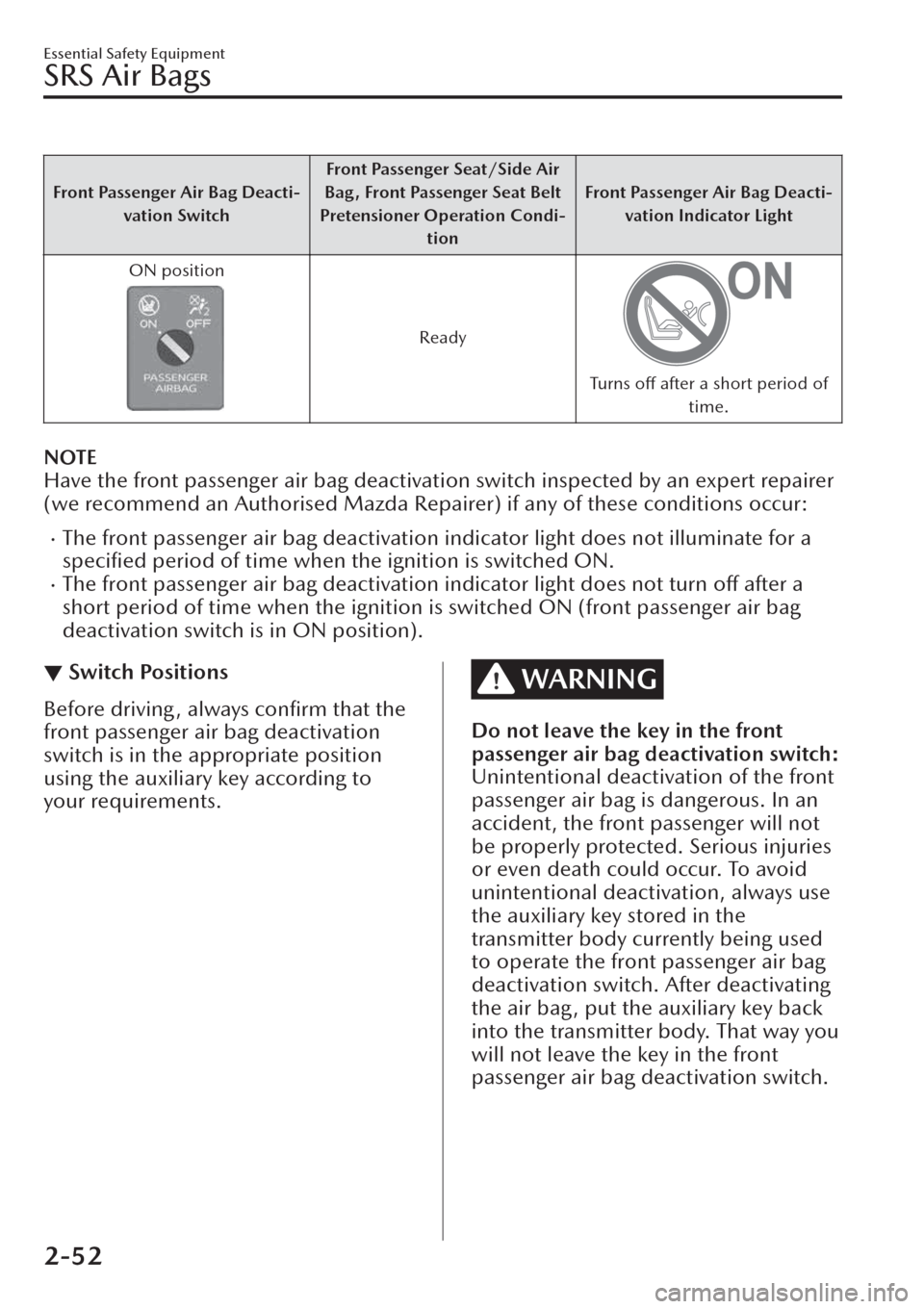

Front Passenger Air Bag Deacti-
vation SwitchFront Passenger Seat/Side Air
Bag, Front Passenger Seat Belt
Pretensioner Operation Condi-
tionFront Passenger Air Bag Deacti-
vation Indicator Light
ON position
Ready
Turns off after a short period of
time.
NOTE
Have the front passenger air bag deactivation switch inspected by an expert repairer
(we recommend an Authorised Mazda Repairer) if any of these conditions occur:
xThe front passenger air bag deactivation indicator light does not illuminate for a
specified period of time when the ignition is switched ON.
xThe front passenger air bag deactivation indicator light does not turn
off after a
short period of time when the ignition is switched ON (front passenger air bag
deactivation switch is in ON position).
▼Switch Positions
Before driving, always confirm that the
front passenger air bag deactivation
switch is in the appropriate position
using the auxiliary key according to
your requirements.
WARNING
Do not leave the key in the front
passenger air bag deactivation switch:
Unintentional deactivation of the front
passenger air bag is dangerous. In an
accident, the front passenger will not
be properly protected. Serious injuries
or even death could occur. To avoid
unintentional deactivation, always use
the auxiliary key stored in the
transmitter body currently being used
to operate the front passenger air bag
deactivation switch. After deactivating
the air bag, put the auxiliary key back
into the transmitter body. That way you
will not leave the key in the front
passenger air bag deactivation switch.
Essential Safety Equipment
SRS Air Bags
2-52

NOTE
After operating the front passenger air
bag deactivation switch, put the
auxiliary key back into the transmitter
body.

OFF
Front passenger front air bag, side air
bag and front passenger seat belt
pretensioners do not operate.

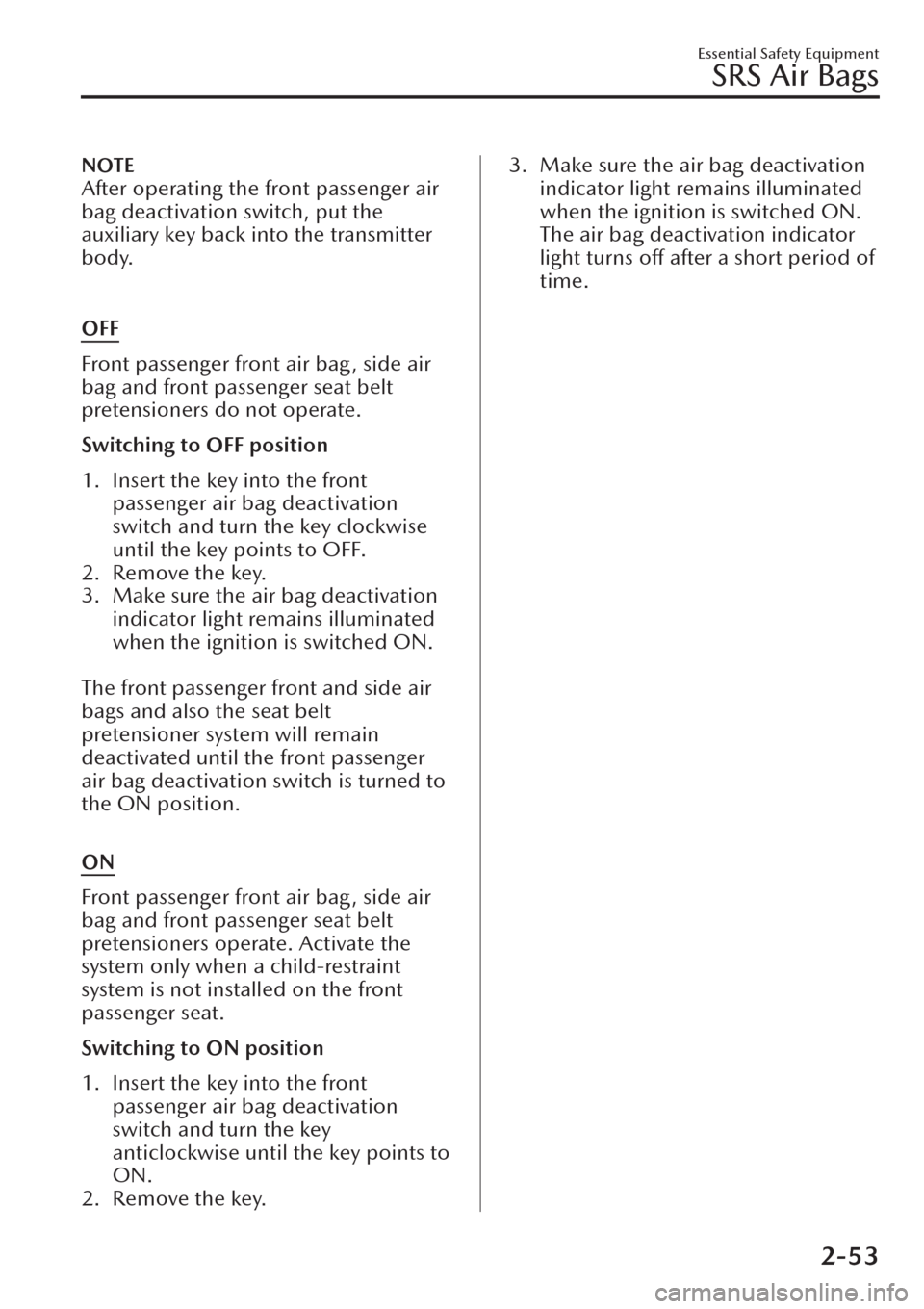

Switching to OFF position
1. Insert the key into the front
passenger air bag deactivation
switch and turn the key clockwise
until the key points to OFF.
2. Remove the key.
3. Make sure the air bag deactivation
indicator light remains illuminated
when the ignition is switched ON.

The front passenger front and side air
bags and also the seat belt
pretensioner system will remain
deactivated until the front passenger
air bag deactivation switch is turned to
the ON position.

ON
Front passenger front air bag, side air
bag and front passenger seat belt
pretensioners operate. Activate the
system only when a child-restraint
system is not installed on the front
passenger seat.
Switching to ON position
1. Insert the key into the front
passenger air bag deactivation
switch and turn the key
anticlockwise until the key points to
ON.
2. Remove the key.
3. Make sure the air bag deactivation
indicator light remains illuminated
when the ignition is switched ON.
The air bag deactivation indicator
light turns off after a short period of
time.
Essential Safety Equipment
SRS Air Bags
2-53

Supplementary Restraint System Components
▼Supplementary Restraint System Components


1. Front/Rear* seat belt pretensioners (page 2-24)
2. Side and curtain inflators and air bags
3. Side crash sensors
4. Driver/Front passenger inflators and air bags
5. Air bag/seat belt pretensioner system warning indication/warning light (page
7-55)
6. Driver knee inflator and air bag
7. Front passenger air bag deactivation indicator light
* (page 2-51)
8. Front air bag sensors
9. Front passenger air bag deactivation switch
*(page 2-51)
10.Roll-over sensor*, crash sensors, and diagnostic module (SAS unit)
11.Driver seat slide position sensor* (page 2-55)
Essential Safety Equipment
SRS Air Bags
2-54*Some models.

How the SRS Air Bags
Work
▼How the SRS Air Bags Work
Your Mazda is equipped with the
following types of SRS air bags. SRS air
bags are designed to work together
with the seat belts to help to reduce
injuries during an accident.
The SRS air bags are designed to
provide further protection for
passengers in addition to the seat belt
functions. Be sure to wear seat belts
properly.
▼Seat Belt Pretensioners
The pretensioners operate differently
depending on what types of air bags
are equipped. For more details about
seat belt pretensioner operation, refer
to the SRS Air Bag Deployment Criteria
(page 2-58).
Front
The front seat belt pretensioners are
designed to deploy in moderate or
severe frontal, near frontal collisions.
In addition,the pretensioners operate
when a side collision or a roll-over
accident (with roll-over sensor) is
detected.
Rear Outboard
*
The rear outboard seat belt
pretensioners are designed to deploy
in moderate or severe frontal, near
frontal collisions.
▼Driver Air Bag
The driver's air bag is mounted in the
steering wheel.
When air bag crash sensors detect a
frontal impact of greater than
moderate force, the driver's air bag
inflates quickly helping to reduce injury
mainly to the driver's head or chest
caused by directly hitting the steering
wheel.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-58).
(With Front Passenger Air Bag
Deactivation Switch)
The inflation of the driver's dual-stage
air bag is controlled in two energy
stages depending on the driver's seat
position. The driver's seat slide
position sensor is located under the
driver's seat. The sensor determines
whether the driver's seat is forward of
or behind a reference position and
sends the seat position to the
diagnostic module (SAS unit). The SAS
unit is designed to control the
deployment of the driver's air bag
depending on how close the driver's
seat is to the steering wheel.
During an impact of moderate severity,
the driver's air bag deploys with lesser
energy, whereas during more severe
impacts and when the driver's seat is
behind the reference position, it
deploys with more energy.
▼Front Passenger Air Bag
The front passenger air bag is mounted
in the front passenger instrument
panel.
Essential Safety Equipment
SRS Air Bags
*Some models.2-55

The inflation mechanism for the front
passenger air bag is the same as the
driver's air bag.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-58).
▼Driver Knee Air Bag
The knee air bag is equipped under the
instrument panel.
If the air bag crash sensors receive a
frontal impact of greater than
moderate force, the knee air bag
deploys immediately to reduce impact
to the driver's legs.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-58).
▼Side Air Bags
The side air bags are mounted in the
outboard sides of the front seatbacks.
When the air bag crash sensors detect
a side impact of greater than moderate
force, the system inflates the side air
bag only on the side in which the
vehicle was hit. The side air bag inflates
quickly to reduce injury to the driver or
front passenger's chest caused by
directly hitting interior parts such as a
door or window.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-58).

▼Curtain Air Bags
The curtain air bags are mounted in the
front and rear window pillars, and the
roof edge along both sides.
When the air bag crash sensors detect
a side impact of greater than moderate
force, the curtain air bag inflates
quickly and helps to reduce injury
mainly to the driver and front and rear
outboard passengers' heads caused by
directly hitting interior parts such as a
door or window.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-58).
In a side impact:
Greater than moderate impact to one
side of the vehicle will cause the
Essential Safety Equipment
SRS Air Bags
2-56

curtain air bag on that side only to
inflate.

Only one side curtain air bag will
deploy on the side of the vehicle that
receives the force of an impact.
(With roll-over sensor)
In a roll-over:
In response to a vehicle roll-over, both
curtain air bags
inflate.

Both curtain air bags will deploy after
the roll-over accident is detected.
▼Warning Light/Beep
A system malfunction or operation
conditions are indicated by a warning.
Refer to Air Bag/Seat Belt Pretensioner
System Warning Indication/Warning
Light on page 7-55.
Essential Safety Equipment
SRS Air Bags
2-57

SRS Air Bag Deployment Criteria
▼SRS Air Bag Deployment Criteria

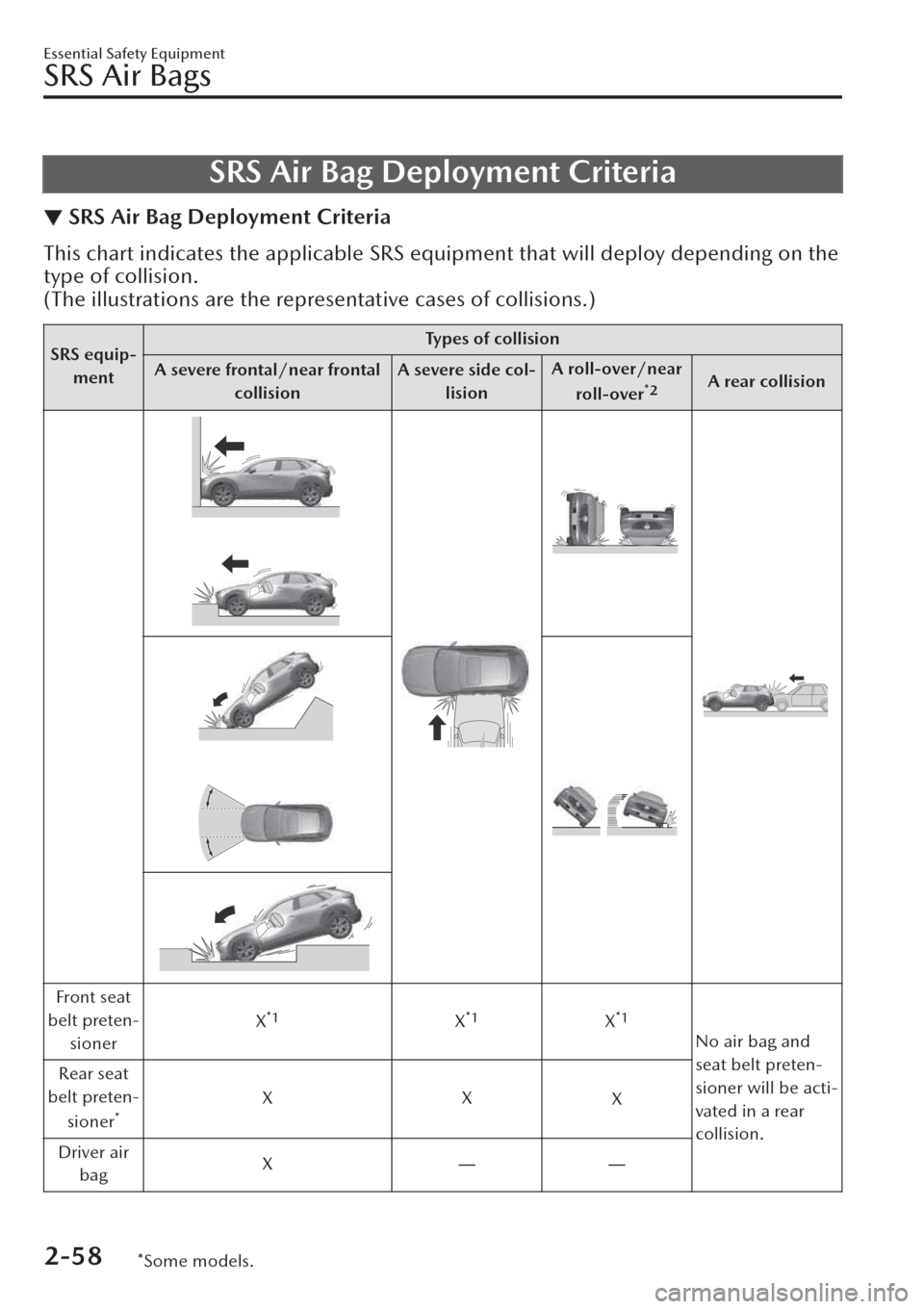

This chart indicates the applicable SRS equipment that will deploy depending on the
type of collision.
(The illustrations are the representative cases of collisions.)
SRS equip-
mentTypes of collision
A severe frontal/near frontal
collisionA severe side col-
lisionA roll-over/near
roll-over
*2A rear collision
Front seat
belt preten-
sionerX*1X*1X*1
No air bag and
seat belt preten-
sioner will be acti-
vated in a rear
collision. Rear seat
belt preten-
sioner
*XX
X
Driver air
bagXŠŠ
Essential Safety Equipment
SRS Air Bags
2-58*Some models.

SRS equip-
mentTypes of collision
A severe frontal/near frontal
collisionA severe side col-
lisionA roll-over/near
roll-over
*2A rear collision
Front pas-
senger air
bagX
*1ŠŠ
Knee Air-
bagXŠŠ
Side air bagŠX
*1 (impact side
only)Š
Curtain air
bagŠX (impact side on-
ly)X (both sides)
X: The SRS air bag equipment deploys in a collision.
Š:The SRS air bag equipment does not deploy in a collision.
*1(With Front Passenger Air Bag Deactivation Switch)
The front passenger front and side air bags and seat belt pretensioner are designed to deploy
depending on the status of the front passenger air bag deactivation switch.
*2(With roll-over sensor)
In a roll-over accident, the seat belt pretensioners and the curtain air bags deploy.
NOTE
In a frontal offset collision, the equipped air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.
Essential Safety Equipment
SRS Air Bags
2-59

Limitations to SRS Air Bag
▼Limitations to SRS Air Bag
In severe collisions such as those
described previously in "SRS Air Bag
Deployment Criteria", the applicable
SRS air bag equipment will deploy.
However, in some accidents, the
equipment may not deploy depending
on the type of collision and its severity.

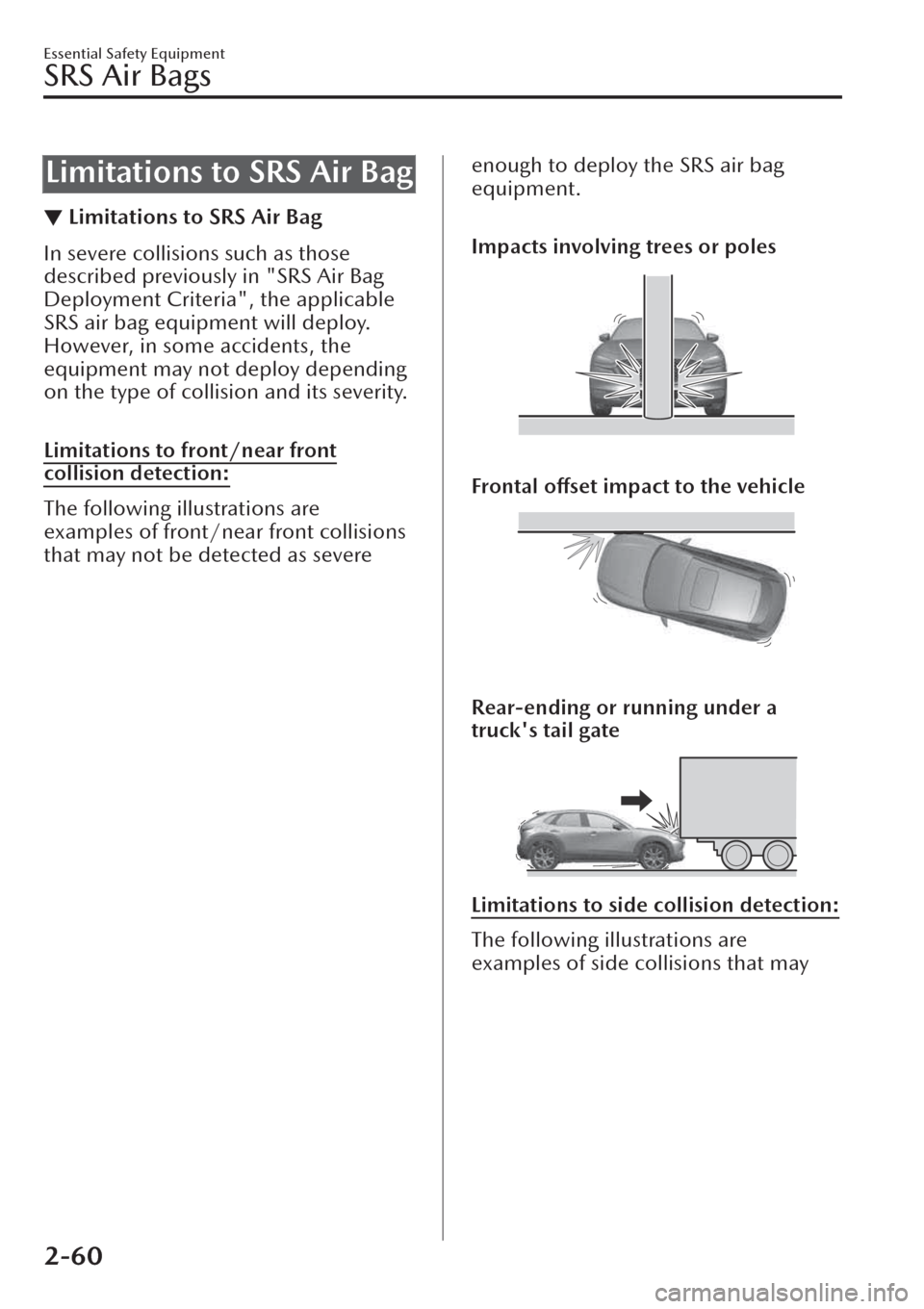

Limitations to front/near front
collision detection:
The following illustrations are
examples of front/near front collisions
that may not be detected as severe
enough to deploy the SRS air bag
equipment.

Impacts involving trees or poles

Frontal
offset impact to the vehicle

Rear-ending or running under a
truck's tail gate
Limitations to side collision detection:
The following illustrations are
examples of side collisions that may
Essential Safety Equipment
SRS Air Bags
2-60
