tire type MAZDA MODEL CX-5 2013 (in English) User Guide

Black plate (358,1)
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 8-25.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-7.
CAUTION
ØDo not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
ØThe temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
ØThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 6-38).
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 8-25.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
6-38
Maintenance and Care
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page358
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (387,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Except Mexico
Spare tireSpare tire hold-down bolt
Tire hold-down boltJack
Lug wrenchJack leverTiedown eyelet (Short type)Tiedown eyelet (Long type)
If Trouble Arises
Flat Tire
7-3
CX-5_8CA5-EA-11L_Edition3 Page387
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (388,1)

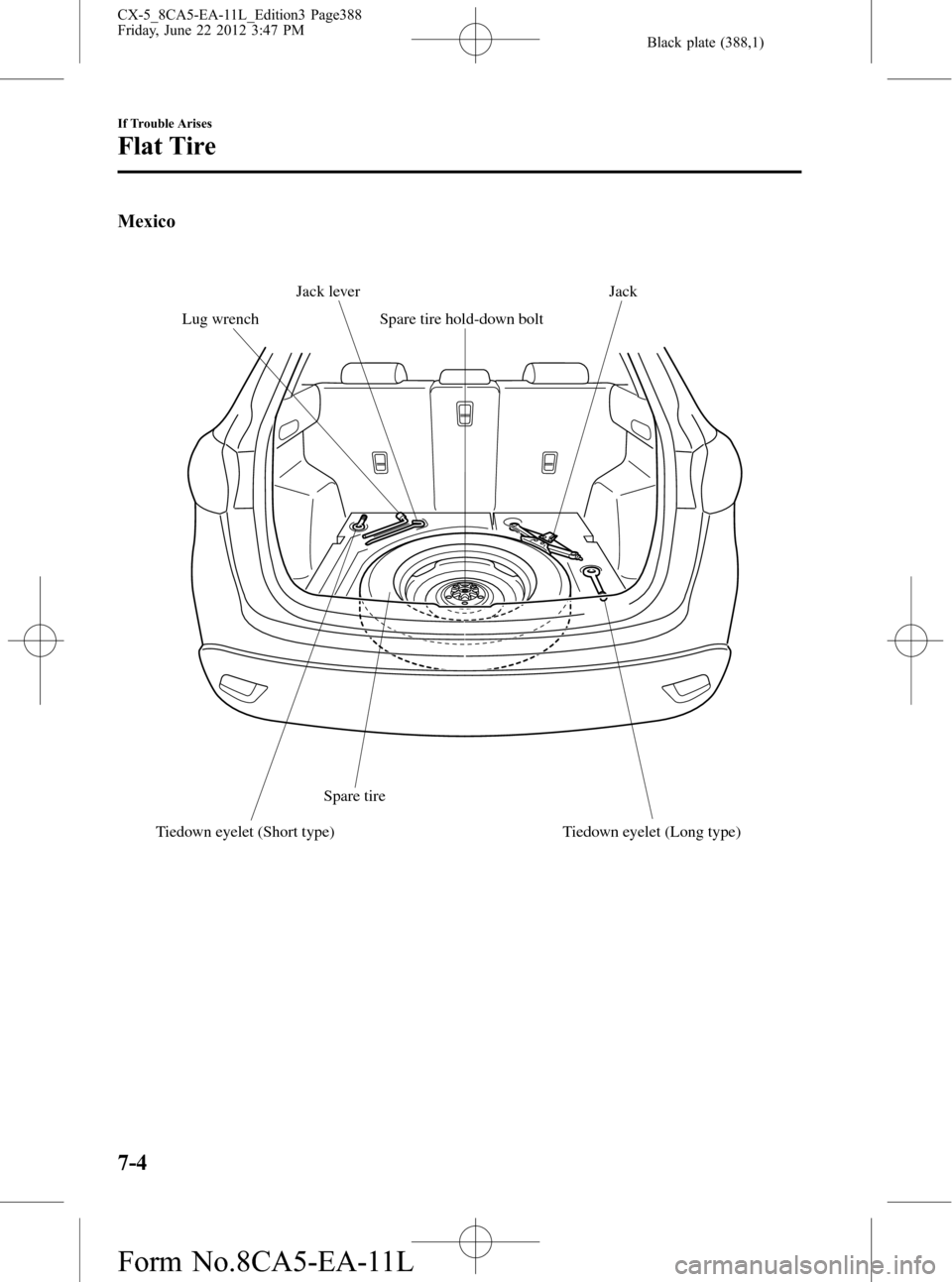

Mexico
Spare tireSpare tire hold-down boltJack
Lug wrenchJack lever
Tiedown eyelet (Short type) Tiedown eyelet (Long type)
7-4
If Trouble Arises
Flat Tire
CX-5_8CA5-EA-11L_Edition3 Page388
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (448,1)
Tread Wear, Traction and Temperature Grades
Tread wear:The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100.
Traction:The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature:The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels.
Make sure you purchase snow tires that are the same size and construction type as the other
tires on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
lEXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-
MATCH TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa)
TO SEAT BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT
TIRES.
lTIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.
8-28
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
CX-5_8CA5-EA-11L_Edition3 Page448
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (455,1)
CAUTION
Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern
or studs only from front to rear, not from side to side. Tire performance will be
weakened if rotated from side to side.
(With limited-slip differential)
Don't use the following:
ØTires not of the designated size
ØTires of different sizes or types at the same time
ØTires not sufficiently inflated
If these instructions aren't followed, the rotation of the left and right wheels will be
different and will thus apply a constant load on the limited-slip differential.
This will cause a malfunction.

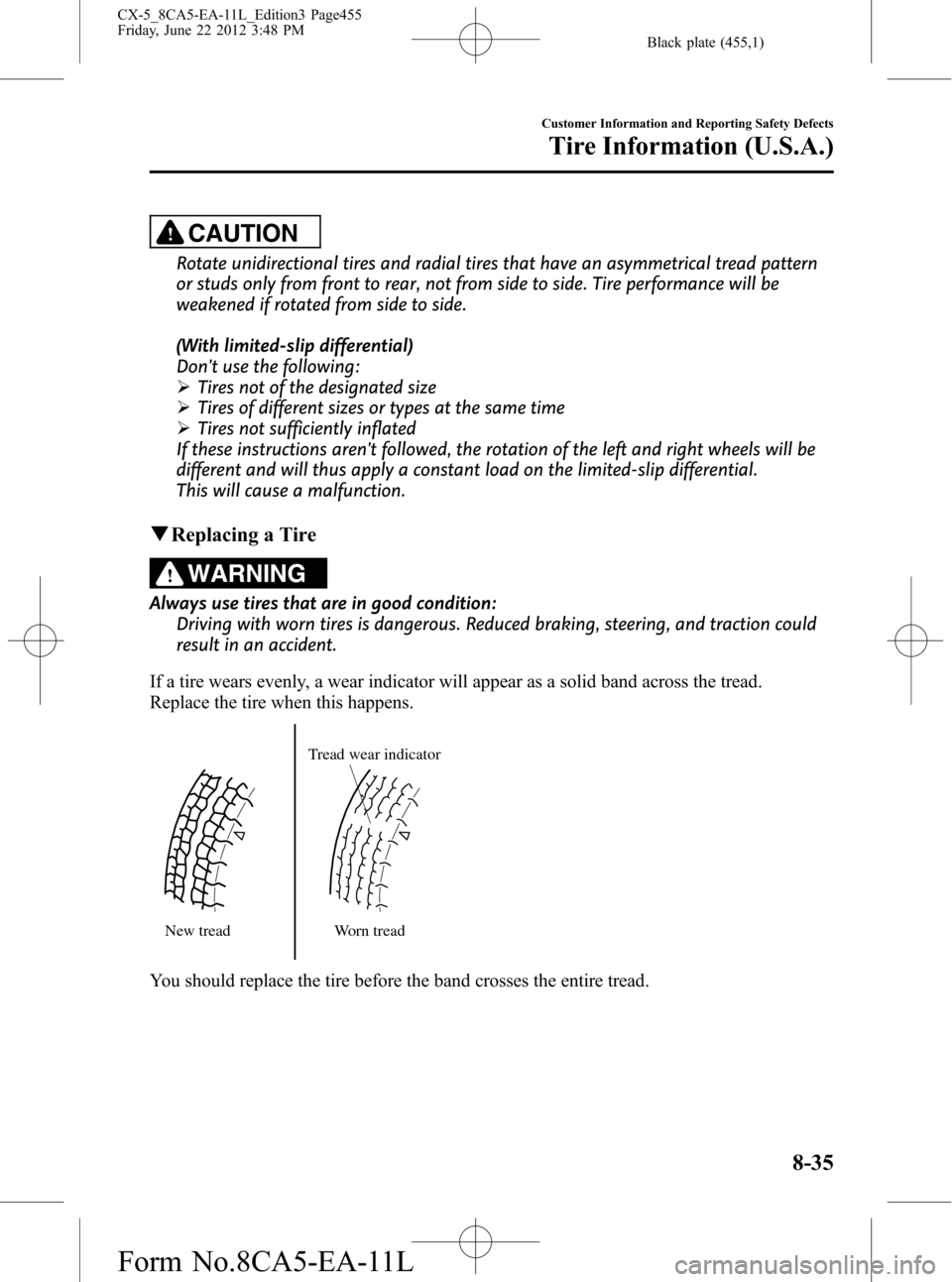

qReplacing a Tire
WARNING
Always use tires that are in good condition:
Driving with worn tires is dangerous. Reduced braking, steering, and traction could
result in an accident.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace the tire before the band crosses the entire tread.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-35
CX-5_8CA5-EA-11L_Edition3 Page455
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (477,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 6-36.
After adjusting the tire pressure, initialization of the tire pressure monitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-73.
Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
P225/65R17 100H 230 kPa (34 psi) 230 kPa (34 psi)
P225/55R19 99V 250 kPa (36 psi) 250 kPa (36 psi)
(Mexico)
Tire sizeInflation pressure
Up to 3 persons―Full load
225/65R17 102VFront 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear 230 kPa (2.3 bar, 33 psi) 280 kPa (2.8 bar, 41 psi)
225/55R19 99VFront 250 kPa (2.5 bar, 36 psi) 260 kPa (2.6 bar, 38 psi)
Rear 250 kPa (2.5 bar, 36 psi) 290 kPa (2.9 bar, 42 psi)
1 person's weight: About 75 kg
Temporary spare tire
(U.S.A. and Canada)
Tire size Inflation pressure
T145/90D16 106M
420 kPa (60 psi)
T155/90D18 103M
(Mexico)
Tire size Inflation pressure
185/80R17 95M 250 kPa (36 psi)
Specifications
9-7
CX-5_8CA5-EA-11L_Edition3 Page477
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L
