Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you
resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because improvement is a constant goal at
Mazda, we reserve the right to make changes in specifications at any time without notice and without obligation.
Air Conditioning and the Environment
Your Mazda's genuine air conditioner is filled with HFC134a (R134a), a refrigerant that has been found not to
damage the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda
Dealer.
Perchlorate
Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries, ...] may
contain Perchlorate Material–Special handling may apply for service or vehicle end of life disposal. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Please be aware that this manual applies to all models, equipment and options. As a result, you may find
some explanations for equipment not installed on your vehicle.
©2011 Mazda Motor Corporation
Printed in Japan Aug. 2012 (Print3)
A Word to Mazda Owners
CX-5_8CA5-EA-11L_Edition3 Page3
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (5,1)
CX-5_8CA5-EA-11L_Edition3 Page5
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L
Table of Contents
Pictorial Index
Interior, exterior views and part identification of your Mazda.1
Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.2
Before Driving
Use of various features, including keys, doors, mirrors and windows.3
When Driving
Information concerning safe driving and stopping.4
Interior Features
Use of various features for ride comfort, including air-conditioning and audio
system.5
Maintenance and Care
How to keep your Mazda in top condition.6
If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.7
Customer Information and Reporting Safety Defects
Important consumer information including warranties and add-on equipment.8
Specifications
Technical information about your Mazda.9
Index10

Black plate (10,1)
Interior Equipment (View C)
Seat belts ............................................................................................................ page 2-13
SRS curtain air bag ............................................................................................ page 2-38
Remote fuel-filler lid release ............................................................................. page 3-24
Bottle holder .................................................................................................... page 5-102
Vanity mirror ...................................................................................................... page 5-95
Moonroof switch ............................................................................................... page 3-33
Overhead lights .................................................................................................. page 5-96
Rearview mirror ................................................................................................. page 3-28
Sunvisor ............................................................................................................. page 5-95
Cup holders ...................................................................................................... page 5-101
Front seat ............................................................................................................. page 2-4
Center console ................................................................................................. page 5-103
Rear seat .............................................................................................................. page 2-7
1-4
Pictorial Index
The equipment and installation position varies by vehicle
Interior Overview
CX-5_8CA5-EA-11L_Edition3 Page10
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (13,1)
2Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.
Seats ............................................................................................... 2-2
Seat Precaution .......................................................................... 2-2
Front Seat .................................................................................. 2-4
Rear Seat ................................................................................... 2-7
Head Restraints ....................................................................... 2-11
Seat Belt Systems ........................................................................ 2-13
Seat Belt Precautions .............................................................. 2-13
Seat Belt .................................................................................. 2-16
Seat Belt Warning Systems ..................................................... 2-17
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-17
Center-Rear Position Seat Belt ................................................ 2-19
Seat Belt Extender ................................................................... 2-20
Child Restraint ............................................................................ 2-22
Child Restraint Precautions ..................................................... 2-22
Child-Restraint System Installation ........................................ 2-27
Installing Child-Restraint Systems .......................................... 2-28
SRS Air Bags ............................................................................... 2-38
Supplemental Restraint System (SRS) Precautions ................ 2-38
Supplemental Restraint System Components ......................... 2-45
How the SRS Air Bags Work .................................................. 2-46
SRS Air Bag Deployment Criteria .......................................... 2-50
Limitations to SRS Air Bag .................................................... 2-51
Driver and Front Passenger Occupant Classification
System
í.................................................................................. 2-53
Constant Monitoring ............................................................... 2-59
2-1íSome models.
CX-5_8CA5-EA-11L_Edition3 Page13
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (14,1)
Seat Precaution
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure
the adjustable components of the seat are locked in place by attempting to slide the
seat forward and backward and rocking the seatback.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving
the seatback unlocked is dangerous as it can allow passengers to be ejected or
thrown around and baggage to strike occupants in a sudden stop or collision,
resulting in severe injury. After adjusting the seatback at any time, even when there
are no other passengers, rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could
lose control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening
any bolts is dangerous. The front seats contain air bag components essential to the
supplemental restraint system. Such modifications could damage the supplemental
restraint system and result in serious injury. Consult an Authorized Mazda Dealer if
there is any need to remove or reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is dangerous. A collision, even one not strong
enough to inflate the air bags, could damage the front seats which contain essential
air bag components. If there was a subsequent collision, an air bag may not deploy
which could lead to injuries. Always have an Authorized Mazda Dealer inspect the
front seats, front seat belt pretensioners and air bags after a collision.
Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do
not get the full protection from seat belts. During sudden braking or a collision, you
can slide under the lap belt and suffer serious internal injuries. For maximum
protection, sit well back and upright.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During
sudden braking or a collision, objects can fly around and become projectiles that
may hit and injure passengers.
2-2
Essential Safety Equipment
Seats
CX-5_8CA5-EA-11L_Edition3 Page14
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (15,1)
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is
moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit
up on the folded seatback while the vehicle is moving is particularly dangerous. In a
sudden stop or even a minor collision, a child not in a proper seat or child-restraint
system and seat belt could be thrown forward, back or even out of the vehicle
resulting in serious injuries or death. The child in the baggage area could be thrown
into other occupants and cause serious injury.
CAUTION
ØWhen operating a seat, be careful not to put your hands or fingers near the
moving parts of the seat or on the side trim to prevent injury.
Ø(Manual Seat)
When returning a rear-reclined seatback to its upright position, make sure you
hold onto the seatback with your other hand while operating the lever. If the
seatback is not supported, it will flip forward suddenly and could cause injury.
Ø(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended
operation because excessive use can damage the motors.
ØTo prevent the battery from running down, avoid using the power adjustment
when the engine is stopped. The adjuster uses a large amount of electrical
power.
ØDo not use the switch to make more than one adjustment at a time.
NOTE
When returning a rear seat to its original position, also replace the seat belt to its normal position.
Verify that the seat belt pulls out and retracts.
Essential Safety Equipment
Seats
2-3
CX-5_8CA5-EA-11L_Edition3 Page15
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (22,1)
2. Pull the strap on the back of the
seatback to fold the seatback forward.
To return the seatbacks to the upright
position
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks from
inside the vehicle to make sure they are
locked.
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication:
A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position
Red indicator
2-10
Essential Safety Equipment
Seats
CX-5_8CA5-EA-11L_Edition3 Page22
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (25,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, in some models (with automatic locking mode) the front passenger's seat and all
rear lap/shoulder belt retractors operate in two modes: emergency locking mode, and for
child-restraint systems, automatic locking mode. While we recommend you put all children
in the rear seats, if you must use the front passenger seat for a child, slide the front
passenger seat as far back as possible and make sure any child-restraint system is secured
properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Essential Safety Equipment
Seat Belt Systems
2-13
CX-5_8CA5-EA-11L_Edition3 Page25
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (26,1)

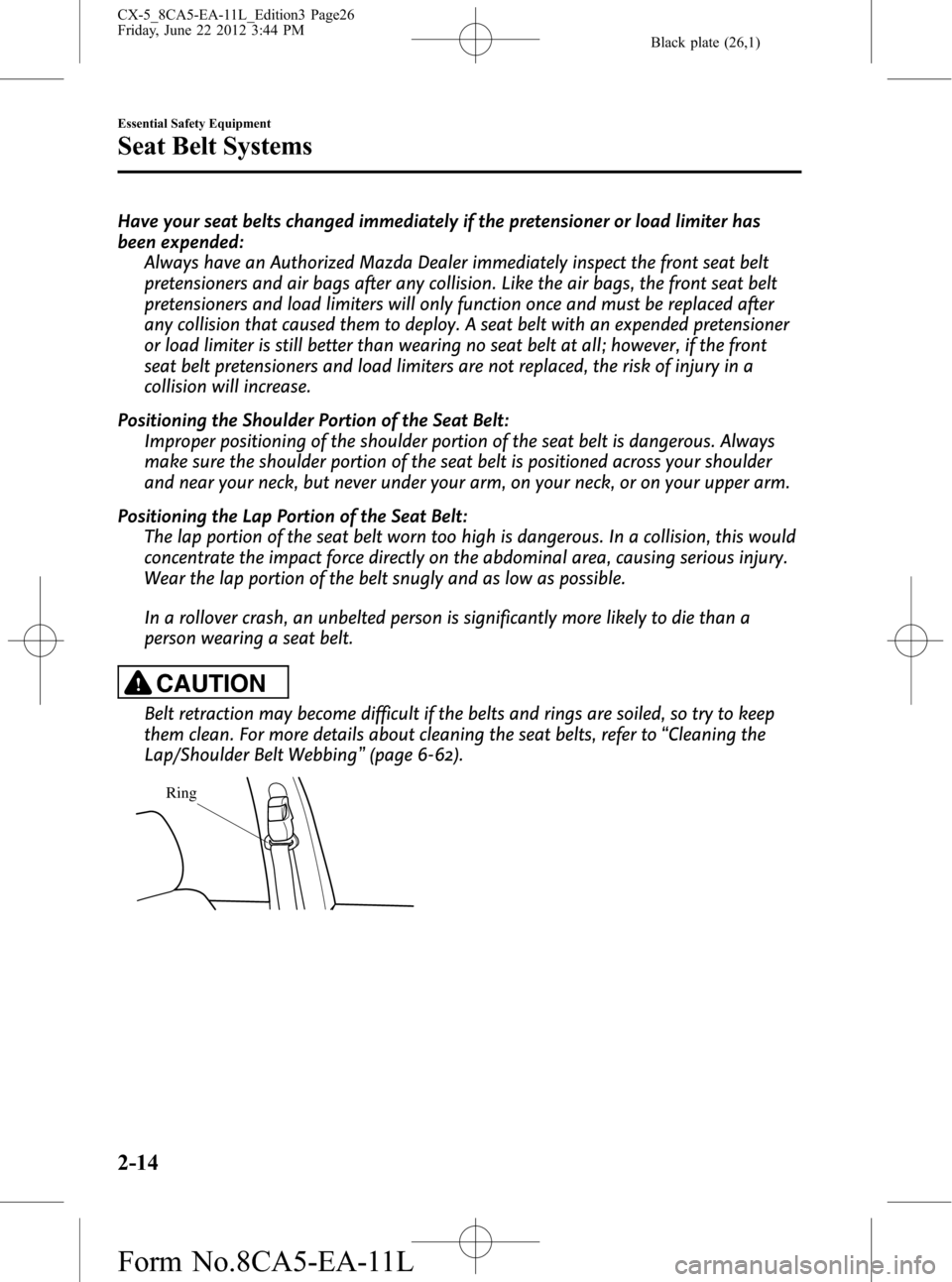

Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always
make sure the shoulder portion of the seat belt is positioned across your shoulder
and near your neck, but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury.
Wear the lap portion of the belt snugly and as low as possible.
In a rollover crash, an unbelted person is significantly more likely to die than a
person wearing a seat belt.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing”(page 6-62).
Ring
2-14
Essential Safety Equipment
Seat Belt Systems
CX-5_8CA5-EA-11L_Edition3 Page26
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (27,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
In some models (with automatic locking mode), when the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
qAutomatic Locking Modeí
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-22).
Essential Safety Equipment
Seat Belt Systems
2-15íSome models. CX-5_8CA5-EA-11L_Edition3 Page27
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L
