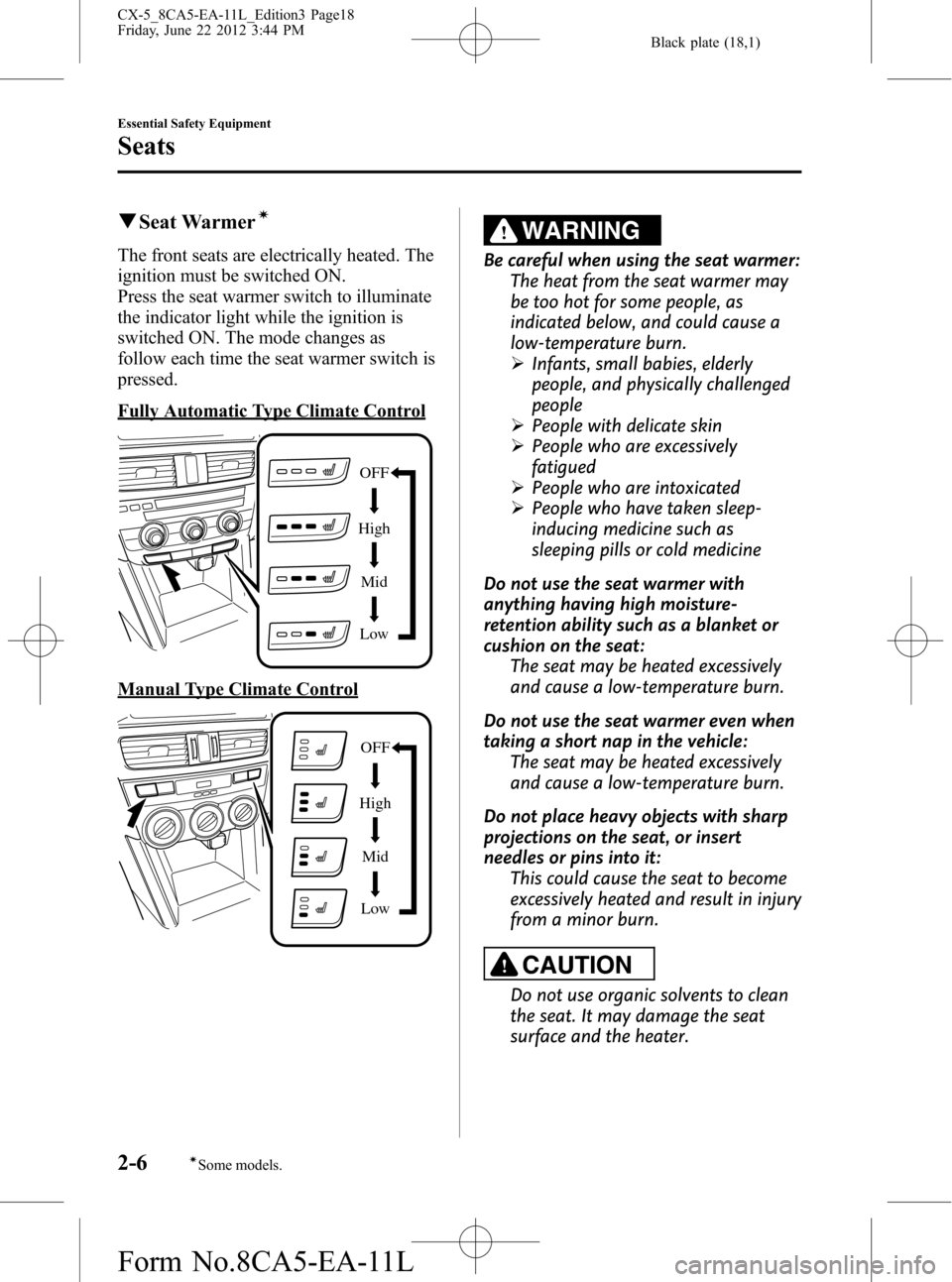

qSeat Warmerí
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch to illuminate
the indicator light while the ignition is
switched ON. The mode changes as
follow each time the seat warmer switch is
pressed.
Fully Automatic Type Climate Control
OFF
High
Mid
Low
Manual Type Climate Control
OFF
High
Mid
Low
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may
be too hot for some people, as
indicated below, and could cause a
low-temperature burn.
ØInfants, small babies, elderly
people, and physically challenged
people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
2-6
Essential Safety Equipment
íSome models.
Seats
CX-5_8CA5-EA-11L_Edition3 Page18
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (45,1)
2. Slide the seat as far back as possible.
3. Place the child-restraint system on the
seat without putting your weight on the
seat and fasten the seat belt. See the
manufacturer's instructions on the
child-restraint system for belt routing
instructions.
4. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
5. Push the child-restraint system firmly
into the vehicle seat. Be sure the belt
retracts as snugly as possible. A
clicking noise from the retractor will be
heard during retraction if the system is
in automatic locking mode. If the belt
does not lock the seat down tight,
repeat the previous step and also this
one.NOTE
lInspect this function before each use of the
child-restraint system. You should not be
able to pull the shoulder belt out of the
retractor while the system is in the
automatic locking mode. When you remove
the child-restraint system, be sure the belt
fully retracts to return the system to
emergency locking mode before occupants
use the seat belts.
lFollow the child-restraint system
manufacturer's instructions carefully.
Depending on the type of child-restraint
system, it may not employ seat belts which
are in automatic locking mode.
6. Seat your child safely in the child-
restraint system and secure the child
according to the instructions from the
child-restraint system manufacturer.
7.(With Driver and Front Passenger
Occupant Classification System)
Make sure the front passenger air bag
deactivation indicator light illuminates
after installing a child-restraint system
on the front passenger seat.
If the front passenger air bag
deactivation indicator light does not
illuminate, remove the child-restraint
system, switch the ignition to OFF, and
then re-install the child-restraint
system. (page 2-53)
Climate control
Fully Automatic
Type
Manual Type
Essential Safety Equipment
Child Restraint
2-33
CX-5_8CA5-EA-11L_Edition3 Page45
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (51,1)
If your vehicle is also equipped with a driver and front passenger occupant
classification system, refer to the Driver and Front Passenger Occupant Classification
System (page 2-53) for details.
If your vehicle is equipped with a driver and front passenger occupant classification
system, the front passenger air bag deactivation indicator light illuminates for a specified
time after the ignition is switched ON.
Climate control
Fully Automatic
Type
Manual Type
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-22).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
WARNING
Seat belts must be worn in air bag equipped vehicles:
Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in the first accident, such as frontal, near frontal or side
collisions or roll-over accident that are at least moderate. Vehicle occupants should
always wear seat belts.
Children should not ride in the front passenger seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be
hit by a deploying air bag and be seriously injured or even killed. A sleeping child is
more likely to lean against the door and be hit by the side air bag in moderate
collision to the front-passenger side of the vehicle. Whenever possible, always secure
a child 12 years and under on the rear seats with an appropriate child-restraint
system for the child's age and size.
Essential Safety Equipment
SRS Air Bags
2-39
CX-5_8CA5-EA-11L_Edition3 Page51
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (66,1)
Front passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the front passenger front and side air
bags and seat belt pretensioner will not deploy during a collision.
Fully Automatic Type climate control Manual Type climate control
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds.
The front/passenger air bag deactivation indicator light illuminates or is off under the following conditions:
Condition detected by the
front passenger occupant
classification systemFront passenger air bag
deactivation indicator lightFront passenger front and
side air bagsFront passenger seat
belt pretensioner
system
Empty (Not occupied) On Deactivated Deactivated
Child or child-restraint
system
*1On Deactivated Deactivated
Adult
*2Off Ready Ready
*1 : If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending
on the child's physique.
*2 : If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child
depending on the person's physique.
The curtain air bag is ready for inflating regardless of the chart above.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the above chart, do not
allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as
soon as possible. The system may not work properly in an accident.
2-54
Essential Safety Equipment
SRS Air Bags
CX-5_8CA5-EA-11L_Edition3 Page66
Friday, June 22 2012 3:44 PM
Form No.8CA5-EA-11L

Black plate (175,1)

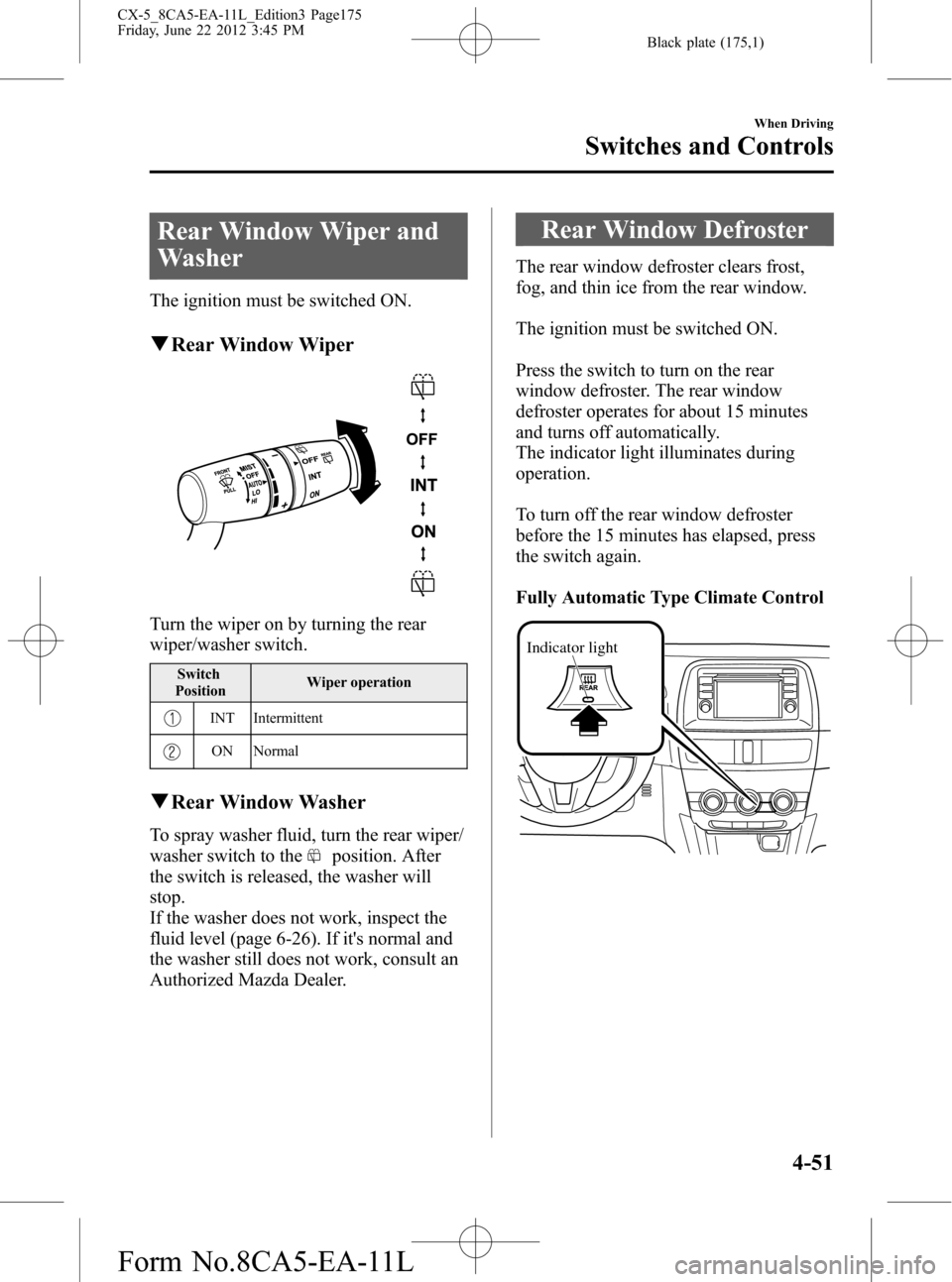

Rear Window Wiper and
Washer
The ignition must be switched ON.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch
PositionWiper operation
INT Intermittent
ON Normal
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 6-26). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Fully Automatic Type Climate Control
Indicator light
When Driving
Switches and Controls
4-51
CX-5_8CA5-EA-11L_Edition3 Page175
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (176,1)
Manual Type Climate Control
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.
qMirror Defrosterí
To turn on the mirror defrosters, switch
the ignition ON and press the rear window
defroster switch (page 4-51).
Horn
To sound the horn, press themark on
the steering wheel.
4-52
When Driving
íSome models.
Switches and Controls
CX-5_8CA5-EA-11L_Edition3 Page176
Friday, June 22 2012 3:45 PM
Form No.8CA5-EA-11L

Black plate (215,1)
5Interior Features
Use of various features for ride comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 5-2
Operating Tips ........................................................................... 5-2
Vent Operation .......................................................................... 5-3
Manual Type ............................................................................. 5-5
Fully Automatic Type ............................................................... 5-9
Audio System ............................................................................... 5-13
Antenna
í................................................................................ 5-13
Operating Tips for Audio System ........................................... 5-13
Audio Set (Type A) ................................................................. 5-25
Audio Set (Type B) ................................................................. 5-35
Audio Control Switch Operation ............................................ 5-56
AUX/USB/iPod mode
í.......................................................... 5-58
Bluetooth® .................................................................................. 5-77
Bluetooth®
í........................................................................... 5-77
Bluetooth® Hands-Free .......................................................... 5-83
Bluetooth® Audio ................................................................... 5-88
Troubleshooting ...................................................................... 5-91
Interior Equipment ..................................................................... 5-95
Sunvisors ................................................................................. 5-95
Interior Lights ......................................................................... 5-96
Clock ....................................................................................... 5-98
Accessory Sockets .................................................................. 5-99
Cup Holder ............................................................................ 5-101
Bottle Holder ......................................................................... 5-102
Storage Compartments .......................................................... 5-102
5-1íSome models.
CX-5_8CA5-EA-11L_Edition3 Page215
Friday, June 22 2012 3:46 PM
Form No.8CA5-EA-11L

Black plate (216,1)
Operating Tips
lOperate the climate control system
with the engine running.
lTo prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switched ON when the
engine is not running.
lClear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
lUse the climate control system to defog
the windows and dehumidify the air.
lThe recirculate mode should be used
when driving through tunnels or while
in a traffic jam, or when you would like
to shut off outside air for quick cooling
of the interior.
lUse the outside air mode for ventilation
or windshield defrosting.
lIf the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
lRun the air conditioner about 10
minutes at least once a month to keep
internal parts lubricated.
lHave the air conditioner checked
before the weather gets hot. Lack of
refrigerant may make the air
conditioner less efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment.
Check the label before refilling the
refrigerant. If the wrong type of
refrigerant is used, it could result in a
serious malfunction of the air
conditioner.
For details, consult an Authorized
Mazda Dealer.
Label
5-2
Interior Features
Climate Control System
CX-5_8CA5-EA-11L_Edition3 Page216
Friday, June 22 2012 3:46 PM
Form No.8CA5-EA-11L

Black plate (217,1)
Vent Operation
qAdjusting the Vents
Directing airflow
To adjust the direction of airflow, move
the adjustment knob.
NOTE
When using the air conditioner under humid
ambient temperature conditions, the system
may blow fog from the vents. This is not a sign
of trouble but a result of humid air being
suddenly cooled.
Side Vents
Open Knob
Dial
Close
Center Vents
Knob
Interior Features
Climate Control System
5-3
CX-5_8CA5-EA-11L_Edition3 Page217
Friday, June 22 2012 3:46 PM
Form No.8CA5-EA-11L
