AUX MAZDA MODEL CX-5 2013 Smart Start Guide (in English)

ACCELERATED WARM-UP SYSTEM (AWS)
Vehicle Starting:
Your vehicle is equipped with SKYACTIV combustion technology. This
technology includes AWS (Accelerated Warm-up System) for optimal
emission performance during cold starting conditions.
Cold Start (First start of the day on cold mornings):
Depress the brake (Automatic Trans.) or clutch (Manual Trans.), when the
key indicator light turns green
press the START/STOP button.
What you will notice: On start-up, the engine speed and sound are
higher (1500 RPM) for 30 seconds to 1 minute to quickly bring the catalyst
to efficient operating temperature. The RPM will reduce to idle once the
temperature is achieved. This is normal engine operation under cold
start conditions.
NOTE:
You can drive the vehicle during AWS activation, no need to wait.
Normal Start (Emission components within optimal
temperature range):
Depress the brake (Automatic Trans.) or clutch (Manual Trans.), when the
key indicator light turns green
press the START/STOP button.
4
www.MazdaUSA.com
3
Key
STARTING THE ENGINE
While Car rying the Key…
• Start the engine by pushing the START/STOP button, while
pushing the clutch pedal (manual transmission) or the brake pedal
(automatic transmission).
• Shut the engine OFF by placing the vehicle in Park, then push the
S TA R T/ S TO P b u t t o n .
• Activate Accessories (ACC) by pushing the START/STOP button
once without pushing the clutch or brake pedal.
• To turn the ignition to the ON position, push the START/STOP
button twice without pushing the clutch or brake pedal.
The key indicator light
in the instrument cluster will show GREEN (engine ready to start) when the key is detected and the clutch pedal (M/ T)
or the brake pedal (A / T) is pushed. If the KEY warning light illuminates
RED , or the START/STOP button indicator light flashes AMbER , this
could indicate a problem with the engine starting system and the inability
to start the engine or switch the ignition to ACC or ON. Have your vehicle
inspecte d at an Authorized Mazda Dealer as soon as possible.
Emergency Engine Start
If the engine cannot be started
due to a dead key battery:

1 Push the brake pedal (A / T)
or the clutch pedal (M/ T).
2 While the indicator light
light flashes GREEN , touch
the START/STOP button
using the back side of the
transmitter (as shown).
3 After the GREEN indicator
light illuminates constantly,
push the START/STOP
button with your finger
to start the engine.
Transmitter
Emergency Engine Stop:
Continuously pushing the START/
STOP button while the engine is
running will turn the engine OFF.
Use only in case of an emergency.
Emergency Vehicle Entry:
If the key cannot be used due to
a malfunction or dead key battery,
use the auxiliary key to lock or
unlock the doors.
Auxiliary Key Release
Auxiliary KeyKey (Rear)
START/STOP b utton
Indicator Light
Key
1191187_13c_Mazda_CX-5_SSG_062212.indd 4-56/22/12 2:46 PM

1718
www.MazdaUSA.comAudio

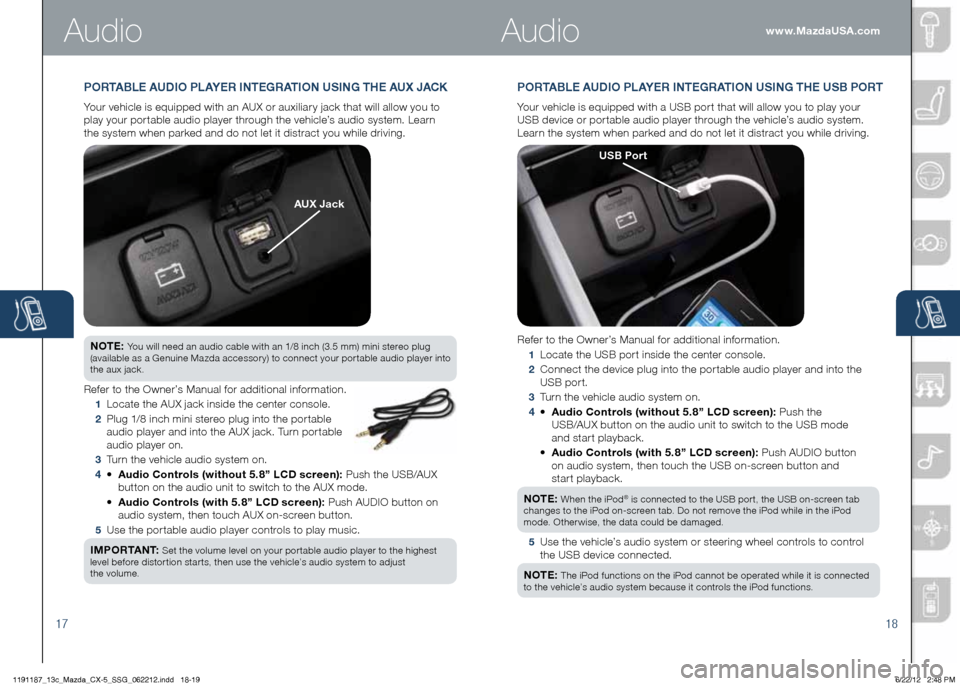

PORTAbLE AUDIO PLAYER INTEGRATION USING THE US b PORT
Your vehicle is equipped with a USB port that will allow you to play your
USB device or portable audio player through the vehicle’s audio system.
Learn the system when parked and do not let it distract you while driving.
Refer to the Owner’s Manual for additional information.

1 Locate the USB port inside the center console.

2
Connect the device plug into the portable audio player and into the
USB port.

3 Turn the vehicle audio system on.
4 •
Audio Controls (without 5.8” LCD screen): Push the
USB/AUX button on the audio unit to switch to the USB mode
and start playback.
•
Audio Controls (with 5.8” LCD screen): Push AUDIO button
on audio system, then touch the USB on-screen button and
start playback.
NOTE:
When the iPod® is connected to the USB port, the USB on-screen tab
changes to the iPod on-screen tab. Do not remove the iPod while in the iPod
mode. Otherwise, the data could be damaged.
5
Use the vehicle’s audio system or steering wheel controls to control
the USB device connected.
NOTE:
The iPod functions on the iPod cannot be operated while it is connected
to the vehicle’s audio system because it controls the iPod functions.
Audio
NOTE: You will need an audio cable with an 1/8 inch (3.5 mm) mini stereo plug
(available as a Genuine Mazda accessory) to connect your portable audio player into
the aux jack.
Refer to the Owner’s Manual for additional information.

1 Locate the AUX jack inside the center console.

2
Plug 1/8 inch mini stereo plug into the portable
audio player and into the AUX jack. Turn portable
audio player on.

3 Turn the vehicle audio system on.
4 •
Audio Controls (without 5.8” LCD screen): Push the USB/AUX
button on the audio unit to switch to the AUX mode.
•
Audio Controls (with 5.8” LCD screen): Push AUDIO button on
audio system, then touch AUX on-screen button.

5 Use the portable audio player controls to play music.
I M P O R TA N T:
Set the volume level on your portable audio player to the highest
level before distortion starts, then use the vehicle’s audio system to adjust
the volume.
US b Port
PORTA bLE AUDIO PLAYER INTEGRATION USING THE AUX JACK
Your vehicle is equipped with an AUX or auxiliary jack that will allow you to
play your portable audio player through the vehicle’s audio system. Learn
the system when parked and do not let it distract you while driving.
AUX Jack
1191187_13c_Mazda_CX-5_SSG_062212.indd 18-196/22/12 2:48 PM

2728
CD Slot
www.MazdaUSA.com
Eject CDAUDIO CONTROLS
FOLDER SEARCH
(during MP3/WMA/AAC
CD or US b playback)
• To change to the
previous folder, push the
folder down button
,
or push the folder up
button
to advance to
the next folder.
Audio Controls (without 5.8” LCD screen)
POWER ON
Push the Volume/Power dial to turn
the audio system on.
M EDIA SELECTION
FM/AM: Push FM/AM button to
select the FM1, FM2, or AM band.
The selected band will be indicated
in the display.
CD: Push CD button to select the
CD player when inserting a CD.
US b/iPod: Push USB/AUX button to
select the USB or iPod player when
connecting USB or iPod.
AUX: Push USB/AUX button to
switch to AUX jack input.
T UNING
The radio has the following
tuning controls:
M anual: Turn the TUNE dial to
manually change the frequency. S
eek: Push the SEEK
tuning buttons to automatically
seek a higher or lower frequency
with a station.
S can: Push the SCAN button
to automatically sample strong
stations for seconds each. Push
again to cancel.
Preset Channel: Push 1/2/3/4/5/6
button to select a station stored in
memory. To store a station, push
and hold 1/2/3/4/5/6 until station
is displayed.
Auto Memory Tuning: Push and
hold the AUTO-M button to store
an additional 6 stations on each FM
and AM band without disturbing the
previously stored stations. To return
to the previously stored stations,
push FM or AM button. Refer to the
Owner’s Manual for complete details.T E X T: For files with a file name
and other information that have
been input. The display switches
between display of the file name
and other information each time
the text button (TEXT) is pressed
during playback.
L OADING A CD
•
Insert the CD into the slot,
label-side up. The auto
loading mechanism will load
the CD and begin to play it. i
P O D P L AY E R

•
Select CATEGORY: Push
pre-set button 5 (down) or
6 (up) to select Playlist/Artist/
Album/Song/Podcast/Genre/
Composer/Audiobook.
•
Select a desired list: Push
FOLDER Up/Down to select a
desired list from the list menu.

•
Tr a c k U p / D o w n : To change
to the previous track, push
SEEK
or turn the FILE dial
to the left. To change to the
next track, push SEEK
or
turn the FILE dial to the right.
1191187_13c_Mazda_CX-5_SSG_062212.indd 28-296/22/12 2:49 PM

2930
POWER ON
Push the Power/ Volume dial to
turn the audio system on.
M EDIA SELECTION
Push the AUDIO button to select the
appropriate on-screen button:
Radio: Select FM/AM button
for FM1, FM2, or AM band.
CD: Select for CD player.
b luetooth
®: Select for
Bluetooth® Audio.
US b: Select to play iPod/iPhone®
through USB port.
AUX: Select to switch to AUX
jack input.
SIRIUS: Select for SiriusXM
®.
If your vehicle is equipped with
SiriusXM
® (satellite radio antenna
on roof), your new Mazda includes
a free introductory subscription
with a limited term trial offer. Call
888-539-7474 to activate! See the
Owner’s Manual and/or dealer for
details. Contact your Authorized
Mazda Dealer about adding
SiriusXM
® if your Mazda CX-5 is
not already equipped with it. T
UNING
M anual: Turn the TUNE/FILE dial to
manually change the frequency.
S eek: Push the SEEK
button
or touch and hold the
on-screen button, to automatically
seek a higher or lower frequency or
track, depending on media selected.
NOTE:
If you continue to push and hold
the button, the frequency will continue
changing without stopping.
Scan: Touch the SCAN on-screen
button to automatically sample strong
stations for seconds each. Touch
again to cancel.
Auto Memory Tuning:
1 Touch the
Auto Memory on-screen
button. The auto memory preset
list is displayed and the previously
tuned frequency is received.
2 Touch the
Update List on-screen
button to display the frequencies of
up to ten radio stations on the auto
memory preset list.
3 Touch the desired frequency.
Refer to the Owner’s Manual for
complete details.
I NSERTING THE CD
Insert the CD into the slot, label-side
up. The auto-loading mechanism will
set the CD and begin play.
Preset Channel: Can be used to store
6 AM or 12 FM stations.
1 To set a channel, first select AM,
FM1 or FM2.
2 Tune to the desired station.
3 Long-press any of the preset
on-screen buttons. The reception
frequency is programmed and
displayed on the preset button.
4 Repeat this operation for the other
stations and bands you want to
store. When receiving a programmed
frequency, select AM, FM1, or FM2
and touch the preset on-screen
button. The station frequency will
be displayed.
HD RADIO
When the HD radio button is ON
(illuminated), there could be a noticeable
difference in sound quality and volume
when a change from digital to analog
signals occurs. If the sound quality and
volume becomes noticeably diminished
or cuts off, touch the HD button OFF
(not illuminated) to restore audio system.
www.MazdaUSA.com
V EHICLE PERSONALI zATION
F EATURES
Customize the following
vehicle functions:
• Door Locks
•
Lighting Control
•
Wiper Control
1
Push the
Setup button.
2
Touch the “Vehicle”
on-screen tab.
3
Touch desired setting item.
4
Select the desired setup item
from the list by touching it.
5
Select desired option.
6
Touch “Ok”.PLAYING b LUETOOTH®
(b T) AUDIO
1
Make sure BT audio device
is paired to your vehicle.
2
Turn on BT audio device.
3
Touch the Bluetooth
® on-screen tab.
4
Select the BT-Audio option.
Eject CD
Audio Controls (with 5.8” LCD screen)
b LUETOOTH® AUDIO
Bluetooth® enabled phones
and audio players provide
an opportunity to play music
through the audio system with
no wires attached, however,
there are some limitations:
•
Depending on BT version,
the song title may be unable
to display.
•
Not all controls on the
phone or player may be
active when paired
to the vehicle.
•
Audio streaming may be
affected by wireless
signal strength.
•
Sound quality of streaming
audio may vary, depending
on the device.
1191187_13c_Mazda_CX-5_SSG_062212.indd 30-316/22/12 2:49 PM

Customer Delivery Checklist
Smart Start Guide
•
Remove this checklist from
Smart Start Guide
• Personalization Features
(refer to your Owner’s Manual)
Warranty Information

Warranty Start Date:
Customer Ini tial:
• Basic Vehicle –
36 months/36,000 miles
• Roadside assistance program
MyMazda.com
•
Offer to register customer on
MyMazda.com
P RESENTATION OF OWNER ’S M ATERIALS :
Review the following items with the customer
SERVICE DEPARTMENT
Introduce Service Manager;
provide business cards
Review Service and Parts
Department hours of operation
Explain free Full Circle
Service Inspection
Schedule first maintenance service
DEALERSHIP DAT E
SALES CONSULTANT CUSTOMER’S NAME
VIN E-MAIL
Owner’s Manual
Maintenance Passport
Floor Mats
•
Ensure floor mats are properly
hooked after cleaning
• Do not install two floor mats, one on
top of the other, on the driver side
• Accessory rubber floor mats should
be cleaned with mild soap and
water only
Tire P
ressure Monitoring System
• System overview
• Explain when & how to initialize
the system
• Review the system Caution
Keyless Entry
..............................1-2
• Advanced Keyless Entry*
• Door/Liftgate Request Switch*
• Liftgate Opener Switch
Starting the Engine
....................3-4
• Push Button Start System
•
Accelerated Warm-Up System (AWS)
• Emergency Vehicle Entry/
Engine Start/Stop
Seats
............................................5 -7
• Adjustments
Driver’s View
.............................9 -10
• Location of Switches and Controls
Instrument Cluster
..................11-12
• Review of Warning and Indicator
Light Function and Location
Lights
............................................13
Wiper/Washer
...............................14
Hill Launch Assist (HLA)
.............15
Set Clock
......................................16

US
b & AUX Input .......................17-18
Fuel Door
......................................19
• Fuel Door Release and Fuel Spec
Rear View Monitor* ......................20
Customer Delivery Checklist
Adaptive Front Lighting System
(AFS)*
............................................21
Aluminum Wheel Care
.................22
Information Display
.....................23
b
lind Spot Monitoring* ................24
Climate Control
........................25-26
• Manual • Automatic*


Audio Controls
.........................2 7- 3 0
• Bluetooth Audio*
• Personalization Features*
Navigation System*
.................31-32
• SD Card
• Planning a Route
b
luetooth®* ...................................33
• Pair Phone • To l l - F r e e
• Make/Receive Customer Service
a Call 800-430-0153
SCHEDULED MAINTENANCE
When replacing or topping off engine
oil, use Mazda Genuine oil. For optimal
engine performance, use SAE 0W-20
engine oil. Please consult an Authorized
Mazda Dealer for additional information.
*if equipped
SALES CONSULTANT DAT ECUSTOMER DAT E
All items in the Customer Deliver y Checklist have been reviewed with the
customer and the first maintenance appointment has been scheduled:
Signed copy must be placed in dealer jacket
V EHICLE PRESENTATION :
Refer to the Smart Start Guide during presentation
1191187_13c_Mazda_CX-5_SSG_062212.indd 36-376/22/12 2:50 PM
