WARNING
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down:Driving without tightly securing
cargo and luggage is dangerous as it
could move and become an
obstruction to driving during
emergency braking or a collision
resulting in an unexpected accident.
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat: Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is
dangerous. It could cause injury to a
child seated in the child-restraint
system when the seatback suddenly
flips forward.
Make sure there is nobody in the rear
seat area before operating (pulling) the
remote handle levers (Vehicles with
remote handle): Not checking the rear seat area for
persons before folding the seatbacks
with the strap/remote handle levers
is dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating (pulling) the
remote handle levers without
checking could cause injury to a
person when a seatback suddenly
flips forward.
CAUTION
ØWhen operating the rear seatback
knob, make sure you support the
seatback with your hand. If the
seatback is not supported with
your hand, it will flip forward
suddenly and could cause injury to
the finger that pushes the rear
seatback knob down.
Ø (Vehicles with remote handle)
Before folding the seatbacks down
with the remote handle levers,
make sure there is no cup in a rear
cup holder. Folding the seatbacks
with the remote handle levers
while a cup is in the cup holder
could soil or damage the seat
bottom and seatback.
Ø (Vehicles with remote handle)
Be careful of the following when
using the remote handle levers:
ØOn a downward slope, the
seatback could flip forward
faster than on a flat surface.
ØOn an upward slope, the
seatback may not fold down.
When the seatbacks cannot be
folded down with levers, pull
the rear seatback forward from
inside the vehicle.
Essential Safety Equipment
Seats
2-9
CX-5_8DR2-EA-14A_Edition1 Page21
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 22 of 532

Black plate (22,1)
Folding both seatbacks down
CAUTION
Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold a
rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Lower or remove the head restraint
on the rear outboard seat if
necessary.
Using remote handle
í
After checking that the rear seats are clear,
open the liftgate and lower the seatback
you want to fold down using the remote
handle.
When folding the left side, operate the
outer part of the remote handle.
CAUTION
(Folding the left seatback)
Be careful when operating the remote
handle with the center seat folded
down. If a person sitting in the right
rear seat places a hand on the center
seat, it could be pinched by a
seatback or seat component causing
injury.
Using push knob
Push the rear seatback knob down.
Folding only center seatí
Using remote handle
1. If the center head restraint is in the position for use, store it.
2-10
Essential Safety Equipment
íSome models.
Seats
CX-5_8DR2-EA-14A_Edition1 Page22
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 23 of 532

Black plate (23,1)
2. After checking that the center seat isclear, open the liftgate and pull the
inside remote handle levers on the left
side of the liftgate compartment.
Using strap
1. If the center head restraint is in theposition for use, store it.
2. Pull the strap on the back of the seatback to fold the seatback forward.
To return the seatbacks to the upright
position
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks frominside the vehicle to make sure they are
locked.
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks: A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication: A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position Red indicator
Essential Safety Equipment
Seats
2-11
CX-5_8DR2-EA-14A_Edition1 Page23
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 24 of 532

Black plate (24,1)
qArmrestí
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
WARNING
Never put your hands and fingers
around the moving parts of the seat
and armrest:
Putting your hands and fingers
around the moving parts of the seat
and armrest is dangerous as they
could get injured.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted.:Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the center
is even with the top of the passenger's
ears.
2-12
Essential Safety Equipment
íSome models.
Seats
CX-5_8DR2-EA-14A_Edition1 Page24
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 25 of 532

Black plate (25,1)
Front outboard seat
Rear outboard seat
Rear center seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the stop-
catch.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
installed:Driving with the head restraints not
installed is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
Essential Safety Equipment
Seats
2-13
CX-5_8DR2-EA-14A_Edition1 Page25
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 26 of 532

Black plate (26,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, in some models (with automatic locking mode) the front passenger's seat and all
rear lap/shoulder belt retractors operate in two modes: emergency locking mode, and for
child-restraint systems, automatic locking mode. While we recommend you put all children
in the rear seats, if you must use the front passenger seat for a child, slide the front
passenger seat as far back as possible and make sure any child-restraint system is secured
properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
2-14
Essential Safety Equipment
Seat Belt Systems
CX-5_8DR2-EA-14A_Edition1 Page26
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 27 of 532

Black plate (27,1)

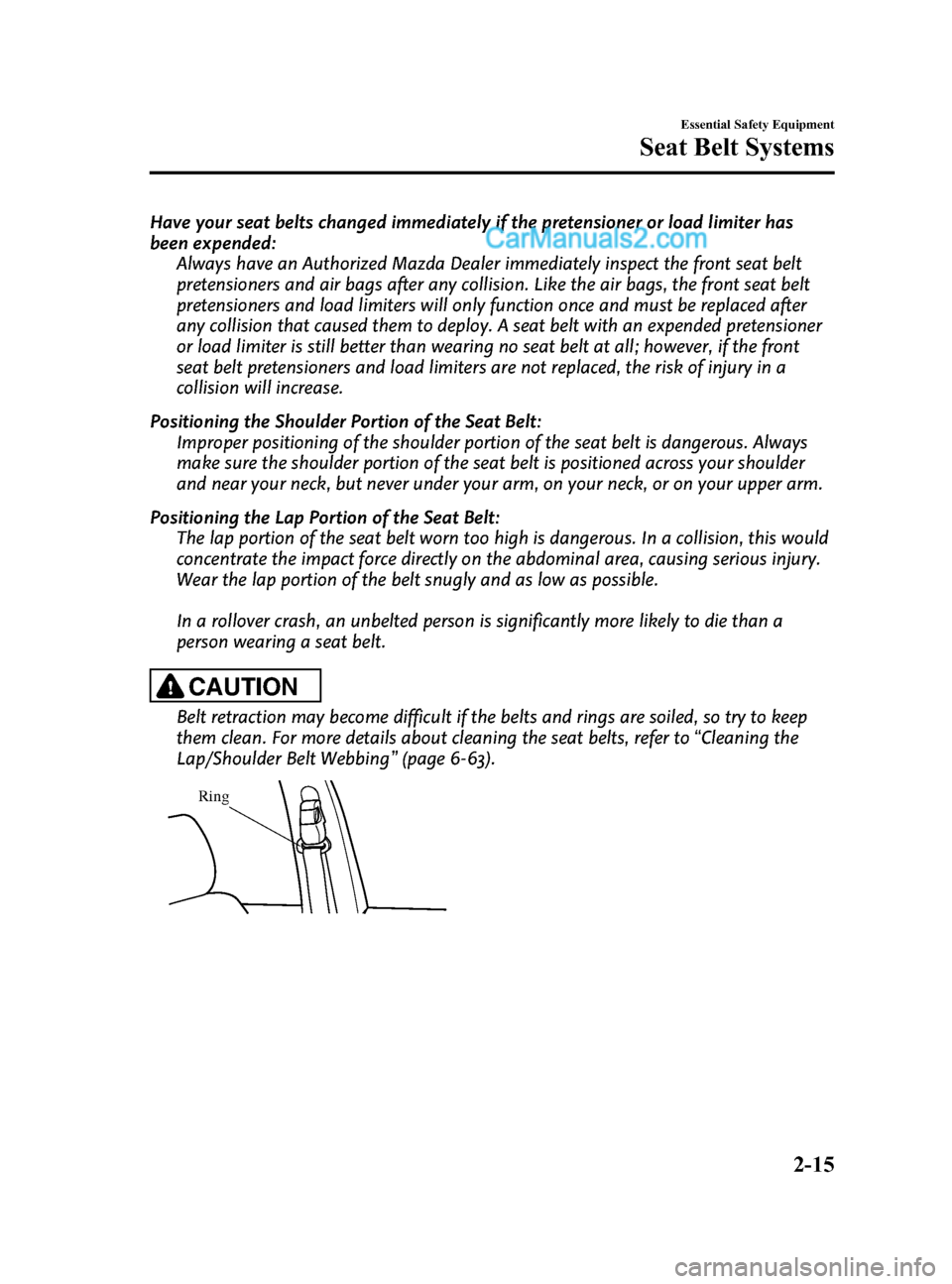

Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
Positioning the Shoulder Portion of the Seat Belt: Improper positioning of the shoulder portion of the seat belt is dangerous. Always
make sure the shoulder portion of the seat belt is positioned across your shoulder
and near your neck, but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt: The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury.
Wear the lap portion of the belt snugly and as low as possible.
In a rollover crash, an unbelted person is significantly more likely to die than a
person wearing a seat belt.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to “Cleaning the
Lap/Shoulder Belt Webbing ”(page 6-63).
Ring
Essential Safety Equipment
Seat Belt Systems
2-15
CX-5_8DR2-EA-14A_Edition1 Page27
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 28 of 532

Black plate (28,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the
belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, it may be in the automatic locking mode because the belt has been pulled too far
out. To return the belt to the more comfortable emergency locking mode, wait until the
vehicle has stopped in a safe, level area, retract the belt fully to convert it back to
emergency locking mode and then extend it around you again.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-23).
2-16
Essential Safety Equipment
Seat Belt Systems
CX-5_8DR2-EA-14A_Edition1 Page28
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 29 of 532

Black plate (29,1)
Seat Belt
qFastening the Seat Belt
Seat belt
buckle Seat belt tongue
Position the lap belt as low as possible,
not on the abdominal area, then adjust the
shoulder belt so that it fits snugly against
your body.
Keep low on
hip bone
Too highTake up slack
qUnfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qFront Shoulder Belt Adjuster
To raise To lower
Make sure the adjuster is locked.
Essential Safety Equipment
Seat Belt Systems
2-17
CX-5_8DR2-EA-14A_Edition1 Page29
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
Page 30 of 532

Black plate (30,1)
Seat Belt Warning Systems
If it detects that the driver's seat belt is
unfastened, the warning light or beep
alerts the driver.
Refer to Warning/Indicator Lights on page
4-22.
Front Seat Belt Pretensioner
and Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.
Pretensioners:
In moderate or severe frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously.
For deployment details, refer to the SRS
Air Bag Deployment Criteria (page 2-53).
The front seat belt retractors remove slack
quickly as the air bags are expanding.
Any time the air bags and seat belt
pretensioners have fired they must be
replaced.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-22.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning Beep on
page 7-33.
(With Front Passenger Occupant
Classification System)
In addition, the pretensioner system for
the front passenger, like the front and side
passenger air bag, is designed to only
deploy in accordance with the total seated
weight on the front passenger seat.
For details, refer to the front passenger
seat weight sensors (page 2-56).
2-18
Essential Safety Equipment
Seat Belt Systems
CX-5_8DR2-EA-14A_Edition1 Page30
Thursday, November 21 2013 8:48 AM
Form No.8DR2-EA-14A
