3.4 Saving a location as a Favorite destination
You can add any location to Favorites, the list of frequently used destin\
ations.
Planning a route to one of the Favorite destinations is described on pag\
e 57. 1. Select a destination as described before. It can be an address, a Place,\
any location on the map, a previously used destination from History, etc.
2. A searched destination can be registered to Favorites by selecting
on the veri fi cation screen of the destination search
results.
3.4.1 Editing the details of a Favorite destination
You can select a location that you have already saved as a Favorite and e\
dit its
details. Adding a location to the list of Favorite destinations is described on p\
age 71. 1. Press the Favorites button on the commander switch.
2. Select the Navigation tab.
3. The list of Favorite destinations is displayed.
/"7$76&&JOEC


 /"7$76&&JOEC











72
The following functions can be used by selecting Add/Edit Navigation
Favorite.
Add Current Location: Set the current location to Favorites.
Add Current Destination
: Register the current destination to Favorites.
Add from Contact : Register an address registered to the contacts list.
Move: Switch the Favorites order.
Delete: Delete the registered Favorites.
Your home address can be registered/changed by selecting Home.
The following functions can be used by selecting the registered Favorite\
s.
Replace with Current Location: Set the current location to Favorites.
Replace with Current Destination: Register the current destination to Favorites.
Replace with Address from Contacts : Register an address registered to the
contacts list.
Move: Switch the Favorites order.
Rename: Edit the registered Favorites name.
Delete: Delete the selected Favorites.
/"7$76&&JOEC


 /"7$76&&JOEC











73
1
2
3
4
5
6

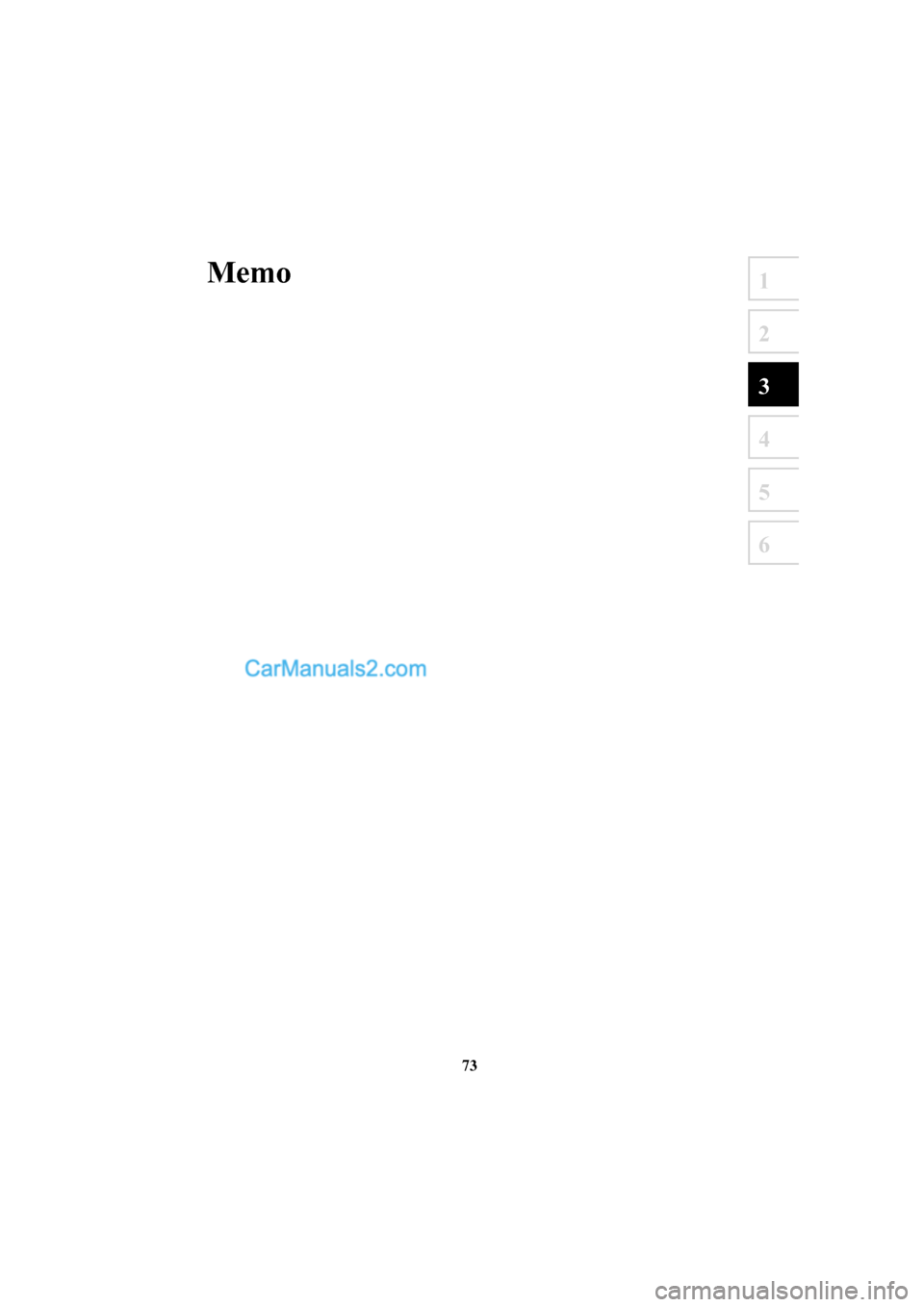

Memo
/"7$76&&JOEC



/"7$76&&JOEC











74
4 Reference Guide
4.1 Concepts
4.1.1 Smart Zoom
Smart Zoom provides much more than just a usual automatic zoom feature: \
• While following a route: when approaching a turn, it will zoom in and raise the
view angle to let you easily recognize your maneuver at the next junctio\
n. If the
next turn is at a distance, it will zoom out and lower the view angle to\
be fl at so
you can see the road in front of you.
• While driving without an active route: Smart Zoom will zoom in if you drive
slowly and zoom out when you drive at high speed.
• Off: Turns the Smart Zoom setting off.
4.1.2 Route calculation and recalculation
The navigation system calculates the route based on your preferences:
• Route planning methods: •
: Gives a quick route if you can travel at or near the speed limit
on all roads.
•
: Gives a route that has the smallest total distance of all possible
routes.
•
: This method combines the merits of the Fast and Short
routes: The navigation system makes a calculation for the Fast route,
but it also includes other roads in the calculation in consideration of \
fuel
economy.
•
: Results in a route with fewer turns and no dif fi cult maneuvers.
With this option, you can make the navigation system take, for example,
the highway/freeway instead of a series of smaller roads or streets.
/"7$76&&JOEC


 /"7$76&&JOEC











75
1
2
3
4
5
6
• Road type used for route plan:•
•
•
•
•
•
•
Whenever data exist, route calculation takes into account historical tra\
f fi c data for
the given day of week and time of day (page 78).
If the setting for Traf fi c Settings is valid, Real-time Traf fi c events are taken into
account and the route is largely modi fi ed.
The navigation system automatically recalculates the route if you deviat\
e from
the proposed itinerary or if a newly received Traf fi c event concerns a part of the
recommended route.
For further information about Route Settings see page 82.
Some functions are not available depending on some countries and regions\
.
/"7$76&&JOEC


 /"7$76&&JOEC











76
4.1.3 Road safety cameras and other proximity alert points (Only some
countries and regions)
There is a special proximity warning for road safety cameras (like spee\
d or red light
cameras) and other proximity alert points (like schools or railroad cr\
ossings).
The application can warn you when you approach road safety cameras like \
speed
cameras or dangerous areas like school zones or railroad crossings. You can set up
the different alert types individually in Warning Settings (page 80).
The following alert types are available:
• Audio warning: When approaching one of these points, a beep sound (regular sound) can be used or the type of warning can be announced (TTS), and\
an extra
alert can warn you if you exceed the given speed limit while approaching\
the
point.
• Always: The type of the alert point, its distance, and the related speed limit a\
ppear on the Map screen while you are approaching one of these points.
For some of the alert points, the enforced or expected speed limit is av\
ailable. For
these points, the audio alert can be different if you are below or above the given
speed limit.
Setting can be selected using Warning Settings:
• Only when speeding: The audio alert is only played when you exceed the given speed limit.
• When approaching: The audio alert is always played when approaching one of these alert points. To draw you attention, the alert may differ if you exceed the
speed limit.
The warning for road safety cameras is disabled when you are in a countr\
y where
road safety camera warning is prohibited. However, you must ensure on your own
liability that using this feature is legal in the country where you inte\
nd to use it.
/"7$76&&JOEC


 /"7$76&&JOEC











77
1
2
3
4
5
6
4.1.4 Speed limit warning (Only some countries and regions)
Maps may contain information about the speed limits of the roads. The navigation
system is able to warn you if you exceed the current limit. This information may not
be available for your region (ask your local dealer), or may not be fu\
lly correct for
all roads on the map.
The speed warning can be set from the Warning Settings (page 80).
Setting can be selected using Warning Settings:
• Audio warning: You will hear a warning beep if you exceed the speed limit by a certain percentage.
• Visual warning: If you exceed the speed limit on a road, the speed limit \
for the current road is shown on the map.
You can also choose to see the speed limit sign on the map all the time. \
4.1.5 Traffi c information in route planning (Only some countries and regions)
The recommended route is not always the same between two points. Of fl ine
historical traf fi c information (historical speed information or traf fi c patterns) can
be taken into account in the route calculation based on the time of day \
and the day
of week whenever suitable data exists. In addition, real-time traf fi c information can
help you avoid current traf fi c events like temporary road closures or a traf fi c jam
caused by an accident. Both functions are subject to data availability.
Select
after selecting on the MAP screen to display the historical traf fi c
information on the map. A 2D map is displayed with road segments colored by the
density of the traf fi c in the given period. The current information is shown when
you open the screen. Modify the day of week and the time of day to see t\
he desired
period.
/"7$76&&JOEC


 /"7$76&&JOEC











78
4.1.5.1 Historical traf
fi c
If historical traf fi c information is available with the map data, the navigation system
can use it when planning a route. In normal cases, these statistics help\
you avoid
usual traf fi c jams on the given day of week in the given hour but in some cases like\

on public holidays that fall on normal weekdays, they can be misleading.\
You can
disable this feature in Traf fi c Settings (page 81).
Select
after selecting on the MAP screen to display the historical traf fi c
information on the map.
/"7$76&&JOEC


 /"7$76&&JOEC











79
1
2
3
4
5
6
4.2 Settings menu
You can confi gure the program settings, and modify the behaviour of the navigation
system. Select
after selecting on the MAP screen.
Button Description
You can fi ne-tune the appearance of the Map screen. Adjust
the map view to your needs, show or hide 3D buildings, and
manage POI (point of interest) display settings (which POI
to show on map).
A guidance-related setting is available during route
guidance.
A setting related to warnings is available.
Refer to Changing the road types used in route planning
(page 69).
A setting for traf fi c information is available.
A setting for on-line service is available.
Some functions are not available depending on some countries and regions\
.
/"7$76&&JOEC


 /"7$76&&JOEC











80
4.2.1 Guidance Settings
Button
Description
The guidance audio volume can be changed during
route guidance.
4.2.2 Warning Settings
Warning and alert settings are available.
Button Description
The following alert types are available:
: No display and sound
: Only display
: Both sound and display
The speed limit warning display can be changed.
: No display and sound
: Only display
: Both sound and display
A setting is available which sounds a beep at alert points,
and it can be set to on or off. In addition, detailed settings
concerning the warning can be made.
: No display and sound
: Only display
: Both sound and display
The speed camera warning setting can be changed.
: No display and sound
: Only display
: Both sound and display
Some functions are not available depending on some countries and regions\
.
