MAZDA MODEL CX-5 2016 Navigation Manual (in English)

31
1
2
3
4
5
6

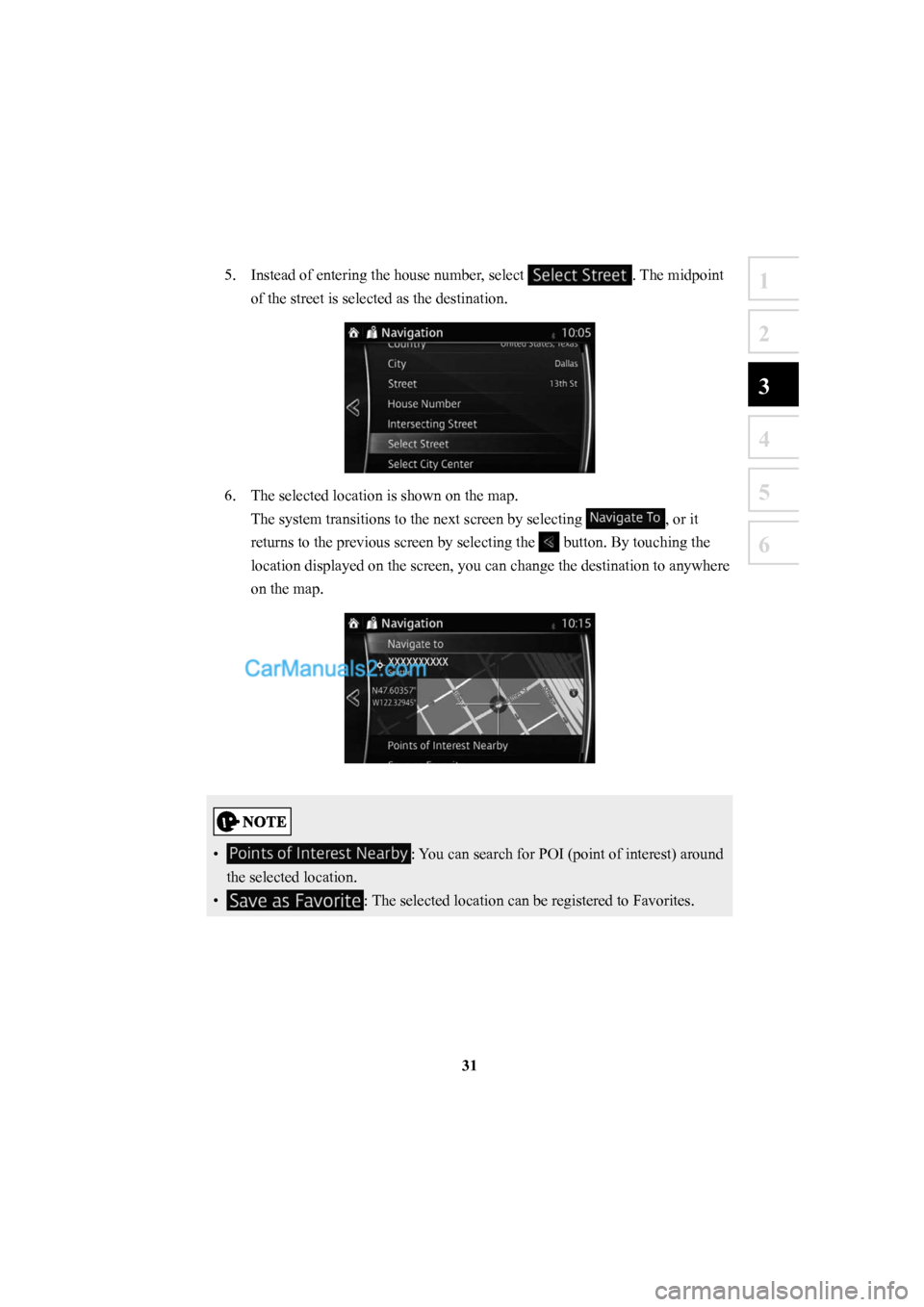

5. Instead of entering the house number, select . The midpoint
of the street is selected as the destination.
6. The selected location is shown on the map. The system transitions to the next screen by selecting
, or it
returns to the previous screen by selecting the
button. By touching the
location displayed on the screen, you can change the destination to anyw\
here
on the map.
• : You can search for POI (point of interest) around
the selected location.
•
: The selected location can be registered to Favorites.
/"7$76&&JOEC


 /"7$76&&JOEC











32

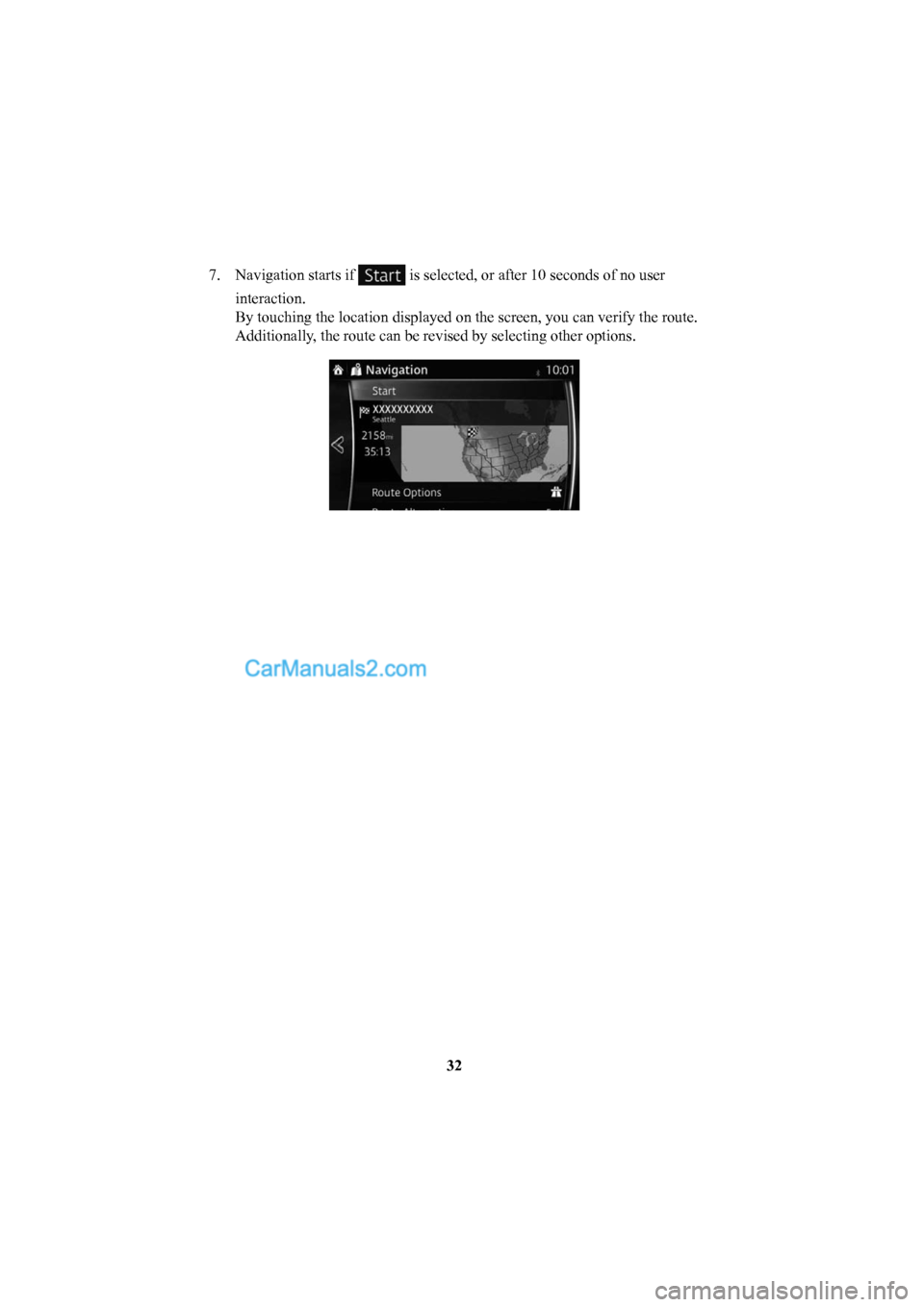

7. Navigation starts if
is selected, or after 10 seconds of no user
interaction.
By touching the location displayed on the screen, you can verify the rou\
te.
Additionally, the route can be revised by selecting other options.
/"7$76&&JOEC


 /"7$76&&JOEC











33
1
2
3
4
5
6
3.1.1.3 Selecting an intersection as the destination
To enter an address as the destination, do as follows: 1. Select
after selecting on the MAP screen.
2. Select
.
3. If necessary, modify the country and city as described earlier (page 25).
4. Enter the street name: a. Select
.
b. Start entering the street name on the keyboard.
c. Find the street you need: • The most likely street name is always shown in the input fi eld. To accept
it, select
.
• If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the lis\
t
of results before it appears automatically, select
). Select the street
from the list.
/"7$76&&JOEC


 /"7$76&&JOEC











34
5. Enter the intersecting street name:
a. Select
.
• If only a few intersecting streets exist, their list appears immediately\
.
• In case of a longer street, the keyboard screen appears. Start entering \
the name of the intersecting street on the keyboard. As soon as the street
names that match the entered string can be shown on one screen, their
list appears automatically. Select the street from the list.
/"7$76&&JOEC


 /"7$76&&JOEC











35
1
2
3
4
5
6

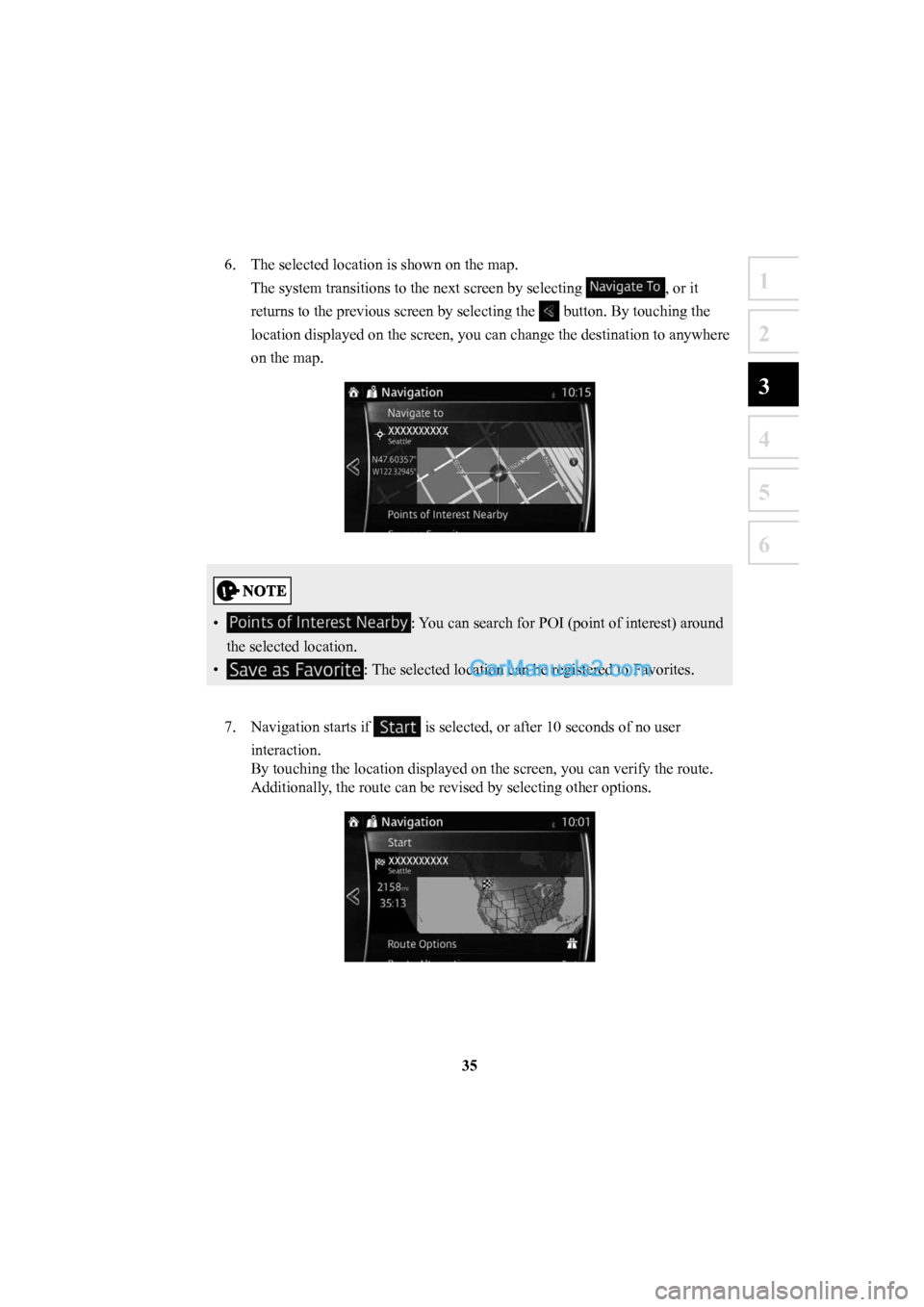

6. The selected location is shown on the map.The system transitions to the next screen by selecting
, or it
returns to the previous screen by selecting the
button. By touching the
location displayed on the screen, you can change the destination to anyw\
here
on the map.
• : You can search for POI (point of interest) around
the selected location.
•
: The selected location can be registered to Favorites.
7. Navigation starts if
is selected, or after 10 seconds of no user
interaction.
By touching the location displayed on the screen, you can verify the rou\
te.
Additionally, the route can be revised by selecting other options.
/"7$76&&JOEC


 /"7$76&&JOEC











36
3.1.1.4 Selecting a city center as the destination
The city center is not the geometric center of the city but an arbitrary\
point on the
map the creators have chosen. In cities and villages, it is usually the \
most important
intersection; in larger cities, it is one of the important intersections.
1. Select
after selecting on the MAP screen.
2. Select
.
3. If necessary, modify the country and city as described earlier (page 25).
4. Enter the street name: a. Select
.
b. Start entering the street name on the keyboard.
c. Find the street you need: • The most likely street name is always shown in the input fi eld. To accept
it, select
.
• If the desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the lis\
t
of results before it appears automatically, select
). Select the street
from the list.
/"7$76&&JOEC


 /"7$76&&JOEC











37
1
2
3
4
5
6

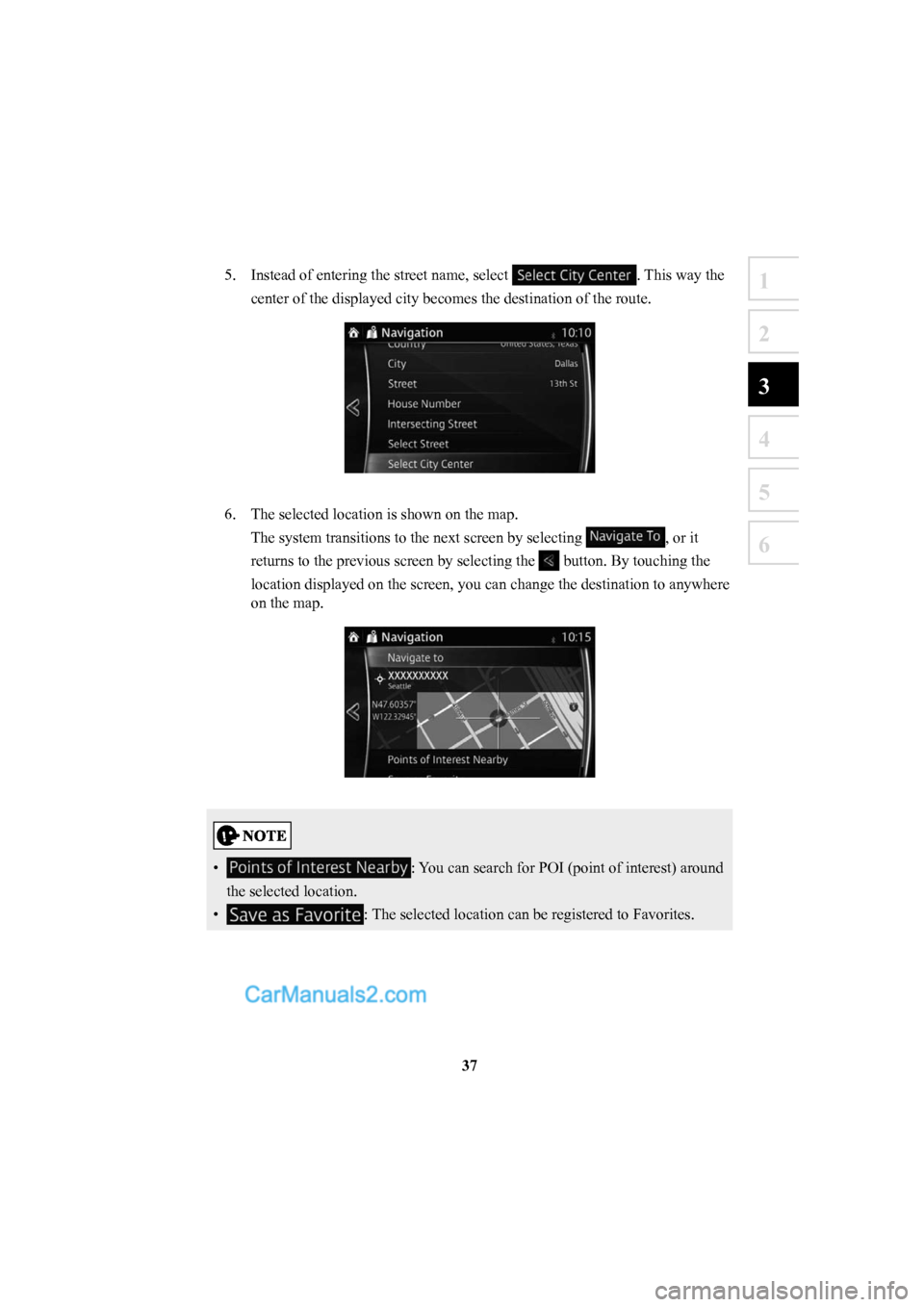

5. Instead of entering the street name, select . This way the
center of the displayed city becomes the destination of the route.
6. The selected location is shown on the map. The system transitions to the next screen by selecting
, or it
returns to the previous screen by selecting the
button. By touching the
location displayed on the screen, you can change the destination to anyw\
here
on the map.
• : You can search for POI (point of interest) around
the selected location.
•
: The selected location can be registered to Favorites.
/"7$76&&JOEC


 /"7$76&&JOEC











38

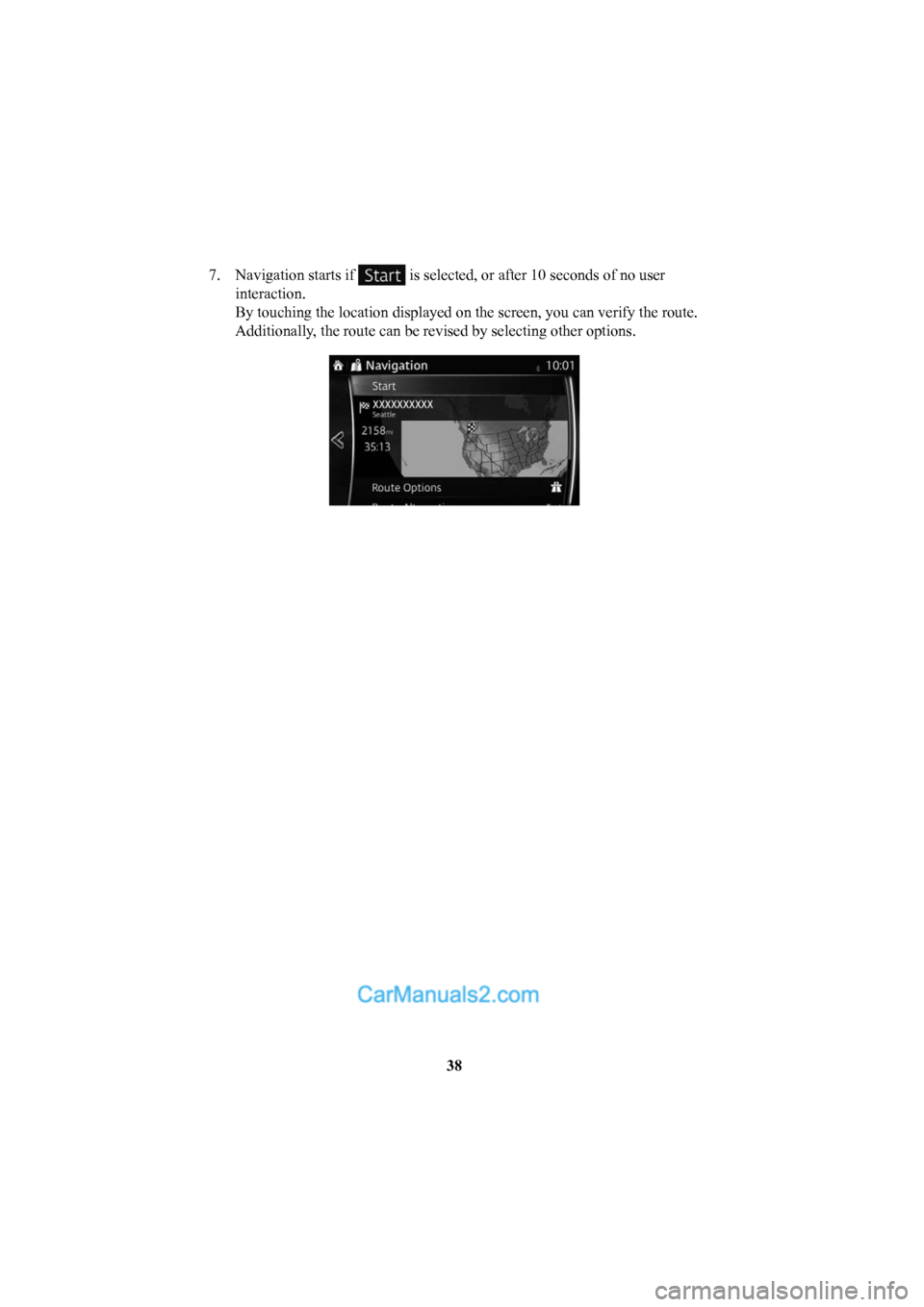

7. Navigation starts if
is selected, or after 10 seconds of no user
interaction.
By touching the location displayed on the screen, you can verify the rou\
te.
Additionally, the route can be revised by selecting other options.
/"7$76&&JOEC


 /"7$76&&JOEC











39
1
2
3
4
5
6

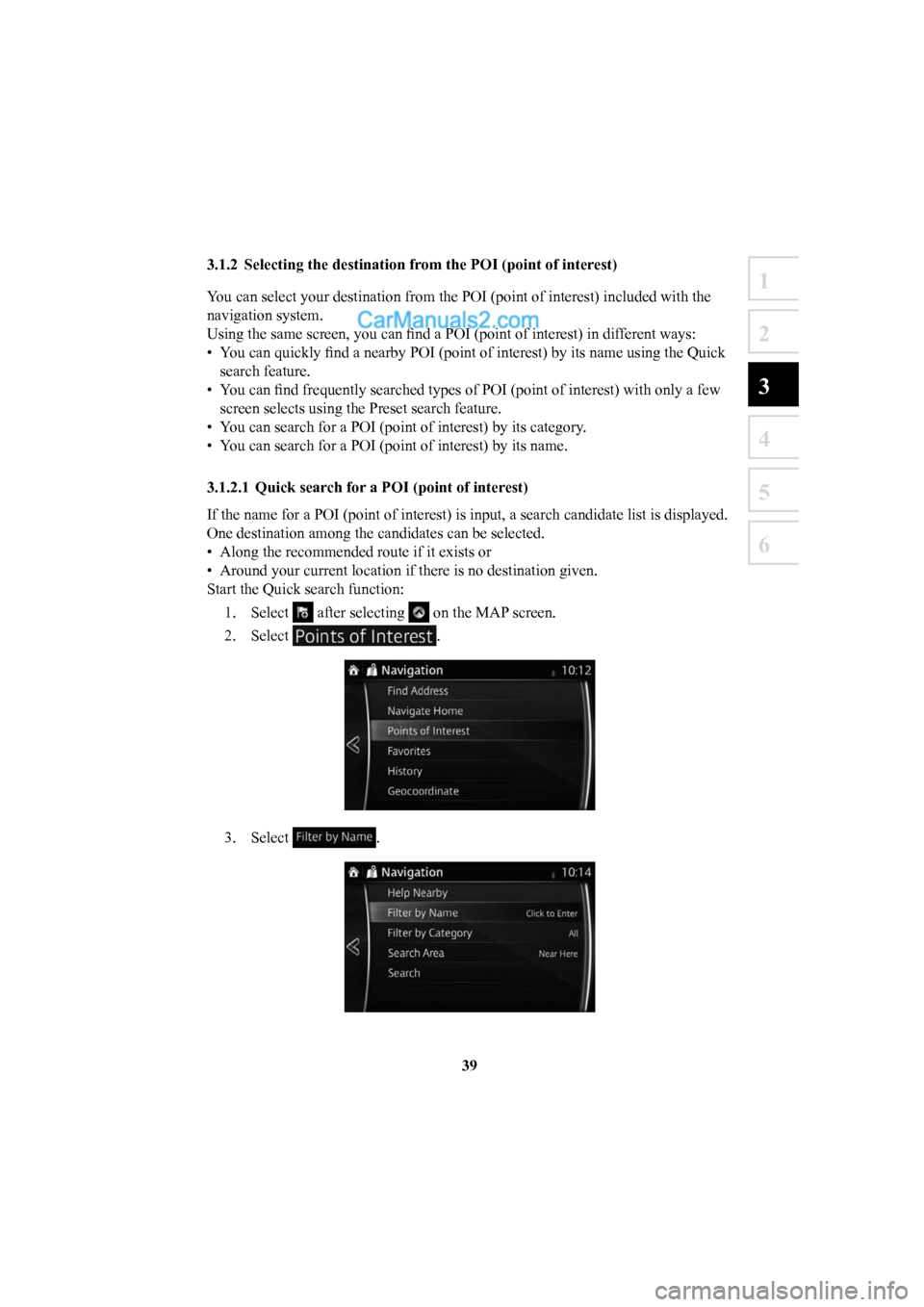

3.1.2 Selecting the destination from the POI (point of interest)
You can select your destination from the POI (point of interest) includ\
ed with the
navigation system.
Using the same screen, you can fi nd a POI (point of interest) in different ways:
• You can quickly fi nd a nearby POI (point of interest) by its name using the Quick
search feature.
• You can fi nd frequently searched types of POI (point of interest) with only a fe\
w
screen selects using the Preset search feature.
• You can search for a POI (point of interest) by its category.
• You can search for a POI (point of interest) by its name.
3.1.2.1 Quick search for a POI (point of interest)
If the name for a POI (point of interest) is input, a search candidate\
list is displayed.
One destination among the candidates can be selected.
• Along the recommended route if it exists or
• Around your current location if there is no destination given.
Start the Quick search function:
1. Select
after selecting on the MAP screen.
2. Select
.
3. Select .
/"7$76&&JOEC


 /"7$76&&JOEC











40
4. Using the keyboard, enter the name of the POI (point of interest).
If an address or part of a facility name is input, a search candidate li\
st including
the input characters is displayed. The greater the number of characters input the
more the list is re
fi ned.
5. After entering a few letters, select
to open the list of POI (point of
interest) with names containing the entered character sequence.
/"7$76&&JOEC


 /"7$76&&JOEC
