Black plate (512,1)
WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it
could deform the vehicle body or the
vehicle could fall off the jack
resulting in an accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.7. Insert the jack lever and attach the lug
wrench to tire jack.
8. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
7-10
If Trouble Arises
Flat Tire
CX-5_8DV2-EA-14K_Edition3 Page512
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (513,1)
WARNING
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting in
an accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
9. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.
qLocking Lug Nuts
If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must use
a special key to unlock them. This key
will attach to the lug wrench. Register
them with the lock manufacturer by filling
out the card provided in the glove
compartment and mailing it in the
accompanying envelope. If you lose this
key, consult an Authorized Mazda Dealer
or use the lock manufacturer's order form,
which is with the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations
when the spare tire is installed. If the
spare tire is installed, one of the original
lug nuts (which should still be in the
vehicle) must be installed in place of the
wheel lock.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
If Trouble Arises
Flat Tire
7-11
CX-5_8DV2-EA-14K_Edition3 Page513
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (514,1)
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To install the antitheft lug nut
1. Place the special key on top of the nut,
and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the
special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf)108―147
(12―14, 80―108)
qMounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the spare tire.
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.
7-12
If Trouble Arises
Flat Tire
CX-5_8DV2-EA-14K_Edition3 Page514
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (515,1)
4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)108―147
(12―14, 80―108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.5.(Aluminum wheel equipped vehicle)
Remove the center cap by tapping it
with the lug wrench.
6. Store the damaged tire, using the tire
hold-down bolt to hold it in place.
Tire hold-down bolt
7. Remove the tire blocks and store the
tools and jack.
8. Check the inflation pressure. Refer to
Tires on page 9-8.
9. Have the flat tire repaired or replaced
as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from rattling, store
them properly.
If Trouble Arises
Flat Tire
7-13
CX-5_8DV2-EA-14K_Edition3 Page515
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (526,1)
qIf the brake system warning light
illuminates
When the light turns on
If the brake system warning light remains
turned on even though the electric parking
brake is released, the brake fluid may be
low or there could be a problem with the
brake system. Park the vehicle in a safe
place immediately and contact an
Authorized Mazda Dealer.
When the light is flashing
The light flashes if the electric parking
brake has a malfunction.
If the light remains flashing even if the
electric parking brake switch is operated,
consult an Authorized Mazda Dealer as
soon as possible.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qIf the antilock brake system
(ABS) warning light illuminates
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
7-24
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page526
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (527,1)
qIf the brake system warning light
and the ABS warning light
illuminate simultaneously
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the electric parking brake
warning light illuminates
The warning light illuminates when the
system has a malfunction. Have your
vehicle inspected at an Authorized Mazda
Dealer.
qIf the charging system warning
indication/warning light is indicated
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-25
CX-5_8DV2-EA-14K_Edition3 Page527
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (538,1)
NOTElPlacing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function to
operate depending on the weight of the
item.
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lIf a small child is seated on the front
passenger's seat, the warning beep may not
operate.
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard to notify the
driver that the ignition has not been
switched off (STOP) (for vehicles with a
type A meter, messages are displayed in
the instrument cluster). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
qKey Removed from Vehicle
Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the key has been
removed (for vehicles with a type A
meter, messages are displayed in the
instrument cluster). The KEY warning
light (red) will stop flashing when the key
is back inside the vehicle (for vehicles
with a type A meter, messages are
displayed in the instrument cluster):
The ignition has not been switched off
and all the doors are closed after
removing the key from the vehicle. (A
beep sound will be heard 6 times.)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
qRequest Switch Inoperable
Warning Beep (With the
advanced keyless function)
If the request switch is pressed under the
following conditions while the key is
being carried, a beep will be heard for
about 2 seconds to indicate that the front
doors and the liftgate can not be locked.
lA door or the liftgate is open (door ajar
included).
lThe ignition has not been switched to
off.
7-36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page538
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (539,1)
qKey Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all doors locked and
the liftgate closed, a beep sound is heard
for about 10 seconds to remind the driver
the key has been left in the luggage
compartment. If this happens, open the
liftgate by pressing the electric liftgate
opener and remove the key. A key
removed from the luggage compartment
may not function because its functions
may have been temporarily suspended. To
restore the key function, perform the
applicable procedure (page 3-8).
qKey Left-in-vehicle Warning Beep
(With the advanced keyless function)
When any door is opened from the
outside while the key is inside the vehicle,
the closed doors are locked. All the doors
are automatically unlocked by closing the
open door and the beep sound is heard for
about 10 seconds to notify the driver that
the key has been left in the vehicle.
If this happens, the doors and the liftgate
lock but the functions of the key left in the
vehicle cabin may be temporarily
suspended.
Perform the applicable procedure to
restore the functions of the key (page 3-8).
qTire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 4-148).
qLane Departure Warning Soundí
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
lThe volume of the LDWS warning sound
can be changed.
Refer to Personalization Features on page
9-10.
lThe type of the LDWS warning sound can
be changed.
Refer to Personalization Features on page
9-10.
qBlind Spot Monitoring (BSM)
System Warning Beepí
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the BSM warning light is illuminated.
NOTE
A personalized function is available to change
the BSM warning beep sound volume. Refer to
Personalization Features on page 9-10.
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-37íSome models. CX-5_8DV2-EA-14K_Edition3 Page539
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (541,1)

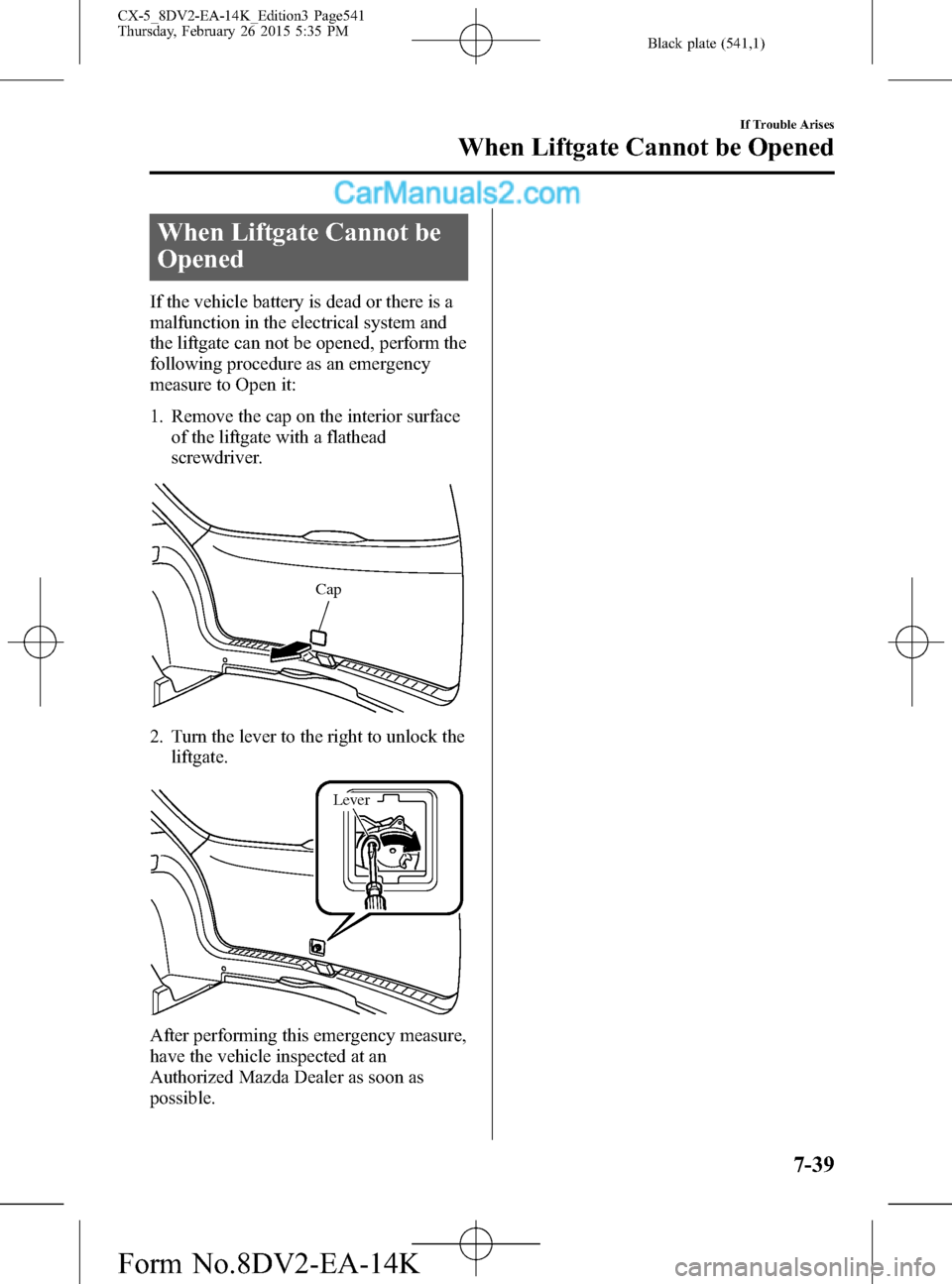

When Liftgate Cannot be
Opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate can not be opened, perform the
following procedure as an emergency
measure to Open it:
1. Remove the cap on the interior surface
of the liftgate with a flathead
screwdriver.
Cap
2. Turn the lever to the right to unlock the
liftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
If Trouble Arises
When Liftgate Cannot be Opened
7-39
CX-5_8DV2-EA-14K_Edition3 Page541
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (611,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
SafetyDistance
Recognition
Support
System
(DRSS)
Refer to
Distance
Recognition
Support
System
(DRSS) on
page 4-108.The system can be changed so
that Distance Recognition
Support System (DRSS) does
not operate.
*1On On/OffRefer to
Settings
on page
5-49.―
The distance at which the
vehicle ahead indicator in the
display flashes can be changed.NearFar/Medium/
NearRefer to
Settings
on page
5-49.―
VehiclePower door
lock
Refer to
Auto
Lock/Unlock
Function on
page 3-15.Changes the auto lock/unlock
function setting for all the doors
according to the vehicle speed,
the vehicle power supply
condition, and the selector lever
position.Lock:
When
Driving
Unlock:
IGN OffLock:
When
Driving
Unlock: In
Park/
Lock: Out
of Park
Unlock: In
Park/
Lock:
Shifting
Out of
Park/
Lock:
When
Driving
Unlock:
IGN Off/
Lock:
When
Driving/
Off
Refer to
Settings
on page
5-49.
Refer to
Auto
Lock/Un-
lock
Function
on page
3-15.
Keyless
entry system
Refer to
Keyless
Entry
System on
page 3-4.The method for unlocking the
doors using the transmitter can
be changed.Driver's:
Once, All
Doors:
TwiceAll Doors:
Once/
Driver's:
Once, All
Doors:
TwiceRefer to
Settings
on page
5-49.Refer to
Transmit-
ter on
page 3-5.
The time required for the doors
to relock automatically after
unlocking with the transmitter
can be changed.60
seconds90
seconds/
60
seconds/
30
secondsRefer to
Settings
on page
5-49.―
Personalization Features
9-13
CX-5_8DV2-EA-14K_Edition3 Page611
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K
