Black plate (267,1)
qCollision Warning
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display.
qStopping The Smart Brake
Support (SBS) System Operation
The Smart Brake Support (SBS) system
can be temporarily deactivated.
Refer to Personalization Features on page
9-10.
When the Smart Brake Support (SBS)
system is turned off, the Smart Brake
Support (SBS) OFF indicator light turns
on.
When the engine is restarted, the system
becomes operational.NOTE
If the Smart Brake Support (SBS) system
operation is turned off, the Smart City Brake
Support (SCBS) system operation is turned off
simultaneously.
When Driving
i-ACTIVSENSE
4-133
CX-5_8DV2-EA-14K_Edition3 Page267
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (269,1)
CAUTION
ØDo not apply accessories, stickers or film to the windshield near the Forward
Sensing Camera (FSC).
If the area in front of the Forward Sensing Camera (FSC) lens is obstructed, it will
cause the system to not operate correctly. Consequently, each system may not
operate normally which could lead to an unexpected accident.
ØDo not disassemble or modify the Forward Sensing Camera (FSC).
Disassembly or modification of the Forward Sensing Camera (FSC) will cause a
malfunction or mistaken operation. Consequently, each system may not operate
normally which could lead to an unexpected accident.
ØHeed the following cautions to assure the correct operation of the Forward
Sensing Camera (FSC).
ØThe direction of the Forward Sensing Camera (FSC) has been finely adjusted,
therefore do not change the installation position or remove the Forward
Sensing Camera (FSC).
ØBe careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to
get dirty.
ØDo not remove the Forward Sensing Camera (FSC) cover.
ØDo not place objects on the dashboard which reflect light.
ØAlways keep the windshield glass around the camera clean by removing dirt or
fogging. Use the windshield defroster to remove fogging on the windshield.
ØConsult an Authorized Mazda Dealer regarding cleaning the interior side of the
windshield around the Forward Sensing Camera (FSC).
ØConsult an Authorized Mazda Dealer before performing repairs around the
Forward Sensing Camera (FSC).
ØThe Forward Sensing Camera (FSC) is installed to the windshield. Consult an
Authorized Mazda Dealer for windshield repair and replacement.
ØWhen performing repairs around the rearview mirror, consult an Authorized
Mazda Dealer.
ØDo not hit or apply strong force to the Forward Sensing Camera (FSC) or the
area around it. If strong force is applied, stop using the Lane Departure
Warning System (LDWS), the High Beam Control System (HBC), and Smart
Brake Support (SBS) and consult an Authorized Mazda Dealer.
ØThe direction in which the Forward Sensing Camera (FSC) is pointed has been
finely adjusted. Do not change the installation position of the Forward Sensing
Camera (FSC) or remove it. Otherwise, it could result in damage or malfunction.
When Driving
i-ACTIVSENSE
4-135
CX-5_8DV2-EA-14K_Edition3 Page269
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (270,1)
NOTElIn the following cases, the Forward Sensing Camera (FSC) cannot detect target objects correctly,
and each system may be unable to operate normally.
lThe height of the vehicle ahead is low.lYou drive your vehicle at the same speed as the vehicle ahead.lHeadlights are not turned on during the night or when going through a tunnel.lIn the following cases, the Forward Sensing Camera (FSC) may not be able to detect target
objects correctly.
lWhen driving next to walls with no patterning (including fences and longitudinally striped
walls).
lThe taillights of the vehicle ahead are turned off.lA vehicle is outside the illumination range of the headlights.lThe vehicle is making a sharp curve, or ascending or descending a steep slope.lEntering or exiting a tunnel.lHeavy luggage is loaded causing the vehicle to tilt.lStrong light is shone at the front of the vehicle (back light or high-beam light from on-coming
vehicles).
lThere are many light emitters on the vehicle ahead.lWhen the vehicle ahead is not equipped with taillights or the taillights are turned off at
nighttime.
lThe vehicle ahead has a special shape.
4-136
When Driving
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page270
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (279,1)
qActivation/Deactivation
To activate the system, press the ON
switch.
The cruise main indicator light (Amber)
illuminates.
Refer to Warning/Indicator Lights on page
4-20.
To deactivate the system, press the OFF
switch.
The cruise main indicator light (Amber)
turns off.
WARNING
Always turn off the cruise control
system when it is not in use:
Leaving the cruise control system in
an activation-ready state while the
cruise control is not in use is
dangerous as the cruise control could
unexpectedly activate if the
activation button is accidentally
pressed, and result in loss of vehicle
control and an accident.
NOTE
When the ignition is switched OFF, the system
status before it was turned off is maintained.
For example, if the ignition is switched OFF
with the cruise control system operable, the
system will be operable when the ignition is
switched ON the next time.
qTo Set Speed
1. Activate the cruise control system by
pressing the ON switch.
The cruise main indicator light
(Amber) illuminates. Refer to Warning/
Indicator Lights on page 4-20.
2. Accelerate to the desired speed, which
must be more than 25 km/h (16 mph).3. Set the cruise control by pressing the
SET
or SET - switch at the desired
speed. The cruise control is set at the
moment the SET
or SET - switch is
pressed. Release the accelerator pedal
simultaneously. The cruise set indicator
light (Green) illuminates.
NOTE
lThe cruise control speed setting cannot be
performed under the following conditions:
l(Automatic transaxle)
The selector lever is in the P or N
position.
l(Manual transaxle)
The shift lever is in the neutral position.
lThe parking brake is applied.lRelease the SETor SET - switch at the
desired speed, otherwise the speed will
continue increasing while the SET
switch is pressed and held, and continue
decreasing while the SET - switch is pressed
and held (except when the accelerator
pedal is depressed).
lOn a steep grade, the vehicle may
momentarily slow down while ascending,
or speed up while descending.
lCruise control will cancel if the vehicle
speed decreases below 21 km/h (13 mph)
when cruise is activated, such as when
climbing a steep grade.
lCruise control may cancel at about 15 km/h
(9 mph) below the preset speed (such as
may happen when climbing a long, steep
grade).
When Driving
Cruise Control
4-145
CX-5_8DV2-EA-14K_Edition3 Page279
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (281,1)
qTo Temporarily Cancel
To temporarily cancel the system, use one
of these methods:
lSlightly depress the brake pedal.l(Manual transaxle)
Depress the clutch pedal.
lPress the CANCEL switch.
If the RESUME switch is pressed when
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the
previously set speed.
NOTE
lIf any of the following conditions occur, the
cruise control system is temporarily
canceled.
lThe parking brake is applied.l(Automatic transaxle)
The selector lever is in the P or N
position.
l(Manual transaxle)
The shift lever is in the neutral position.
lWhen the cruise control system is
temporarily canceled by even one of the
applicable cancel conditions, the speed
cannot be re-set.
l(Automatic transaxle)
The cruise control cannot be cancelled
while driving in manual mode (selector
lever shifted from D to M position).
Therefore, engine braking will not be
applied even if the transaxle is shifted down
to a lower gear. If deceleration is required,
lower the set speed or depress the brake
pedal.
qTo Deactivate
To deactivate the system, press the OFF
switch.
When Driving
Cruise Control
4-147
CX-5_8DV2-EA-14K_Edition3 Page281
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (282,1)
Tire Pressure Monitoring System
lThe Tire Pressure Monitoring System (TPMS) monitors the air pressure of all four tires.
If the air pressure of one or more tires is too low, the system warns the driver by
indicating the tire pressure monitoring system warning light in the instrument cluster
(the warning is also indicated in the display on the type A
*1instrument cluster) and
operating a beep sound. The system monitors the tire pressures indirectly using the data
sent from the ABS wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the
specified tire pressure (value on the tire pressure label). Follow the procedure and
perform the initialization.
*1 Refer to Type A on page 4-20.
lFor vehicles with the type A*1instrument cluster, check the vehicle condition or have
the vehicle inspected at an Authorized Mazda Dealer according to the indication.
*1 Refer to Type A on page 4-20.
lA system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-20.
Refer to Tire Inflation Pressure Warning Beep on page 7-37.
ABS wheel speed sensor
4-148
When Driving
Tire Pressure Monitoring System
CX-5_8DV2-EA-14K_Edition3 Page282
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (284,1)
NOTE
Because this system detects slight changes in tire conditions, the timing of the warning may be faster
or slower in the following cases:
lThe size, manufacturer, or the type of tires is different from the specification.lThe size, manufacturer, or the type of a tire is different from the others, or the level of tire wear is
excessively different between them.
lA run-flat tire, studless tire, snow tire, or tire chains are used.lAn emergency tire is used (The tire pressure monitoring system warning light may flash and then
continue illuminating).
lA tire is repaired using the emergency flat tire repair kit.lThe tire pressure is excessively higher than the specified pressure, or the tire pressure is suddenly
lowered for some reason such as a tire burst during driving.
lThe vehicle speed is lower than about 15 km/h (9.3 mph) (including when the vehicle is stopped),
or the drive period is shorter than 5 minutes.
lThe vehicle is driven on an extremely rough road or a slippery, icy road.lHard steering and rapid acceleration/deceleration are repeated such as during aggressive driving
on a winding road.
lLoad on the vehicle is applied to a tire such as by loading heavy luggage to one side of the
vehicle.
lSystem initialization has not been implemented with the specified tire pressure.
qTire Pressure Monitoring System
Initialization
In the following cases, system
initialization must be performed so that
the system operates normally.
lA tire pressure is adjusted.lTire rotation is performed.lA tire or wheel is replaced.lThe battery is replaced or completely
drained.
lThe tire pressure monitoring system
warning light is illuminated.
Initialization method
1. Park the car in a safe place and firmly
apply the parking brake.2. Let the tires cool, then adjust the tire
pressure of all four (4) tires to the
specified pressure indicated on the tire
pressure label located on the door jamb
of the driver's door (door open). Refer
to Tires on page 9-8.
3. Switch the ignition ON.
4-150
When Driving
Tire Pressure Monitoring System
CX-5_8DV2-EA-14K_Edition3 Page284
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (285,1)

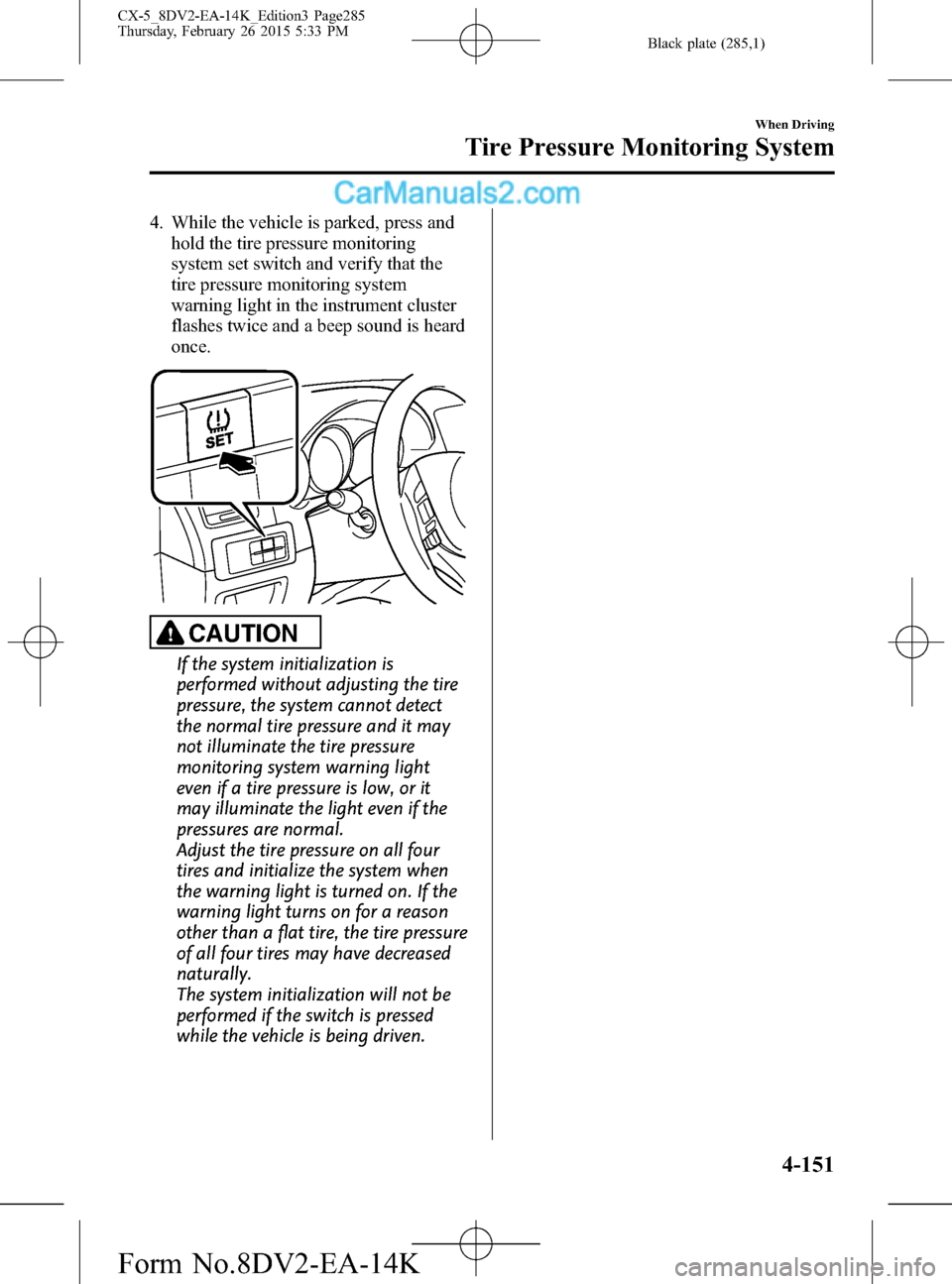

4. While the vehicle is parked, press and
hold the tire pressure monitoring
system set switch and verify that the
tire pressure monitoring system
warning light in the instrument cluster
flashes twice and a beep sound is heard
once.
CAUTION
If the system initialization is
performed without adjusting the tire
pressure, the system cannot detect
the normal tire pressure and it may
not illuminate the tire pressure
monitoring system warning light
even if a tire pressure is low, or it
may illuminate the light even if the
pressures are normal.
Adjust the tire pressure on all four
tires and initialize the system when
the warning light is turned on. If the
warning light turns on for a reason
other than a flat tire, the tire pressure
of all four tires may have decreased
naturally.
The system initialization will not be
performed if the switch is pressed
while the vehicle is being driven.
When Driving
Tire Pressure Monitoring System
4-151
CX-5_8DV2-EA-14K_Edition3 Page285
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (288,1)
qDisplayable Range on the Screen
The images on the screen may be different from the actual conditions.
(Screen display)
(Actual view)
Object Garnish
Bumper
NOTElThe displayable range varies depending on the vehicle and road conditions.lThe displayable range is limited. Objects under the bumper or around the bumper ends cannot be
displayed.
lThe distance appearing in the displayed image is different from the actual distance because the
rear view parking camera is equipped with a specific lens.
lSome optionally installed vehicle accessories may be picked up by the camera. Do not install any
optional parts that can interfere with the camera view, such as illuminating parts or parts made of
reflective material.
lIt may be difficult to see the display under the following conditions, however, it does not indicate a
malfunction.
lIn darkened areas.lWhen the temperature around the lens is high/low.lWhen the camera is wet such as on a rainy day or during periods of high humidity.lWhen foreign material such as mud is stuck around the camera.lWhen the camera lens reflects sunlight or headlight beams.lImage display may be delayed if the temperature around the camera is low.
4-154
When Driving
Rear View Monitor
CX-5_8DV2-EA-14K_Edition3 Page288
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (297,1)
5Interior Features
Use of various features for ride comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 5-2
Operating Tips ........................................................................... 5-2
Vent Operation .......................................................................... 5-3
Manual Type ............................................................................. 5-5
Fully Automatic Type ............................................................... 5-9
Audio System ............................................................................... 5-13
Antenna ................................................................................... 5-13
Operating Tips for Audio System ........................................... 5-13
Audio Set (Type A) ................................................................. 5-21
Audio Set (Type B) ................................................................. 5-32
Audio Control Switch Operation ............................................ 5-51
AUX/USB/iPod mode ............................................................. 5-52
Bluetooth® .................................................................................. 5-69
Bluetooth®
í........................................................................... 5-69
Bluetooth® Hands-Free (Type A)í........................................ 5-91
Bluetooth® Hands-Free (Type B)í........................................ 5-98
Bluetooth® Audio (Type A)í.............................................. 5-108
Bluetooth® Audio (Type B)í............................................... 5-110
Troubleshootingí................................................................. 5-124
Interior Equipment ................................................................... 5-127
Sunvisors ............................................................................... 5-127
Interior Lights ....................................................................... 5-128
Accessory Sockets ................................................................ 5-130
Cup Holder ............................................................................ 5-132
Bottle Holder ......................................................................... 5-133
Storage Compartments .......................................................... 5-134
5-1íSome models.
CX-5_8DV2-EA-14K_Edition3 Page297
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K
