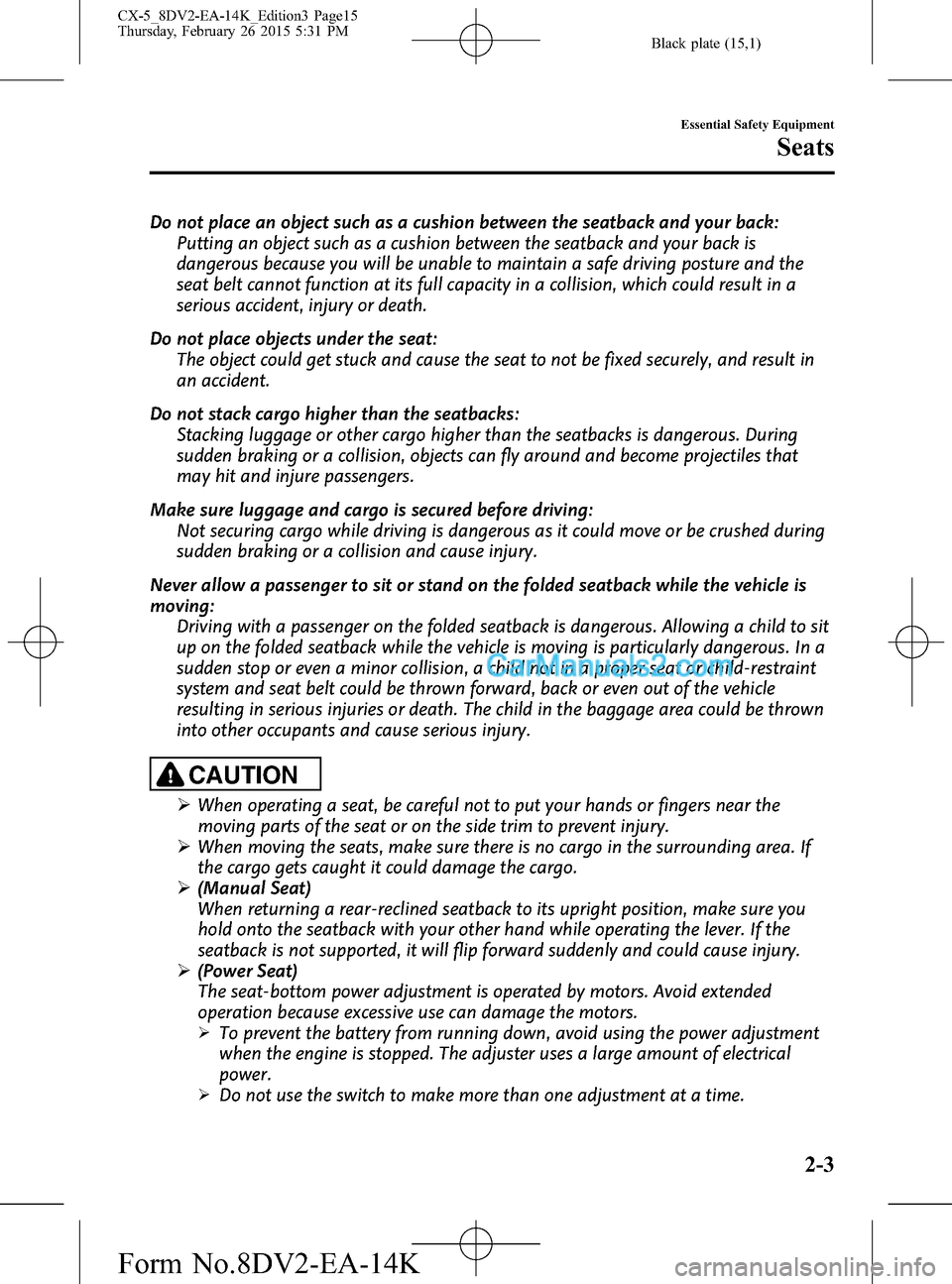

Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is
dangerous because you will be unable to maintain a safe driving posture and the
seat belt cannot function at its full capacity in a collision, which could result in a
serious accident, injury or death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in
an accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During
sudden braking or a collision, objects can fly around and become projectiles that
may hit and injure passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is
moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit
up on the folded seatback while the vehicle is moving is particularly dangerous. In a
sudden stop or even a minor collision, a child not in a proper seat or child-restraint
system and seat belt could be thrown forward, back or even out of the vehicle
resulting in serious injuries or death. The child in the baggage area could be thrown
into other occupants and cause serious injury.
CAUTION
ØWhen operating a seat, be careful not to put your hands or fingers near the
moving parts of the seat or on the side trim to prevent injury.
ØWhen moving the seats, make sure there is no cargo in the surrounding area. If
the cargo gets caught it could damage the cargo.
Ø(Manual Seat)
When returning a rear-reclined seatback to its upright position, make sure you
hold onto the seatback with your other hand while operating the lever. If the
seatback is not supported, it will flip forward suddenly and could cause injury.
Ø(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended
operation because excessive use can damage the motors.
ØTo prevent the battery from running down, avoid using the power adjustment
when the engine is stopped. The adjuster uses a large amount of electrical
power.
ØDo not use the switch to make more than one adjustment at a time.
Essential Safety Equipment
Seats
2-3
CX-5_8DV2-EA-14K_Edition3 Page15
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (20,1)
NOTElIf the ignition is switched off while the seat
warmer is operating (High, Mid or Low)
and then switched ON again, the seat
warmer will automatically operate at the
temperature set before switching off the
ignition.
lUse the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
lThe temperature of the seat warmer cannot
be adjusted beyond High, Mid and Low
because the seat warmer is controlled by a
thermostat.
qSeat Position Memory (Driver's
seat)í
The seat position memory function allows
you to program the driver's seat to a
desired seat position and to call up a
programmed position with the simple
touch of a button.
CAUTION
Do not place fingers or hands around
the bottom of the seat while the seat
memory function is operating. The
seat moves automatically while the
seat memory function is operating
and fingers or hands could get
pinched and injured.
SET button
The seat position can be programmed or
operated using the following operations.
lOperation of the buttons on the side of
the seat.
lOperation using the key.
NOTE
lIndividual seat positions can be
programmed to the two available
programming buttons on the side of the
driver's seat, plus one seat position for each
registered key.
lIf the vehicle has been serviced and the
battery cables disconnected, the
programmed seat positions will have been
erased. Re-program the seat positions.
Programming
1. Switch the ignition OFF.
2. Adjust the seat to the desired position
using the slide lifter and reclining
switches.
Refer to Seat Operation on page 2-5.
3. Press and hold the memory SET button
until a beep sound is heard.
2-8
Essential Safety Equipment
íSome models.
Seats
CX-5_8DV2-EA-14K_Edition3 Page20
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (79,1)

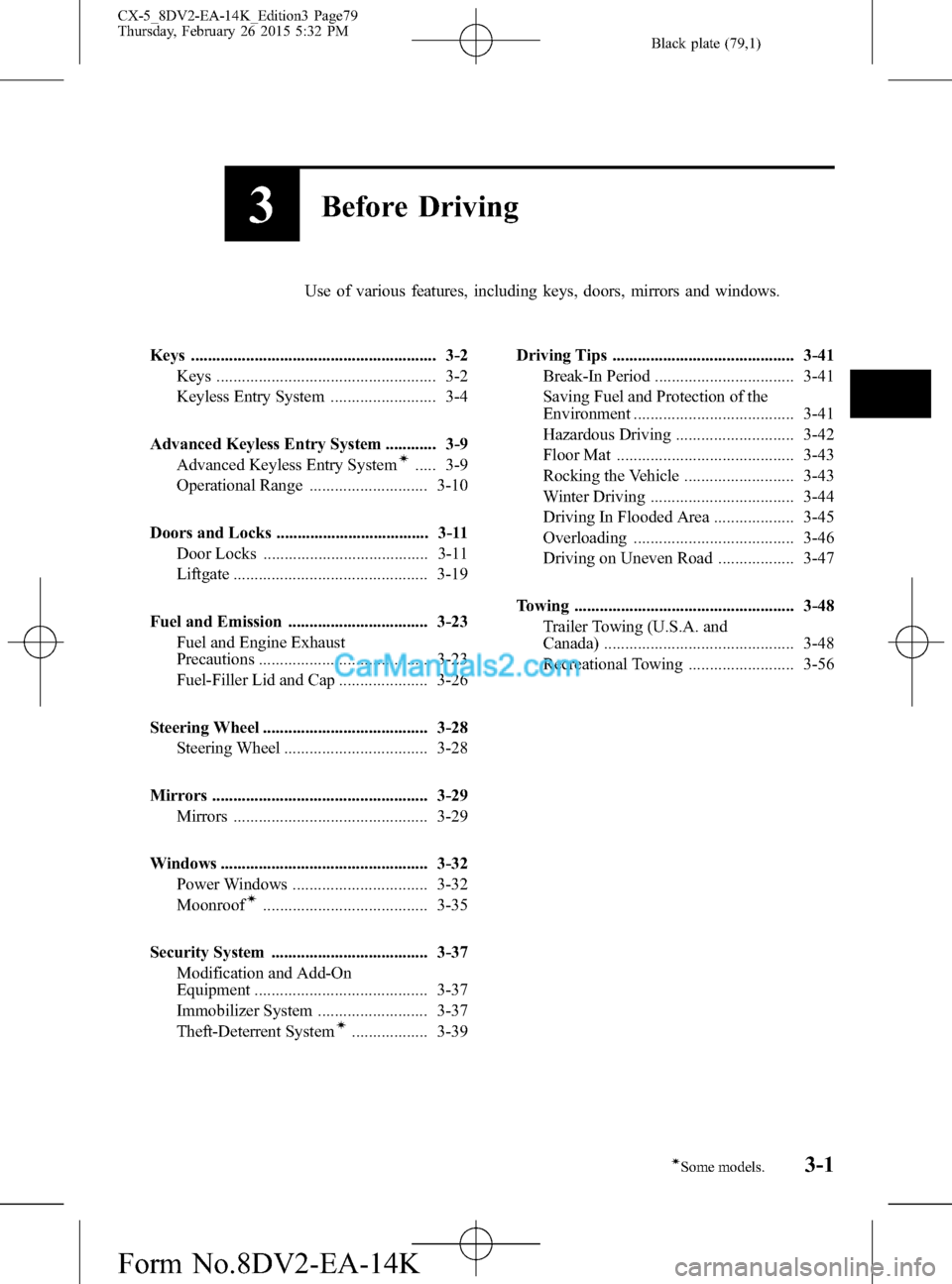

3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys .......................................................... 3-2
Keys .................................................... 3-2
Keyless Entry System ......................... 3-4
Advanced Keyless Entry System ............ 3-9
Advanced Keyless Entry System
í..... 3-9
Operational Range ............................ 3-10
Doors and Locks .................................... 3-11
Door Locks ....................................... 3-11
Liftgate .............................................. 3-19
Fuel and Emission ................................. 3-23
Fuel and Engine Exhaust
Precautions ........................................ 3-23
Fuel-Filler Lid and Cap ..................... 3-26
Steering Wheel ....................................... 3-28
Steering Wheel .................................. 3-28
Mirrors ................................................... 3-29
Mirrors .............................................. 3-29
Windows ................................................. 3-32
Power Windows ................................ 3-32
Moonroof
í....................................... 3-35
Security System ..................................... 3-37
Modification and Add-On
Equipment ......................................... 3-37
Immobilizer System .......................... 3-37
Theft-Deterrent System
í.................. 3-39Driving Tips ........................................... 3-41
Break-In Period ................................. 3-41
Saving Fuel and Protection of the
Environment ...................................... 3-41
Hazardous Driving ............................ 3-42
Floor Mat .......................................... 3-43
Rocking the Vehicle .......................... 3-43
Winter Driving .................................. 3-44
Driving In Flooded Area ................... 3-45
Overloading ...................................... 3-46
Driving on Uneven Road .................. 3-47
Towing .................................................... 3-48
Trailer Towing (U.S.A. and
Canada) ............................................. 3-48
Recreational Towing ......................... 3-56
3-1íSome models.
CX-5_8DV2-EA-14K_Edition3 Page79
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (82,1)
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate.
The system can start the engine without
having to take the key out of your purse
or pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
lKEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-20.
lIgnition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-36.
lKey Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-36.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
NOTE
lThe keyless entry system operation may
vary due to local conditions.
lThe keyless entry system is fully operational
(door/liftgate lock/unlock) when the push
button start is switched off. The system does
not operate if the push button start is
switched to any position other than off.
lIf the key does not operate when pressing a
button or the operational range becomes
too small, the battery may be dead. To
install a new battery, refer to Replace
Electrical Battery(page 6-39).
lBattery life is about one year. Replace the
battery with a new one if the KEY indicator
light (green) flashes in the instrument
cluster. Replacing the battery about once a
year is recommended because the KEY
warning light/indicator light may not
illuminate or flash depending on the rate of
battery depletion.
lAdditional keys can be obtained at an
Authorized Mazda Dealer. Up to 6 keys can
be used with the keyless functions per
vehicle. Bring all keys to an Authorized
Mazda Dealer when additional keys are
required.
3-4
Before Driving
Keys
CX-5_8DV2-EA-14K_Edition3 Page82
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (85,1)
l(With theft-deterrent system)
When the doors are unlocked by pressing
the unlock button on the key while the theft-
deterrent system is turned off, the hazard
warning lights will flash twice to indicate
that the system is turned off.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, press and hold the panic button to
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
lStarting the engine may be possible even if
the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and the key is not in
the vehicle, the vehicle will not restart after
it is shut off and the push button start is
switched to off.
lThe luggage compartment is out of the
assured operational range, however, if the
key (transmitter) is operable the engine will
start.
With the advanced keyless function
Interior antenna
Operational range
Before Driving
Keys
3-7
CX-5_8DV2-EA-14K_Edition3 Page85
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (86,1)
Without the advanced keyless function
Interior antenna
Operational range
NOTE
The engine may not start if the key is placed in
the following areas:
lAround the dashboardlIn the storage compartments such as the
glove compartment
qKey Suspend Function
If a key is left in the vehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
3-8
Before Driving
Keys
CX-5_8DV2-EA-14K_Edition3 Page86
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (87,1)
Advanced Keyless Entry
System
í
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
The advanced keyless function allows you
to lock/unlock the doors and liftgate, or
open the liftgate while carrying the key
without using the key.
System malfunctions or warnings are
indicated by the following warning beeps.
lRequest switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-36.
lKey Left-in-luggage Compartment
Warning Beep
Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-37.
lKey Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-37.NOTE
The advanced keyless entry system functions
can be deactivated to prevent any possible
adverse effect on a user wearing a pacemaker
or other medical device. If the system is
deactivated, you will be unable to start the
engine by carrying the key. Consult an
Authorized Mazda Dealer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when the key
battery goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
Before Driving
Advanced Keyless Entry System
3-9íSome models. CX-5_8DV2-EA-14K_Edition3 Page87
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (98,1)
CAUTION
ØBefore opening the liftgate,
remove any snow and ice
accumulation on it. Otherwise, the
liftgate could close under the
weight of the snow and ice
resulting in injury.
ØBe careful when opening/closing
the liftgate during strong winds. If
a strong gust blows against the
liftgate, it could close suddenly
resulting in injury.
ØFully open the liftgate and make
sure that it stays open. If the
liftgate is only opened partially, it
could slam shut by vibration or
wind gusts resulting in injury.
ØWhen loading or unloading
luggage in the luggage
compartment, turn off the engine.
Otherwise, you could get burned
by the heat of the exhaust gas.
ØBe careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your
hand on the stay. Otherwise, the
damper stay may bend and affect
the liftgate operation.
Damper stay
qOpening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and liftgate, press the
electric liftgate opener on the liftgate, and
then raise the liftgate when the latch
releases.
Electric liftgate
opener
3-20
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page98
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (101,1)
Fuel and Engine Exhaust Precautions
qFuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R
M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
ØUSE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
ØYour vehicle can only use oxygenated fuels containing no more than 10 % ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
ØNever add fuel system additives. Otherwise, the emission control system could be
damaged. Consult an Authorized Mazda Dealer for details.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name“Gasohol”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10 % ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
Before Driving
Fuel and Emission
3-23
CX-5_8DV2-EA-14K_Edition3 Page101
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (102,1)
qEmission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
ØDo not drive your Mazda with any sign of engine malfunction.
ØDo not coast with the ignition switched off.
ØDo not descend steep grades in gear with the ignition switched off.
ØDo not operate the engine at high idle for more than 2 minutes.
ØDo not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
ØDo not push-start or pull-start your vehicle.
NOTE
lUnder U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
lWhile the engine is off, the sound of a valve opening and closing can be heard at the rear of the
right side of the vehicle, however this does not indicate an abnormality. Your vehicle has a self-
checking device and it operates while the engine is off.
3-24
Before Driving
Fuel and Emission
CX-5_8DV2-EA-14K_Edition3 Page102
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
