MAZDA MODEL CX-5 2016 Owners Manual (in English)

Black plate (151,1)
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining driving distance before refueling
is required, refuel as soon as possible if the
fuel level is very low or the low fuel
warning light illuminates.
lThe display will not change unless you add
more than approximately 10 L (2.6 US gal,
2.2 Imp gal) of fuel.
lThe distance-to-empty is the approximate
remaining distance the vehicle can be
driven until all the graduation marks in the
fuel gauge indicating the remaining fuel
supply disappear.
lIf there is no past fuel economy information
such as after first purchasing your vehicle
or the information is deleted when the
battery cables are disconnected, the actual
distance-to empty/range may differ from the
amount indicated.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed
every minute.
Type A
Type B
To clear the data being displayed, press
the INFO button for more than 1.5
seconds.
After pressing the INFO button, - - - L/
100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled.
When Driving
Instrument Cluster and Display
4-17
CX-5_8DV2-EA-14K_Edition3 Page151
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (152,1)
Current fuel economy will be calculated
and displayed every 2 seconds.
Type A
Type B
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.Average vehicle speed will be calculated
and displayed every 10 seconds.
Type A
Type B
To clear the data being displayed, press
the INFO button for more than 1.5
seconds. After pressing the INFO button,
- - - km/h (- - - mph) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Lane Departure Warning System
(LDWS) display (Type A instrument
cluster)í
Information regarding the Lane Departure
Warning System (LDWS) is displayed.
4-18
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page152
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (153,1)
Refer to Lane Departure Warning System
(LDWS) on page 4-96.
Mazda Radar Cruise Control (MRCC)
display (Type A instrument cluster)í
Information regarding the Mazda Radar
Cruise Control (MRCC) is displayed.
Refer to Mazda Radar Cruise Control
(MRCC) on page 4-116.
Distance Recognition Support System
(DRSS) display (Type A instrument
cluster)í
Information regarding the Distance
Recognition Support System (DRSS) is
displayed.Refer to Distance Recognition Support
System (DRSS) on page 4-108.
Warning (Display Indication) (Type A
instrument cluster)
A message is displayed to notify the user
of the system operation status and
malfunctions or abnormalities.
Check the indicated message.
When Driving
Instrument Cluster and Display
4-19íSome models. CX-5_8DV2-EA-14K_Edition3 Page153
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (154,1)
Warning/Indicator Lights
qType A
Warning/Indicator lights will appear in any of the highlighted areas
(Display example)
Displays as follows:
Master
warning
light
Indication in display and master warning light in instrument cluster are illuminated
at same time
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer. For details, refer to the explanations for
the warning/indicator lights, in the warning/indicator lights section, which match the
symbol in the upper part of the display. If a message is not indicated in the display, operate
the INFO switch to display the“Warning”screen.
Multi-information display
A message such as the system operation status, a malfunction, or an abnormality is
indicated.
l(When a symbol and message are indicated in the display)
For details on the symbols indicated in the upper part of the screen, check the indication
and method for taking action list.
4-20
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page154
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (155,1)

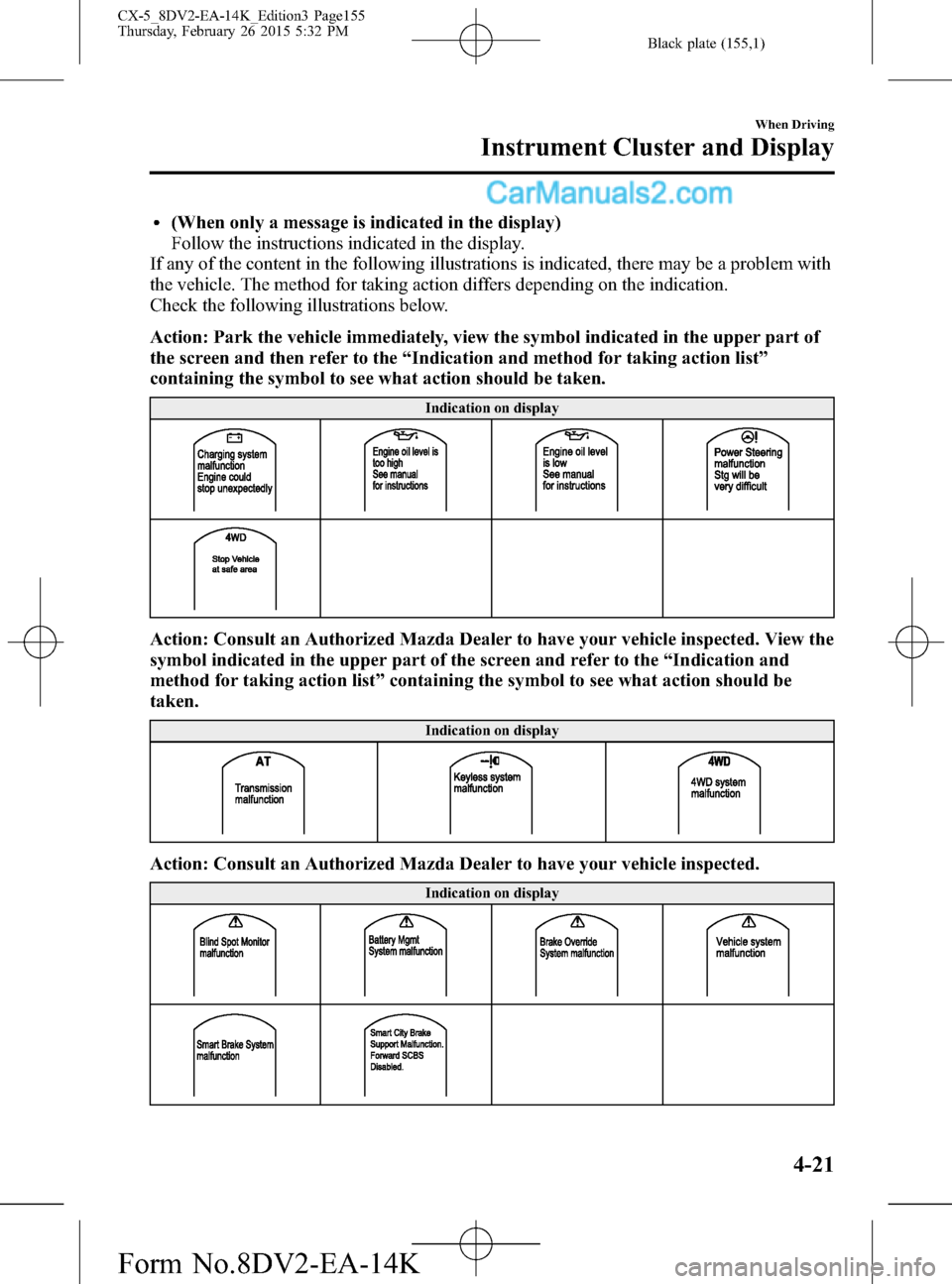

l(When only a message is indicated in the display)
Follow the instructions indicated in the display.
If any of the content in the following illustrations is indicated, there may be a problem with
the vehicle. The method for taking action differs depending on the indication.
Check the following illustrations below.
Action: Park the vehicle immediately, view the symbol indicated in the upper part of
the screen and then refer to the“Indication and method for taking action list”
containing the symbol to see what action should be taken.
Indication on display
Action: Consult an Authorized Mazda Dealer to have your vehicle inspected. View the
symbol indicated in the upper part of the screen and refer to the“Indication and
method for taking action list”containing the symbol to see what action should be
taken.
Indication on display
Action: Consult an Authorized Mazda Dealer to have your vehicle inspected.
Indication on display
When Driving
Instrument Cluster and Display
4-21
CX-5_8DV2-EA-14K_Edition3 Page155
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (156,1)
Indication and method for taking action list
Signal Warning/Indicator Lights Page
Master Warning Light 4-27
Brake System Warning Light 4-27
ABS Warning Light 4-28
Electric Parking Brake Warning Light 4-29
Charging System Warning Indication/Warning Light 4-29
Engine Oil Warning Light 4-30
Check Engine Light 4-30
High Engine Coolant Temperature Warning Light (Red) 4-31
Lane Departure Warning System (LDWS) Indication 4-31
Lane Departure Warning System (LDWS) OFF Indication 4-32
AWD Warning Indication 4-32
Automatic Transaxle Warning Indication 4-33
Power Steering Malfunction Indication 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-35
4-22
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page156
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (157,1)
Signal Warning/Indicator Lights Page
Check Fuel Cap Warning Indication 4-35
Seat Belt Warning Light 4-35
Door-Ajar Warning Indication 4-36
Liftgate-Ajar Warning Indication 4-37
Low Washer Fluid Level Warning Indication 4-37
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Indication 4-39
High Beam Control System (HBC) Warning Light (Amber)/Indicator Light
(Green)4-41
Wrench Indication 4-41
TCS/DSC Indicator Light 4-41
TCS OFF Indicator Light 4-42
Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator
Light4-42
Smart City Brake Support (SCBS) Warning Indication 4-42
Low Engine Coolant Temperature Indicator Light (Blue) 4-42
When Driving
Instrument Cluster and Display
4-23
CX-5_8DV2-EA-14K_Edition3 Page157
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (158,1)
Signal Warning/Indicator Lights Page
Shift Position Indication 4-43
Headlight High-Beam Indicator Light 4-43
Turn Signal/Hazard Warning Indicator Lights 4-43
Security Indicator Light 4-44
Mazda Radar Cruise Control (MRCC) Warning Light (Amber)/Indicator
Light (Green)4-44
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-44
Select Mode Indication 4-43
Blind Spot Monitoring (BSM) OFF Indication 4-45
Lights-On Indicator Light 4-45
LED Headlight Warning Light 4-46
qType B
Warning/Indicator lights will appear in any of the highlighted areas
4-24
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page158
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (159,1)
Signal Warning/Indicator Lights Page
Master Warning Light 4-27
Brake System Warning Light 4-27
ABS Warning Light 4-28
Electric Parking Brake Warning Light 4-29
Brake Pedal Operation demand Indicator Light 4-29
Charging System Warning Light 4-29
Engine Oil Warning Light 4-30
Check Engine Light 4-30
High Engine Coolant Temperature Warning Light (Red) 4-31
Lane Departure Warning System (LDWS) Warning Light 4-31
Lane Departure Warning System (LDWS) OFF Indicator Light 4-32
AWD Warning Light 4-32
Automatic Transaxle Warning Light 4-33
Power Steering Malfunction Indicator Light 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-35
When Driving
Instrument Cluster and Display
4-25
CX-5_8DV2-EA-14K_Edition3 Page159
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (160,1)
Signal Warning/Indicator Lights Page
Check Fuel Cap Warning Light 4-35
Seat Belt Warning Light 4-35
Door-Ajar Warning Light 4-36
Low Washer Fluid Level Warning Light 4-37
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Light (Red)/Indicator Light (Green) 4-39
High Beam Control System (HBC) Warning Light (Amber)/Indicator Light
(Green)4-41
Wrench Indicator Light 4-41
TCS/DSC Indicator Light 4-41
TCS OFF Indicator Light 4-42
Low Engine Coolant Temperature Indicator Light (Blue) 4-42
Shift Position Indication 4-43
Headlight High-Beam Indicator Light 4-43
Turn Signal/Hazard Warning Indicator Lights 4-43
Security Indicator Light 4-44
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-44
4-26
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page160
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
