MAZDA MODEL CX-5 2016 (in English) User Guide

Black plate (11,1)
Interior Equipment (View C)
Seat belts ............................................................................................................ page 2-17
SRS air bag ........................................................................................................ page 2-44
Remote fuel-filler lid release ............................................................................. page 3-26
Bottle holder .................................................................................................... page 5-133
Sunvisor ........................................................................................................... page 5-127
Vanity mirror .................................................................................................... page 5-127
Moonroof switch ............................................................................................... page 3-35
Overhead lights ................................................................................................ page 5-128
Rearview mirror ................................................................................................. page 3-30
Commander switch ............................................................................................ page 5-32
Cup holders ...................................................................................................... page 5-132
Front seat ............................................................................................................. page 2-5
Center console ................................................................................................. page 5-135
Rear seat ............................................................................................................ page 2-10
Pictorial Index
Interior Overview
1-5The equipment and installation position varies by vehicle CX-5_8DV2-EA-14K_Edition3 Page11
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (12,1)
Hood .................................................................................................................. page 6-24
Windshield wiper blades .................................................................................... page 6-33
Moonroof ........................................................................................................... page 3-35
Doors and keys .................................................................................................. page 3-12
Fuel-filler lid ...................................................................................................... page 3-26
Wheels and Tires ............................................................................................... page 6-41
Exterior lights .................................................................................................... page 6-46
Rear window wiper blade .................................................................................. page 6-34
Liftgate .............................................................................................................. page 3-19
Child safety locks .............................................................................................. page 3-19
Outside mirror .................................................................................................... page 3-29
1-6
Pictorial Index
The equipment and installation position varies by vehicle
Exterior Overview
CX-5_8DV2-EA-14K_Edition3 Page12
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (13,1)

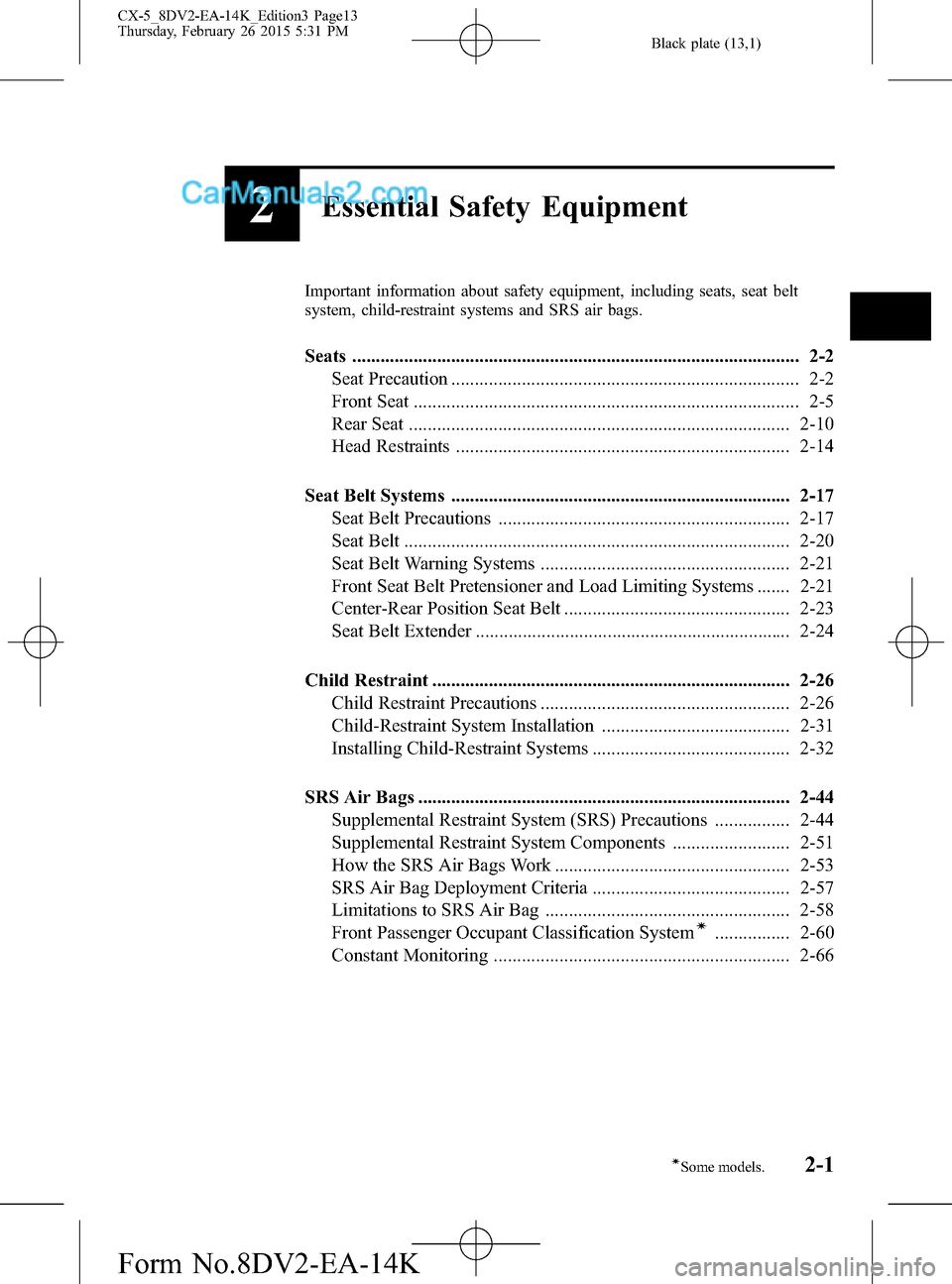

2Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.
Seats ............................................................................................... 2-2
Seat Precaution .......................................................................... 2-2
Front Seat .................................................................................. 2-5
Rear Seat ................................................................................. 2-10
Head Restraints ....................................................................... 2-14
Seat Belt Systems ........................................................................ 2-17
Seat Belt Precautions .............................................................. 2-17
Seat Belt .................................................................................. 2-20
Seat Belt Warning Systems ..................................................... 2-21
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-21
Center-Rear Position Seat Belt ................................................ 2-23
Seat Belt Extender ................................................................... 2-24
Child Restraint ............................................................................ 2-26
Child Restraint Precautions ..................................................... 2-26
Child-Restraint System Installation ........................................ 2-31
Installing Child-Restraint Systems .......................................... 2-32
SRS Air Bags ............................................................................... 2-44
Supplemental Restraint System (SRS) Precautions ................ 2-44
Supplemental Restraint System Components ......................... 2-51
How the SRS Air Bags Work .................................................. 2-53
SRS Air Bag Deployment Criteria .......................................... 2-57
Limitations to SRS Air Bag .................................................... 2-58
Front Passenger Occupant Classification System
í................ 2-60
Constant Monitoring ............................................................... 2-66
2-1íSome models.
CX-5_8DV2-EA-14K_Edition3 Page13
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (14,1)
Seat Precaution
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure
the adjustable components of the seat are locked in place by attempting to slide the
seat forward and backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a
child's hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving
the seatback unlocked is dangerous as it can allow passengers to be ejected or
thrown around and baggage to strike occupants in a sudden stop or collision,
resulting in severe injury. After adjusting the seatback at any time, even when there
are no other passengers, rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could
lose control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening
any bolts is dangerous. The front seats contain air bag components essential to the
supplemental restraint system. Such modifications could damage the supplemental
restraint system and result in serious injury. Consult an Authorized Mazda Dealer if
there is any need to remove or reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is dangerous. A collision, even one not strong
enough to inflate the air bags, could damage the front seats which contain essential
air bag components. If there was a subsequent collision, an air bag may not deploy
which could lead to injuries. Always have an Authorized Mazda Dealer inspect the
front seats, front seat belt pretensioners and air bags after a collision.
Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do
not get the full protection from seat belts. During sudden braking or a collision, you
can slide under the lap belt and suffer serious internal injuries. For maximum
protection, sit well back and upright.
2-2
Essential Safety Equipment
Seats
CX-5_8DV2-EA-14K_Edition3 Page14
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (15,1)
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is
dangerous because you will be unable to maintain a safe driving posture and the
seat belt cannot function at its full capacity in a collision, which could result in a
serious accident, injury or death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in
an accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During
sudden braking or a collision, objects can fly around and become projectiles that
may hit and injure passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is
moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit
up on the folded seatback while the vehicle is moving is particularly dangerous. In a
sudden stop or even a minor collision, a child not in a proper seat or child-restraint
system and seat belt could be thrown forward, back or even out of the vehicle
resulting in serious injuries or death. The child in the baggage area could be thrown
into other occupants and cause serious injury.
CAUTION
ØWhen operating a seat, be careful not to put your hands or fingers near the
moving parts of the seat or on the side trim to prevent injury.
ØWhen moving the seats, make sure there is no cargo in the surrounding area. If
the cargo gets caught it could damage the cargo.
Ø(Manual Seat)
When returning a rear-reclined seatback to its upright position, make sure you
hold onto the seatback with your other hand while operating the lever. If the
seatback is not supported, it will flip forward suddenly and could cause injury.
Ø(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended
operation because excessive use can damage the motors.
ØTo prevent the battery from running down, avoid using the power adjustment
when the engine is stopped. The adjuster uses a large amount of electrical
power.
ØDo not use the switch to make more than one adjustment at a time.
Essential Safety Equipment
Seats
2-3
CX-5_8DV2-EA-14K_Edition3 Page15
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (16,1)

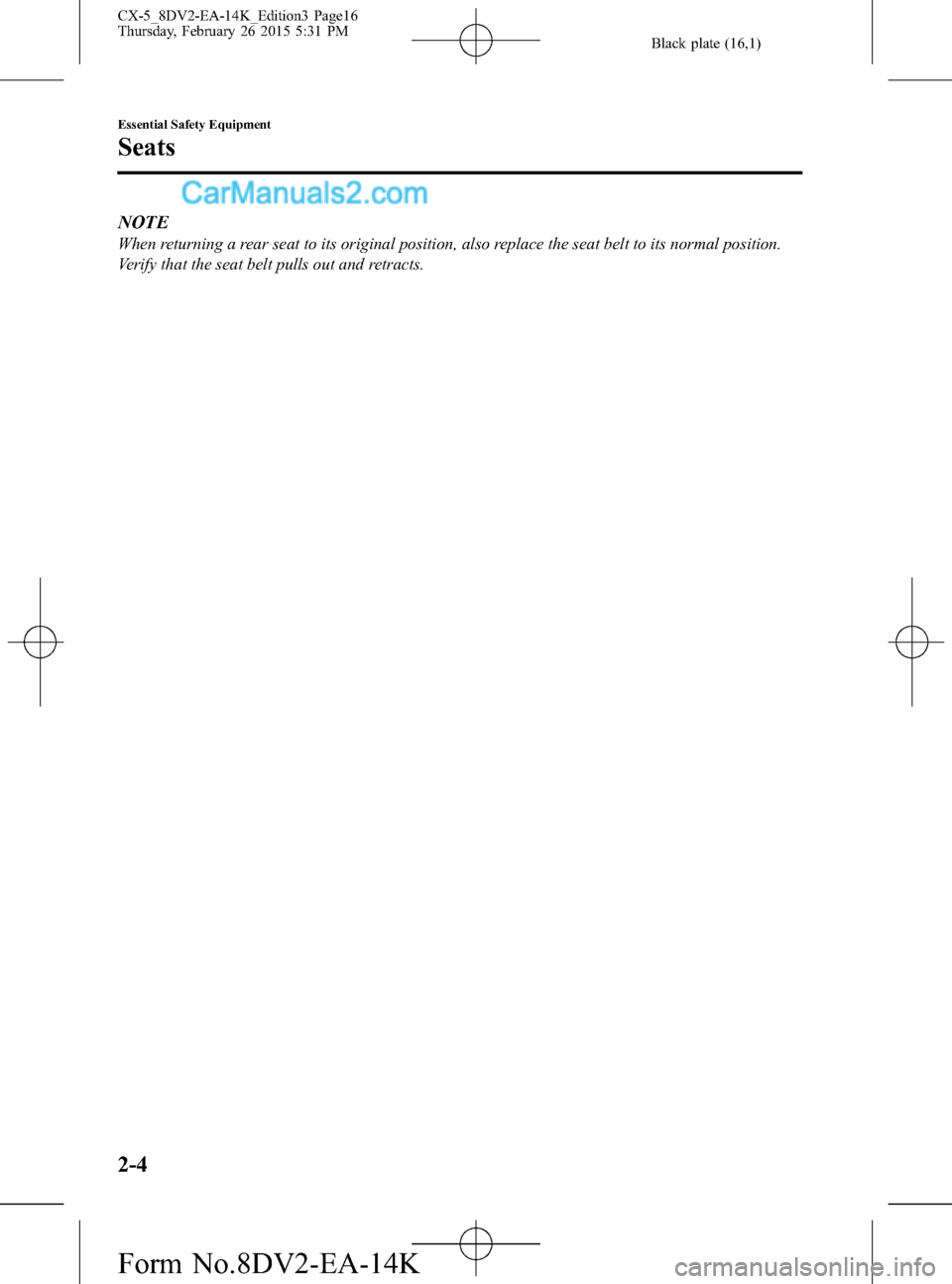

NOTE
When returning a rear seat to its original position, also replace the seat belt to its normal position.
Verify that the seat belt pulls out and retracts.
2-4
Essential Safety Equipment
Seats
CX-5_8DV2-EA-14K_Edition3 Page16
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (17,1)
Front Seat
qSeat Operation
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the switch at the desired position.
Height Adjustment
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the switch up or down.
Front Height Adjustment of Seat Bottom (Driver's Power Seat)í
To adjust the front height of the seat bottom, raise or lower the front of the slide lifter
switch.
Essential Safety Equipment
Seats
2-5íSome models. CX-5_8DV2-EA-14K_Edition3 Page17
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (18,1)
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release
the switch at the desired position.
Lumbar Support Adjustment (Driver's Seat)í
(Manual Operation)
To increase the seat firmness, push the lever forward. Pull the lever backward to decrease
firmness.
(Power Operation)
To increase the seat firmness, press and hold the front part of the switch to the desired
position, then release it.
Press the rear part of the switch to decrease firmness.
2-6
Essential Safety Equipment
íSome models.
Seats
CX-5_8DV2-EA-14K_Edition3 Page18
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (19,1)
qSeat Warmerí
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch to illuminate
the indicator light while the ignition is
switched ON. The mode changes as
follow each time the seat warmer switch is
pressed.
Fully Automatic Type Climate Control
OFF
High
Mid
Low
Manual Type Climate Control
OFF
High
Mid
Low
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may
be too hot for some people, as
indicated below, and could cause a
low-temperature burn.
ØInfants, small babies, elderly
people, and physically challenged
people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
Essential Safety Equipment
Seats
2-7íSome models. CX-5_8DV2-EA-14K_Edition3 Page19
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (20,1)
NOTElIf the ignition is switched off while the seat
warmer is operating (High, Mid or Low)
and then switched ON again, the seat
warmer will automatically operate at the
temperature set before switching off the
ignition.
lUse the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
lThe temperature of the seat warmer cannot
be adjusted beyond High, Mid and Low
because the seat warmer is controlled by a
thermostat.
qSeat Position Memory (Driver's
seat)í
The seat position memory function allows
you to program the driver's seat to a
desired seat position and to call up a
programmed position with the simple
touch of a button.
CAUTION
Do not place fingers or hands around
the bottom of the seat while the seat
memory function is operating. The
seat moves automatically while the
seat memory function is operating
and fingers or hands could get
pinched and injured.
SET button
The seat position can be programmed or
operated using the following operations.
lOperation of the buttons on the side of
the seat.
lOperation using the key.
NOTE
lIndividual seat positions can be
programmed to the two available
programming buttons on the side of the
driver's seat, plus one seat position for each
registered key.
lIf the vehicle has been serviced and the
battery cables disconnected, the
programmed seat positions will have been
erased. Re-program the seat positions.
Programming
1. Switch the ignition OFF.
2. Adjust the seat to the desired position
using the slide lifter and reclining
switches.
Refer to Seat Operation on page 2-5.
3. Press and hold the memory SET button
until a beep sound is heard.
2-8
Essential Safety Equipment
íSome models.
Seats
CX-5_8DV2-EA-14K_Edition3 Page20
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K
