4. Perform one of the following settings
within 5 seconds of completing step 3
above:
lTo program memory button 1 or 2,
press and hold the button until a
beep sound is heard.
lTo program a key, press and hold
the key
switch until a beep sound
is heard.
Adjusting a programmed position
(Programming to a button on the seat
side)
1. While the vehicle is stopped, press the
programming button for the seat
position you want to call up (button 1
or 2).
2. A beep sound is heard when the seat
position adjustment is completed.NOTE
lIf seat movement is not required, only the
beep sounds.
lWhen the ignition is switched ON, the seat
position memory function does not operate
unless the selector lever is in the P position
(Automatic transaxle) or the parking brake
is applied (Manual transaxle).
lWhen the ignition is switched OFF, the seat
position memory function is operable while
the selector lever is in a position other than
P position (Automatic transaxle) or the
parking brake is not applied (Manual
transaxle), however, if the ignition is
switched ON while the seat position
memory function is operating, the operation
is stopped.
lThe seat position adjustment is canceled in
the following cases:
lAny of the seat adjustment switches is
operated.
lThe SET button is pressed.lProgramming button 1 or 2 is pressed.lThe key lock switch or unlock switch is
operated.
lThe vehicle starts moving.
(When programming to the key)
1. Unlock the doors by pressing a request
switch or the key
switch.
2. After unlocking the doors, the seat
position adjustment begins within 40
seconds of opening the driver's door,
and a beep sounds when the operation
is finished.
Essential Safety Equipment
Seats
2-9
CX-5_8DV2-EA-14K_Edition3 Page21
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (22,1)
NOTElIf there is no seat position movement, a
beep is not heard.
lWhen the ignition is switched ON, the seat
position memory function does not operate
unless the selector lever is in the P position
(Automatic transaxle) or the parking brake
is applied (Manual transaxle).
lWhen the ignition is switched OFF, the seat
position memory function is operable while
the selector lever is in a position other than
P position (Automatic transaxle) or the
parking brake is not applied (Manual
transaxle), however, if the ignition is
switched ON while the seat position
memory function is operating, the operation
is stopped.
lThe seat position adjustment is canceled in
the following cases:
lAny of the seat adjustment switches is
operated.
lThe SET button is pressed.lProgramming button 1 or 2 is pressed.lThe keyswitch orswitch is
operated.
lThe vehicle starts moving.
Erasing programmed seat positions
(Erasing the seat positions programmed
to the key)
1. Switch the ignition OFF.
2. Continue pressing the seat SET button
until a beep sound is heard.
3. After the beep sounds, press the key
switch continuously within 5 seconds
until the beep sounds.
Rear Seat
qSplit Folding
The seatbacks can be folded down to
provide more space in the luggage
compartment.
WARNING
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down:
Driving without tightly securing
cargo and luggage is dangerous as it
could move and become an
obstruction to driving during
emergency braking or a collision
resulting in an unexpected accident.
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is
dangerous. It could cause injury to a
child seated in the child-restraint
system when the seatback suddenly
flips forward.
2-10
Essential Safety Equipment
Seats
CX-5_8DV2-EA-14K_Edition3 Page22
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (23,1)

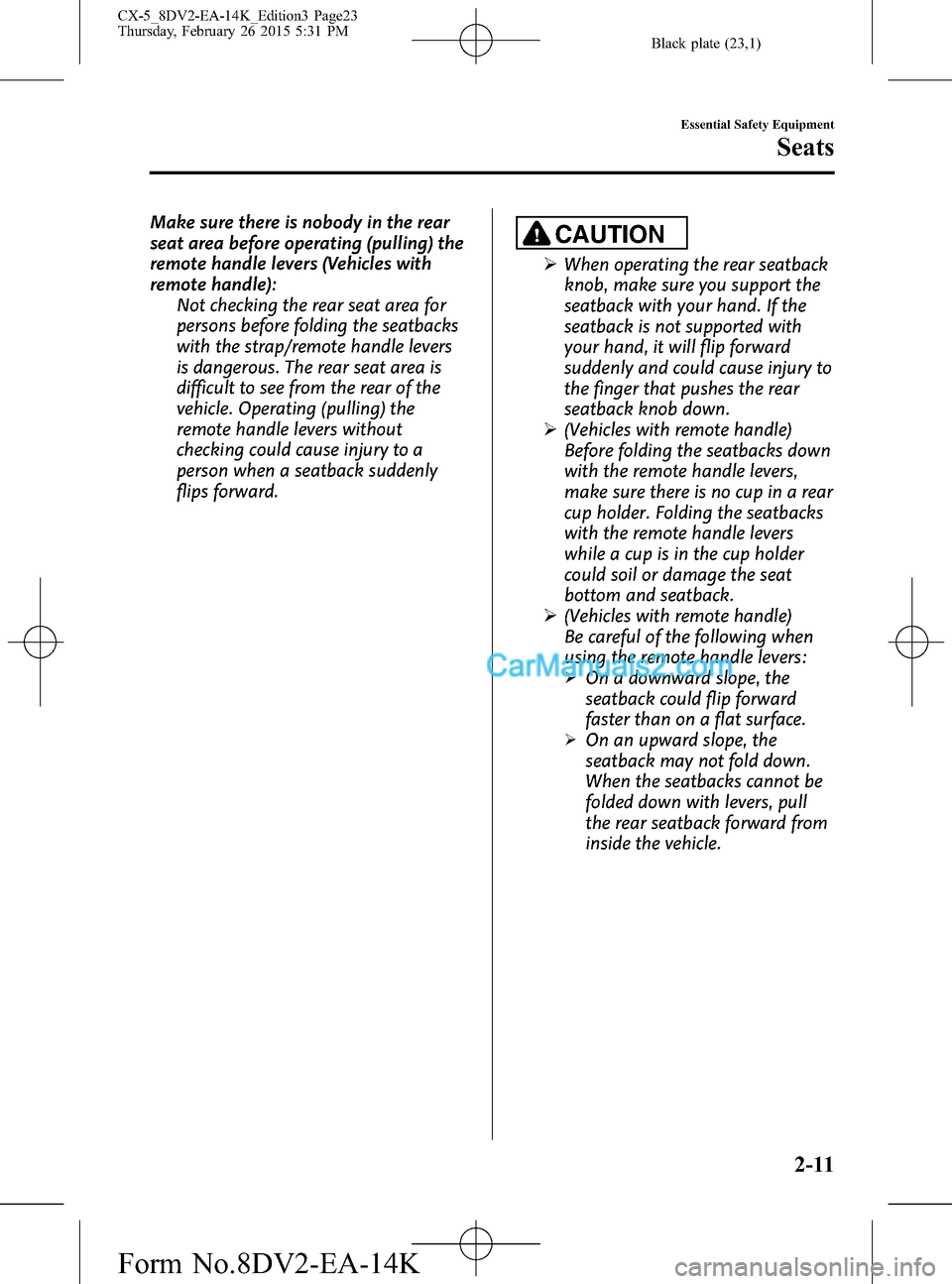

Make sure there is nobody in the rear
seat area before operating (pulling) the
remote handle levers (Vehicles with
remote handle):
Not checking the rear seat area for
persons before folding the seatbacks
with the strap/remote handle levers
is dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating (pulling) the
remote handle levers without
checking could cause injury to a
person when a seatback suddenly
flips forward.CAUTION
ØWhen operating the rear seatback
knob, make sure you support the
seatback with your hand. If the
seatback is not supported with
your hand, it will flip forward
suddenly and could cause injury to
the finger that pushes the rear
seatback knob down.
Ø(Vehicles with remote handle)
Before folding the seatbacks down
with the remote handle levers,
make sure there is no cup in a rear
cup holder. Folding the seatbacks
with the remote handle levers
while a cup is in the cup holder
could soil or damage the seat
bottom and seatback.
Ø(Vehicles with remote handle)
Be careful of the following when
using the remote handle levers:
ØOn a downward slope, the
seatback could flip forward
faster than on a flat surface.
ØOn an upward slope, the
seatback may not fold down.
When the seatbacks cannot be
folded down with levers, pull
the rear seatback forward from
inside the vehicle.
Essential Safety Equipment
Seats
2-11
CX-5_8DV2-EA-14K_Edition3 Page23
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (24,1)

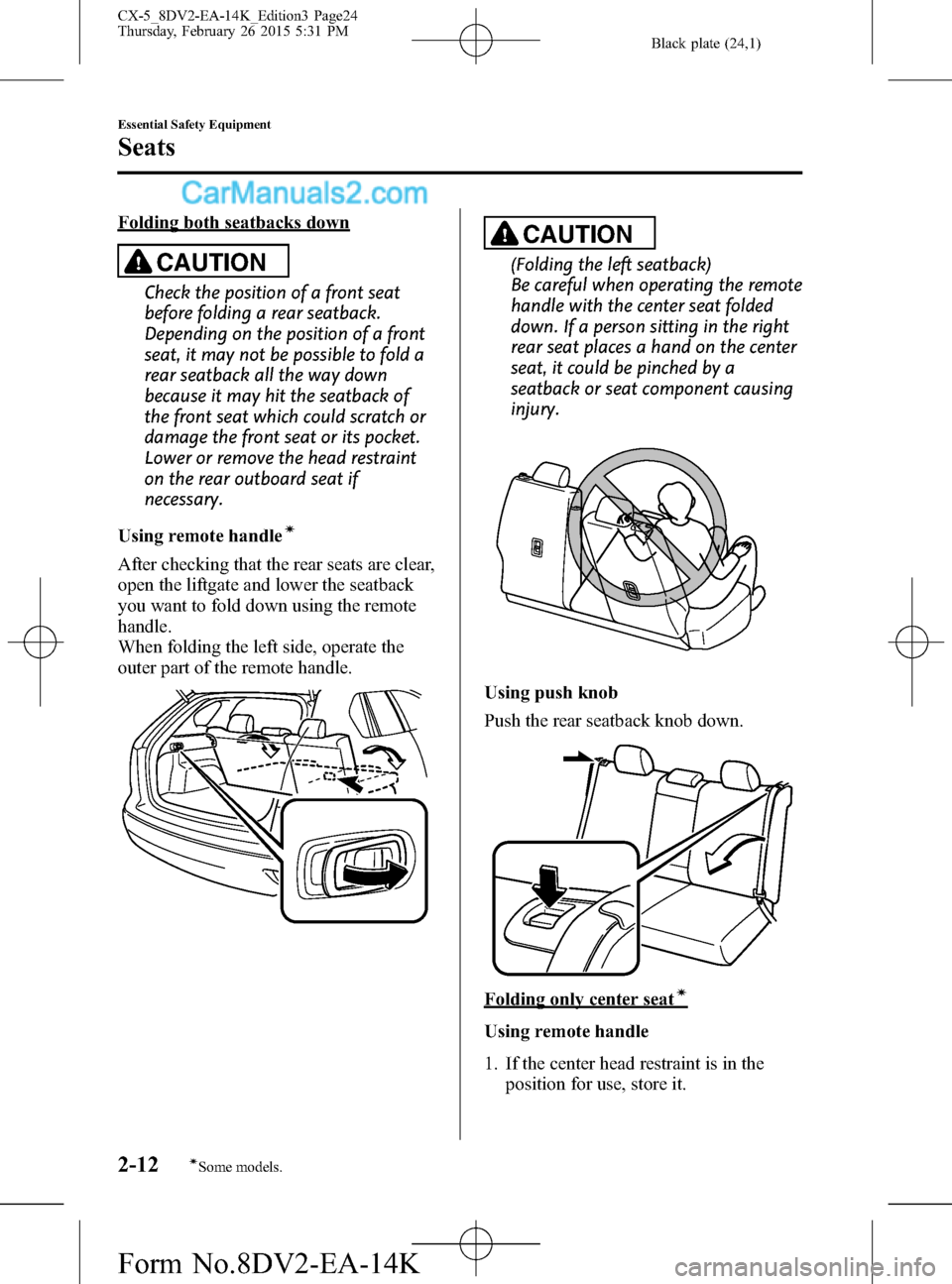

Folding both seatbacks down
CAUTION
Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold a
rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Lower or remove the head restraint
on the rear outboard seat if
necessary.
Using remote handle
í
After checking that the rear seats are clear,
open the liftgate and lower the seatback
you want to fold down using the remote
handle.
When folding the left side, operate the
outer part of the remote handle.
CAUTION
(Folding the left seatback)
Be careful when operating the remote
handle with the center seat folded
down. If a person sitting in the right
rear seat places a hand on the center
seat, it could be pinched by a
seatback or seat component causing
injury.
Using push knob
Push the rear seatback knob down.
Folding only center seatí
Using remote handle
1. If the center head restraint is in the
position for use, store it.
2-12
Essential Safety Equipment
íSome models.
Seats
CX-5_8DV2-EA-14K_Edition3 Page24
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (25,1)

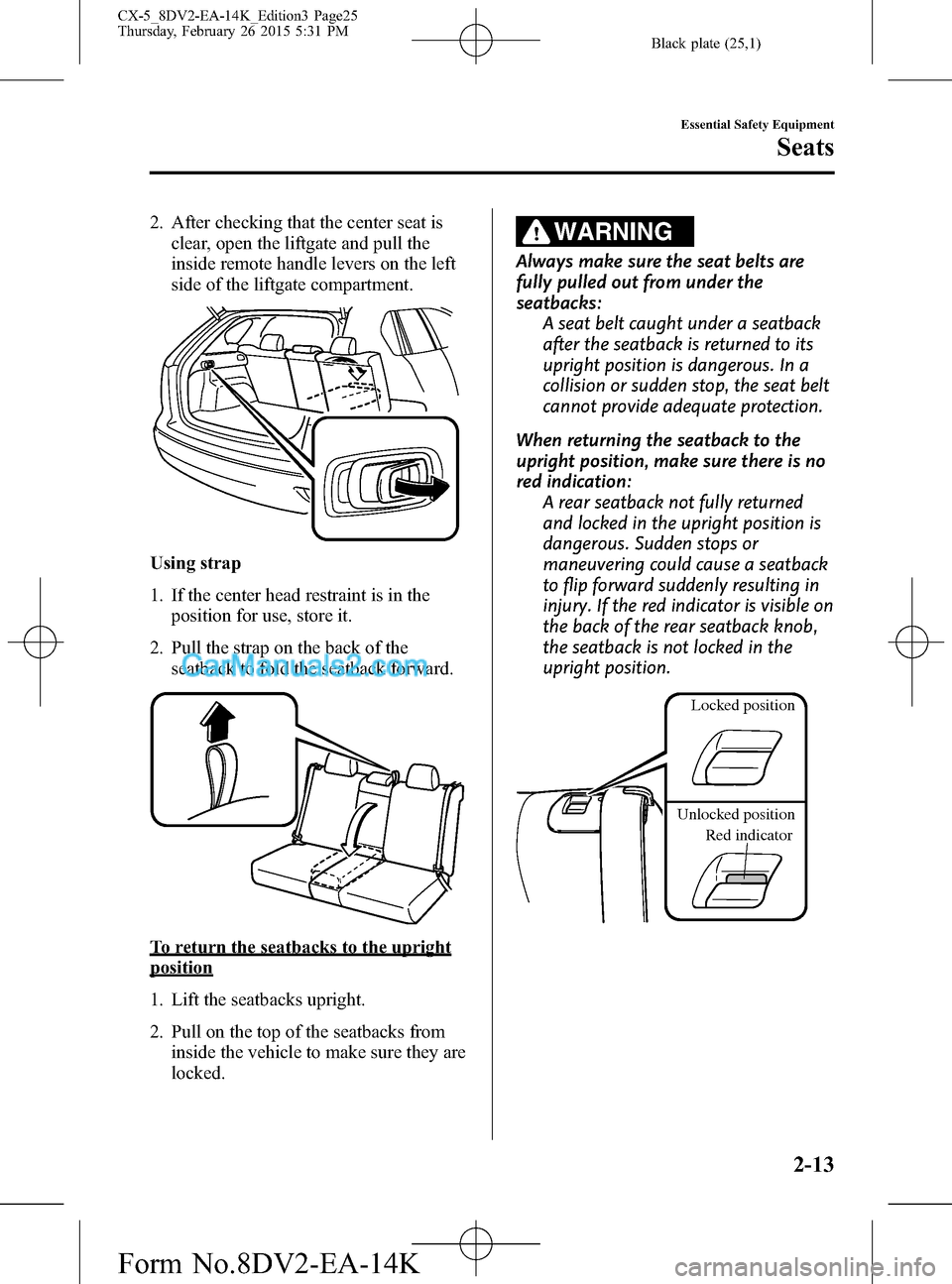

2. After checking that the center seat is
clear, open the liftgate and pull the
inside remote handle levers on the left
side of the liftgate compartment.
Using strap
1. If the center head restraint is in the
position for use, store it.
2. Pull the strap on the back of the
seatback to fold the seatback forward.
To return the seatbacks to the upright
position
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks from
inside the vehicle to make sure they are
locked.
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication:
A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position
Red indicator
Essential Safety Equipment
Seats
2-13
CX-5_8DV2-EA-14K_Edition3 Page25
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (26,1)
qArmrestí
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
WARNING
Never put your hands and fingers
around the moving parts of the seat
and armrest:
Putting your hands and fingers
around the moving parts of the seat
and armrest is dangerous as they
could get injured.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted.:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
qHeight Adjustment
Adjust the head restraint so that the center
is even with the top of the passenger's
ears.
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
2-14
Essential Safety Equipment
íSome models.
Seats
CX-5_8DV2-EA-14K_Edition3 Page26
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (27,1)
Front outboard seat
Rear outboard seat
Rear center seat
qRemoval/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the stop-
catch.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
installed:
Driving with the head restraints not
installed is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
After installing a head restraint, try
lifting it to make sure that it does not
pull out:
Driving with an unsecured head
restraint is dangerous as the
effectiveness of the head restraint will
be compromised which could cause it
to unexpectedly detach from the seat.
Essential Safety Equipment
Seats
2-15
CX-5_8DV2-EA-14K_Edition3 Page27
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (28,1)

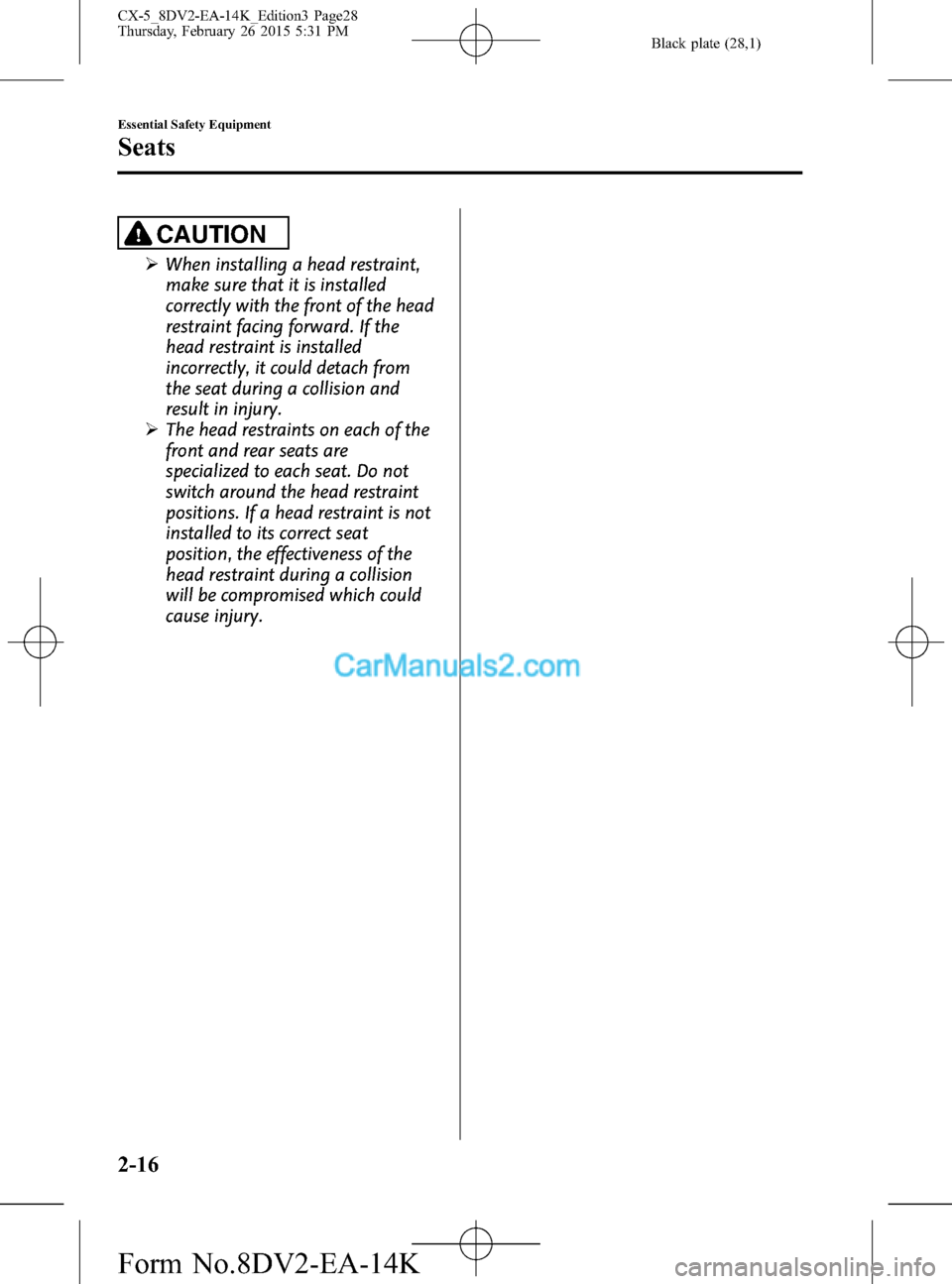

CAUTION
ØWhen installing a head restraint,
make sure that it is installed
correctly with the front of the head
restraint facing forward. If the
head restraint is installed
incorrectly, it could detach from
the seat during a collision and
result in injury.
ØThe head restraints on each of the
front and rear seats are
specialized to each seat. Do not
switch around the head restraint
positions. If a head restraint is not
installed to its correct seat
position, the effectiveness of the
head restraint during a collision
will be compromised which could
cause injury.
2-16
Essential Safety Equipment
Seats
CX-5_8DV2-EA-14K_Edition3 Page28
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (29,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, in some models (with automatic locking mode) the front passenger's seat and all
rear lap/shoulder belt retractors operate in two modes: emergency locking mode, and for
child-restraint systems, automatic locking mode. While we recommend you put all children
in the rear seats, if you must use the front passenger seat for a child, slide the front
passenger seat as far back as possible and make sure any child-restraint system is secured
properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Essential Safety Equipment
Seat Belt Systems
2-17
CX-5_8DV2-EA-14K_Edition3 Page29
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (30,1)

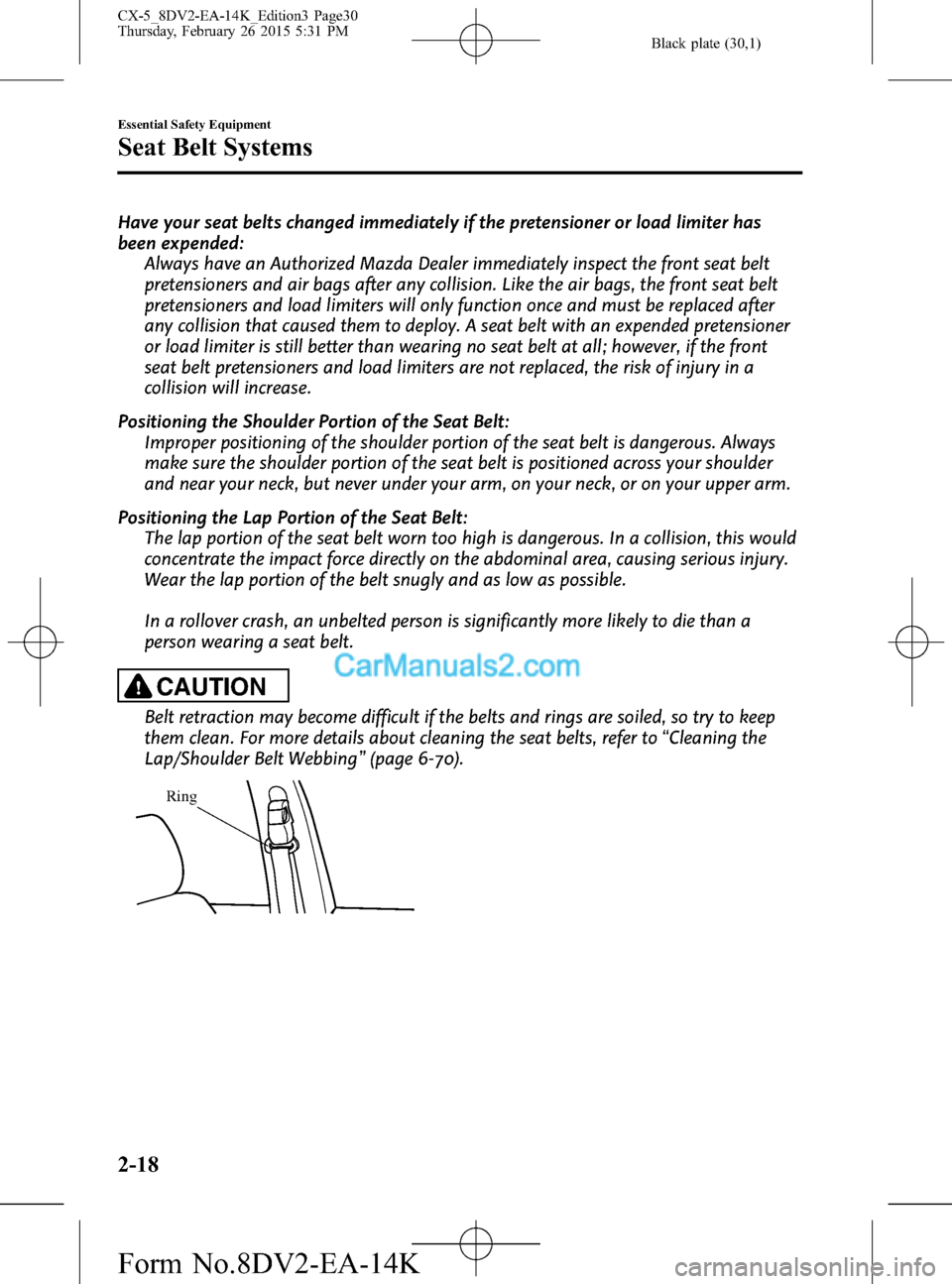

Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always
make sure the shoulder portion of the seat belt is positioned across your shoulder
and near your neck, but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury.
Wear the lap portion of the belt snugly and as low as possible.
In a rollover crash, an unbelted person is significantly more likely to die than a
person wearing a seat belt.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing”(page 6-70).
Ring
2-18
Essential Safety Equipment
Seat Belt Systems
CX-5_8DV2-EA-14K_Edition3 Page30
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K
