qLocking, Unlocking with Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-4).
qLocking, Unlocking with Door-
Lock Switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors/liftgate from an open
front door, press the lock side of the door
lock switch and then close the door.NOTE
When locking the doors this way, be careful
not to leave the key inside the vehicle.
qAuto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior door panel to
perform the setting change as indicated in
the procedure which follows.
Settings can be changed using the
following operation.
Before Driving
Doors and Locks
3-15
CX-5_8DV2-EA-14K_Edition3 Page93
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (94,1)
NOTElFunction number 3 is the factory setting for
your vehicle.
lThere are only a total of six auto lock/
unlock settings available for automatic
transaxle vehicles, and three for manual
transaxle vehicles. Be sure to press the
unlock side of the driver's door-lock switch
the correct number of times according to
the selected function number. If the switch
is mistakenly pressed seven times on an
automatic transaxle vehicle or four times
on a manual transaxle, the procedure will
be invalidated. If this occurs, start the
procedure from the beginning.
Function number Function*1
1The auto door-lock
function is disabled.
2All the doors and the
liftgate lock automatically
when the vehicle speed is
about 20 km/h (12 mph) or
more.
3All the doors and the
liftgate lock automatically
when the vehicle speed is
about 20 km/h (12 mph) or
more. All the doors and the
liftgate unlock when the
ignition is switched from
ON to Off.
4(Automatic transaxle
vehicles only)
When the ignition is
switched ON and the shift
lever is shifted from park
(P) to any other gear
position, all the doors and
the liftgate lock
automatically.Function number Function
*1
5(Automatic transaxle
vehicles only)
When the ignition is
switched ON and the shift
lever is shifted from park
(P) to any other gear
position, all the doors and
the liftgate lock
automatically.
When the shift lever is
shifted to park (P) while the
ignition is switched ON, all
the doors and the liftgate
unlock automatically.
6(Automatic transaxle
vehicles only)
All the doors and the
liftgate lock automatically
when the vehicle speed is
about 20 km/h (12 mph) or
more.
When the shift lever is
shifted to park (P) while the
ignition is switched ON, all
the doors and the liftgate
unlock automatically.
*1 Other settings for the auto door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to Personalization Features on page 9-10.
1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
3-16
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page94
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (95,1)
4. Referring to the auto lock/unlock
function setting table and determine the
function number for the desired setting.
Press the unlock side of the driver's
door-lock switch the same number of
times as the selected function number
(Ex. If you select function 2, press the
unlock side of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function
number 3 = 3 beep sounds)
(Manual transaxle vehicles)
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Function Number 3
Press 4 times Press unlock side of
lock switch once
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second
(Automatic transaxle vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Press 4 times Function Number 3
Press 5 times Function Number 4
Press 7 times Function Number 5
Press 6 times
Function Number 6
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second
NOTElThe doors cannot be locked or unlocked
while the setting function is being
performed.
lThe procedure can be cancelled by pressing
the lock side of the driver's door-lock
switch.
Before Driving
Doors and Locks
3-17
CX-5_8DV2-EA-14K_Edition3 Page95
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (96,1)

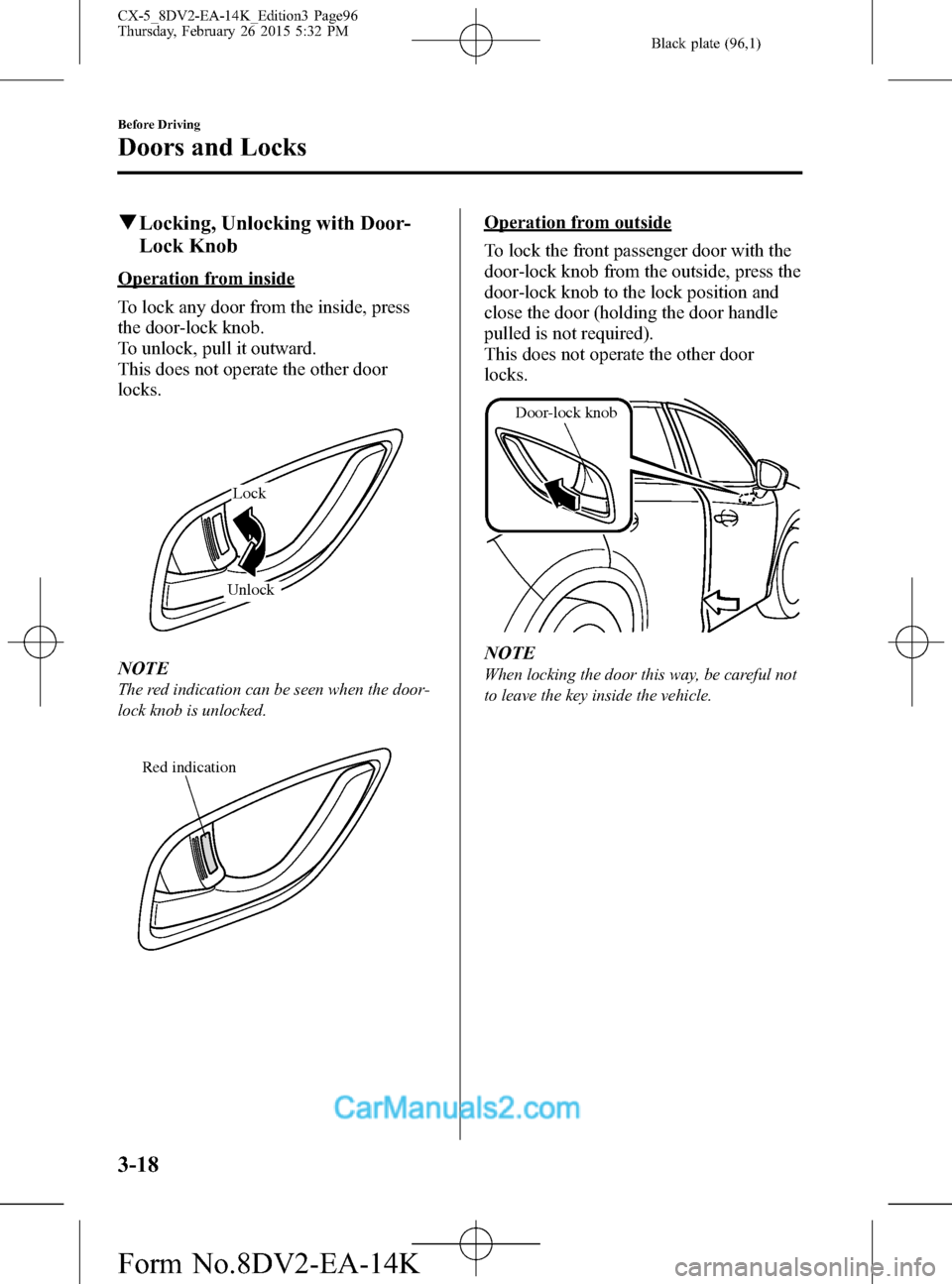

qLocking, Unlocking with Door-
Lock Knob
Operation from inside
To lock any door from the inside, press
the door-lock knob.
To unlock, pull it outward.
This does not operate the other door
locks.
Lock
Unlock
NOTE
The red indication can be seen when the door-
lock knob is unlocked.
Red indication
Operation from outside
To lock the front passenger door with the
door-lock knob from the outside, press the
door-lock knob to the lock position and
close the door (holding the door handle
pulled is not required).
This does not operate the other door
locks.
Door-lock knob
NOTE
When locking the door this way, be careful not
to leave the key inside the vehicle.
3-18
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page96
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (97,1)

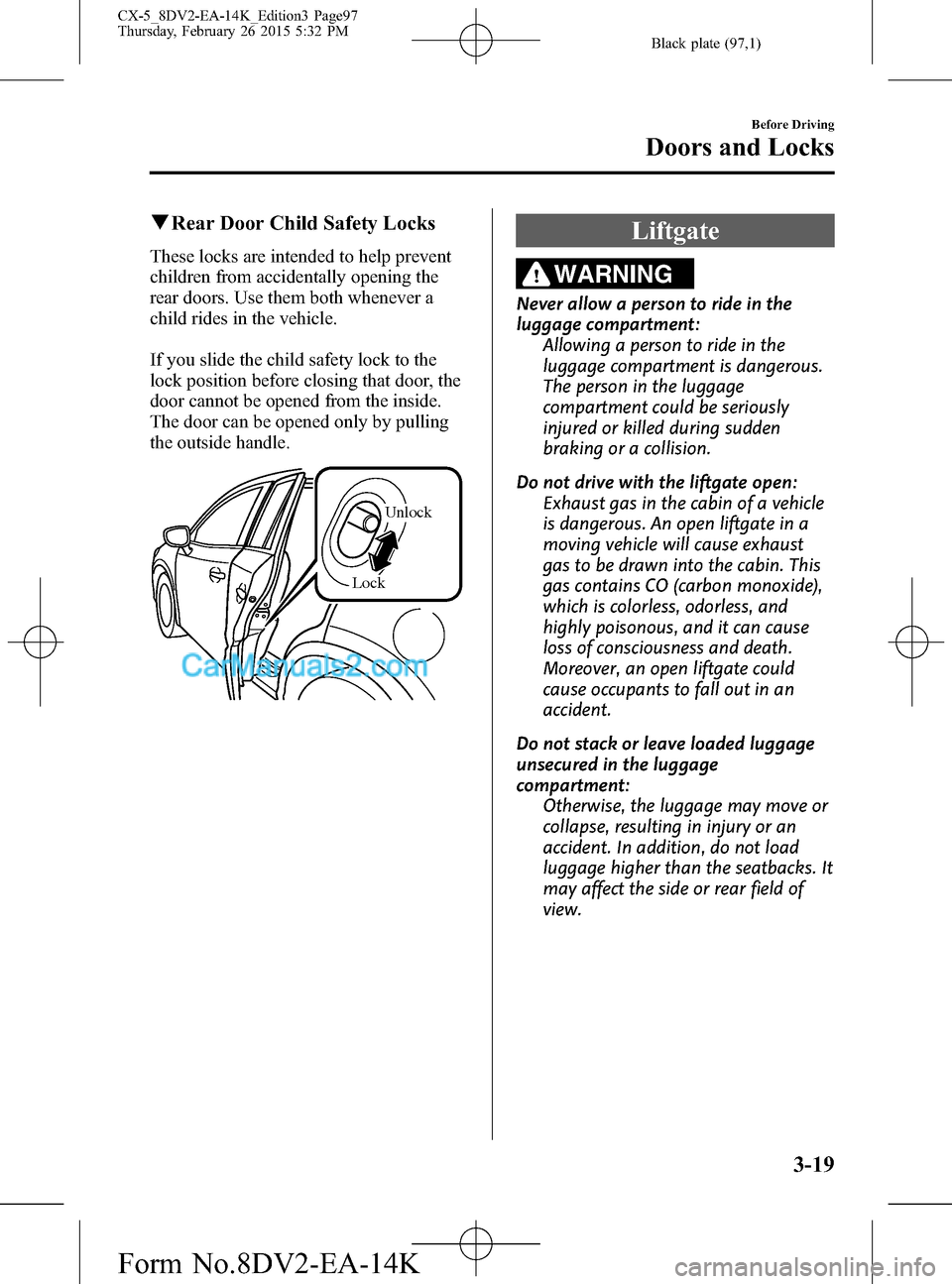

qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
LockUnlock
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
Do not stack or leave loaded luggage
unsecured in the luggage
compartment:
Otherwise, the luggage may move or
collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear field of
view.
Before Driving
Doors and Locks
3-19
CX-5_8DV2-EA-14K_Edition3 Page97
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (98,1)
CAUTION
ØBefore opening the liftgate,
remove any snow and ice
accumulation on it. Otherwise, the
liftgate could close under the
weight of the snow and ice
resulting in injury.
ØBe careful when opening/closing
the liftgate during strong winds. If
a strong gust blows against the
liftgate, it could close suddenly
resulting in injury.
ØFully open the liftgate and make
sure that it stays open. If the
liftgate is only opened partially, it
could slam shut by vibration or
wind gusts resulting in injury.
ØWhen loading or unloading
luggage in the luggage
compartment, turn off the engine.
Otherwise, you could get burned
by the heat of the exhaust gas.
ØBe careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your
hand on the stay. Otherwise, the
damper stay may bend and affect
the liftgate operation.
Damper stay
qOpening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and liftgate, press the
electric liftgate opener on the liftgate, and
then raise the liftgate when the latch
releases.
Electric liftgate
opener
3-20
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page98
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (99,1)
NOTE
(With the advanced keyless function)lA locked liftgate can also be opened while
the key is being carried.
lWhen opening the liftgate with the doors
and the liftgate locked, it may require a few
seconds for the liftgate latch to release after
the electric liftgate opener is pressed.
lThe liftgate can be closed when the doors
are locked with the key left in the vehicle.
However, to prevent leaving the key in the
vehicle, the liftgate can be opened by
pressing the electric liftgate opener. If the
liftgate cannot be opened despite doing this
procedure, press the electric liftgate opener
to fully open the liftgate after pushing the
liftgate completely closed.
lWhen the liftgate latch is released by
pressing the electric liftgate opener, the
liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener again to fully open the
liftgate. To close the liftgate from its slightly
raised position, open it first by pressing the
electric liftgate opener, and waiting for 1
second or longer then close it.
If the liftgate is not fully closed, the driver
is notified by a warning indicated in the
instrument cluster.
lIf the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, the liftgate can
be opened by performing the emergency
procedure.
Refer to When Liftgate Cannot be Opened
on page 7-39.
Closing the liftgate
To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate griprecess
qLuggage Compartment
Loading golf bags
Golf bags can be carried in the luggage
compartment.
Up to four golf bags can be carried in the
luggage compartment.
Place each of the first three golf bags into
the luggage compartment with the bottom
of each bag pointed to the right, and then
set the top of each bag so that it is pointed
to the left.
Before Driving
Doors and Locks
3-21
CX-5_8DV2-EA-14K_Edition3 Page99
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (100,1)

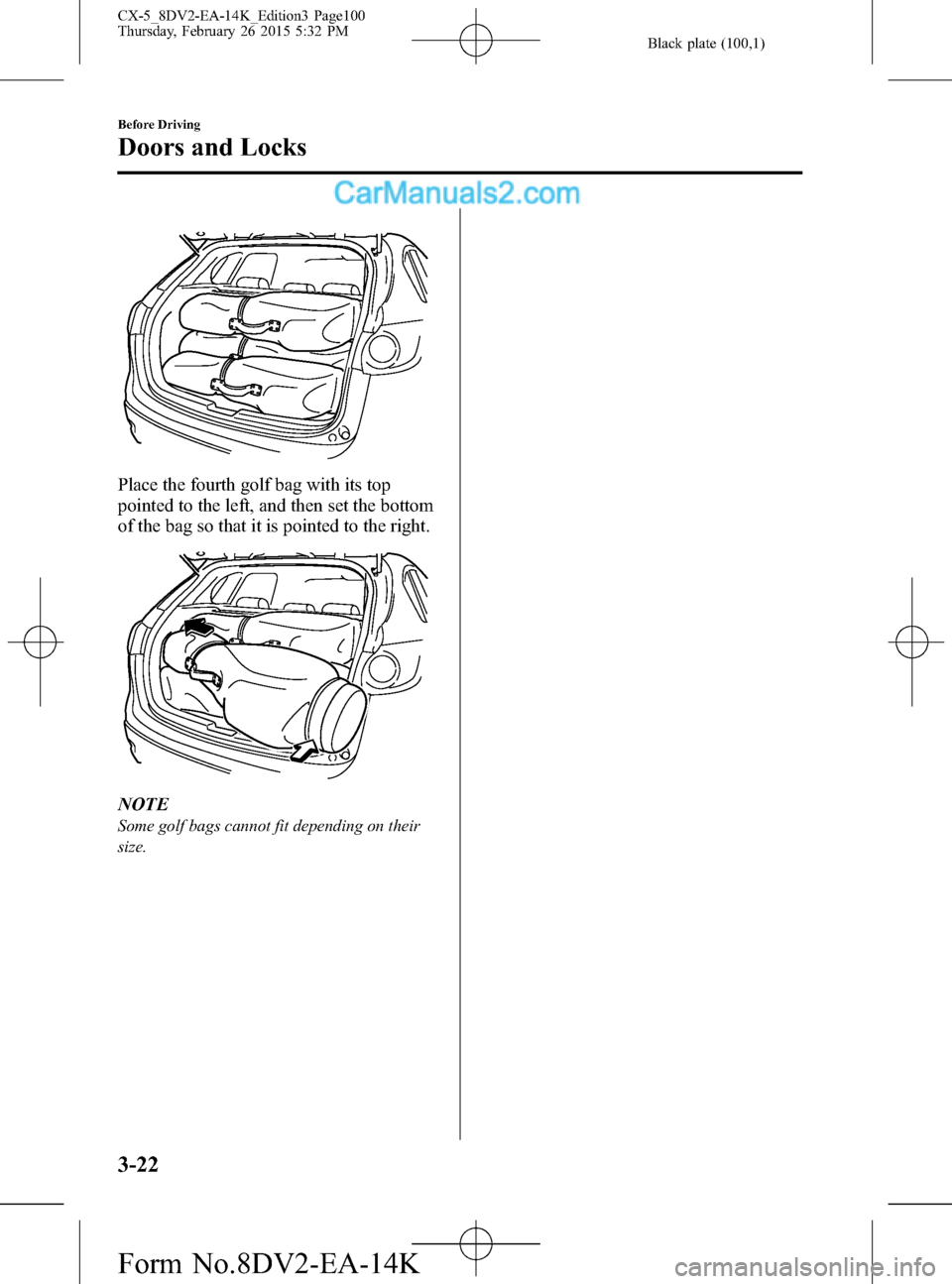

Place the fourth golf bag with its top
pointed to the left, and then set the bottom
of the bag so that it is pointed to the right.
NOTE
Some golf bags cannot fit depending on their
size.
3-22
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page100
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (103,1)
qEngine Exhaust (Carbon monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
Before Driving
Fuel and Emission
3-25
CX-5_8DV2-EA-14K_Edition3 Page103
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (104,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the fuel
pump nozzle has shut off
automatically is dangerous because
overfilling the fuel tank may cause
fuel overflow or leakage. Fuel
overflow and leakage could damage
the vehicle and if the fuel ignites it
could cause a fire and explosion
resulting in serious injury or death.
CAUTION
(U.S.A. and Canada)
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
To close, press the fuel-filler lid until it
locks securely.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
3-26
Before Driving
Fuel and Emission
CX-5_8DV2-EA-14K_Edition3 Page104
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
