maintenance MAZDA MODEL CX-5 2016 (in English) Owner's Guide

Black plate (451,1)
Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
AIR CONDITIONER SYSTEM
Cabin air filter R R R
Chart symbols:
I:Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R:Replace
L:Lubricate
C:Clean
T:Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If the vehicle is operated primarily under any of the following conditions, replace the rear differential oil at
every 45,000 km.
a) Towing a trailer or using a car-top carrier
b) Driving in dusty, sandy or wet conditions
c) Extended periods of idling or low speed operation
d) Repeated short trips of less than 16 km
*5 If this component has been submerged in water, the oil should be replaced.
Maintenance and Care
Scheduled Maintenance
6-19
CX-5_8DV2-EA-14K_Edition3 Page451
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (452,1)
Maintenance Monitor
qMaintenance Monitor (Type A)
“Oil Change”with a flexible setting*1is available. Consult your Authorized Mazda Dealer
when you want to change the setting*2. Once the system turns on, the wrench indicator
light in the instrument cluster will be illuminated when remaining oil life becomes less than
500 km (300 mile), or remaining days are less than 15 (whichever comes first).
Reset method
Press and hold the TRIP button with the ignition switched off, then switch it on. Keep
pressing the TRIP button for more than 5 seconds. The master warning light will flash for a
few seconds when the reset is completed.
*1 The flexible setting is available in the United States and Puerto Rico. Based on the
engine operating conditions, the onboard computer in your vehicle calculates the
remaining oil life. Mazda Genuine 0W-20 oil and Castrol
®0W-20 oil are required to
achieve optimum calculation performance.
*2 Once the Flexible Oil Maintenance Setting is selected, the system must be reset
whenever replacing the engine oil.
qMaintenance Monitor (Type B)
1. Select theicon on the home screen to display the“Applications”screen.
2. Select the“Maintenance”to display the maintenance list screen.
6-20
Maintenance and Care
Scheduled Maintenance
CX-5_8DV2-EA-14K_Edition3 Page452
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (453,1)
3. Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
Tab Item Explanation
ScheduledSetting Notification can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
“Scheduled Due!”is displayed in red and the wrench indicator
light in the instrument cluster will be illuminated when the
remaining distance is less than 500 km or 250 mile, or the
remaining number of days is less than 15 (whichever comes first). Distance (mile or km)
ResetResets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying
out maintenance.
Tire RotationSetting Notification can be switched on/off.
Distance (mile or km)Displays the distance until tire rotation is due.
Select this item to set the tire rotation distance.
“Tire Rotation Due!”is displayed in red and the wrench indicator
light in the instrument cluster will be illuminated when the
remaining distance is less than 500 km or 250 mile.
ResetResets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tires.
Oil ChangeSetting IntervalOil replacement period can be selected from the flexible setting or
fixed setting, or it can be set to non-display.
The flexible setting is available only in the United States and
Puerto Rico. Once engine oil flexible maintenance is selected, the
vehicle calculates the remaining oil life based on the engine
operating conditions. The vehicle lets you know when an oil
change is due by illuminating the wrench indicator light in the
instrument cluster. Mazda Genuine 0W-20 oil and Castrol
®0W-20
oil are required to achieve optimum performance.
Distance (mile or km)
(Displays only in fixed
setting)Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
“Oil Change Due!”is displayed in red and the wrench indicator
light in the instrument cluster will be illuminated when the
remaining distance is less than 500 km or 250 mile.
Oil life (%)
(Displays only in flexible
setting)Displays the engine oil life until the oil replacement is due.
“Oil Change Due!”is displayed in red and the wrench indicator
light in the instrument cluster will be illuminated when the
remaining oil life distance is less than 500 km (300 mile), or
remaining days are less than 15 (whichever comes first).
ResetIn flexible setting: Resets the remaining oil life to 100 %.
In fixed setting: Resets the remaining distance to the initial value.
Once the Flexible Oil Maintenance Setting is selected, the system
must be reset whenever replacing the engine oil.
Maintenance and Care
Scheduled Maintenance
6-21
CX-5_8DV2-EA-14K_Edition3 Page453
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (454,1)
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
When Refueling
lBrake and clutch fluid level (page 6-31)lEngine coolant level (page 6-29)lEngine oil level (page 6-28)lWasher fluid level (page 6-31)
At Least Monthly
Tire inflation pressures (page 6-42)
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lEngine coolant (page 6-29)lEngine oil (page 6-27)
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
6-22
Maintenance and Care
Owner Maintenance
CX-5_8DV2-EA-14K_Edition3 Page454
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (455,1)
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or
the proper tools and equipment to do the work. Have maintenance work done by a
qualified technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You
can be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even
more dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Switch the ignition to off and make sure the fan is not running before
attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do
not forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a
fire leading to an unexpected accident.
Maintenance and Care
Owner Maintenance
6-23
CX-5_8DV2-EA-14K_Edition3 Page455
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (456,1)
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening,
slide the latch lever to the right, and lift
up the hood.
3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Pad
Clip
Clip
Support rod
6-24
Maintenance and Care
Owner Maintenance
CX-5_8DV2-EA-14K_Edition3 Page456
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (457,1)

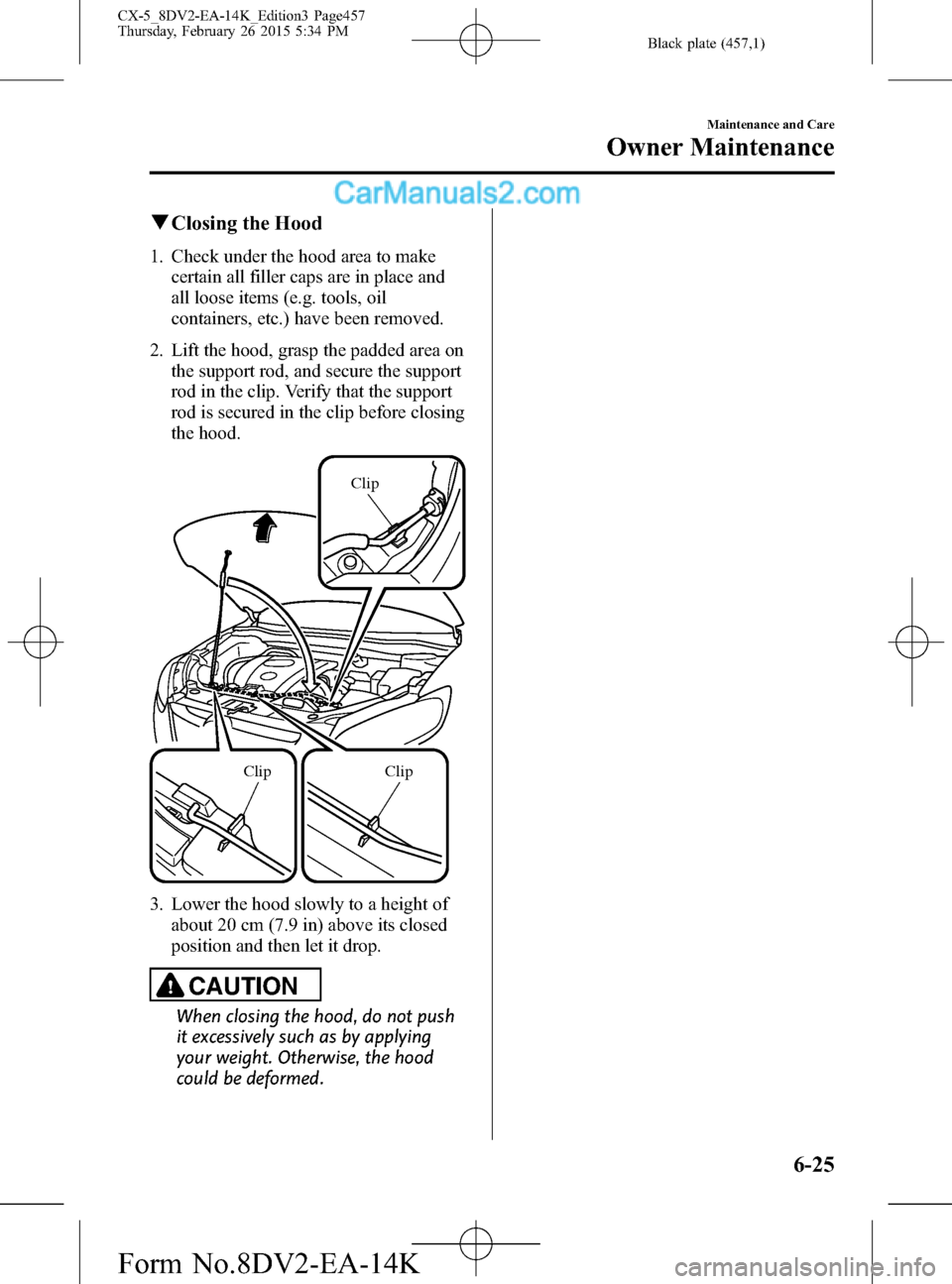

qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on
the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.
Clip
ClipClip
3. Lower the hood slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push
it excessively such as by applying
your weight. Otherwise, the hood
could be deformed.
Maintenance and Care
Owner Maintenance
6-25
CX-5_8DV2-EA-14K_Edition3 Page457
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (458,1)
Engine Compartment Overview
Windshield washer fluid reservoir
Engine oil-filler capBrake/Clutch fluid reservoir
Engine oil dipstickBattery
Engine coolant reservoirFuse block
Cooling system cap
6-26
Maintenance and Care
Owner Maintenance
CX-5_8DV2-EA-14K_Edition3 Page458
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (459,1)
Engine Oil
NOTE
Changing the engine oil should be performed
by an Authorized Mazda Dealer.
Refer to Introduction (page 6-2) for owner's
responsibility in protecting your investment.
qRecommended Oil
U.S.A. and CANADA
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
required to achieve optimum fuel
economy.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
®(U.S.A. only).
(ILSAC)
Only use SAE 0W-20 oil
“Certified For Gasoline Engines”by the
American Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.
80
60
40 20
0 –40 –20
30
100
40 20
10 0
–10 –20
–30 –40
Except U.S.A. and CANADA
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
®(Mexico only).
Maintenance and Care
Owner Maintenance
6-27
CX-5_8DV2-EA-14K_Edition3 Page459
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (460,1)
(ILSAC)
(Mexico)
Use SAE 5W-30 engine oil. If SAE 5W-
30 engine oil is not available, use SAE
5W-20 engine oil.
The quality designation SM, or ILSAC
must be on the label.
80
60
40 20
0 –40 –20
30
100
40 20
10 0
–10 –20
–30 –40
qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
Full
OK
Low
5. Pull it out again and examine the level.
The level is normal if it is between
Low and Full.
If it is near or below Low, add enough
oil to bring the level to Full.
CAUTION
Do not add engine oil over Full. This
may cause engine damage.
6. Make sure the O-ring on the dipstick is
positioned properly before reinserting
the dipstick.
7. Reinsert the dipstick fully.
6-28
Maintenance and Care
Owner Maintenance
CX-5_8DV2-EA-14K_Edition3 Page460
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K
