Distance Recognition
Support System (DRSS)
í
The Distance Recognition Support
System (DRSS) measures the distance
between your vehicle and a vehicle ahead
using a radar sensor (front) while the
vehicle speed is 30 km/h or faster (19
mph or faster), and indicates a
recommended distance to maintain
between the vehicles. Furthermore, if your
vehicle approaches a vehicle ahead more
closely than the appropriate distance to
maintain between the vehicles, the
vehicle-ahead indication in the multi-
information display is flashed to advise
the driver to keep a safer distance from
the vehicle ahead.
WARNING
Do not rely completely on the Distance
Recognition Support System (DRSS) and
always drive carefully:
The Distance Recognition Support
System (DRSS) provides advice for
safer driving and notifies the driver of
a recommended, safer distance to
maintain with a vehicle ahead. The
ability to detect a vehicle ahead is
limited depending on the type of
vehicle ahead, the weather
conditions, and the traffic conditions.
Therefore, if the accelerator and
brake pedals are not operated
correctly it could lead to an accident.
Always verify the safety of the
surrounding area and depress the
brake pedal or accelerator pedal
while keeping a safer distance from
vehicles ahead or on-coming vehicles.NOTE
lThe Distance Recognition Support System
(DRSS) operates when all of the following
conditions are met:
lThe ignition is switched ON.lThe Distance Recognition Support
System (DRSS) is on.
lThe selector lever is in a position other
than reverse (R).
lThe vehicle speed is 30 km/h or faster
(19 mph or faster).
lThe objects which activate the system are 4-
wheeled vehicles.
lThe Distance Recognition Support System
(DRSS) may also operate in the presence of
motorcycles and bicycles.
lThe Distance Recognition Support System
(DRSS) may not operate normally under the
following conditions:
lThe Dynamic Stability Control (DSC)
has a malfunction.
lThe vehicle ahead is traveling at an
extremely slow speed.
lThe system does not operate with the
following objects:
lVehicles approaching in the opposite
direction.
lStationary objects (stopped vehicles,
obstructions)
4-108
When Driving
íSome models.
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page242
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (243,1)
qIndication on Display
The Distance Recognition Support System (DRSS) operation status is displayed in the
multi-information display in the instrument cluster.
Problems are indicated in the center display (Type B audio). If there is a problem, take
appropriate action according to the displayed message.
Refer to Warning/Indicator Lights on page 4-20.
NOTE
lWhen the ignition is switched off, the operation status before the system was turned off is
maintained. For example, if the ignition is switched off with the Distance Recognition Support
System (DRSS) operable, the system will be operable when the ignition is switched ON the next
time.
lThe Distance Recognition Support System (DRSS) can be turned on/off and the system's sensitivity
can be changed using the INFO button on the steering switch.
Refer to Personalization Features on page 9-10.
Vehicle ahead
display
Distance between
vehicle display
When Driving
i-ACTIVSENSE
4-109
CX-5_8DV2-EA-14K_Edition3 Page243
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (244,1)
Distance-between-vehicles guidelines*1
Indication on displayDistance between vehicles
guidelines
(During travel at about 40km/h
(25 mph))Distance between vehicles
guidelines
(During travel at about 80km/h
(50 mph))
About 25 m (82 ft) About 50 m (164 ft)
About 20 m (66 ft) About 40 m (131 ft)
About 15 m (49 ft) About 30 m (98 ft)
About 10 m (32 ft) About 20 m (65 ft)
About 10 m (32 ft) or less About 20 m (65 ft) or less
*1 The distance between vehicles differs depending on vehicle speed.
4-110
When Driving
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page244
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (250,1)
Mazda Radar Cruise Control (MRCC)í
The Mazda Radar Cruise Control (MRCC) system is designed to maintain headway
control*1 according to the vehicle speed using a radar sensor to detect the distance to a
vehicle ahead, and by presetting the vehicle speed between 30 km/h (19 mph) and 145
km/h (90 mph), the driver is freed from having to constantly use the accelerator or brake
pedals.
*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the Mazda Radar Cruise Control (MRCC) system.
Additionally, if your vehicle starts closing in on the vehicle ahead because, for example,
the vehicle ahead brakes suddenly, a warning sound and a warning indication in the display
are activated simultaneously to alert you to maintain a sufficient distance between the
vehicles.
Use the Mazda Radar Cruise Control (MRCC) system on expressways and other highways
which do not require a lot of repeated acceleration and deceleration.
4-116
When Driving
íSome models.
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page250
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (253,1)

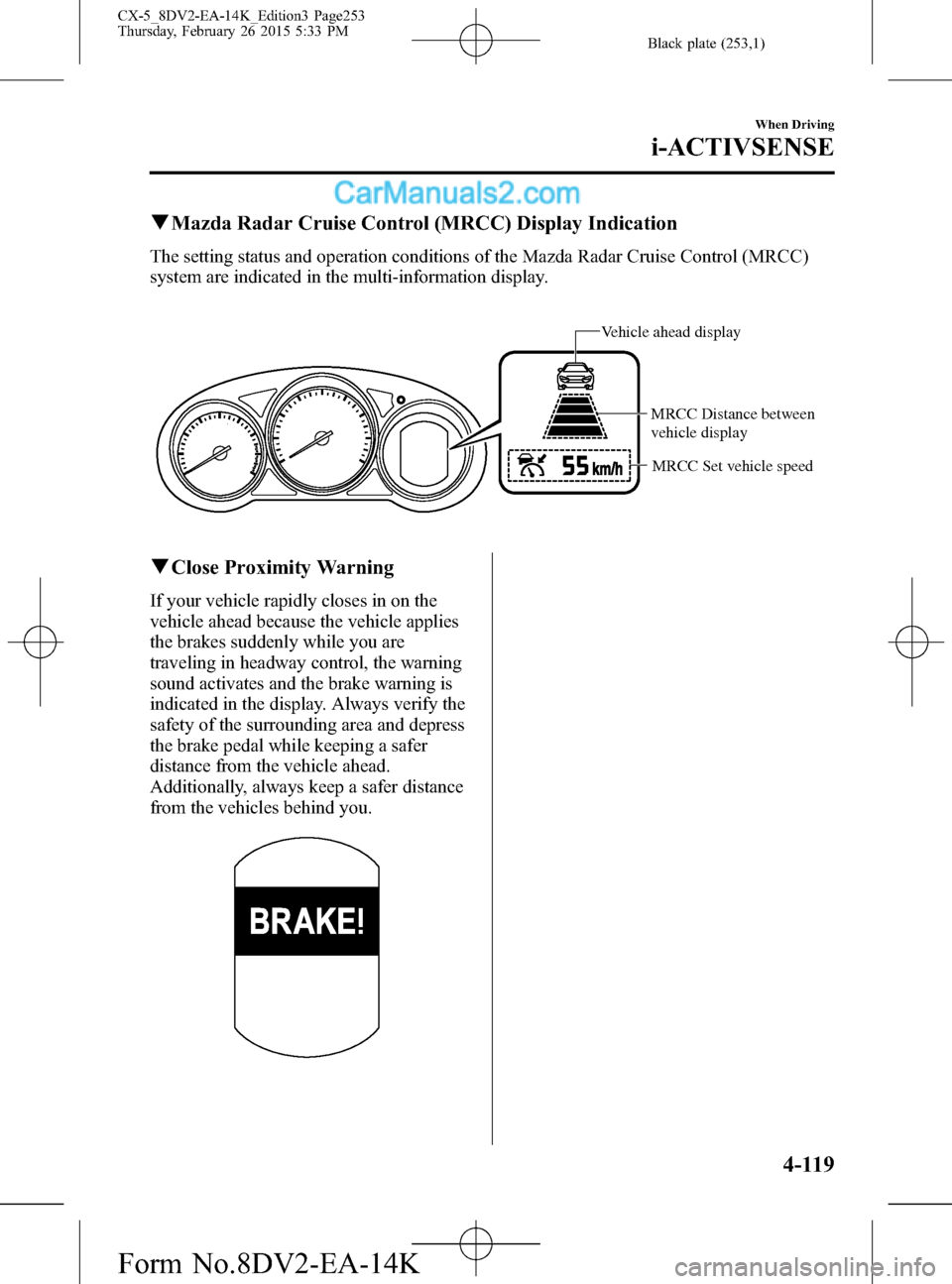

qMazda Radar Cruise Control (MRCC) Display Indication
The setting status and operation conditions of the Mazda Radar Cruise Control (MRCC)
system are indicated in the multi-information display.
Vehicle ahead display
MRCC Set vehicle speed MRCC Distance between
vehicle display
qClose Proximity Warning
If your vehicle rapidly closes in on the
vehicle ahead because the vehicle applies
the brakes suddenly while you are
traveling in headway control, the warning
sound activates and the brake warning is
indicated in the display. Always verify the
safety of the surrounding area and depress
the brake pedal while keeping a safer
distance from the vehicle ahead.
Additionally, always keep a safer distance
from the vehicles behind you.
When Driving
i-ACTIVSENSE
4-119
CX-5_8DV2-EA-14K_Edition3 Page253
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (254,1)
qSetting the System
CANCEL switch
switch switchRES switch
OFF switch ON switch
Cruise control
SET+/SET- switch
When the ON switch is pressed, the vehicle speed and the distance between vehicles while
in headway control can be set. The Mazda Radar Cruise Control (MRCC) indication is
shown in the display of the instrument cluster.
NOTE
lWhen the ignition is switched to ACC or OFF while the Mazda Radar Cruise Control (MRCC) is
ON, the Mazda Radar Cruise Control (MRCC) remains ON automatically.
lWhen the ON switch is pressed continuously for about 2 seconds while the Mazda Radar Cruise
Control (MRCC) system is turned on, the system switches the function to only cruise control.
4-120
When Driving
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page254
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (255,1)
How to Set the Speed
1. Adjust the vehicle speed to the desired
setting using the accelerator pedal.
2. Headway control begins when the
SET
or SETswitch is pressed.
The set speed and the inter-vehicle
distance display filled with white lines
are displayed. The Mazda Radar Cruise
Control (MRCC) indicator light (green)
is indicated simultaneously.
Travel status Display
During travel at constant
speed
During travel under
headway control
NOTElIf a vehicle ahead is detected while
traveling at a constant speed, the vehicle-
ahead indication is displayed and headway
control is performed. Additionally, when a
vehicle ahead is no longer detected, the
vehicle-ahead indication turns off and the
system switches back to travel at constant
speed.
lIf you are driving the vehicle at a speed
faster than the set speed, headway control
on the vehicle ahead is not possible Adjust
the system to the desired vehicle speed
using the accelerator pedal.
How to Set the Distance Between
Vehicles During Headway Control
The distance between vehicles is set to a
shorter distance each time the
switch
is pressed. The distance between vehicles
is set to a longer distance by pressing the
switch. The distance-between-vehicles
can be set to 4 levels; Long, medium,
short, and extremely short distance.
Distance-between-vehi-
cles guideline
(at 80 km/h (50 mph)
vehicle speed)Indication on display
Long
(about 50 m (164 ft))
Medium
(about 40 m (131 ft))
Short
(about 30 m (98 ft))
Extremely short
(about 25 m (82 ft))
NOTElThe distance between vehicles differs
depending on the vehicle speed, and the
slower the vehicle speed, the shorter the
distance.
lWhen the ignition is switched to ACC or
OFF and then the engine is started again,
the system automatically sets the distance
between vehicles to the previous setting.
When Driving
i-ACTIVSENSE
4-121
CX-5_8DV2-EA-14K_Edition3 Page255
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (256,1)

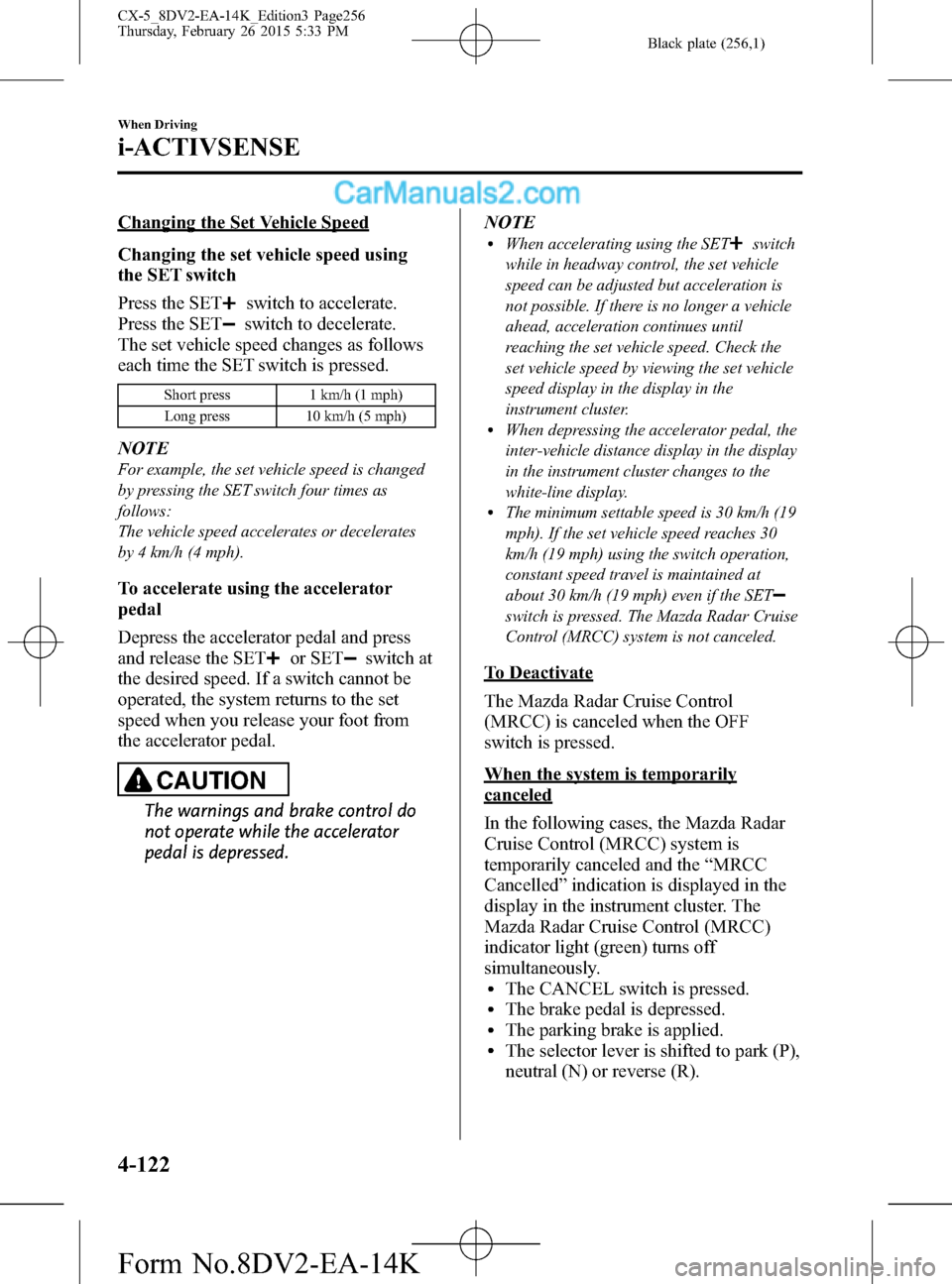

Changing the Set Vehicle Speed
Changing the set vehicle speed using
the SET switch
Press the SET
switch to accelerate.
Press the SET
switch to decelerate.
The set vehicle speed changes as follows
each time the SET switch is pressed.
Short press 1 km/h (1 mph)
Long press 10 km/h (5 mph)
NOTE
For example, the set vehicle speed is changed
by pressing the SET switch four times as
follows:
The vehicle speed accelerates or decelerates
by 4 km/h (4 mph).
To accelerate using the accelerator
pedal
Depress the accelerator pedal and press
and release the SET
or SETswitch at
the desired speed. If a switch cannot be
operated, the system returns to the set
speed when you release your foot from
the accelerator pedal.
CAUTION
The warnings and brake control do
not operate while the accelerator
pedal is depressed.NOTE
lWhen accelerating using the SETswitch
while in headway control, the set vehicle
speed can be adjusted but acceleration is
not possible. If there is no longer a vehicle
ahead, acceleration continues until
reaching the set vehicle speed. Check the
set vehicle speed by viewing the set vehicle
speed display in the display in the
instrument cluster.
lWhen depressing the accelerator pedal, the
inter-vehicle distance display in the display
in the instrument cluster changes to the
white-line display.
lThe minimum settable speed is 30 km/h (19
mph). If the set vehicle speed reaches 30
km/h (19 mph) using the switch operation,
constant speed travel is maintained at
about 30 km/h (19 mph) even if the SET
switch is pressed. The Mazda Radar Cruise
Control (MRCC) system is not canceled.
To Deactivate
The Mazda Radar Cruise Control
(MRCC) is canceled when the OFF
switch is pressed.
When the system is temporarily
canceled
In the following cases, the Mazda Radar
Cruise Control (MRCC) system is
temporarily canceled and the“MRCC
Cancelled”indication is displayed in the
display in the instrument cluster. The
Mazda Radar Cruise Control (MRCC)
indicator light (green) turns off
simultaneously.
lThe CANCEL switch is pressed.lThe brake pedal is depressed.lThe parking brake is applied.lThe selector lever is shifted to park (P),
neutral (N) or reverse (R).
4-122
When Driving
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page256
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (257,1)
lIn the following cases, the“MRCC
Cancelled”indication is displayed and
the beep sounds one time.
lThe vehicle speed decreases to less
than 25 km (16 mph).
lThe DSC has operated.lThe TCS has operated for a certain
period of time.
lThe Smart City Brake Support
(SCBS) has operated.
lThe Smart Brake Support (SBS) has
operated.
lWhen traveling on a down slope for
a long period of time.
lThere is a problem with the system.
NOTE
lThe Mazda Radar Cruise Control (MRCC)
system may be canceled during rain, fog,
snow or other inclement weather
conditions, or the front surface of the
radiator grille is dirty.
lIf you have temporarily canceled the Mazda
Radar Cruise Control (MRCC), you can
return to your previously set speed by
pressing the RES switch and after all of the
operation conditions have been met.
lIf the OFF switch is pressed to cancel the
Mazda Radar Cruise Control (MRCC), the
system does not return to the previously set
speed even if the RES switch is pressed.
qCruise Control Function
While this function is operating, the
headway control operation is canceled and
only the cruise control function operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise control function on
expressways and other highways which
do not require a lot of repeated
acceleration and deceleration.
WARNING
Do not use the cruise control function
in the following locations:
Otherwise, it could lead to an
accident.
ØRoads with sharp curves and
where vehicle traffic is heavy and
there is insufficient space between
vehicles. (Driving under these
conditions using the cruise control
function is not possible)
ØSteep down slopes (Set speed may
be exceeded because sufficient
engine braking cannot be applied)
ØSlippery roads such as ice or
snow-bound roads (Tires could
spin causing you to lose vehicle
control)
Always drive carefully:
The warnings and brake control will
not operate after the headway
control function is canceled and the
system is switched to only the cruise
control function. Depress the brake
pedal to decelerate according to the
surrounding conditions while keeping
a safer distance from the vehicle
ahead and always driving carefully.
Switching to cruise control function
When the ON switch is pressed
continuously for about 2 seconds while
the Mazda Radar Cruise Control (MRCC)
system is turned on, the system is
switched to the cruise control function.
The Mazda Radar Cruise Control
(MRCC) indicator light (green) in the
instrument cluster turns off and a message
is displayed in the multi-information
display at the same time.
When Driving
i-ACTIVSENSE
4-123
CX-5_8DV2-EA-14K_Edition3 Page257
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (263,1)
NOTElThe Smart City Brake Support (SCBS) system will not operate if the driver is deliberately
performing driving operations (accelerator pedal and steering wheel).
lThe Smart City Brake Support (SCBS) system will operate under the following conditions.lThe engine is running.l“SCBS Forward malfunction”is not displayed in the multi-information display.lThe vehicle speed is between about 4 to 30 km/h (2 to 18 mph).lThe Smart City Brake Support (SCBS) system is not turned off.lThe DSC is not malfunctioning.lThe Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-infrared laser
beam and receiving the beam reflected off the reflector of the vehicle ahead, and then using it for
the measurement. Consequently, the Smart City Brake Support (SCBS) may not operate under the
following conditions:
lReflection of the laser is poor due to the shape of the vehicle ahead.lThe vehicle ahead is significantly dirty.lUnder bad weather condition, such as rain, fog and snow.lThe window washer is being used or the windshield wipers are not used when it's raining.lThe windshield is dirty.lThe steering wheel is turned completely left or right, or the vehicle is accelerated rapidly and
comes close to the vehicle ahead.
lTrucks with low loading platforms and vehicles with an extremely low or high profile.lVehicles with certain shapes such as a vehicle carrier.lUnder the following conditions, the Smart City Brake Support (SCBS) system may not operate
normally.
lHeavy luggage is loaded in the luggage compartment or on the rear seat.lIf there is the possibility of partial contact with a vehicle ahead.lWhen driving on continuously curving roads, and entering and exiting exits.lElongated luggage or cargo is loaded onto installed roof rails and covers the laser sensor.lExhaust gas from the vehicle in front, sand, snow, and water vapor rising from manholes and
grating, and water splashed into the air.
lWhen towing a malfunctioning vehicle.lWhen driving with tires having significantly different wear.lIn the following cases, the laser sensor may inadvertently determine that there is a vehicle ahead
and the Smart City Brake Support (SCBS) system may operate.
lObjects on the road at the entrance to a curve.lVehicles passing in the opposite lane while making a curve.lMetal objects, bumps, or protruding objects on the road.lWhen passing through a toll gate equipped with a bar.lWhen passing under a vinyl curtain or flag.lPlastic objects such as pylons.lTwo-wheeled vehicles, pedestrians, animals or standing trees.lWhen the system operates, the user is notified by the flashing Smart City Brake Support (SCBS)
warning indication and the multi-information display.
When Driving
i-ACTIVSENSE
4-129
CX-5_8DV2-EA-14K_Edition3 Page263
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K
