display MAZDA MODEL CX-5 2016 (in English) Owner's Manual

Black plate (158,1)
Signal Warning/Indicator Lights Page
Shift Position Indication 4-43
Headlight High-Beam Indicator Light 4-43
Turn Signal/Hazard Warning Indicator Lights 4-43
Security Indicator Light 4-44
Mazda Radar Cruise Control (MRCC) Warning Light (Amber)/Indicator
Light (Green)4-44
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-44
Select Mode Indication 4-43
Blind Spot Monitoring (BSM) OFF Indication 4-45
Lights-On Indicator Light 4-45
LED Headlight Warning Light 4-46
qType B
Warning/Indicator lights will appear in any of the highlighted areas
4-24
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page158
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (159,1)
Signal Warning/Indicator Lights Page
Master Warning Light 4-27
Brake System Warning Light 4-27
ABS Warning Light 4-28
Electric Parking Brake Warning Light 4-29
Brake Pedal Operation demand Indicator Light 4-29
Charging System Warning Light 4-29
Engine Oil Warning Light 4-30
Check Engine Light 4-30
High Engine Coolant Temperature Warning Light (Red) 4-31
Lane Departure Warning System (LDWS) Warning Light 4-31
Lane Departure Warning System (LDWS) OFF Indicator Light 4-32
AWD Warning Light 4-32
Automatic Transaxle Warning Light 4-33
Power Steering Malfunction Indicator Light 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-35
When Driving
Instrument Cluster and Display
4-25
CX-5_8DV2-EA-14K_Edition3 Page159
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (160,1)
Signal Warning/Indicator Lights Page
Check Fuel Cap Warning Light 4-35
Seat Belt Warning Light 4-35
Door-Ajar Warning Light 4-36
Low Washer Fluid Level Warning Light 4-37
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Light (Red)/Indicator Light (Green) 4-39
High Beam Control System (HBC) Warning Light (Amber)/Indicator Light
(Green)4-41
Wrench Indicator Light 4-41
TCS/DSC Indicator Light 4-41
TCS OFF Indicator Light 4-42
Low Engine Coolant Temperature Indicator Light (Blue) 4-42
Shift Position Indication 4-43
Headlight High-Beam Indicator Light 4-43
Turn Signal/Hazard Warning Indicator Lights 4-43
Security Indicator Light 4-44
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-44
4-26
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page160
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (161,1)
Signal Warning/Indicator Lights Page
Select Mode Indication 4-43
Blind Spot Monitoring (BSM) OFF Indicator Light 4-45
Lights-On Indicator Light 4-45
LED Headlight Warning Light 4-46
qMaster Warning Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
Type A
Displays when notification of the system
malfunctions is required.
Check the message indicated in the
display and consult an Authorized Mazda
Dealer.
Type B
The light illuminates continuously if any
one of the following occurs. Consult an
Authorized Mazda Dealer.
lThere is a malfunction in the battery
management system.
lThere is a malfunction in the brake
switch.
qBrake System Warning Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
This warning has the following functions:
When the light turns on
The light turns on when the electric
parking brake is applied and the light
turns off when the brake is released.
If the brake system warning light remains
turned on even though the electric parking
brake is released, the brake fluid may be
low or there could be a problem with the
brake system. Park the vehicle in a safe
place immediately and contact an
Authorized Mazda Dealer.
When Driving
Instrument Cluster and Display
4-27
CX-5_8DV2-EA-14K_Edition3 Page161
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (162,1)
When the light is flashing
The light flashes if the electric parking
brake has a malfunction.
If the light remains flashing even if the
electric parking brake switch is operated,
consult an Authorized Mazda Dealer as
soon as possible.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
4-28
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page162
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (163,1)
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qElectric Parking Brake Warning
Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
The warning light illuminates when the
system has a malfunction. Have your
vehicle inspected at an Authorized Mazda
Dealer.
qBrake Pedal Operation Demand
Indicator Light (Type B)
This indicator light stays on for a few
seconds when the ignition is switched
ON.
The light turns on when the electric
parking brake is released using the electric
parking brake switch without depressing
the brake pedal.
qCharging System Warning
Indication/Warning Light
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
When Driving
Instrument Cluster and Display
4-29
CX-5_8DV2-EA-14K_Edition3 Page163
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (164,1)
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qEngine Oil Warning Indication/
Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
This warning light indicates low engine
oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-28).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light.
If the light remains illuminated even
though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qCheck Engine Light
This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
4-30
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page164
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (165,1)
If the check engine light remains on, do
not drive at high speeds and consult an
Authorized Mazda Dealer as soon as
possible.
qHigh Engine Coolant Temperature
Warning Light (Red)
When the ignition is switched ON, the
light illuminates momentarily and then
turns off.
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-18).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
qLane Departure Warning System
(LDWS) Indication (Type A)í
When the Lane Departure Warning
System (LDWS) is turned on the LDWS
indication is displayed.
qLane Departure Warning System
(LDWS) Warning Light (Type B)í
This warning light illuminates for a few
seconds when the ignition is switched
ON.
The indicator flashes when the system
determines that the vehicle may be
deviating from its lane.
When Driving
Instrument Cluster and Display
4-31íSome models. CX-5_8DV2-EA-14K_Edition3 Page165
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (166,1)

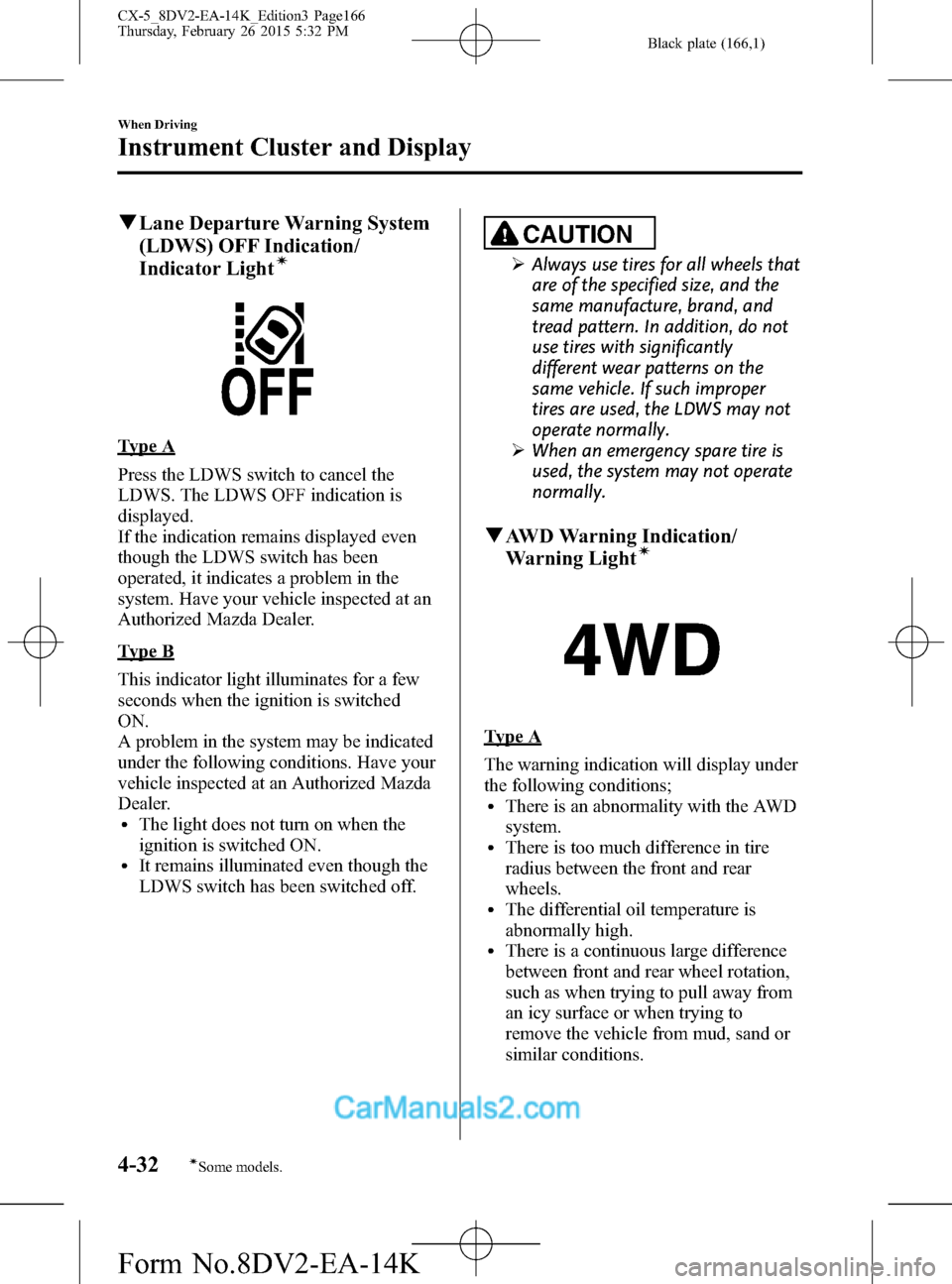

qLane Departure Warning System
(LDWS) OFF Indication/
Indicator Light
í
Type A
Press the LDWS switch to cancel the
LDWS. The LDWS OFF indication is
displayed.
If the indication remains displayed even
though the LDWS switch has been
operated, it indicates a problem in the
system. Have your vehicle inspected at an
Authorized Mazda Dealer.
Type B
This indicator light illuminates for a few
seconds when the ignition is switched
ON.
A problem in the system may be indicated
under the following conditions. Have your
vehicle inspected at an Authorized Mazda
Dealer.
lThe light does not turn on when the
ignition is switched ON.
lIt remains illuminated even though the
LDWS switch has been switched off.
CAUTION
ØAlways use tires for all wheels that
are of the specified size, and the
same manufacture, brand, and
tread pattern. In addition, do not
use tires with significantly
different wear patterns on the
same vehicle. If such improper
tires are used, the LDWS may not
operate normally.
ØWhen an emergency spare tire is
used, the system may not operate
normally.
qAWD Warning Indication/
Warning Lightí
Type A
The warning indication will display under
the following conditions;
lThere is an abnormality with the AWD
system.
lThere is too much difference in tire
radius between the front and rear
wheels.
lThe differential oil temperature is
abnormally high.
lThere is a continuous large difference
between front and rear wheel rotation,
such as when trying to pull away from
an icy surface or when trying to
remove the vehicle from mud, sand or
similar conditions.
4-32
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page166
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (167,1)
When“4WD system malfunction”is
indicated
Contact an Authorized Mazda Dealer.
When“4WD system high-load”is
indicated
Park the vehicle in a safe place. After a
few moments, if the indication disappears,
you can resume driving. If the indication
does not disappear, contact an Authorized
Mazda Dealer.
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
The warning light will illuminate or flash
under the following conditions:
lIlluminates when there is an
abnormality with the AWD system.
lIlluminates if there is too much
difference in tire radius between the
front and rear wheels.
lFlashes when the differential oil
temperature is abnormally high.
lFlashes when there is a continuous
large difference between front and rear
wheel rotation, such as when trying to
pull away from an icy surface or when
trying to remove the vehicle from mud,
sand or similar conditions.
When illuminated
If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.
When flashing
Park the vehicle in a safe place. After a
few moments, if the warning light stops
flashing, you can resume driving. If the
light does not stop flashing, contact an
Authorized Mazda Dealer.
qAutomatic Transaxle Warning
Indication/Warning Light
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
Type A/Type B
The light/indication illuminates when the
transaxle has a problem.
CAUTION
If the automatic transaxle warning
light/warning indication illuminates,
the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult
an Authorized Mazda Dealer as soon
as possible.
qPower Steering Malfunction
Warning Indication/Indicator Light
Type B
This indicator light illuminates when the
ignition is switched ON, and turns off
when the engine is started.
When Driving
Instrument Cluster and Display
4-33
CX-5_8DV2-EA-14K_Edition3 Page167
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
