Black plate (535,1)
qIf the security indicator light
illuminates or flashes
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qIf the Mazda Radar Cruise
Control (MRCC) Warning Light
(Amber) illuminates
í
The warning light turns on if there is a
malfunction in the system while the
Mazda Radar Cruise Control (MRCC)
system is on. Have your vehicle inspected
at an Authorized Mazda Dealer.
qIf the blind spot monitoring
(BSM) system OFF indication/
indicator light illuminates
í
Type A
If the indication remains displayed even
though the Blind Spot Monitoring (BSM)
switch has been operated, it indicates a
problem in the system. Have your vehicle
inspected at an Authorized Mazda Dealer.
Type B
A problem in the system may be indicated
under the following conditions. Have your
vehicle inspected at an Authorized Mazda
Dealer.
lThe light does not turn on when the
ignition is switched ON.
lIt remains illuminated even though the
Blind Spot Monitoring (BSM) switch
has been switched off.
lIt turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less
traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blind
Spot Monitoring (BSM) OFF indication/
indicator light in the instrument cluster
illuminates). However, it does not indicate a
malfunction.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-33íSome models. CX-5_8DV2-EA-14K_Edition3 Page535
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (538,1)
NOTElPlacing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function to
operate depending on the weight of the
item.
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lIf a small child is seated on the front
passenger's seat, the warning beep may not
operate.
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard to notify the
driver that the ignition has not been
switched off (STOP) (for vehicles with a
type A meter, messages are displayed in
the instrument cluster). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
qKey Removed from Vehicle
Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the key has been
removed (for vehicles with a type A
meter, messages are displayed in the
instrument cluster). The KEY warning
light (red) will stop flashing when the key
is back inside the vehicle (for vehicles
with a type A meter, messages are
displayed in the instrument cluster):
The ignition has not been switched off
and all the doors are closed after
removing the key from the vehicle. (A
beep sound will be heard 6 times.)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
qRequest Switch Inoperable
Warning Beep (With the
advanced keyless function)
If the request switch is pressed under the
following conditions while the key is
being carried, a beep will be heard for
about 2 seconds to indicate that the front
doors and the liftgate can not be locked.
lA door or the liftgate is open (door ajar
included).
lThe ignition has not been switched to
off.
7-36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page538
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (539,1)
qKey Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all doors locked and
the liftgate closed, a beep sound is heard
for about 10 seconds to remind the driver
the key has been left in the luggage
compartment. If this happens, open the
liftgate by pressing the electric liftgate
opener and remove the key. A key
removed from the luggage compartment
may not function because its functions
may have been temporarily suspended. To
restore the key function, perform the
applicable procedure (page 3-8).
qKey Left-in-vehicle Warning Beep
(With the advanced keyless function)
When any door is opened from the
outside while the key is inside the vehicle,
the closed doors are locked. All the doors
are automatically unlocked by closing the
open door and the beep sound is heard for
about 10 seconds to notify the driver that
the key has been left in the vehicle.
If this happens, the doors and the liftgate
lock but the functions of the key left in the
vehicle cabin may be temporarily
suspended.
Perform the applicable procedure to
restore the functions of the key (page 3-8).
qTire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 4-148).
qLane Departure Warning Soundí
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
lThe volume of the LDWS warning sound
can be changed.
Refer to Personalization Features on page
9-10.
lThe type of the LDWS warning sound can
be changed.
Refer to Personalization Features on page
9-10.
qBlind Spot Monitoring (BSM)
System Warning Beepí
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the BSM warning light is illuminated.
NOTE
A personalized function is available to change
the BSM warning beep sound volume. Refer to
Personalization Features on page 9-10.
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-37íSome models. CX-5_8DV2-EA-14K_Edition3 Page539
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (586,1)
Declaration of Conformity
qKeyless Entry System/Immobilizer System
8-44
Customer Information and Reporting Safety Defects
Declaration of Conformity
CX-5_8DV2-EA-14K_Edition3 Page586
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (611,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
SafetyDistance
Recognition
Support
System
(DRSS)
Refer to
Distance
Recognition
Support
System
(DRSS) on
page 4-108.The system can be changed so
that Distance Recognition
Support System (DRSS) does
not operate.
*1On On/OffRefer to
Settings
on page
5-49.―
The distance at which the
vehicle ahead indicator in the
display flashes can be changed.NearFar/Medium/
NearRefer to
Settings
on page
5-49.―
VehiclePower door
lock
Refer to
Auto
Lock/Unlock
Function on
page 3-15.Changes the auto lock/unlock
function setting for all the doors
according to the vehicle speed,
the vehicle power supply
condition, and the selector lever
position.Lock:
When
Driving
Unlock:
IGN OffLock:
When
Driving
Unlock: In
Park/
Lock: Out
of Park
Unlock: In
Park/
Lock:
Shifting
Out of
Park/
Lock:
When
Driving
Unlock:
IGN Off/
Lock:
When
Driving/
Off
Refer to
Settings
on page
5-49.
Refer to
Auto
Lock/Un-
lock
Function
on page
3-15.
Keyless
entry system
Refer to
Keyless
Entry
System on
page 3-4.The method for unlocking the
doors using the transmitter can
be changed.Driver's:
Once, All
Doors:
TwiceAll Doors:
Once/
Driver's:
Once, All
Doors:
TwiceRefer to
Settings
on page
5-49.Refer to
Transmit-
ter on
page 3-5.
The time required for the doors
to relock automatically after
unlocking with the transmitter
can be changed.60
seconds90
seconds/
60
seconds/
30
secondsRefer to
Settings
on page
5-49.―
Personalization Features
9-13
CX-5_8DV2-EA-14K_Edition3 Page611
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

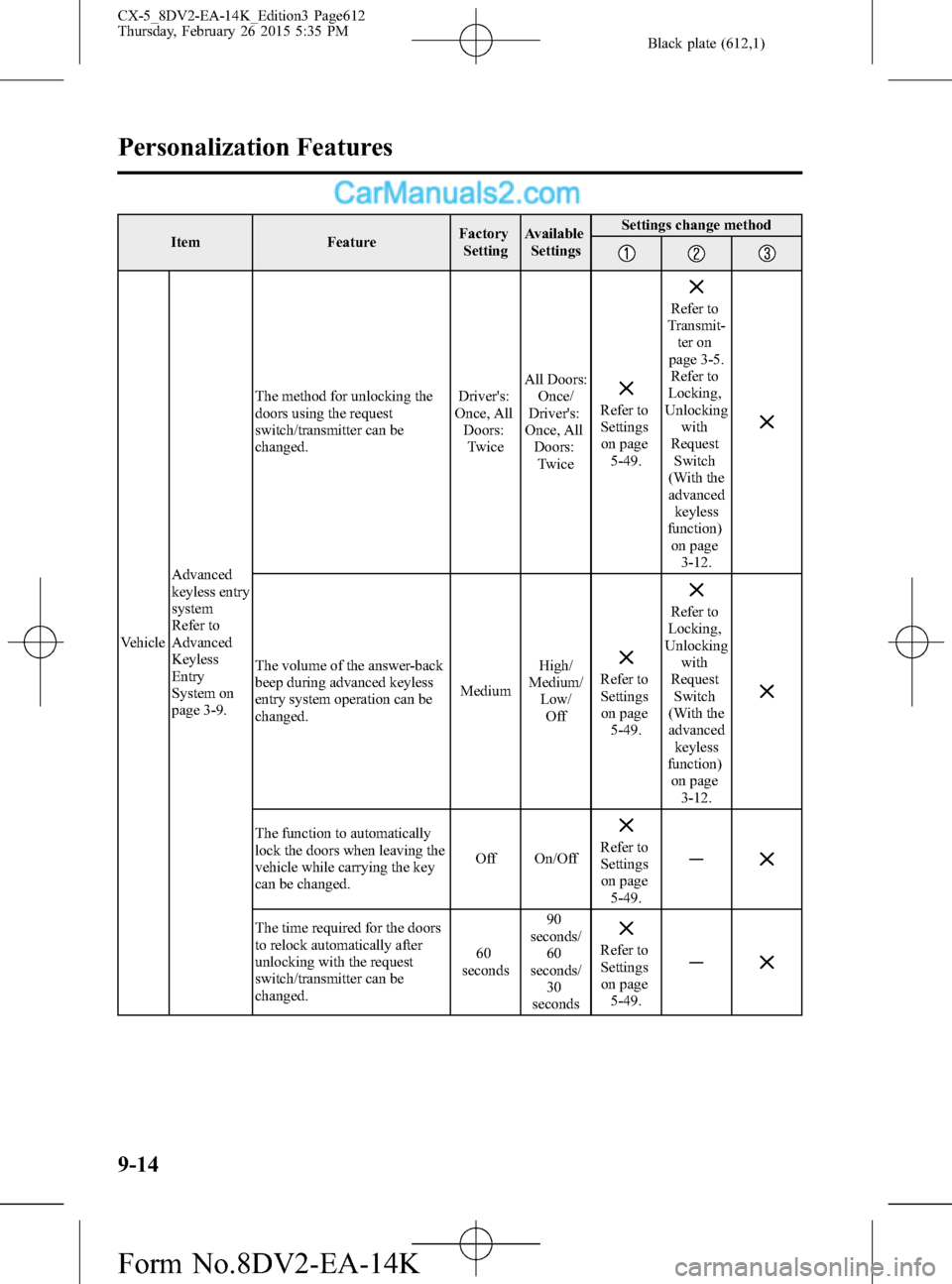

Black plate (612,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleAdvanced
keyless entry
system
Refer to
Advanced
Keyless
Entry
System on
page 3-9.The method for unlocking the
doors using the request
switch/transmitter can be
changed.Driver's:
Once, All
Doors:
TwiceAll Doors:
Once/
Driver's:
Once, All
Doors:
Twice
Refer to
Settings
on page
5-49.
Refer to
Transmit-
ter on
page 3-5.
Refer to
Locking,
Unlocking
with
Request
Switch
(With the
advanced
keyless
function)
on page
3-12.
The volume of the answer-back
beep during advanced keyless
entry system operation can be
changed.MediumHigh/
Medium/
Low/
OffRefer to
Settings
on page
5-49.
Refer to
Locking,
Unlocking
with
Request
Switch
(With the
advanced
keyless
function)
on page
3-12.
The function to automatically
lock the doors when leaving the
vehicle while carrying the key
can be changed.Off On/OffRefer to
Settings
on page
5-49.―
The time required for the doors
to relock automatically after
unlocking with the request
switch/transmitter can be
changed.60
seconds90
seconds/
60
seconds/
30
seconds
Refer to
Settings
on page
5-49.―
9-14
Personalization Features
CX-5_8DV2-EA-14K_Edition3 Page612
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (618,1)
A
Accessory Socket ............................ 5-130
Adaptive Front Lighting System
(AFS) ................................................ 4-92
Add-On Non-Genuine Parts and
Accessories ....................................... 8-19
Advanced Key
Operational range ....................... 3-10
Advanced Keyless Entry System ........ 3-9
Air Bag Systems ............................... 2-44
All-Wheel Drive
(AWD) Operation ............................. 4-87
Antilock Brake System (ABS) .......... 4-80
Audio Control Switch
Adjusting the Volume ................ 5-51
Mute Switch ............................... 5-52
Seek Switch ................................ 5-51
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-51
Audio Set (Type A) .................... 5-21
Audio Set (Type B) .................... 5-32
AUX/USB/iPod mode ................ 5-52
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-42
Automatic Transaxle
Driving tips ................................ 4-56
Manual shift mode ..................... 4-52
Shift-lock override ..................... 4-51
Shift-lock system ....................... 4-51
Transaxle ranges ........................ 4-50
B
Battery ............................................... 6-37
Maintenance ............................... 6-38
Replacement ............................... 6-38
Specifications ............................... 9-4
B
Battery runs out ................................. 7-14
Jump-Starting ............................. 7-14
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-35
Blind Spot Monitoring
(BSM) system warning .............. 7-37
Electric parking brake warning ... 7-38
Ignition not switched off
(STOP) warning ......................... 7-36
Key left-in-luggage compartment
warning ...................................... 7-37
Key left-in-vehicle warning ....... 7-37
Key removed from vehicle
warning ...................................... 7-36
Lane departure warning ............. 7-37
Lights-on reminder ..................... 7-34
Power steering warning .............. 7-38
Request switch inoperable
warning ...................................... 7-36
Seat belt warning ........................ 7-35
Tire inflation pressure warning ... 7-37
Blind Spot Monitoring
(BSM) System ................................ 4-102
Bluetooth® ....................................... 5-69
Bluetooth® Audio (Type A) .... 5-108
Bluetooth® Audio (Type B) ..... 5-110
Bluetooth® Hands-Free
(Type A) ..................................... 5-91
Bluetooth® Hands-Free
(Type B) ..................................... 5-98
Troubleshooting ....................... 5-124
Body Lubrication .............................. 6-32
Bottle Holder ................................... 5-133
10-2
Index
CX-5_8DV2-EA-14K_Edition3 Page618
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (621,1)
I
i-ACTIVSENSE ............................... 4-90
Active safety technology ............ 4-90
Adaptive Front Lighting System
(AFS) ......................................... 4-92
Blind Spot Monitoring
(BSM) system .......................... 4-102
Camera and snsors ..................... 4-91
Distance Recognition Support System
(DRSS) ..................................... 4-108
Forward Sensing Camera
(FSC) ........................................ 4-134
High Beam Control System
(HBC) ........................................ 4-93
Lane Departure Warning System
(LDWS) ..................................... 4-96
Laser sensor (front) .................. 4-140
Mazda Radar Cruise Control
(MRCC) ................................... 4-116
Pre-crash safety technology ........ 4-90
Radar sensor (front) ................. 4-137
Radar sensors (rear) ................. 4-142
Rear Cross Traffic Alert
(RCTA) ..................................... 4-111
Smart Brake Support (SBS) ..... 4-131
Smart City Brake Support
(SCBS) ..................................... 4-126
Ignition
Switch .......................................... 4-2
Illuminated Entry System ............... 5-129
Immobilizer System .......................... 3-37
I
Indicator Lights
Blind Spot Monitoring
(BSM) OFF ................................ 4-45
Brake pedal operation demand ... 4-29
Cruise ......................................... 4-44
Hazard warning .......................... 4-43
HBC ........................................... 4-41
Headlight high-beam .................. 4-43
KEY ............................................ 4-39
LDWS ........................................ 4-31
LDWS OFF ................................ 4-32
Lights-on .................................... 4-45
Low engine coolant
temperature ................................ 4-42
Mazda Radar Cruise Control
(MRCC) ..................................... 4-44
Power steering malfunction ........ 4-33
Security ...................................... 4-44
Select mode ................................ 4-43
Shift position .............................. 4-43
Smart City Brake Support
(SCBS) ....................................... 4-42
Smart City Brake Support
(SCBS) OFF ............................... 4-42
TCS OFF .................................... 4-42
TCS/DSC ................................... 4-41
Turn signal ................................. 4-43
Inspecting Brake/Clutch Fluid
Level ................................................. 6-31
Inspecting Coolant Level .................. 6-29
Inspecting Engine Oil Level ............. 6-28
Inspecting Washer Fluid Level ......... 6-31
Instrument Cluster ............................. 4-10
Index
10-5
CX-5_8DV2-EA-14K_Edition3 Page621
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (622,1)
I
Interior Care ...................................... 6-68
Cleaning the Lap/Shoulder Belt
Webbing ..................................... 6-70
Cleaning the Upholstery and Interior
Trim ............................................ 6-68
Cleaning the Window Interiors ... 6-70
Dashboard Precautions ............... 6-68
Interior Lights ................................. 5-128
Luggage Compartment Light.... 5-128
Map Lights ............................... 5-128
Overhead Lights ....................... 5-128
J
Jack ..................................................... 7-5
Jump-Starting .................................... 7-14
K
Key Suspend Function ........................ 3-8
Keyless Entry System ......................... 3-4
Keys .................................................... 3-2
Key suspend function ................... 3-8
Transmitter ................................... 3-5
L
Label Information ............................... 9-2
Lane Departure Warning System
(LDWS) ............................................ 4-96
LDWS switch ............................. 4-99
Lane-Change Signals ........................ 4-63
Laser Sensor (Front) ....................... 4-140
Leaving Home Light System ............ 4-62
Liftgate .............................................. 3-19
When liftgate cannot be
opened ........................................ 7-39
L
Light Bulbs
Replacement ............................... 6-46
Specifications ............................... 9-7
Lighting Control ............................... 4-58
Lubricant Quality ................................ 9-4
Luggage Compartment Light .......... 5-128
M
Maintenance and Care ........................ 6-2
Maintenance Monitor ........................ 4-15
Manual Transaxle Operation ............. 4-47
Recommendations for shifting.... 4-48
Map Lights ...................................... 5-128
Mazda Radar Cruise Control
(MRCC) .......................................... 4-116
Close proximity warning .......... 4-119
Display indication .................... 4-119
Setting the system .................... 4-120
Mazda Radar Cruise Control
(MRCC) System Warnings ............... 7-38
Mazda Radar Cruise Control
(MRCC) Warning Light (Amber)/
Indicator Light (Green) ..................... 4-44
Meters and Gauges ........................... 4-10
Mirror Defogger ................................ 4-69
Mirrors
Outside mirrors .......................... 3-29
Rearview mirror ......................... 3-30
O
Outside Mirrors ................................. 3-29
Outside Temperature Display ............ 4-14
Overhead Console ........................... 5-134
Overhead Lights .............................. 5-128
Overheating ....................................... 7-18
Overloading ...................................... 3-46
10-6
Index
CX-5_8DV2-EA-14K_Edition3 Page622
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (623,1)
O
Owner Maintenance
Closing the Hood ....................... 6-25
Engine Compartment
Overview .................................... 6-26
Key Battery Replacement .......... 6-39
Opening the Hood ...................... 6-24
Owner Maintenance
Precautions ................................. 6-22
P
Parking Brake ................................... 4-75
Personalization Features ................... 9-10
Power Steering .................................. 4-89
Power Windows ................................ 3-32
R
Radar Sensor (Front) ....................... 4-137
Radar Sensors (Rear) ...................... 4-142
Rear Coat Hooks ............................. 5-135
Rear Cross Traffic Alert (RCTA) .... 4-111
Rear Door Child Safety Locks .......... 3-19
Rear Seat ........................................... 2-10
Rear View Monitor ......................... 4-152
Rear Window Defogger .................... 4-69
Rear Window Washer ....................... 4-68
Rear Window Wiper .......................... 4-68
Rearview Mirror ................................ 3-30
Recommended Oil ............................ 6-27
Recording of Vehicle Data ................ 8-22
Recreational Towing ......................... 3-56
Registering Your Vehicle in A Foreign
Country ............................................. 8-18
R
Replacement
Fuse ............................................ 6-56
Key battery ................................. 6-39
Light Bulbs ................................ 6-46
Tires ........................................... 6-43
Wheel ......................................... 6-44
Wiper .......................................... 6-33
Rocking the Vehicle .......................... 3-43
S
Safety Defects, Reporting ................. 8-14
Satellite Radio ................................... 5-42
Saving Fuel and Protection of the
Environment ..................................... 3-41
Scheduled Maintenance ...................... 6-4
Seat
Seat Position Memory
(Driver's seat) ............................... 2-8
Seat Belt System
3-point type ................................ 2-20
Automatic locking ...................... 2-19
Emergency locking .................... 2-19
Extender ..................................... 2-24
Pregnant women ........................ 2-19
Seats
Front seat ...................................... 2-5
Head restraint ............................. 2-14
Rear seat ..................................... 2-10
Seat warmer .................................. 2-7
Security System
Immobilizer system .................... 3-37
Theft-deterrent system ............... 3-39
Service Publications .......................... 8-54
Smart Brake Support (SBS) ............ 4-131
Collision warning ..................... 4-133
Stoping the Smart Brake Support
(SBS) system operation ............ 4-133
Index
10-7
CX-5_8DV2-EA-14K_Edition3 Page623
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K
