Black plate (84,1)
NOTElThe doors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. The hazard
warning lights will not flash.
When the lock button is pressed while any
door is open and then the door is closed, all
the doors and the liftgate are locked.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
lMake sure all doors and the liftgate are
locked after pressing the button.
l(With theft-deterrent system)
When the doors are locked by pressing the
lock button on the key while the theft-
deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
(With the advanced keyless function)
A beep sound will be heard twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and two more beep sounds will be heard.
NOTElThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the UNLOCK button
on the key for 5 seconds or longer. The
sound of the doors locking/unlocking can
be heard.
After this, the system switches the setting
each time the UNLOCK button is pressed
(the sound of the doors locking/unlocking
can be heard).
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the UNLOCK
button on the key.
lA request switch is pressed.l(Auto re-lock function)
After unlocking with the key, all doors and
the liftgate will automatically lock if any of
the following operations are not performed
within about 60 seconds. If your vehicle has
a theft-deterrent system, the hazard
warning lights will flash for confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
9-10.
lA door or the liftgate is opened.lThe push button start is switched to any
position other than off.
3-6
Before Driving
Keys
CX-5_8DV2-EA-14K_Edition3 Page84
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (85,1)
l(With theft-deterrent system)
When the doors are unlocked by pressing
the unlock button on the key while the theft-
deterrent system is turned off, the hazard
warning lights will flash twice to indicate
that the system is turned off.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, press and hold the panic button to
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
lStarting the engine may be possible even if
the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and the key is not in
the vehicle, the vehicle will not restart after
it is shut off and the push button start is
switched to off.
lThe luggage compartment is out of the
assured operational range, however, if the
key (transmitter) is operable the engine will
start.
With the advanced keyless function
Interior antenna
Operational range
Before Driving
Keys
3-7
CX-5_8DV2-EA-14K_Edition3 Page85
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (86,1)
Without the advanced keyless function
Interior antenna
Operational range
NOTE
The engine may not start if the key is placed in
the following areas:
lAround the dashboardlIn the storage compartments such as the
glove compartment
qKey Suspend Function
If a key is left in the vehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
3-8
Before Driving
Keys
CX-5_8DV2-EA-14K_Edition3 Page86
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (87,1)
Advanced Keyless Entry
System
í
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
The advanced keyless function allows you
to lock/unlock the doors and liftgate, or
open the liftgate while carrying the key
without using the key.
System malfunctions or warnings are
indicated by the following warning beeps.
lRequest switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-36.
lKey Left-in-luggage Compartment
Warning Beep
Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-37.
lKey Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-37.NOTE
The advanced keyless entry system functions
can be deactivated to prevent any possible
adverse effect on a user wearing a pacemaker
or other medical device. If the system is
deactivated, you will be unable to start the
engine by carrying the key. Consult an
Authorized Mazda Dealer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when the key
battery goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
Before Driving
Advanced Keyless Entry System
3-9íSome models. CX-5_8DV2-EA-14K_Edition3 Page87
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (88,1)
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate. For
determining battery replacement, Refer to
Keyless Entry System on page 3-4.
qLocking, Unlocking the Doors
and the Liftgate
Exterior antenna
Locking
only
Operational range80cm (31in) 80cm (31in)
NOTE
The system may not operate if you are too
close to the windows, door handles, or liftgate.
qOpening the Liftgate
Exterior antenna
Operational range80cm (31in)
3-10
Before Driving
Advanced Keyless Entry System
CX-5_8DV2-EA-14K_Edition3 Page88
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (89,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
CAUTION
Always confirm the conditions
around the vehicle before opening/
closing the doors and use caution
during strong winds or when parked
on an incline. Not being aware of the
conditions around the vehicle is
dangerous because fingers could get
caught in the door or a passing
pedestrian could be hit, resulting in
an unexpected accident or injury.
Before Driving
Doors and Locks
3-11
CX-5_8DV2-EA-14K_Edition3 Page89
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

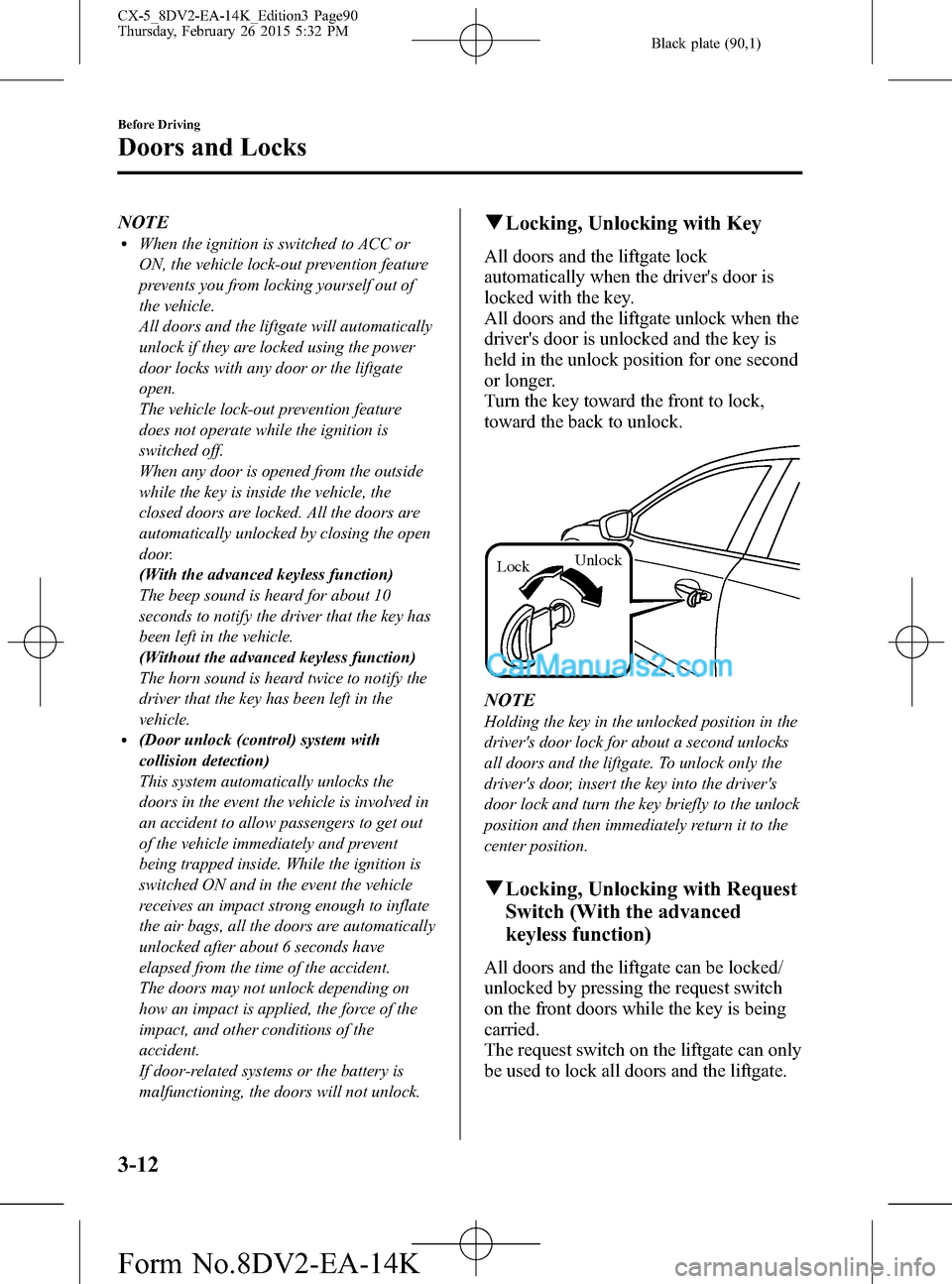

Black plate (90,1)
NOTElWhen the ignition is switched to ACC or
ON, the vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle.
All doors and the liftgate will automatically
unlock if they are locked using the power
door locks with any door or the liftgate
open.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When any door is opened from the outside
while the key is inside the vehicle, the
closed doors are locked. All the doors are
automatically unlocked by closing the open
door.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key has
been left in the vehicle.
(Without the advanced keyless function)
The horn sound is heard twice to notify the
driver that the key has been left in the
vehicle.
l(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors in the event the vehicle is involved in
an accident to allow passengers to get out
of the vehicle immediately and prevent
being trapped inside. While the ignition is
switched ON and in the event the vehicle
receives an impact strong enough to inflate
the air bags, all the doors are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
The doors may not unlock depending on
how an impact is applied, the force of the
impact, and other conditions of the
accident.
If door-related systems or the battery is
malfunctioning, the doors will not unlock.
qLocking, Unlocking with Key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
Turn the key toward the front to lock,
toward the back to unlock.
LockUnlock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
qLocking, Unlocking with Request
Switch (With the advanced
keyless function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors while the key is being
carried.
The request switch on the liftgate can only
be used to lock all doors and the liftgate.
3-12
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page90
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (91,1)
Front doors
Request switch
Liftgate (Lock only)
Request switch
To lock
To lock the doors and the liftgate, press
the request switch and the hazard warning
lights will flash once.
A beep sound will be heard once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.Front passenger door request switch
To unlock all doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
NOTE
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the UNLOCK button
on the key for 5 seconds or longer. The
sound of the doors locking/unlocking can
be heard.
After this, the system switches the setting
each time the UNLOCK button is pressed
(the sound of the doors locking/unlocking
can be heard).
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the UNLOCK
button on the key.
lA request switch is pressed.lConfirm that all doors and the liftgate are
securely locked.
For the liftgate, move it without pressing
the electric liftgate opener to verify that the
liftgate has not been left ajar.
lAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lIt may require a few seconds for the doors
to unlock after the request switch is
pressed.
Before Driving
Doors and Locks
3-13
CX-5_8DV2-EA-14K_Edition3 Page91
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (92,1)
lA beep sound is heard for confirmation
when the doors and the liftgate are locked/
unlocked using the request switch. If you
prefer, the beep sound can be turned off.
The volume of the beep sound can also be
changed.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the LOCK button on
the key for 5 seconds or longer.
All of the doors and the liftgate lock and the
beep sound activates at the currently set
volume. (If the beep sound is currently set
to not activate, it will not activate.) The
setting changes each time the LOCK button
on the key is pressed and the beep sound
activates at the set volume. (If the beep
sound has been set to not activate, it will
not activate.)
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the LOCK
button on the key.
lA request switch is pressed.l(With theft-deterrent system)
The hazard warning lights flash when the
theft-deterrent system is armed or turned
off.
Refer to Theft-Deterrent System on page
3-39.
lThe setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the request
switch.
Refer to Personalization Features on page
9-10.
(Auto-lock function)
A beep sound is heard when all doors and
the liftgate are closed while the advanced
key is being carried. All doors and the
liftgate are locked automatically after about
three seconds when the advanced key is out
of the operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all doors
and the liftgate are locked automatically
after about 30 seconds.) If you are out of
the operational range before the doors and
the liftgate are completely closed or
another key is left in the vehicle, the auto-
lock function will not work. Always make
sure that all doors and the liftgate are
closed and locked before leaving the
vehicle. The auto-lock function does not
close the power windows.
l(Auto re-lock function)
After unlocking with the request switch, all
doors and the liftgate will automatically
lock if any of the following operations are
not performed within about 60 seconds. If
your vehicle has a theft-deterrent system,
the hazard warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
9-10.
lA door or the liftgate is opened.lThe ignition is switched to any position
other than off.
3-14
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page92
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (93,1)
qLocking, Unlocking with Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-4).
qLocking, Unlocking with Door-
Lock Switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors/liftgate from an open
front door, press the lock side of the door
lock switch and then close the door.NOTE
When locking the doors this way, be careful
not to leave the key inside the vehicle.
qAuto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior door panel to
perform the setting change as indicated in
the procedure which follows.
Settings can be changed using the
following operation.
Before Driving
Doors and Locks
3-15
CX-5_8DV2-EA-14K_Edition3 Page93
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
