Black plate (135,1)
4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine .................................... 4-2
Ignition Switch .................................... 4-2
Starting the Engine .............................. 4-3
Turning the Engine Off ....................... 4-8
Instrument Cluster and Display ........... 4-10
Meters and Gauges ............................ 4-10
Warning/Indicator Lights .................. 4-20
Transaxle ................................................ 4-47
Manual Transaxle Operation ............. 4-47
Automatic Transaxle Controls .......... 4-49
Switches and Controls ........................... 4-58
Lighting Control ............................... 4-58
Fog Lights
í...................................... 4-63
Turn and Lane-Change Signals ......... 4-63
Windshield Wipers and Washer ........ 4-64
Rear Window Wiper and Washer ...... 4-68
Rear Window Defogger .................... 4-69
Horn .................................................. 4-70
Hazard Warning Flasher .................... 4-70
HomeLink Wireless Control
System
í............................................ 4-71
Brake ...................................................... 4-74
Brake System .................................... 4-74
Hill Launch Assist (HLA) ................. 4-78
ABS/TCS/DSC ....................................... 4-80
Antilock Brake System (ABS) .......... 4-80
Traction Control System (TCS) ........ 4-81
Dynamic Stability Control (DSC) ..... 4-82
Fuel Economy Monitor ......................... 4-84
Fuel Economy Monitor ..................... 4-84Drive Selection ....................................... 4-86
Drive Selection (Automatic
Transaxle) ......................................... 4-86
AWD ....................................................... 4-87
All-Wheel Drive (AWD) Operation... 4-87
Power Steering ....................................... 4-89
Power Steering .................................. 4-89
i-ACTIVSENSE ..................................... 4-90
i-ACTIVSENSE
í............................. 4-90
Adaptive Front Lighting System (AFS)í... 4-92
High Beam Control System (HBC)í... 4-93
Lane Departure Warning System
(LDWS)
í......................................... 4-96
Blind Spot Monitoring (BSM) Systemí... 4-102
Distance Recognition Support System
(DRSS)
í......................................... 4-108
Rear Cross Traffic Alert (RCTA)í... 4-111
Mazda Radar Cruise Control (MRCC)í... 4-116
Smart City Brake Support (SCBS)í... 4-126
Smart Brake Support (SBS)í......... 4-131
Forward Sensing Camera (FSC)í... 4-134
Radar Sensor (Front)í.................... 4-137
Laser Sensor (Front)í..................... 4-140
Radar Sensors (Rear)í................... 4-142
Cruise Control ..................................... 4-144
Cruise Control
í.............................. 4-144
Tire Pressure Monitoring System ...... 4-148
Tire Pressure Monitoring System .... 4-148
Rear View Monitor .............................. 4-152
Rear View Monitor
í...................... 4-152
4-1íSome models.
CX-5_8DV2-EA-14K_Edition3 Page135
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (194,1)
Auto-light control
When the headlight switch is in the
position and the ignition is switched ON, the
light sensor senses the surrounding lightness or darkness and automatically turns the
headlights, other exterior lights and dashboard illumination on or off (see chart above).
CAUTION
ØDo not shade the light sensor by adhering a sticker or a label on the windshield.
Otherwise the light sensor will not operate correctly.
ØThe light sensor also works as a rain sensor for the auto-wiper control. Keep
hands and scrapers clear of the windshield when the wiper lever is in the
position and the ignition is switched ON as fingers could be pinched or the wipers
and wiper blades damaged when the wipers activate automatically. If you are
going to clean the windshield, be sure the wipers are turned off completely―this
is particularly important when clearing ice and snow―when it is particularly
tempting to leave the engine running.
NOTE
lThe headlights, other exterior lights and dashboard illumination may not turn off immediately
even if the surrounding area becomes well-lit because the light sensor determines that it is
nighttime if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the lights turn off if the light switch is turned to the
position.lThe dashboard illumination can be adjusted by rotating the knob in the instrument cluster. Also,
the day/night mode can be changed by rotating the knob until a beep sound is heard. To adjust the
brightness of the dashboard illumination:
Refer to Dashboard Illumination on page 4-14.
lThe sensitivity of the AUTO lights may be changed.
Refer to Personalization Features on page 9-10.
4-60
When Driving
Switches and Controls
CX-5_8DV2-EA-14K_Edition3 Page194
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (198,1)
qThree-Flash Turn Signal
After releasing the turn signal lever, the
turn signal indicator flashes three times.
The operation can be cancelled by moving
the lever in the direction opposite to
which it was operated.
NOTE
The three-flash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page
9-10.
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.
4-64
When Driving
Switches and Controls
CX-5_8DV2-EA-14K_Edition3 Page198
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (199,1)

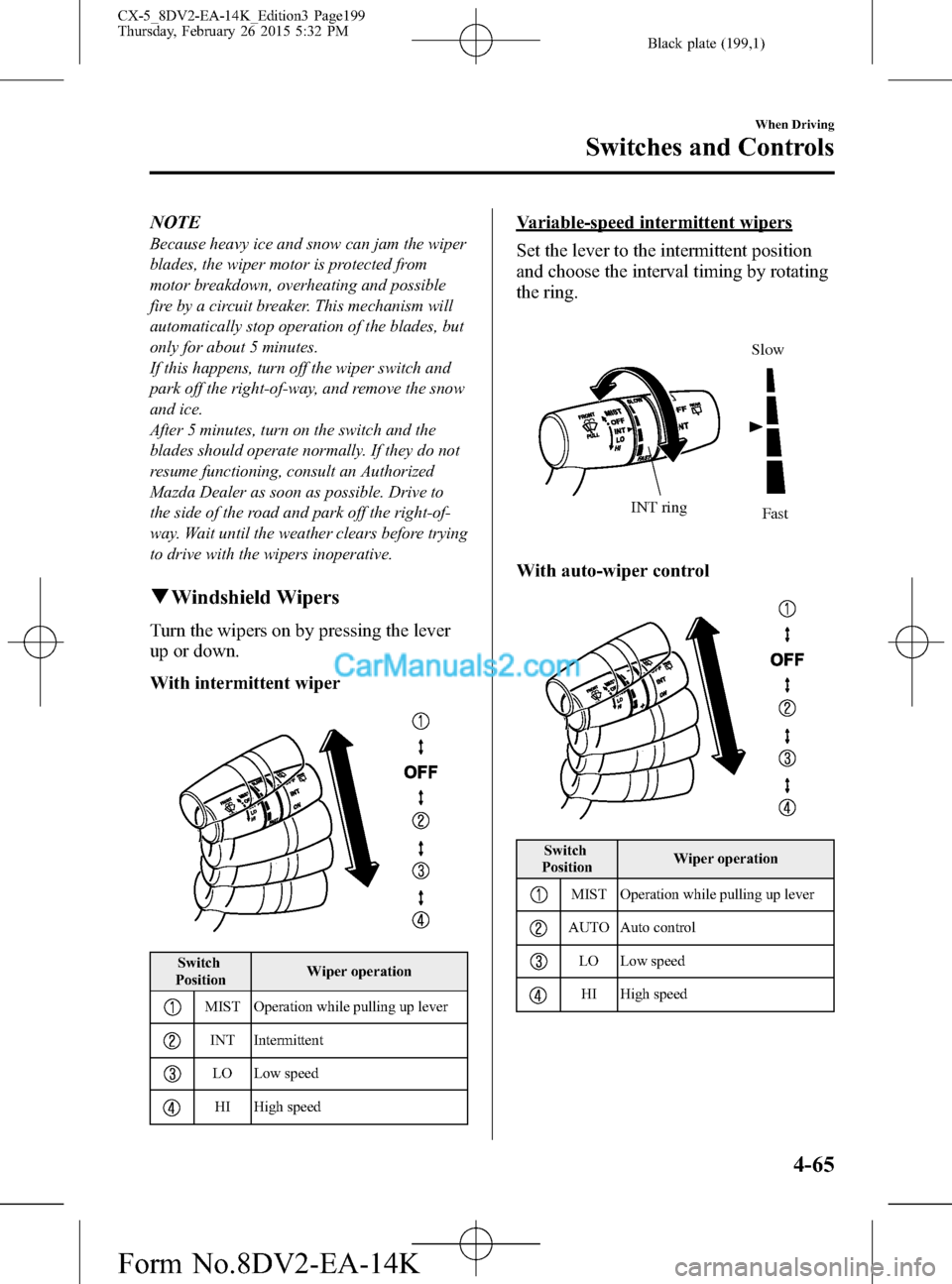

NOTE
Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.
qWindshield Wipers
Turn the wipers on by pressing the lever
up or down.
With intermittent wiper
Switch
PositionWiper operation
MIST Operation while pulling up lever
INT Intermittent
LO Low speed
HI High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ringFast
Slow
With auto-wiper control
Switch
PositionWiper operation
MIST Operation while pulling up lever
AUTO Auto control
LO Low speed
HI High speed
When Driving
Switches and Controls
4-65
CX-5_8DV2-EA-14K_Edition3 Page199
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (200,1)
Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wipers on or off automatically
(off―intermittent―low speed―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher
sensitivity (faster response) or rotate it
upward for less sensitivity (slower
response).
Higher sensitivity
Less sensitivitySwitch
Center
position
CAUTION
ØDo not shade the rain sensor by
adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.
4-66
When Driving
Switches and Controls
CX-5_8DV2-EA-14K_Edition3 Page200
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (201,1)
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely―this is
particularly important when
clearing ice and snow―when it is
most likely that the engine is left
running.NOTE
lSwitching the auto-wiper lever from the
to theposition while driving
activates the windshield wipers once, after
which they operate according to the rainfall
amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (Such as ice or
matter containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, set the wiper
lever to the low speed position or high
speed position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper operation.
lIf the auto-wiper lever is left in the
position, the wipers could operate
automatically from the effect of strong light
sources, electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended that the
auto-wiper lever be switched to the
position other than when driving the vehicle
under rainy conditions.
lThe auto-wiper control functions can be
turned off.
Refer to Personalization Features on page
9-10.
When Driving
Switches and Controls
4-67
CX-5_8DV2-EA-14K_Edition3 Page201
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (202,1)
qWindshield Washer
Pull the wiper lever toward you and hold
it to spray washer fluid.
Washer OFF
NOTE
If the windshield washer is turned on when the
windshield wipers are not operating, the
windshield wipers operate a few times.
If the washer does not work, inspect the
fluid level (page 6-31). If it's normal,
consult an Authorized Mazda Dealer.
Rear Window Wiper and
Washer
The ignition must be switched ON.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
Switch
PositionWiper operation
INT Intermittent
ON Normal
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 6-31). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
4-68
When Driving
Switches and Controls
CX-5_8DV2-EA-14K_Edition3 Page202
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (261,1)
Do not rely completely on the Smart City Brake Support (SCBS) system:
ØThe Smart City Brake Support (SCBS) system is only designed to reduce damage in
the event of a collision. Over reliance on the system leading to the accelerator
pedal or brake pedal being mistakenly operated could result in an accident.
ØThe Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to two-wheeled
vehicles or pedestrians.
ØThe laser sensor for the Smart City Brake Support (SCBS) system is installed near
the rearview mirror. To assure the correct operation of the Smart City Brake
Support (SCBS), heed the following cautions.
ØDo not apply stickers to the surface of the windshield near the laser sensor
(including transparent stickers). Otherwise, the laser sensor may not be able to
detect vehicles ahead which could result in an accident.
ØDo not apply coating agent to the windshield. Otherwise, the laser sensor may
not be able to detect vehicles in front which could result in an accident.
ØDo not disassemble the laser sensor.
ØIf cracks or damage caused by flying gravel or debris is visible near the laser
sensor, stop using the Smart City Brake Support (SCBS) system immediately
and have your vehicle inspected by an Authorized Mazda Dealer. If the vehicle
continues to be driven with cracks or scratch marks left on the windshield near
the laser sensor, the system may operate unnecessarily and cause an
unexpected accident.
Refer to Stopping the Smart City Brake Support (SCBS) System Operation on
page 4-130.
ØWhen replacing the windshield wipers or windshield, consult an Authorized
Mazda Dealer.
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS) system
not operating normally or mistakenly operating, which could cause a serious
accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation
when the vehicle is running on a chassis roller or being towed. See the next page on
how to turn off the Smart City Brake Support (SCBS).
Refer to Stopping the Smart City Brake Support (SCBS) System Operation on page
4-130.
When Driving
i-ACTIVSENSE
4-127
CX-5_8DV2-EA-14K_Edition3 Page261
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (263,1)
NOTElThe Smart City Brake Support (SCBS) system will not operate if the driver is deliberately
performing driving operations (accelerator pedal and steering wheel).
lThe Smart City Brake Support (SCBS) system will operate under the following conditions.lThe engine is running.l“SCBS Forward malfunction”is not displayed in the multi-information display.lThe vehicle speed is between about 4 to 30 km/h (2 to 18 mph).lThe Smart City Brake Support (SCBS) system is not turned off.lThe DSC is not malfunctioning.lThe Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-infrared laser
beam and receiving the beam reflected off the reflector of the vehicle ahead, and then using it for
the measurement. Consequently, the Smart City Brake Support (SCBS) may not operate under the
following conditions:
lReflection of the laser is poor due to the shape of the vehicle ahead.lThe vehicle ahead is significantly dirty.lUnder bad weather condition, such as rain, fog and snow.lThe window washer is being used or the windshield wipers are not used when it's raining.lThe windshield is dirty.lThe steering wheel is turned completely left or right, or the vehicle is accelerated rapidly and
comes close to the vehicle ahead.
lTrucks with low loading platforms and vehicles with an extremely low or high profile.lVehicles with certain shapes such as a vehicle carrier.lUnder the following conditions, the Smart City Brake Support (SCBS) system may not operate
normally.
lHeavy luggage is loaded in the luggage compartment or on the rear seat.lIf there is the possibility of partial contact with a vehicle ahead.lWhen driving on continuously curving roads, and entering and exiting exits.lElongated luggage or cargo is loaded onto installed roof rails and covers the laser sensor.lExhaust gas from the vehicle in front, sand, snow, and water vapor rising from manholes and
grating, and water splashed into the air.
lWhen towing a malfunctioning vehicle.lWhen driving with tires having significantly different wear.lIn the following cases, the laser sensor may inadvertently determine that there is a vehicle ahead
and the Smart City Brake Support (SCBS) system may operate.
lObjects on the road at the entrance to a curve.lVehicles passing in the opposite lane while making a curve.lMetal objects, bumps, or protruding objects on the road.lWhen passing through a toll gate equipped with a bar.lWhen passing under a vinyl curtain or flag.lPlastic objects such as pylons.lTwo-wheeled vehicles, pedestrians, animals or standing trees.lWhen the system operates, the user is notified by the flashing Smart City Brake Support (SCBS)
warning indication and the multi-information display.
When Driving
i-ACTIVSENSE
4-129
CX-5_8DV2-EA-14K_Edition3 Page263
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (274,1)
Laser Sensor (Front)í
Your vehicle is equipped with a laser sensor (front). The laser sensor (front) is positioned
near the rearview mirror and used by the following systems.
lSmart Brake Support (SBS)lSmart City Brake Support (SCBS)
CAUTION
Heed the following precautions to assure correct operation of the system.
ØKeep the windshield clean at all times.
ØDo not apply stickers to the surface of the windshield (including transparent
stickers).
ØIf cracks or damage caused by flying gravel or debris is visible near the laser
sensor (front), stop using the system immediately and have your vehicle inspected
by an Authorized Mazda Dealer.
See the next page on how to turn off the system. Refer to Personalization Features
on page 9-10.
ØDo not apply a coating agent to the windshield.
ØWhen replacing the windshield wipers or windshield, consult an Authorized
Mazda Dealer.
ØNever remove the sensor.
ØA removed sensor will not meet the conditions for a class 1M laser under the IEC
60825-1 specification and therefore eye safety cannot be assured.
ØDo not peer into the sensor using optical instruments with a magnification
function such as magnifying glasses, and microscopic and objective lenses within
a distance of 100 mm (3.94 in) from the sensor.
4-140
When Driving
íSome models.
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page274
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K
