MAZDA MODEL CX-5 2016 Smart Start Guide (in English)
Manufacturer: MAZDA, Model Year: 2016, Model line: MODEL CX-5, Model: MAZDA MODEL CX-5 2016Pages: 42, PDF Size: 4.3 MB
Page 31 of 42
30

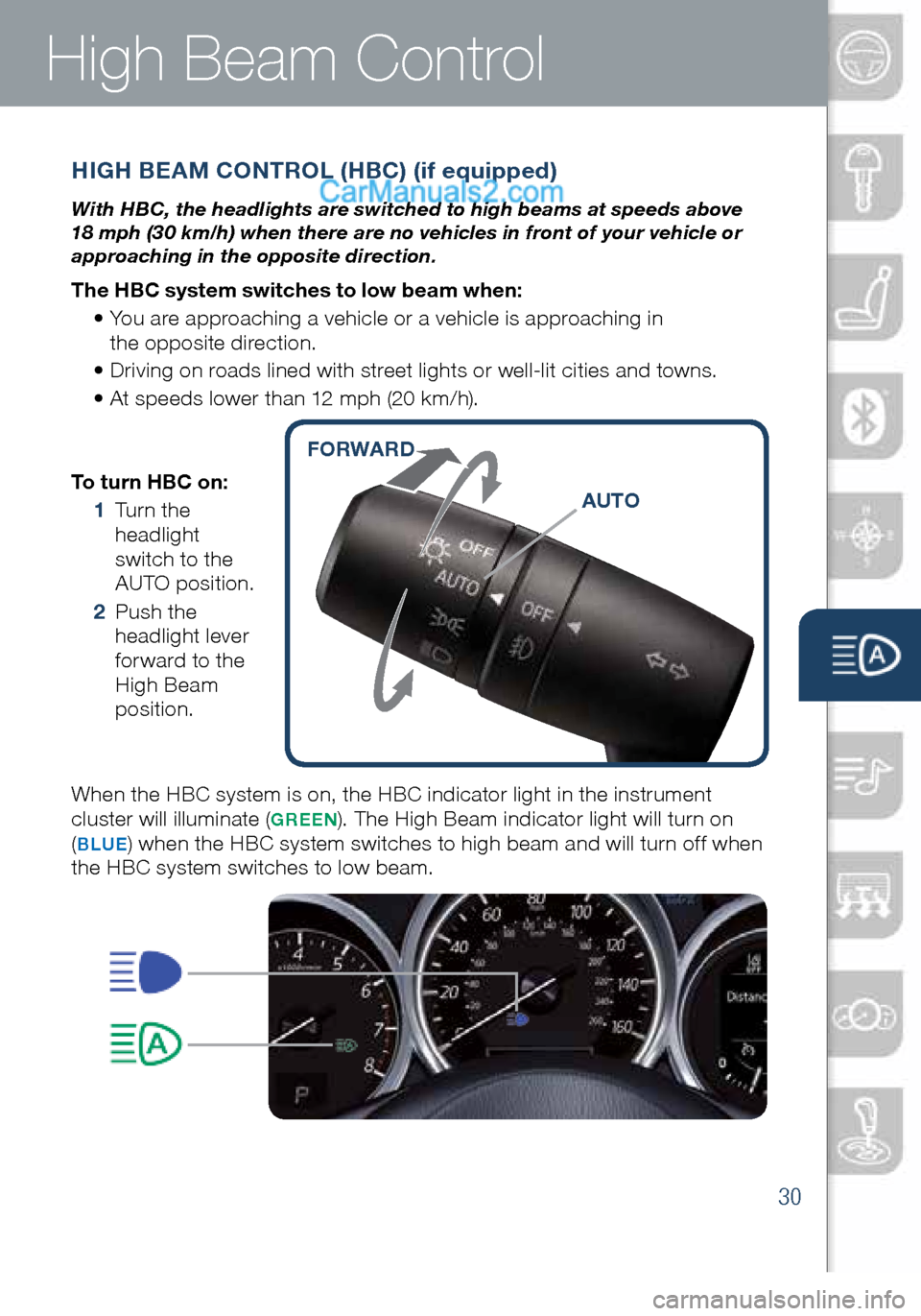

High Beam Control
To turn HBC on:
1 Turn the
headlight
switch to the
AUTO position.
2 Push the
headlight lever
forward to the
High Beam
position.
When the HBC system is on, the HBC indicator light in the instrument
cluster will illuminate (
GREEN). The High Beam indicator light will turn on
(BLUE) when the HBC system switches to high beam and will turn off when
the HBC system switches to low beam.
HIGH BEAM CONTROL (HBC) (if equipped)
With HBC, the headlights are switched to high beams at speeds above
18 mph (30 km/h) when there are no vehicles in front of your vehicle or
approaching in the opposite direction.
The HBC system switches to low beam when:
• You are approaching a vehicle or a vehicle is approaching in
the opposite direction.
• Driving on roads lined with street lights or well-lit cities and towns.
• At speeds lower than 12 mph (20 km/h).
AUTO
FORWARD
1945220_16d_Mazda_CX-5_SSG_062315.indd 306/23/15 9:33 AM
www.MazdaUSA.com
Page 32 of 42
31
Audio Controls (with Mazda Connect)
AUDIO OPERATION
The following icons are displayed on the screen:
SOURCES
: Displays Audio menu
to change audio source (FM / AM
/ XM / Aha / Pandora / Stitcher /
Bluetooth / USB / CD / AUX).
AUTO MEMORY:
Displays a
list of 10 strongest radio stations.
Because station strength
changes as you drive, select
Update Station List icon to
re-scan for strong stations.
FAVORITES:
Displays list of
your favorite AM, FM, and XM
radio stations.
HD RADIO:
Switches HD Radio
On /O f f.
SCAN:
Scans radio stations or
songs (scanning stops at each one
for 5 seconds). Select again to stop.
TUNER:
Displays manual radio tuner.
TAG :
Saves artist and title
and sends them to your Apple
device (for Apple devices
with USB use only).
SEEK PREVIOUS/NEXT:
Selects previous or next
receivable radio station or song.
Press and hold to change radio
station continually.
SETTINGS:
Adjusts the audio
quality level (bass, treble, etc.).
The following icons are displayed
on the CD screen only:
TRACK LIST
: Displays the track
list of the CD.
R E P E AT
: Repeats the current
song. Select again to stop.
SHUFFLE
: Plays the songs on
the CD in random order. Select
again to stop.
P L AY/ PAU S E
: Plays and Pauses
the CD.
Playing Bluetooth® (BT) Audio
1 Make sure BT audio device is paired to
your vehicle.
2 Turn on BT audio device.
3 Select Bluetooth from Sources.
See your Owner’s Manual for further information on:
· Pandora · Aha · Stitcher
BLUETOOTH® AUDIO
Bluetooth® enabled phones and audio players
provide an opportunity to play music through the
audio system with no wires attached.
Some phone models do not support all features.
Go to www.MazdaUSA.com/bluetooth or contact (800) 430-0153 for further assistance or to report
a phone /MP3 device concern.
NOTE:• New Mazda
vehicles equipped
with SiriusXM
® Satellite Radio will
receive an introductory subscription with a limited term trial offer to over 150
channels of SiriusXM Satellite Radio. Enjoy commercial-free music, plus
sports, news, entertainment, and ever y premium channel in your vehicle. Call 877-447-0011 to activate. See the
Owner’s Manual and/or dealer for details.
• In order to use Aha, Pandora and
Stitcher as audio sources, the App must be installed on your phone. These Apps
stream music using your data plan and listening to them counts towards your
monthly cellular data usage.
1945220_16d_Mazda_CX-5_SSG_062315.indd 316/23/15 9:33 AM
Page 33 of 42
32
Audio Controls (with Mazda Connect)
AUDIO OPERATION USING VOICE
Audio operation and media selection
can be done using voice. Push the
“TALK” button on the steering wheel, wait for a beep, then say a command in
a clear, natural voice (not too fast or too slow). Some common commands are listed below.
Play (and any of the following):
AM, FM, XM, CD, Bluetooth, Aha, Pandora, Stitcher, USB, AUX
Play or Resume / Pause or
Stop / Next or Previous
Play (and any of the following):
Song, Playlist
Artist
Tune to Station
Tune to Channel Number (XM)
HD RADIO
HD radio has a special
receiver which allows it to
receive digital broadcasts (where available) in addition to the analog broadcasts it already receives. Digital broadcasts have better
sound quality than analog broadcasts as digital
broadcasts provide free,
crystal clear audio.
When the HD radio button is ON (red), there could be
a noticeable difference in sound quality and volume when a change from digital to analog signals occurs.
If the sound quality and
volume becomes noticeably
diminished or cuts off, select the HD button to turn OFF HD radio (not red).
GRACENOTE
The Gracenote media database is used to improve voice recognition of artist and album names with the Mazda Hands Free system. To make best use of the
voice recognition, install the most recent database.
1 Load the Gracenote update on a memory stick
from www.MazdaUSA.com/USB. Insert the
memory stick into the USB port.
2 Go to System Settings in the infotainment system.
3 Select Music Database Update.
NOTE: To use BT audio, make sure the musical
icon is displayed by going to Bluetooth in Device
settings. Some Bluetooth® audio devices need a
certain amount of time before the icon is displayed.
NOTE: Push the TALK button and say “Help” at any time to hear a list of
available commands.
1945220_16d_Mazda_CX-5_SSG_062315.indd 326/23/15 9:33 AM
www.MazdaUSA.com
Page 34 of 42
33
NOTE: You will need an audio cable with an 1/8 inch (3.5 mm)
mini stereo plug (available as a Genuine Mazda accessory) to
connect your portable audio player into the AUX jack.
I M P O R TA N T: • Set the volume level on your portable audio player to the highest level before
distortion starts, then use the vehicle’s audio system to adjust the volume.
• Unplug any device from the USB port and accessory socket before turning off
the vehicle. Leaving devices plugged in can drain the battery and cause issues
during the Bluetooth pairing process at startup. Wait about 15 seconds after
starting the vehicle before plugging anything into the USB port.
1 Locate the USB port or AUX jack.
2 Connect the device plug into the portable audio player and into the
USB port or AUX jack.
3 Turn the vehicle audio system on.
4 • Audio Controls (without Mazda Connect) : Push the MEDIA
button on the audio unit to switch to the AUX or USB mode.
• Audio Controls (with Mazda Connect) : Select AUX or USB from
the Sources menu.
5 • USB Port : Use the vehicle’s audio system or steering wheel controls
to control the connected USB device.
• AUX Jack: Use the portable audio player controls to play music.
Refer to the Owner’s Manual for additional information.
PORTABLE AUDIO PLAYER INTEGRATION
USING THE USB PORT OR AUX JACK
Your vehicle is equipped with a USB port and
auxiliary AUX jack, located below the climate control
system, that allows you to play your iPod, USB
device, or portable audio player through the vehicle’s
audio system. Learn the system when parked and
do not let it distract you while driving.
12 VOLT ACCESSORY SOCKETS
The accessory socket located below the climate control system (if equipped)
only has power when the ignition is ON or ACC. The accessory sockets
located in the center console and in the rear cabin have power, regardless of
the ignition position.
Audio USB and AUX Inputs
NOTE: When using a USB memory stick, the system plays the first audio file when
restarting the vehicle. It does not start where it left off when turning off the engine.
NOTE: When using the accessory socket in the center console or rear cabin, make
sure to disconnect any device from it when turning off the ignition, otherwise the
vehicle’s battery could go dead.
USB
AUX
1945220_16d_Mazda_CX-5_SSG_062315.indd 336/23/15 9:33 AM
Page 35 of 42
34
Automatic Climate Control
NOTE: A /C indicator will
illuminate when AUTO ON is
active. The air conditioning
cycles on/off as necessary to
maintain the set temperature.
The A /C may operate even
while heating is desired -
this is to prevent excess
humidity and fogging while
the system operates.
DRIVER
TEMPERATURE
CONTROL DIAL
Push to defrost
the rear window.PASSENGER
TEMPERATURE
CONTROL DIAL
Push to turn DUAL
mode ON/OFF.
• With DUAL mode
ON (indicator on),
rotate the dial to
set passenger
side temperature
separate from
the driver’s side
(shown above).
• With DUAL mode
OFF (indicator off),
driver controls the
temperature setting
on both sides.
Push to select the following
airflow mode:
Dashboard vents
Dashboard and floor vents
Floor vents
Defroster and floor vents
Push to manually turn
air conditioning on or off.NOTE: Automatic
temperature control
always works even
if the AUTO indicator
turns off by changing
the fan speed or
airflow mode.
Fan Control
• Push the fan
(+) and (-)
buttons to
select the
desired
fan speed.
• Push OFF to
turn climate
control
system off.
Push to
recirculate
cabin air to
reduce
outside
odors and
improve
cooling.
Push for
fresh air
circulation.
AUTO ON: Push dial to turn
automatic air conditioning
system on (AUTO ON and
A /C indicator on). The
airflow mode, fan speed
and air conditioning will be
automatically controlled
in accordance with the
set temperature.
Push to defrost
the windshield.
1945220_16d_Mazda_CX-5_SSG_062315.indd 346/23/15 9:33 AM
www.MazdaUSA.com
Page 36 of 42
35
GLOSSARY OF WARNING AND INDICATOR LIGHTS
Instrument Cluster
TCSOFF Traction Control System (TCS)
Off Indicator Light
Low Engine Oil Pressure
Traction Control System (TCS)/
Dynamic Stability Control (DSC)
On: TCS/DSC malfunction
Flashing: TCS/DSC operating
Shift Position Indicator
KEY Warning Light RED
(pp. 3, 6)
KEY Indicator Light GREEN
(p. 6)
Power Steering Malfunction
Air Bag/Front Seat Belt
Pretensioner System Malfunction
Turn Signals/
Hazard Warning Indicator
4WD
AWD Warning Indication
On:
Flashing: Stop vehicle/tow to
Mazda dealer.
Check Engine
Master Warning
Smart City Brake Support
(SCBS) OFF Indicator
Tire Pressure Monitoring System
(TPMS) Warning* (p. 8) On/ Warning Beep: Low tire pressure in one
or more tires. Flashing: TPMS Malfunction
Security Indicator
Cruise Main Indicator
ON ( AMBER )/Cruise Set
Indicator ON ( GREEN)
Automatic Transaxle Warning
Lights ON (Exterior) (p. 27)
Blind Spot Monitoring OFF
(BSM) (p. 25)
Seat Belt Unbuckled/Malfunction
Headlight High Beams On
Electric Parking Brake Warning
Brake Warning
Parking brake on/low brake fluid/malfunction
AFS
OFF Adaptive Front Lighting System
(AFS) OFF (p. 29)
Charging System Malfunction
NOTE: See Owner’s Manual for more details and explanations.
SHIFT POSITION
INDICATOR LIGHT TACHOMETERODOMETER/
TRIP METER
IMPORTANT: When your
Mazda Connect display setting
is set on “AUTO”, the instrument
cluster and display may become
dimmer when the headlights are
on. If the display and instrument
cluster become too dim or too
bright when the headlights are on,
simply rotate the dimmer knob
located on your instrument cluster
to adjust the brightness.
Type A cluster is shown. Type B
cluster is similar, but with warning
lights in different locations.
1945220_16d_Mazda_CX-5_SSG_062315.indd 356/23/15 9:33 AM
Page 37 of 42
36
Instrument Cluster
Door Ajar
Liftgate Ajar
Low Washer Fluid Level
Warning Light
Antilock Brake System
(ABS) Malfunction
Low Fuel Level
Check Fuel Cap
Perform Maintenance
High Beam Control ON
Mazda Radar Cruise Control
Warning ON ( AMBER)
Set Indicator ( GREEN)
SPORT Mode On
LED Headlight Warning
Brake Pedal
Operation Demand
1 • Rotate the knob to adjust the brightness
of the instrument cluster and other
dashboard illuminations.
ENGINE COOLANT TEMP LIGHTS Since this vehicle does not use an engine
coolant temperature gauge, red and blue
engine coolant temperature lights are used
to indicate high and low coolant temperature.
Red Coolant Temp Light Flashing: Engine is starting to run hot.
Drive slowly to reduce engine load.
On: Engine is overheating. Safely pull
over to the side of the road and turn
the engine off. Refer to the Owner’s
Manual for more information.
Blue Coolant Temp Light
On: Engine coolant is cold
and no warm air is available
for heater/defroster.
Off: Engine coolant is warm and
warm air is available for heater/
defroster. The light may stay on for a
few minutes after start-up when the
engine is cold, but the vehicle can
be driven with the light on or off.
TPMS NOTE: Low ambient temperature and/or high altitude causes tire pressures to
drop and may turn the TPMS warning light on. If the warning light comes on, check the
tire pressure and fill the tires as soon as possible, preferably before moving the vehicle
and warming up the tires. Tire pressure should be checked when the tires are cold.
2 • Push to toggle between trip meter (A & B).
• When a trip meter is selected, push and hold to
reset to zero.
DASHBOARD ILLUMINATION/
DIMMER1/TRIP METER2 FUEL
GAUGE
SPEEDOMETERINFORMATION
D I S P L AY
TYPE B CLUSTER
INFORMATION D I S P L AYSee page 9 or the
Owner’s Manual for
further information.
1945220_16d_Mazda_CX-5_SSG_062315.indd 366/23/15 9:33 AM
www.MazdaUSA.com
Page 38 of 42
37
HILL LAUNCH ASSIST (HLA)
HL A helps assist you when accelerating the vehicle from a stop while on a
hill or slope.
When the brake pedal is released and the accelerator pedal is pushed, HL A
prevents the vehicle from rolling forward or backward. It operates on a downward
slope when the shift lever is in the reverse (R) position, and on an upward slope
when the shift lever is in a position other than the reverse (R) position.
ACTIVE ADAPTIVE SHIFT (AAS) CONTROL
A AS will automatically adjust how
and when the transmission shifts
gears based on road conditions
and your driving style.
The transmission may stay in a
lower gear longer than usual when
going up or down hills or driving
around corners. This feature gives
you better control and a more
connected driving experience.
Transmission
NOTE: The HL A system will hold the vehicle for a maximum of 2.0 seconds while
the driver is changing from the brake pedal to the accelerator pedal.
1945220_16d_Mazda_CX-5_SSG_062315.indd 376/23/15 9:33 AM
Page 39 of 42
Transmission
www.MyMazda.com—The Official Site
for M{zd{ Owners
Register today on www.MyMazda.com—the ultimate destination for Mazda
Owners. Once registered, you’ll be able to take advantage of benefits
exclusively for Mazda Owners:
• Insider access to exclusive events and promotions
• Personalized maintenance schedules
• Zoom-Zoom Owner Magazine
• Warranty information and on-line Owner’s Manuals
• Wallpaper, videos and other fun stuff
• Accessories specifically designed for your vehicle
• Car Care Discount Coupons available from your Authorized Mazda Dealer
Visit and register at www.MyMazda.com today!
MAZDA MOBILE
The following apps are available for iPhone® and Android smartphones:
• Mazda Assist app - Provides roadside assistance 24 hours a day,
365 days a year. Toll free number 1-800-866-1998 can also be used
for roadside assistance.
• MyMazda app - Keep track of your Mazda from the palm of your hand
with these features:
The apps can be downloaded, free of charge, from the App store for the iPhone
®
and Google Play (Android Market) for Android powered devices. After downloading
app, customer name, email, smartphone number and VIN are required.
Maintenance schedule Service coupons Promotional alerts Service history Recall information Parked car locator
Scan VIN barcode capability
when registering a vehicle
Mazda Dealer locator Update owner profile Link to Mazda Assist
Free MyMazda app
iPhone and AndroidFree Mazda Assist app
iPhone and Android www.MazdaUSA.com
1945220_16d_Mazda_CX-5_SSG_062315.indd 386/23/15 9:33 AM
Page 40 of 42
Customer Delivery Checklist
SCHEDULED MAINTENANCE:
When replacing or topping off engine oil, use Mazda Genuine oil. For optimal engine performance,
use SAE 0W-20 engine oil. Please consult an Authorized Mazda Dealer for additional information.
Driver’s View ........................ 1
• Location of Switches and Control
Advanced Keyless Entry* .......... 3
• Door Request Switch*
Starting the Engine ................. 5
• Accelerated Warm-Up System (AWS)
• Push Button Start System
• Emergency Engine Stop
Electric Parking Brake ............. 7
Fuel Economy ....................... 7
Tire Pressure Monitor System ....8
• Initialize TPMS before delivery
Seats and Mirrors ................. 10
Mazda Connect* ................... 11
Commander / Voice Control* ....13
Bluetooth®* ......................... 15
• Pair Phone
• Make/Receive Call
• Toll-Free Customer
Service 800-430-0153
Navigation System* ............... 17
• SD Card
• Planning a Route
*if equipped
SALES CONSULTANT DAT ECUSTOMER DAT E
All items in the Customer Deliver y Checklist have been reviewed with the
customer and the first maintenance appointment has been scheduled:
Signed copy must be placed in dealer jacket.
VEHICLE PRESENTATION:
Refer to the Smart Start Guide during presentation
ESSENTIAL INFORMATION
SAFET Y & TECHNOLOGY INFORMATION
GENERAL INFORMATION
Information Display ................ 9
Mazda Connect Settings* ........12
Mazda Radar Cruise Control* ...19
Smart City Brake Support* ....... 21
Lane Departure
Warning System (LDWS)* ........ 23
Distance Recognition
Support System* .................. 24
Blind Spot Monitoring (BSM)* ... 25
Rear Cross Traffic Alert* ......... 26
Lights ............................... 27
Wiper/Washer ......................28
Adaptive Front
Lighting System (AFS)* ........... 29
High Beam Control* ............... 30
Audio Controls ..................... 31 • Bluetooth Audio
Audio USB & AUX Inputs ......... 33
Automatic Climate Control* ......34
Instrument Cluster ................ 35 • Review of Warning and
Indicator Light Function
and Location
Transmission ....................... 37
1945220_16d_Mazda_CX-5_SSG_062315.indd 396/23/15 9:33 AM
