This easy-to-use SMART START GUIDE provides information on some
unique features and functions of your new vehicle. Additional features are
available at www.mymazda.com and the MyMazda app -> VEHICLE
HOW TO. Complete information on features and functions are available in
your Owner’s Manual.
1945220_16d_Mazda_CX-5_SSG_062315.indd 16/23/15 9:31 AM

19
Mazda Radar Cruise Control
MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM (if equipped)
The MRCC system maintains vehicle speed and following distance using
a radar sensor to detect a vehicle ahead. The driver simply presets the
vehicle speed between 19 mph (30 km/h) and 90 mph (145 km/h) and the
system will maintain a safe following distance without having to turn the
cruise control off.
The system operates in two modes, Constant Speed and Headway Control modes:
Constant Speed Mode When no vehicle is detected ahead,
the driver’s set speed is maintained.
Headway Control Mode When a vehicle is detected ahead,
a distance between your vehicle and the vehicle ahead is maintained.
MRCC Set vehicle speedMRCC Distance
between vehicle display
Vehicle ahead display
How to set the speed:

1 Adjust the vehicle to the desired speed using the
accelerator pedal.
2 Push the SET + or SET – switch. The set speed
and the inter-vehicle distance display filled with white
lines is displayed in the active driving display and the
MRCC indicator light (green) turns on simultaneously.
Reset
ON Cruise
Control
(Set+/Set-)
Cancel
Distance Control
(Shorter /Longer )
OFF
Setting the MRCC
When the ON switch is pushed, the
vehicle speed and the distance between
vehicles while in headway control can
be set. The MRCC indication is shown
in the display of the instrument cluster.
Travel StatusDuring travel at
constant speed During travel under
headway control
Display
1945220_16d_Mazda_CX-5_SSG_062315.indd 196/23/15 9:32 AM

20
CLOSE PROXIMITY WARNING
While travelling in headway control, if your vehicle rapidly
closes in on a vehicle ahead because the other driver
applied their brakes suddenly, a warning sound activates
and the BRAKE! warning is indicated in the display. Always
verify the safety of the surrounding area and depress the
brake pedal while keeping a safe distance from the vehicle
ahead. Additionally, always keep a safe distance from the
vehicles behind you. Switching to conventional cruise control function:
When the ON switch is pushed continuously for about 2 seconds while the
Mazda Radar Cruise Control (MRCC) system is turned on, the system is
switched to conventional cruise control function.
The Mazda Radar Cruise Control (MRCC) indicator light (green) in the
instrument cluster turns off and “Radar Cruise Control deactivated”

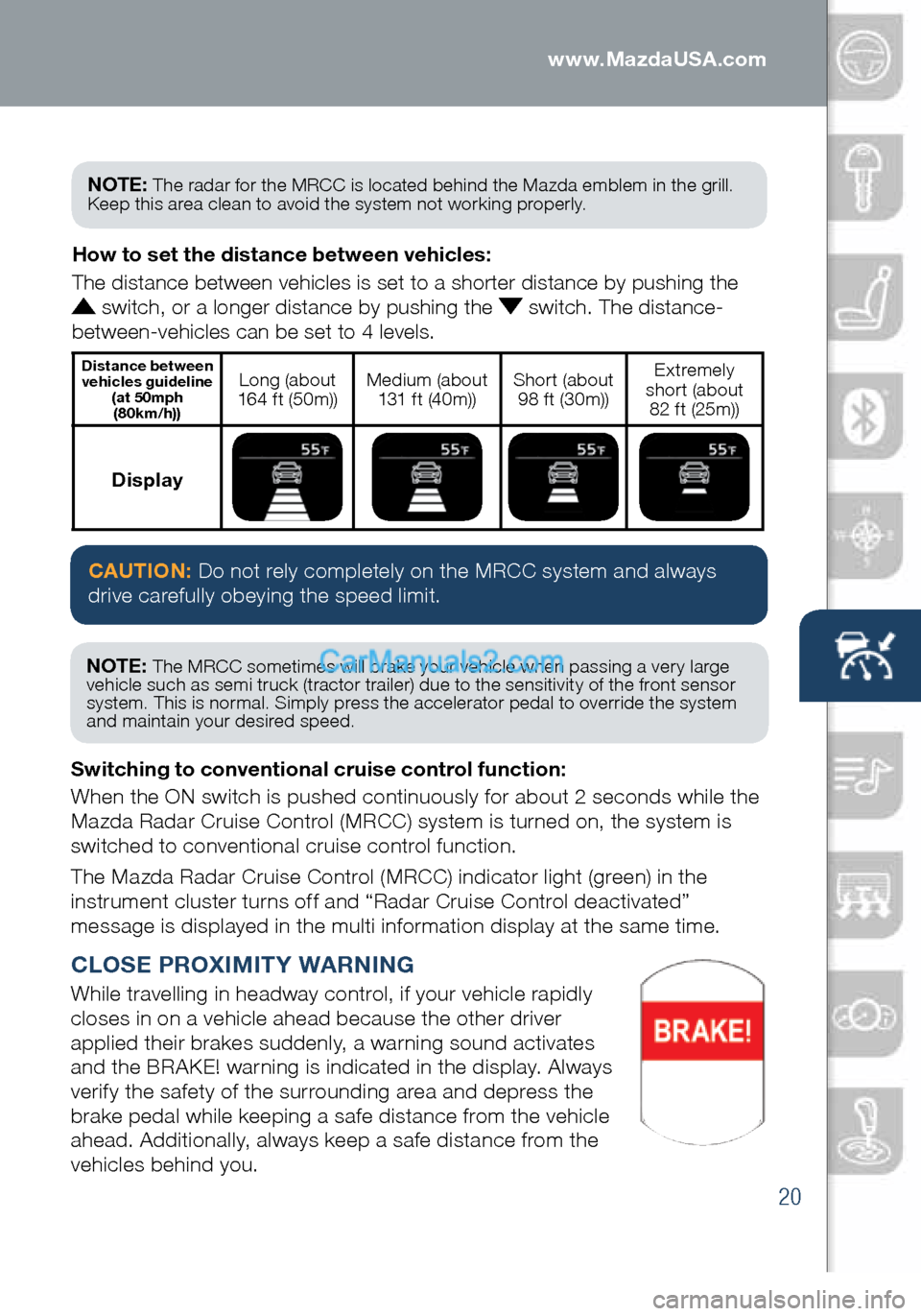

message is displayed in the multi information display at the same time.How to set the distance between vehicles:
The distance between vehicles is set to a shorter distance by pushing th\
e
switch, or a longer distance by pushing the switch. The distance-
between-vehicles can be set to 4 levels.
Distance between vehicles guideline (at 50mph (80km/h))Long (about
164 ft (50m)) Medium (about
131 ft (40m)) Short (about
98 ft (30m)) Extremely
short (about 82 ft (25m))
Display
CAUTION: Do not rely completely on the MRCC system and always
drive carefully obeying the speed limit.
NOTE: The MRCC sometimes will brake your vehicle when passing a very large
vehicle such as semi truck (tractor trailer) due to the sensitivity of the front sensor
system. This is normal. Simply press the accelerator pedal to override the system
and maintain your desired speed.
NOTE: The radar for the MRCC is located behind the Mazda emblem in the grill.
Keep this area clean to avoid the system not working properly.
1945220_16d_Mazda_CX-5_SSG_062315.indd 206/23/15 9:32 AM
www.MazdaUSA.com

35
GLOSSARY OF WARNING AND INDICATOR LIGHTS
Instrument Cluster
TCSOFF Traction Control System (TCS)
Off Indicator Light
Low Engine Oil Pressure
Traction Control System (TCS)/
Dynamic Stability Control (DSC)

On: TCS/DSC malfunction
Flashing: TCS/DSC operating
Shift Position Indicator
KEY Warning Light RED
(pp. 3, 6)
KEY Indicator Light GREEN
(p. 6)
Power Steering Malfunction
Air Bag/Front Seat Belt
Pretensioner System Malfunction
Turn Signals/
Hazard Warning Indicator
4WD
AWD Warning Indication
On:
Flashing: Stop vehicle/tow to
Mazda dealer.
Check Engine
Master Warning
Smart City Brake Support

(SCBS) OFF Indicator
Tire Pressure Monitoring System
(TPMS) Warning* (p. 8) On/ Warning Beep: Low tire pressure in one

or more tires. Flashing: TPMS Malfunction
Security Indicator
Cruise Main Indicator
ON ( AMBER )/Cruise Set
Indicator ON ( GREEN)
Automatic Transaxle Warning
Lights ON (Exterior) (p. 27)
Blind Spot Monitoring OFF
(BSM) (p. 25)
Seat Belt Unbuckled/Malfunction
Headlight High Beams On
Electric Parking Brake Warning
Brake Warning
Parking brake on/low brake fluid/malfunction
AFS
OFF Adaptive Front Lighting System
(AFS) OFF (p. 29)
Charging System Malfunction
NOTE: See Owner’s Manual for more details and explanations.
SHIFT POSITION
INDICATOR LIGHT TACHOMETERODOMETER/

TRIP METER
IMPORTANT: When your
Mazda Connect display setting
is set on “AUTO”, the instrument
cluster and display may become
dimmer when the headlights are
on. If the display and instrument
cluster become too dim or too
bright when the headlights are on,
simply rotate the dimmer knob
located on your instrument cluster
to adjust the brightness.
Type A cluster is shown. Type B
cluster is similar, but with warning
lights in different locations.
1945220_16d_Mazda_CX-5_SSG_062315.indd 356/23/15 9:33 AM

36
Instrument Cluster
Door Ajar
Liftgate Ajar
Low Washer Fluid Level
Warning Light
Antilock Brake System
(ABS) Malfunction
Low Fuel Level
Check Fuel Cap
Perform Maintenance
High Beam Control ON
Mazda Radar Cruise Control
Warning ON ( AMBER)
Set Indicator ( GREEN)
SPORT Mode On

LED Headlight Warning
Brake Pedal
Operation Demand
1 • Rotate the knob to adjust the brightness
of the instrument cluster and other
dashboard illuminations.
ENGINE COOLANT TEMP LIGHTS Since this vehicle does not use an engine
coolant temperature gauge, red and blue
engine coolant temperature lights are used
to indicate high and low coolant temperature.
Red Coolant Temp Light Flashing: Engine is starting to run hot.
Drive slowly to reduce engine load.
On: Engine is overheating. Safely pull
over to the side of the road and turn
the engine off. Refer to the Owner’s
Manual for more information.
Blue Coolant Temp Light
On: Engine coolant is cold
and no warm air is available
for heater/defroster.
Off: Engine coolant is warm and
warm air is available for heater/
defroster. The light may stay on for a
few minutes after start-up when the
engine is cold, but the vehicle can
be driven with the light on or off.
TPMS NOTE: Low ambient temperature and/or high altitude causes tire pressures to
drop and may turn the TPMS warning light on. If the warning light comes on, check the
tire pressure and fill the tires as soon as possible, preferably before moving the vehicle
and warming up the tires. Tire pressure should be checked when the tires are cold.
2 • Push to toggle between trip meter (A & B).
• When a trip meter is selected, push and hold to
reset to zero.
DASHBOARD ILLUMINATION/
DIMMER1/TRIP METER2 FUEL
GAUGE
SPEEDOMETERINFORMATION
D I S P L AY
TYPE B CLUSTER
INFORMATION D I S P L AYSee page 9 or the
Owner’s Manual for
further information.
1945220_16d_Mazda_CX-5_SSG_062315.indd 366/23/15 9:33 AM
