start stop button MAZDA MODEL CX-5 2017 - RHD (UK, Australia) (in English) User Guide

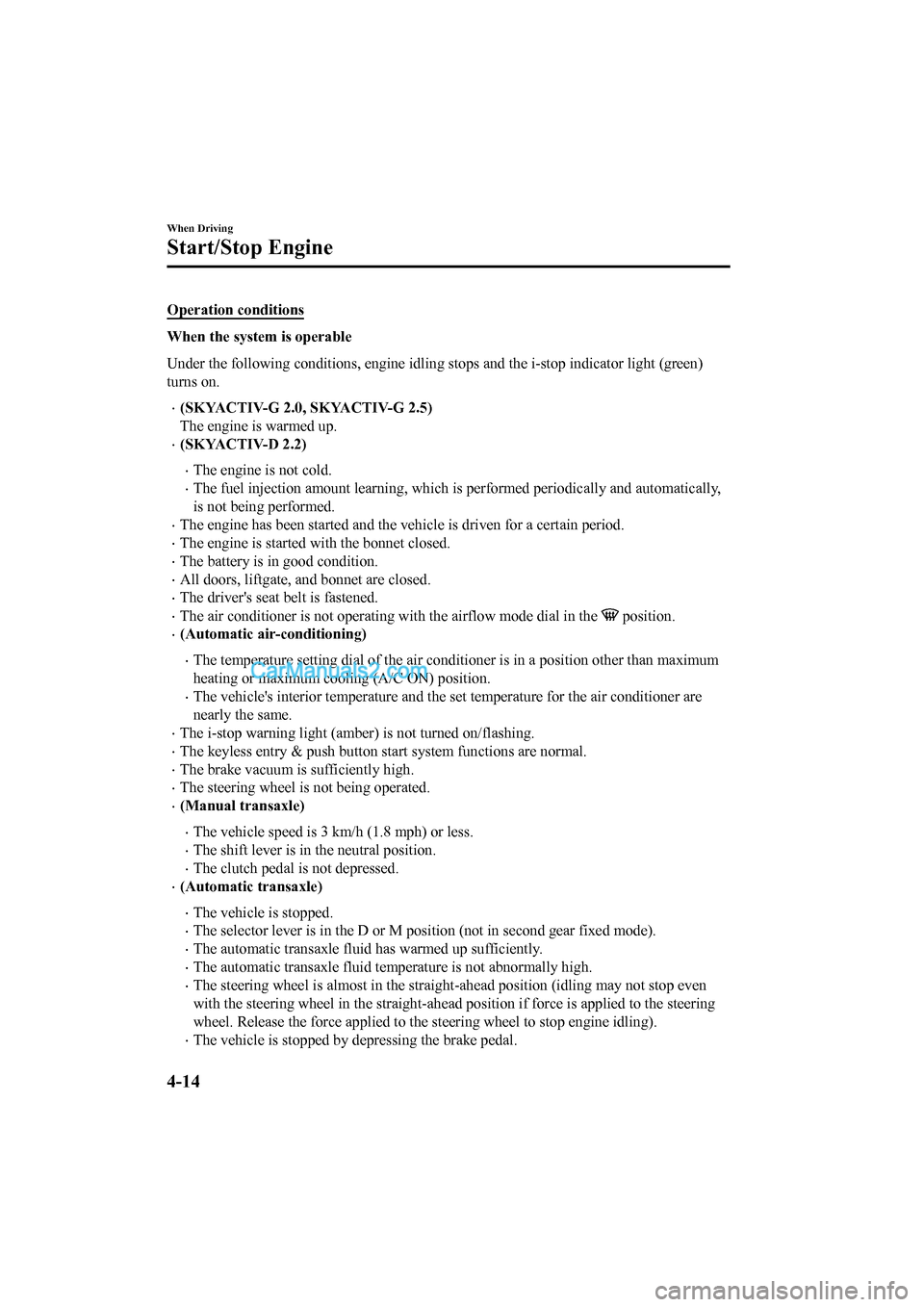

Operation conditions
When the system is operable
Under the following conditions, engine idling stops and the i-stop indicator light (green)
turns on.
•(SKYACTIV-G 2.0, SKYACTIV-G 2.5)
The engine is warmed up.
•(SKYACTIV-D 2.2)
•The engine is not cold.
•The fuel injection amount learning, which is performed periodic ally and automatically,
is not being performed.
•The engine has been started and the vehicle is driven for a cer tain period.
•The engine is started with the bonnet closed.
•The battery is in good condition.
•All doors, liftgate, and bonnet are closed.
•The driver's seat belt is fastened.
•The air conditioner is not operating with the airflow mode dial in the position.
•(Automatic air-conditioning)
•The temperature setting dial of the air conditioner is in a position other than maximum
heating or maximum cooling (A/C ON) position.
•The vehicle's interior temperature and the set temperature for the air conditioner are
nearly the same.
•The i-stop warning light (ambe r) is not turned on/flashing.
•The keyless entry & push button start system functions are norm al.
•The brake vacuum is sufficiently high.
•The steering wheel is not being operated.
•(Manual transaxle)
•The vehicle speed is 3 km/h (1.8 mph) or less.
•The shift lever is in the neutral position.
•The clutch pedal is not depressed.
•(Automatic transaxle)
•The vehicle is stopped.
•The selector lever is in the D or M position (not in second gea r fixed mode).
•The automatic transaxle fluid has warmed up sufficiently.
•The automatic transaxle fluid temperature is not abnormally hig h.
•The steering wheel is almost in the straight-ahead position (idling may not stop even
with the steering wheel in the st raight-ahead position if force is applied to the steering
wheel. Release t he force applied to the steering wheel to stop engine idling).
•The vehicle is stopped by depressing the brake pedal.
When Driving
Start/Stop Engine
4-14
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

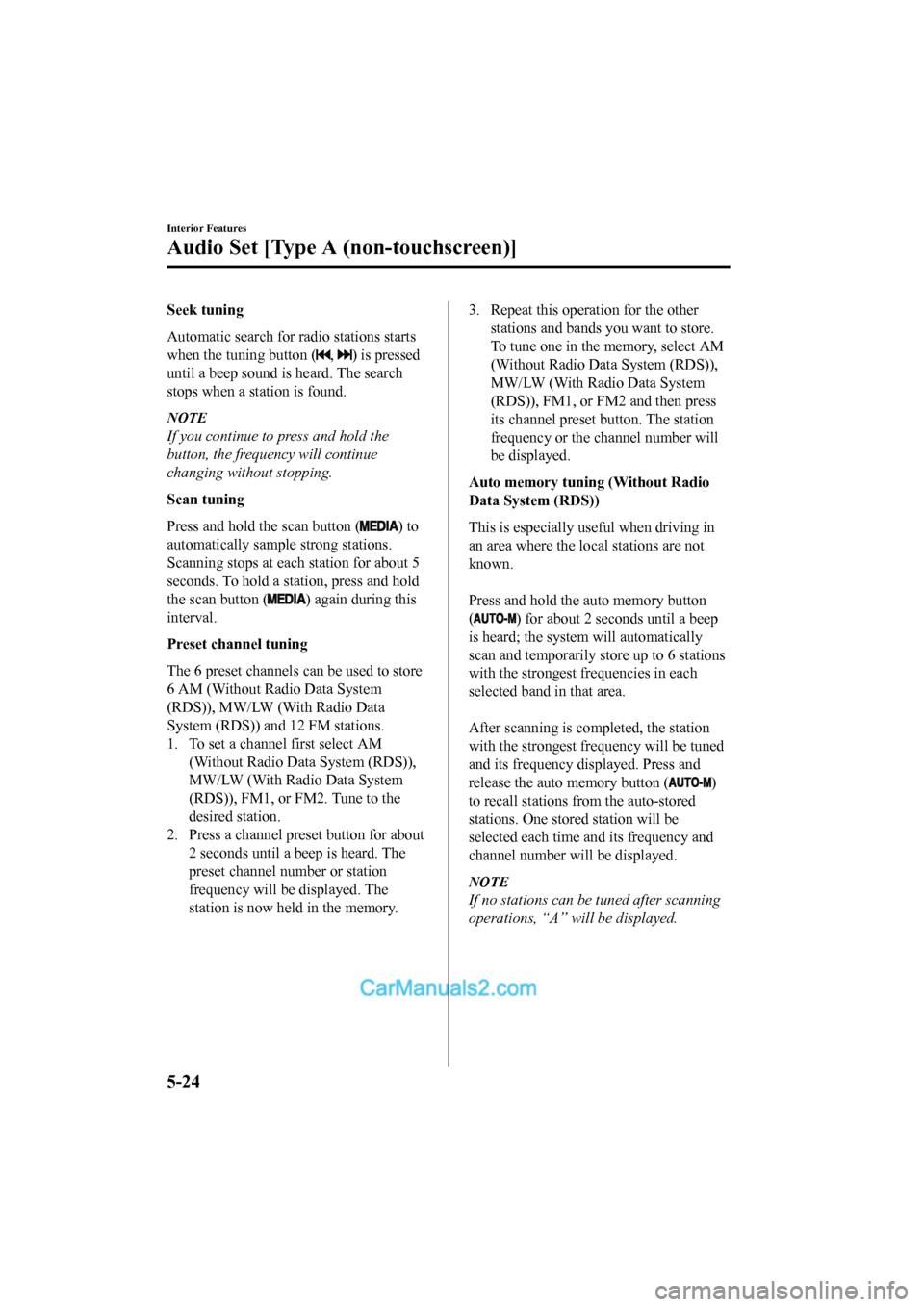

Seek tuning
Automatic search for radio stations starts
when the tuning button (
, ) is pressed
until a beep sound is heard. The search
stops when a station is found.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
Scan tuning
Press and hold the scan button (
) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press and hold
the scan button (
) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM (Without Radio Data System
(RDS)), MW/LW (With Radio Data
System (RDS)) and 12 FM stations.
1. To set a channel first select AM (Without Radio Data System (RDS)),
MW/LW (With Radio Data System
(RDS)), FM1, or FM2. Tune to the
desired station.
2. Press a channel preset button for about 2 seconds until a beep is heard. The
preset channel number or station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM
(Without Radio Data System (RDS)),
MW/LW (With Rad io Data System
(RDS)), FM1, or FM2 and then press
its channel preset button. The station
frequency or the channel number will
be displayed.
Auto memory tuning (Without Radio
Data System (RDS))
This is especially u seful when driving in
an area where the local stations are not
known.

Press and hold the auto memory button
(
) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.

After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed. Press and
release the auto memory button (
)
to recall stations from the auto-stored
stations. One stored station will be
selected each time and its frequency and
channel number will be displayed.
NOTE
If no stations can be tuned after scanning
operations, “A” will be displayed.
Interior Features
Audio Set [Type A (non-touchscreen)]
5-24
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

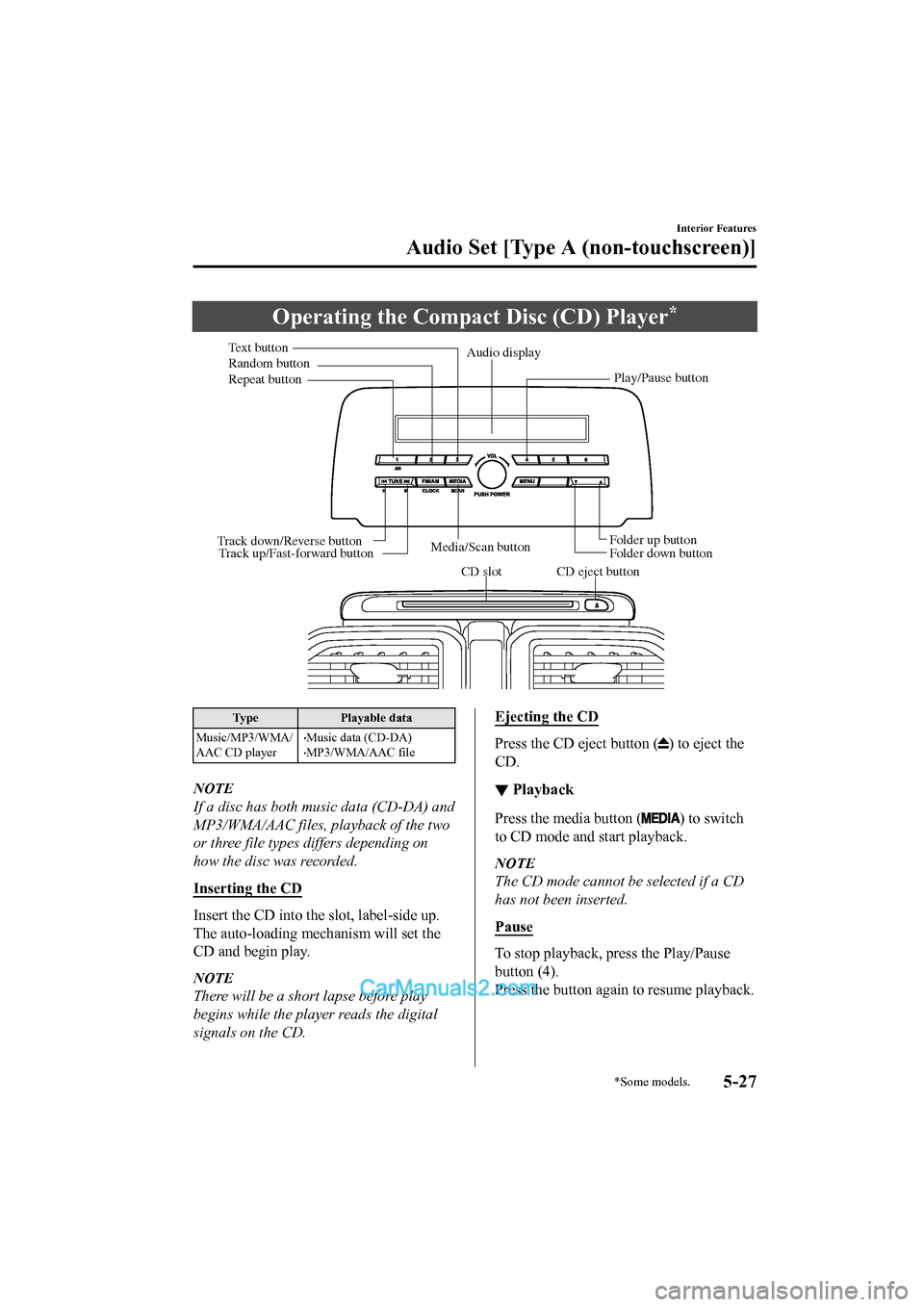

Operating the Compact Disc (CD) Player*
CD slot CD eject button
Media/Scan buttonFolder down button Folder up button
Track down/Reverse button
Track up/Fast-forward button Play/Pause button
Random button
Repeat button Audio display
Text button
Type
Playable data
Music/MP3/WMA/
AAC CD player
•Music data (CD-DA)•MP3/WMA/AAC file
NOTE
If a disc has both music data (CD-DA) and
MP3/WMA/AAC files, playback of the two
or three file types differs depending on
how the disc was recorded.
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play.
NOTE
There will be a short lapse before play
begins while the player reads the digital
signals on the CD.
Ejecting the CD
Press the CD eject button () to eject the
CD.
▼ Playback
Press the media button () to switch
to CD mode and start playback.
NOTE
The CD mode cannot be selected if a CD
has not been inserted.
Pause
To stop playback, press the Play/Pause
button (4).
Press the button again to resume playback.
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.5-27
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

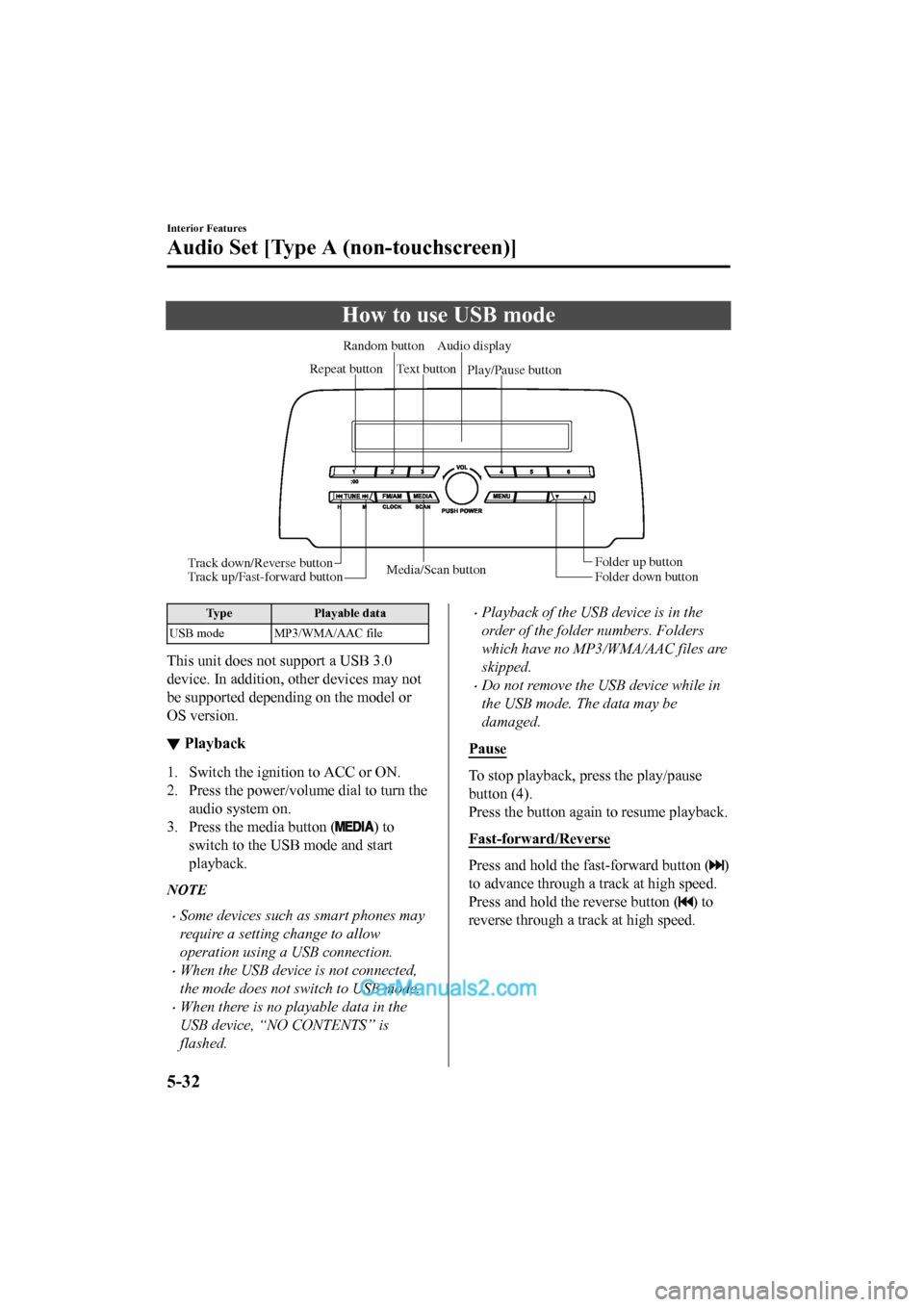

How to use USB mode
Media/Scan buttonFolder down button Folder up button
Play/Pause button
Random button
Repeat button Audio display
Text button
Track down/Reverse button
Track up/Fast-forward button
Type Playable data
USB mode MP3/WMA/AAC file
This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.
▼ Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the USB mode and start
playback.
NOTE
•Some devices such as smart phones may
require a setting change to allow
operation using a USB connection.
•When the USB device is not connected,
the mode does not switch to USB mode.
•When there is no playable data in the
USB device, “NO CONTENTS” is
flashed.
•Playback of the USB device is in the
order of the folder numbers. Folders
which have no MP3/WMA/AAC files are
skipped.
•Do not remove the USB device while in
the USB mode. The data may be
damaged.
Pause
To stop playback, press the play/pause
button (4).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button ()
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
Interior Features
Audio Set [Type A (non-touchscreen)]
5-32
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

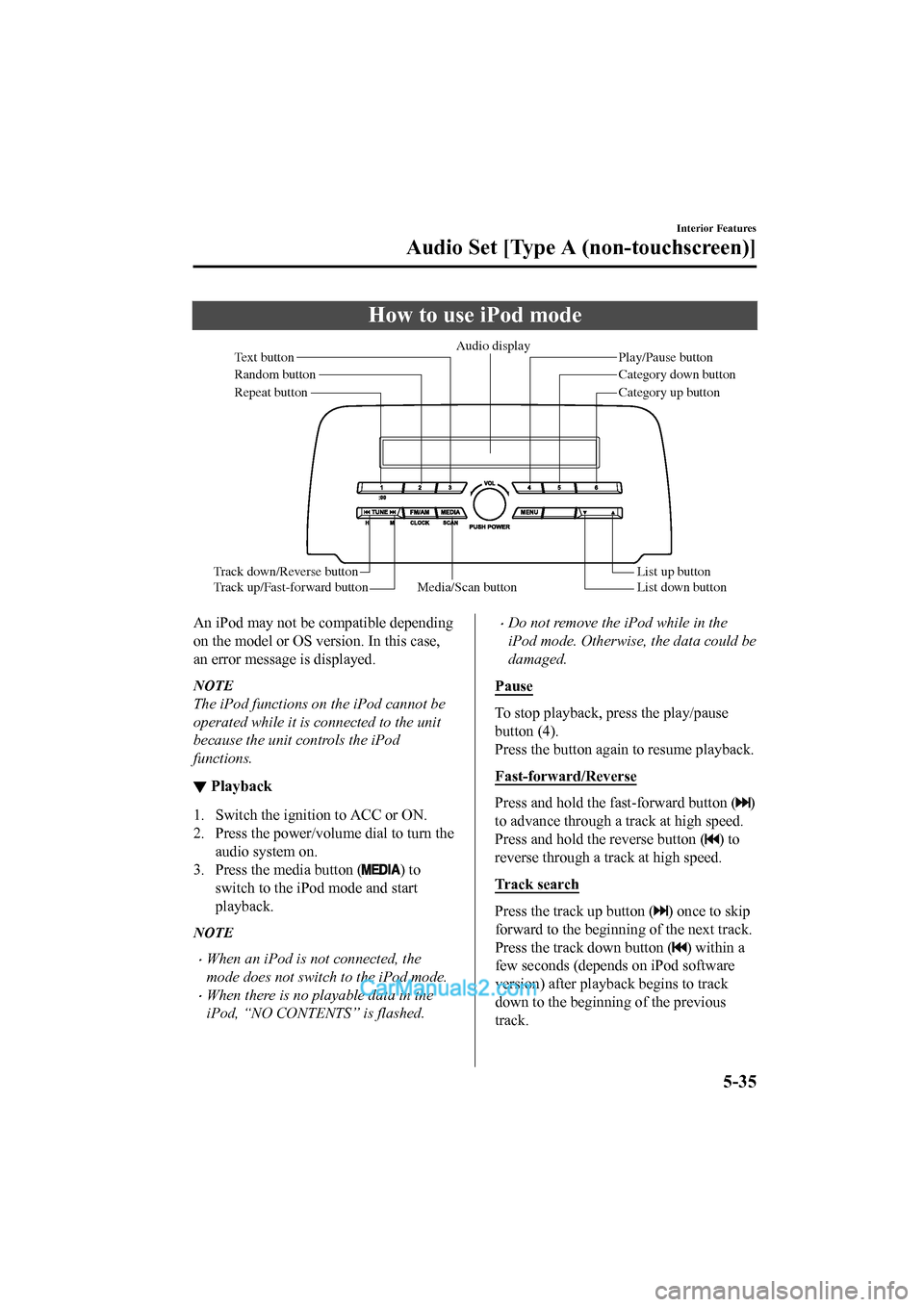

How to use iPod mode
Media/Scan buttonList down button List up button
Play/Pause button
Random button
Repeat button Audio display
Text button
Track down/Reverse button
Track up/Fast-forward button Category down button
Category up button
An iPod may not be compatible depending
on the model or OS version. In this case,
an error message is displayed.
NOTE
The iPod functions on the iPod cannot be
operated while it is connected to the unit
because the unit controls the iPod
functions.
▼
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the iPod mode and start
playback.
NOTE
•When an iPod is not connected, the
mode does not switch to the iPod mode.
•When there is no playable data in the
iPod, “NO CONTENTS” is flashed.
•Do not remove the iP od while in the
iPod mode. Otherwise, the data could be
damaged.
Pause
To stop playback, press the play/pause
button (4).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button ()
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
Track search
Press the track up button () once to skip
forward to the beginning of the next track.
Press the track down button (
) within a
few seconds (depends on iPod software
version) after playb ack begins to track
down to the beginning of the previous
track.
Interior Features
Audio Set [Type A (non-touchscreen)]
5-35
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

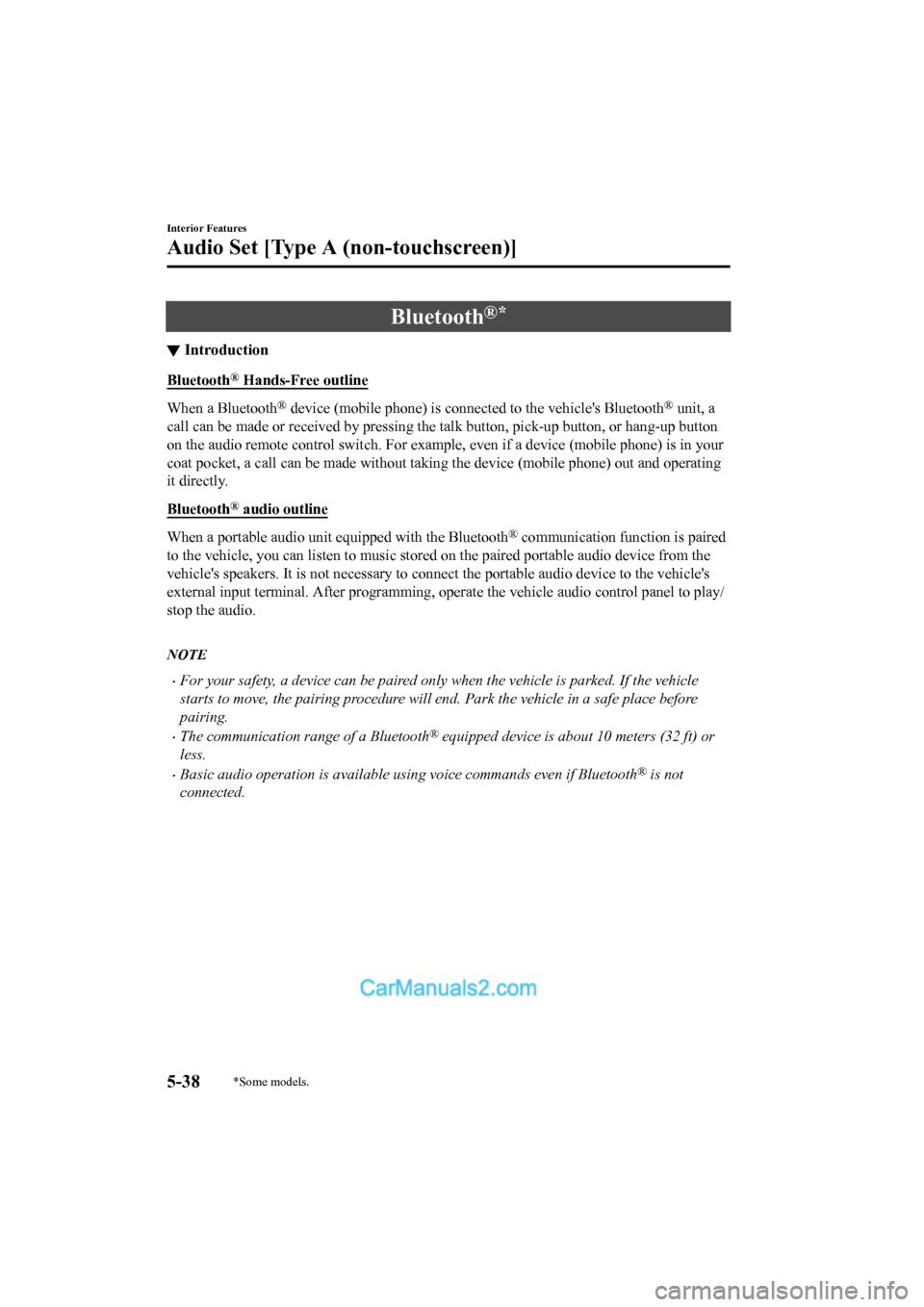

Bluetooth®*
▼Introduction
Bluetooth® Hands-Free outline
When a Bluetooth® device (mobile phone) is connected to the vehicle's Bluetooth® unit, a
call can be made or received by pressing the talk button, pick-up button, or hang-up button
on the audio remote control switch. For example, even if a devi ce (mobile phone) is in your
coat pocket, a call can be made without taking the device (mobi le phone) out and operating
it directly.
Bluetooth
® audio outline
When a portable audio unit equipped with the Bluetooth® communication function is paired
to the vehicle, you can listen to music stored on the paired po rtable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After p rogramming, operate the vehicle audio control panel to play/
stop the audio.

NOTE
•For your safety, a device can be paired only when the vehicle is parked. If the vehicle
starts to move, the pairing procedure will end. Park the vehicle in a safe place before
pairing.
•The communication range of a Bluetooth® equipped device is about 10 meters (32 ft) or
less.
•Basic audio operation is av ailable using voice commands even if Bluetooth® is not
connected.
Interior Features
Audio Set [Type A (non-touchscreen)]
5-38*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•If a general mobile phone device is USB
connected during music playback over
the Bluetooth
® connection, the
Bluetooth
® connection is disconnected.
For this reason, you cannot have music
playback over a Bluetooth
® connection
and music playback using a USB
connection at the same time.
•The system may not operate normally
depending on the Bluetooth
® audio
device.

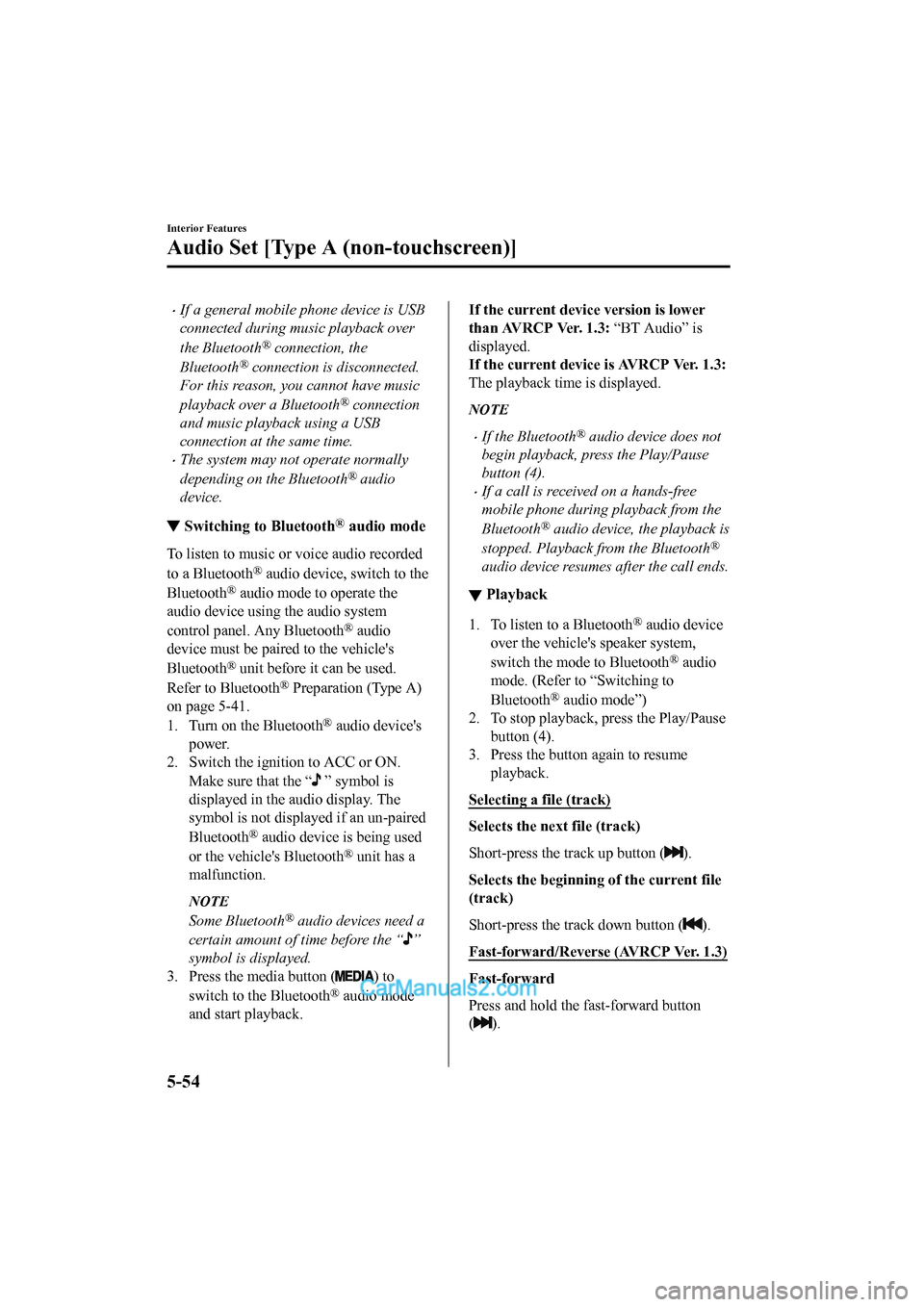

▼ Switching to Bluetooth® audio mode
To listen to music or voice audio recorded
to a Bluetooth
® audio device, switch to the
Bluetooth
® audio mode to operate the
audio device using the audio system
control panel. Any Bluetooth
® audio
device must be paired to the vehicle's
Bluetooth
® unit before it can be used.
Refer to Bluetooth
® Preparation (Type A)
on page 5-41.
1. Turn on the Bluetooth
® audio device's
power.
2. Switch the ignition to ACC or ON.
Make sure that the “
” symbol is
displayed in the audio display. The
symbol is not displayed if an un-paired
Bluetooth
® audio device is being used
or the vehicle's Bluetooth
® unit has a
malfunction.
NOTE
Some Bluetooth® audio devices need a
certain amount of time before the “
”
symbol is displayed.
3. Press the media button (
) to
switch to the Bluetooth
® audio mode
and start playback.
If the current device version is lower
than AVRCP Ver. 1.3: “BT Audio” is
displayed.
If the current devi ce is AVRCP Ver. 1.3:
The playback time is displayed.
NOTE
•If the Bluetooth® audio device does not
begin playback, press the Play/Pause
button (4).
•If a call is received on a hands-free
mobile phone during playback from the
Bluetooth
® audio device, the playback is
stopped. Playback from the Bluetooth
®
audio device resumes after the call ends.
▼ Playback
1. To listen to a Bluetooth® audio device
over the vehicle's speaker system,
switch the mode to Bluetooth
® audio
mode. (Refer to “Switching to
Bluetooth
® audio mode”)
2. To stop playback, press the Play/Pause
button (4).
3. Press the button again to resume
playback.
Selecting a file (track)
Selects the next file (track)
Short-press the track up button (
).
Selects the beginning of the current file
(track)
Short-press the track down button (
).
Fast-forward/Reverse (AVRCP Ver. 1.3)
Fast-forward
Press and hold the fast-forward button
(
).
Interior Features
Audio Set [Type A (non-touchscreen)]
5-54
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

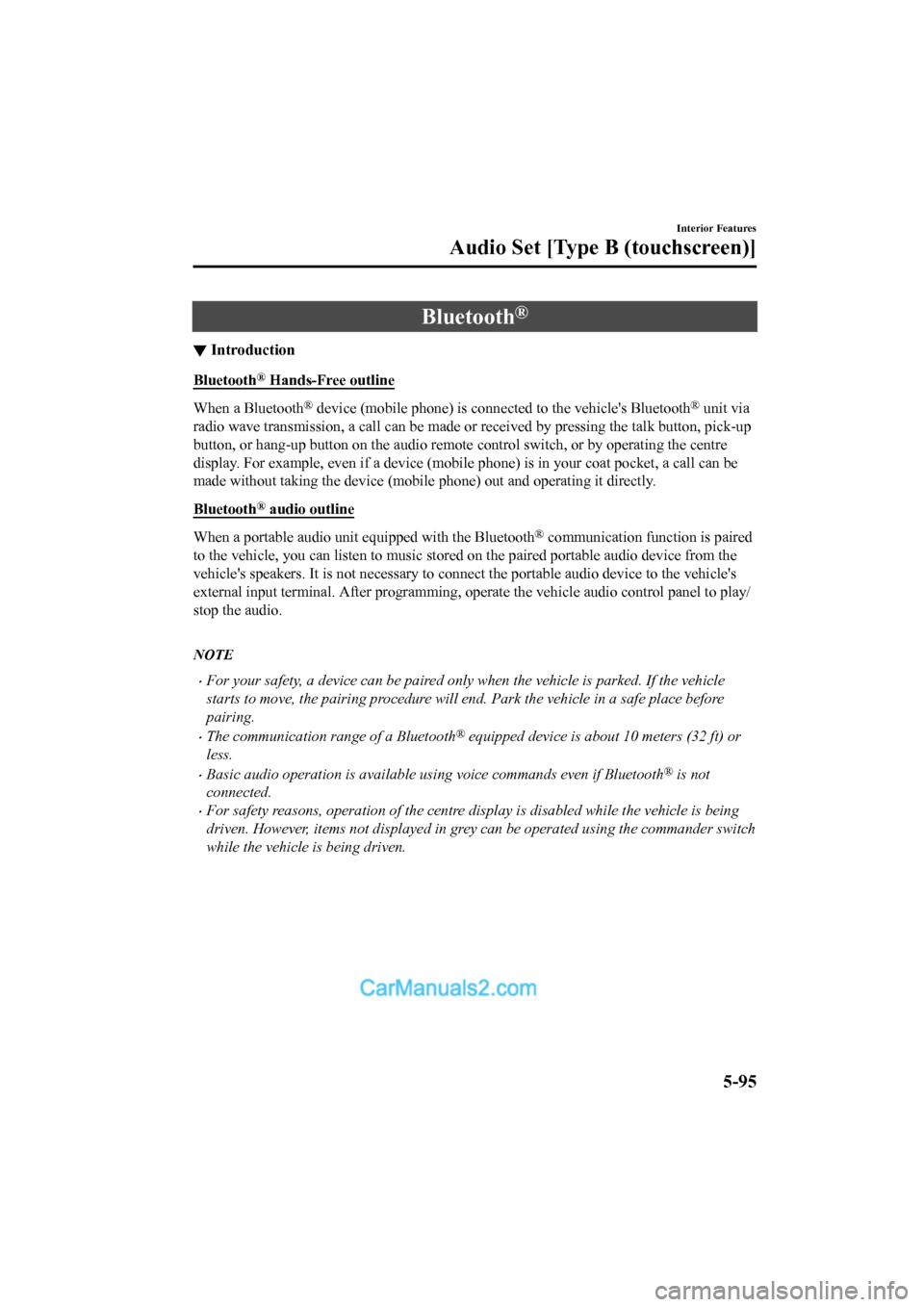

Bluetooth®
▼Introduction
Bluetooth® Hands-Free outline
When a Bluetooth® device (mobile phone) is connected to the vehicle's Bluetooth® unit via
radio wave transmission, a call c an be made or received by pressing the talk button, pick-up
button, or hang-up button on th e audio remote control switch, o r by operating the centre
display. For example, even if a device (mobile phone) is in you r coat pocket, a call can be
made without taking the device (mobile phone) out and operating it directly.
Bluetooth
® audio outline
When a portable audio unit equipped with the Bluetooth® communication function is paired
to the vehicle, you can listen to music stored on the paired portable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After programming, operate the vehicle audio control panel to play/
stop the audio.

NOTE
•For your safety, a device can be paired only when the vehicle is parked. If the vehicle
starts to move, the pairing procedure will en d. Park the vehicle in a safe place before
pairing.
•The communication range of a Bluetooth® equipped device is about 10 meters (32 ft) or
less.
•Basic audio operation is available us ing voice commands even if Bluetooth® is not
connected.
•For safety reasons, operation of the centre di splay is disabled while the vehicle is being
driven. However, items not displayed in grey can be operated using the commander switch
while the vehicle is being driven.
Interior Features
Audio Set [Type B (touchscreen)]
5-95
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

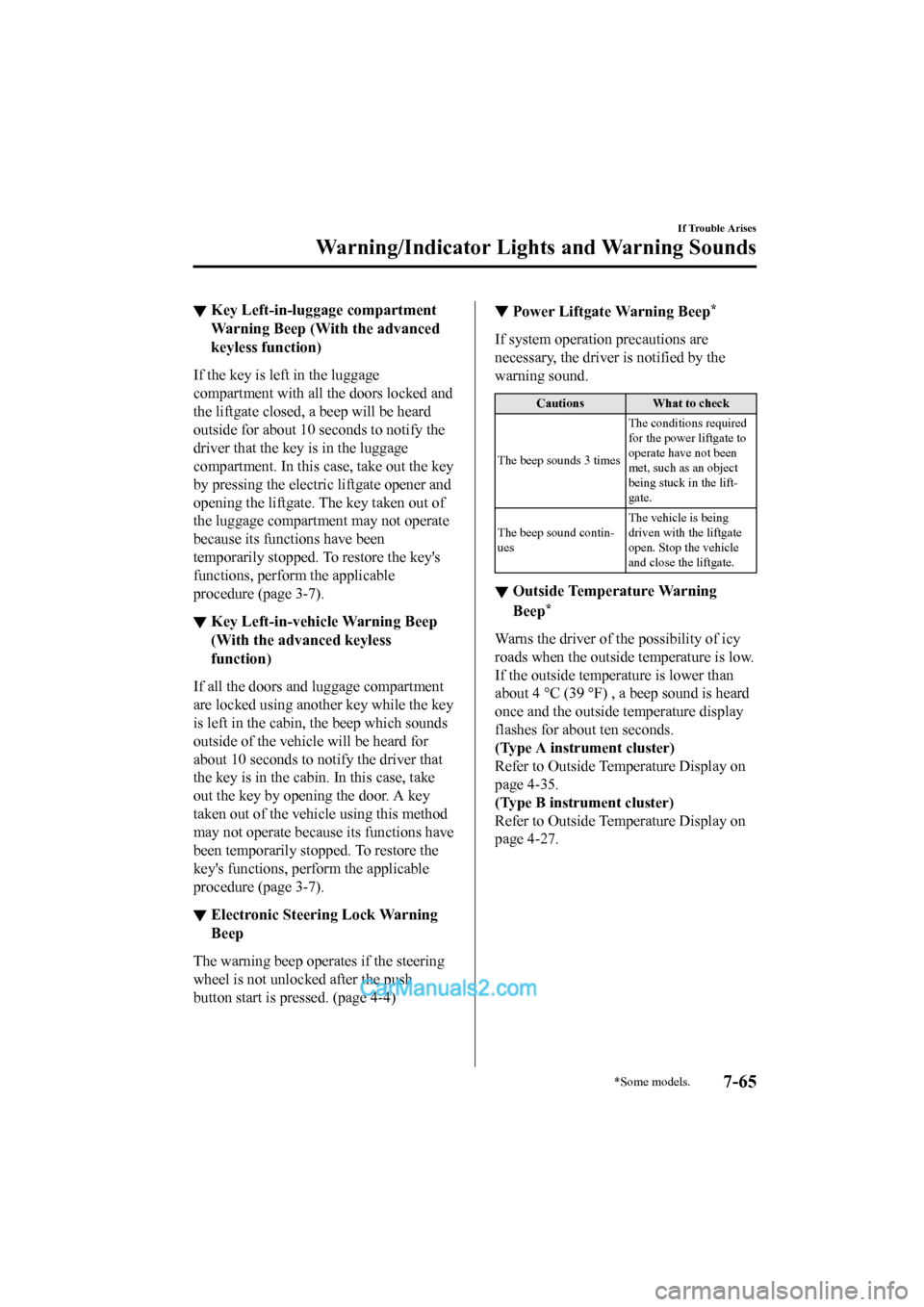

▼Key Left-in-luggage compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all the doors locked and
the liftgate closed, a
beep will be heard
outside for about 10 seconds to notify the
driver that the key is in the luggage
compartment. In this case, take out the key
by pressing the electric liftgate opener and
opening the liftgate. The key taken out of
the luggage compartment may not operate
because its functions have been
temporarily stopped. To restore the key's
functions, perform the applicable
procedure (page 3-7).
▼ Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage compartment
are locked using another key while the key
is left in the cabin, the beep which sounds
outside of the vehic
le will be heard for
about 10 seconds to notify the driver that
the key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this method
may not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-7).
▼ Electronic Steering Lock Warning
Beep
The warning beep operates if the steering
wheel is not unlocked after the push
button start is pressed. (page 4-4)
▼
Power Liftgate Warning Beep*
If system operation precautions are
necessary, the driver is notified by the
warning sound.
Cautions
What to check
The beep sounds 3 times The conditions required
for the power liftgate to
operate have not been
met, such as an object
being stuck in the lift-
gate.
The beep sound contin-
ues The vehicle is being
driven with the liftgate
open. Stop the vehicle
and close the liftgate.
▼
Outside Temperature Warning
Beep*
Warns the driver of the possibility of icy
roads when the outside temperature is low.
If the outside temperature is lower than
about 4 °C (39 °F) , a beep sound is heard
once and the outside temperature display
flashes for about ten seconds.
(Type A instrument cluster)
Refer to Outside Temperature Display on
page 4-35.
(Type B instrument cluster)
Refer to Outside Temperature Display on
page 4-27.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-65
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
