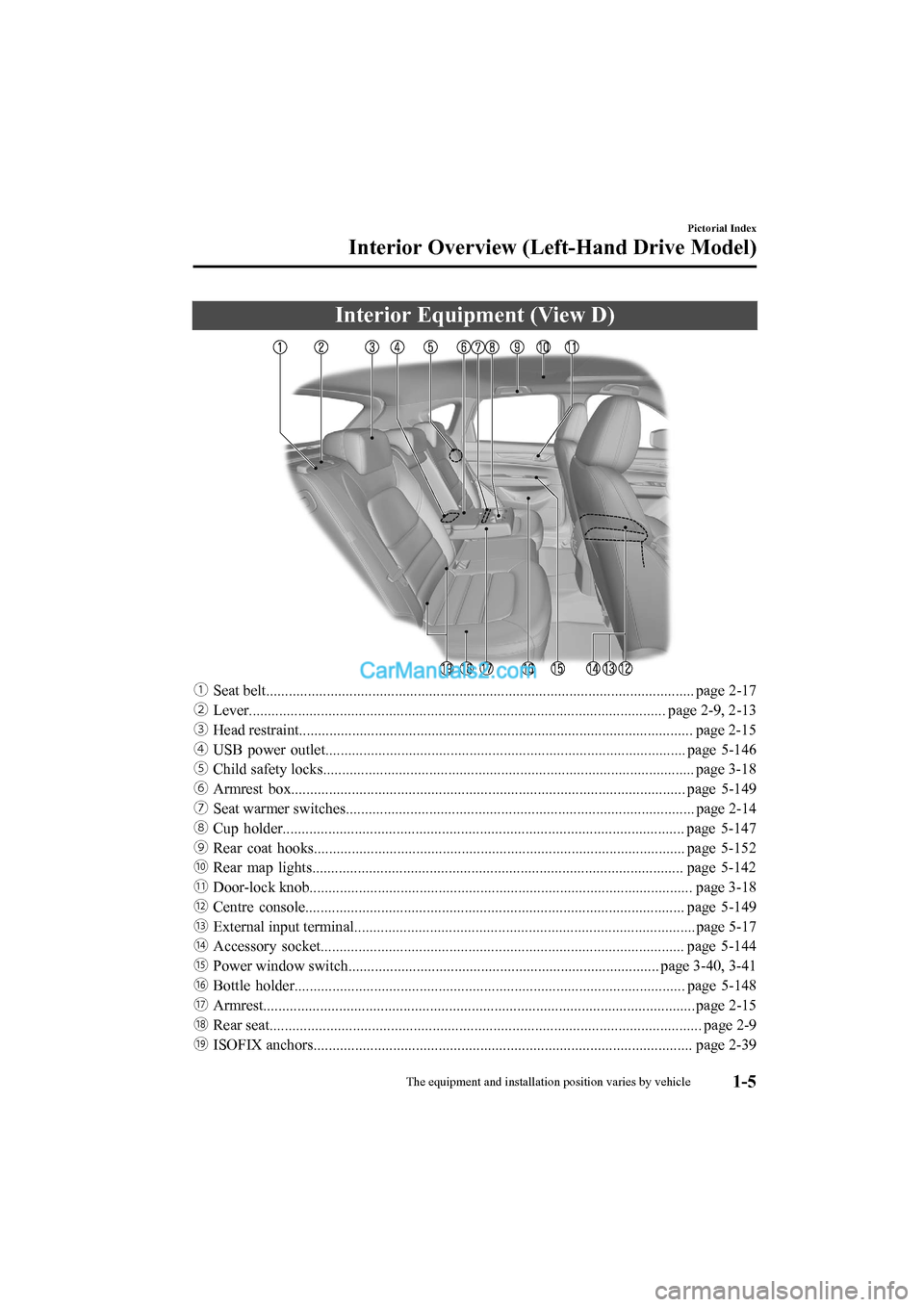

Interior Equipment (View D)
ƒSeat belt................................................................................................................. page 2-17
„ Lever.............................................................................................................. page 2-9, 2 -13
… Head restraint........................................................................................................ page 2-1 5
† USB power outlet............................................... ................................................ page 5-146
‡ Child safety locks.................................................................................................. page 3-18
ˆ Armrest box.................................................... .................................................... page 5-149
‰ Seat warmer switches........................................... ................................................. page 2-14
Š Cup holder.......................................................................................................... page 5-147
‹ Rear coat hooks.................................................................................................. page 5-152
ΠRear map lights.................................................................................................. page 5-142
 Door-lock knob................................................. .................................................... page 3-18
Ž Centre console................................................. ................................................... page 5-149
 External input terminal........................................ .................................................. page 5-17
 Accessory socket............................................... ................................................. page 5-144
‘ Power window switch............................................ ...................................... page 3-40, 3-41
’ Bottle holder.................................................. ..................................................... page 5-148
“ Armrest..................................................................................................................page 2-15
” Rear seat...................................................... ............................................................ page 2-9
• ISOFIX anchors.................................................................................................... page 2-39
Pictorial Index
Interior Overview (Left-Hand Drive Model)
The equipment and installatio n position varies by vehicle1-5
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

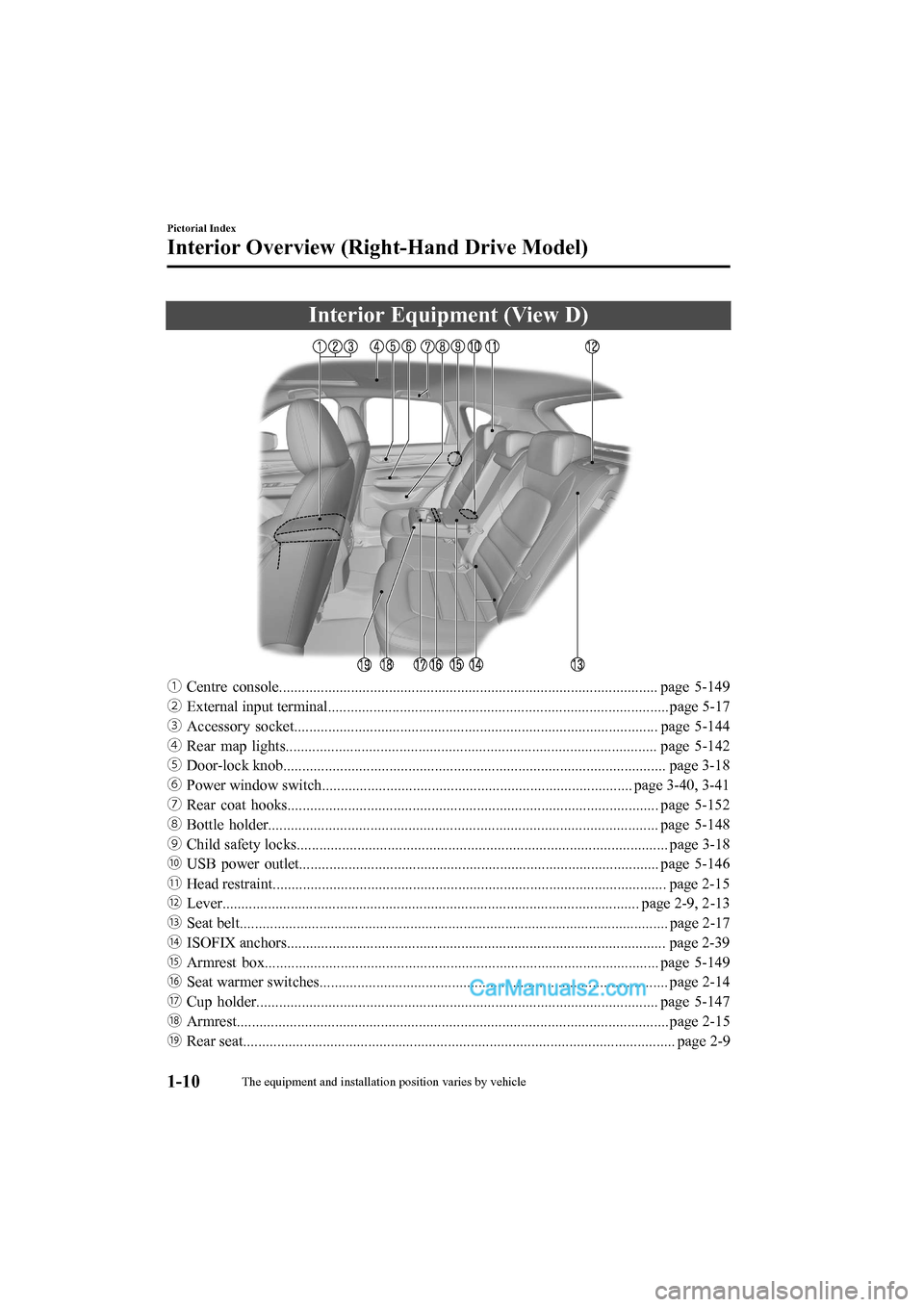

Interior Equipment (View D)
ƒCentre console.................................................................................................... page 5-149
„ External input terminal........................................ ..................................................page 5-17
… Accessory socket............................................... ................................................. page 5-144
† Rear map lights.................................................................................................. page 5-142
‡ Door-lock knob..................................................................................................... page 3-18
ˆ Power window switch.................................................................................. page 3-40, 3-41
‰ Rear coat hooks.................................................................................................. page 5-152
Š Bottle holder....................................................................................................... page 5-148
‹ Child safety locks............................................. ..................................................... page 3-18
ΠUSB power outlet............................................................................................... page 5-146
 Head restraint........................................................................................................ page 2-1 5
Ž Lever.............................................................................................................. page 2-9, 2 -13
 Seat belt...................................................... ........................................................... page 2-17
 ISOFIX anchors.................................................................................................... page 2-39
‘ Armrest box........................................................................................................ page 5-149
’ Seat warmer switches........................................... ................................................. page 2-14
“ Cup holder.......................................................................................................... page 5-147
” Armrest........................................................ ..........................................................page 2-15
• Rear seat...................................................... ............................................................ page 2-9
Pictorial Index
Interior Overview (Right-Hand Drive Model)
1-10The equipment and installatio n position varies by vehicle
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

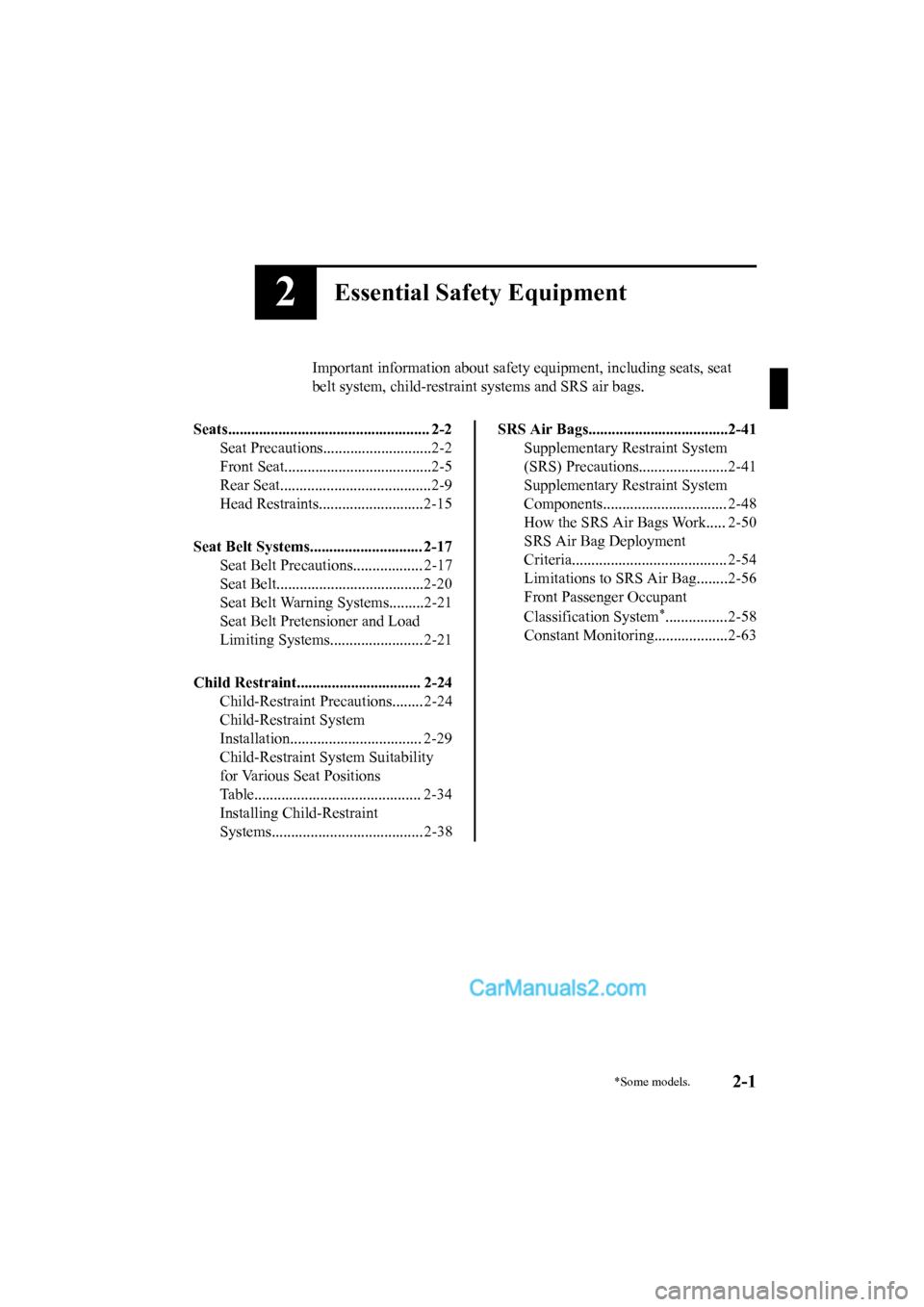

2Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats.................................................... 2-2 Seat Precautions............................2-2
Front Seat......................................2-5
Rear Seat.......................................2-9
Head Restraints...........................2-15
Seat Belt Systems...... ....................... 2-17
Seat Belt Precautions.................. 2-17
Seat Belt......................................2-20
Seat Belt Warning Systems.........2-21
Seat Belt Pretensioner and Load
Limiting Systems........................ 2-21
Child Restraint................................ 2-24 Child-Restraint Precautions........ 2-24
Child-Restraint System
Installation.................................. 2-29
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-34
Installing Child-Restraint
Systems....................................... 2-38
SRS Air Bags....................................2-41
Supplementary Restraint System
(SRS) Precautions.......................2-41
Supplementary Restraint System
Components................................ 2-48
How the SRS Air Bags Work..... 2-50
SRS Air Bag Deployment
Criteria........................................ 2-54
Limitations to SRS Air Bag........2-56
Front Passenger Occupant
Classification System
*................2-58
Constant Monitoring...................2-63
*Some models.2-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Seat Precautions
WA R N I N G
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can a llow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts
is dangerous. The front seats contain air bag components essential to the supplementary
restraint system. Such modifications could damage the supplementary restraint system and
result in serious injury. Consult an Authorised Mazda Repairer if there is any need to remove or
reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as se at cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to
inflate the air bags, could
damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have an
Authorised Mazda Repairer inspect the front seat s, front seat belt pretensioners and air bags
after a collision.
Essential Safety Equipment
Seats
2-2
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get
the full protection from seat belts. During sudden braking or a collision, you can slide under
the lap belt and suffer serious internal injuri es. For maximum protection, sit well back and
upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, wh ich could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.

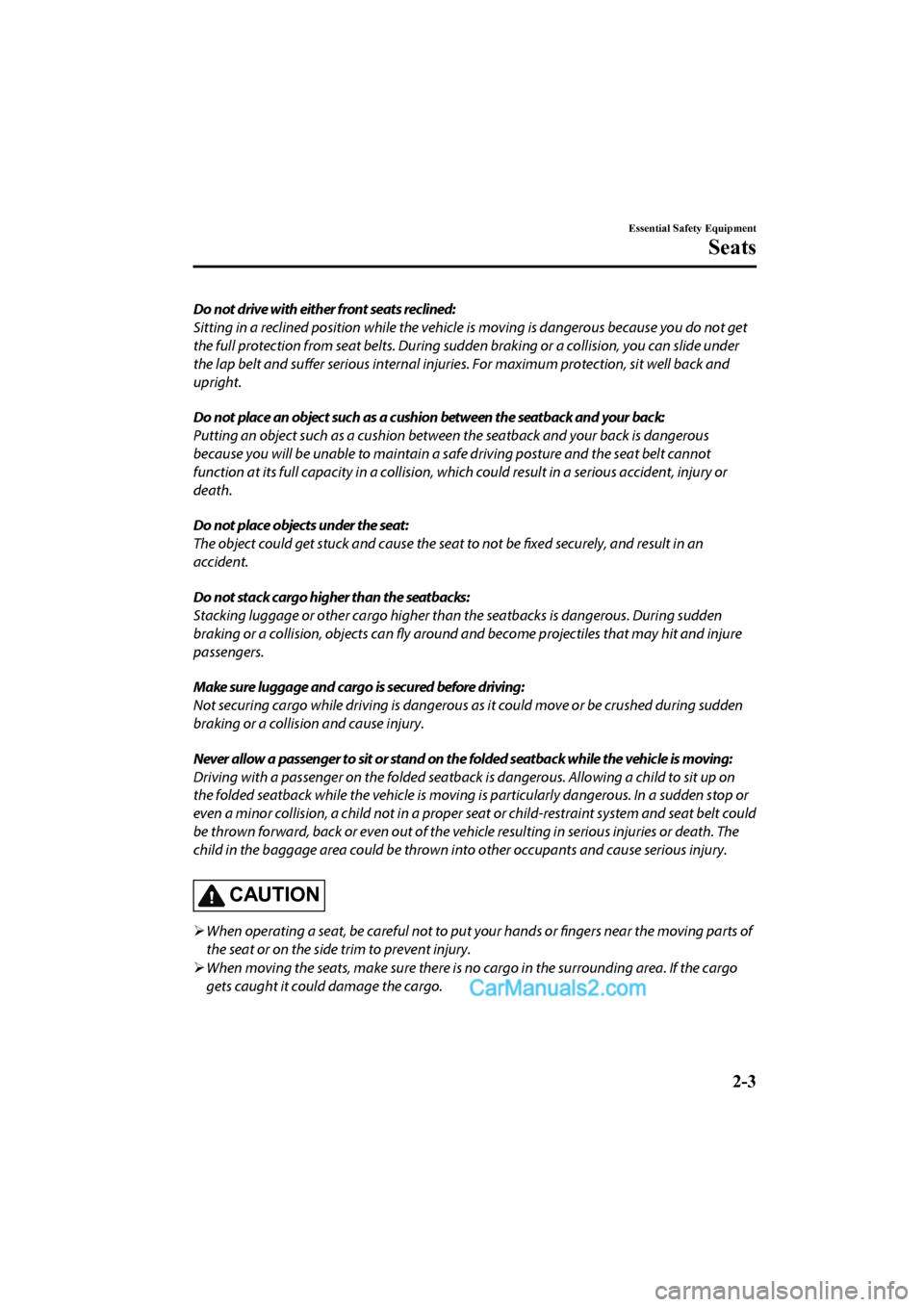

Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and injure
passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on
the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or
even a minor collision, a child not in a proper seat or child-restraint system and seat belt could
be thrown forward, back or even out of the vehi cle resulting in serious injuries or death. The
child in the baggage area could be thrown into other occupants and cause serious injury.
CAUTION
 When operating a seat, be careful not to put yo ur hands or fingers near the moving parts of
the seat or on the side trim to prevent injury.
 When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
Essential Safety Equipment
Seats
2-3
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
When you fold down the left seatback, the
centre seatback folds down at the same
time.
Using remote handle
*
1.(With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-14.
2. After checking that the rear seats are
clear, open the liftgate and lower the
seatback you want to fold down using
the remote handle.
When folding the left side, operate the
outer part of the remote handle.
WA R N I N G
Always remove the child-restraint system
from the rear seat before operating the
remote handle for the rear seat:
Operating the remote handle while a
rear-facing child-restraint system is in the
rear seat is dangerous. It could cause injury
to a child seated in the child-restraint
system when the seatback suddenly flips
forward.
Make sure there is nobody in the rear seat
area before operating (pulling) the remote
handle:
Not checking the rear seat area for persons
before folding the seatbacks with the strap/
remote handle is dangerous. The rear seat
area is difficult to see from the rear of the
vehicle. Operating (pulling) the remote
handle without checking could cause injury
to a person when a se atback suddenly flips
forward.
CAUTION
 Before folding the seatbacks down with
the remote handle, make sure there is no
cup in a rear cup holder. Folding the
seatbacks with the remote handle while
a cup is in the cup holder could soil or
damage the seat bottom and seatback.
 Be careful of the following when using
the remote handle:
 On a downward slope, the seatback
could flip forward faster than on a flat
surface.
 On an upward slope, the seatback may
not fold down. When the seatbacks
cannot be folded down with the
remote handle, pull the rear seatback
forward from inside the vehicle.
Essential Safety Equipment
Seats
2-10*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

(Folding the left seatback)
Be careful when operating the remote
handle with the centre seatback folded
down. If a person sitting in the right rear
seat places a hand on the centre
seatback, it could be pinched by a
seatback or seat component causing
injury.
Using the lever
1. (With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-14.
2. Pull the lever and fold the seatback forward.
Folding only centre seatback
Using remote handle*
1.(With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-14.
2. If the centre head restraint is in the position for use, store it.
3. After checking that the centre seat is
clear, open the lift gate and pull the
inside remote handle on the left side of
the liftgate compartment.
WA R N I N G
Always remove the child-restraint system
from the rear seat before operating the
remote handle for the rear seat:
Operating the remote handle while a
rear-facing child-restraint system is in the
rear seat is dangerous. It could cause injury
to a child seated in the child-restraint
system when the seatback suddenly flips
forward.
Make sure there is nobody in the rear seat
area before operating (pulling) the remote
handle:
Not checking the rear seat area for persons
before folding the seatbacks with the strap/
remote handle is dangerous. The rear seat
area is difficult to see from the rear of the
vehicle. Operating (pulling) the remote
handle without checking could cause injury
to a person when a seatback suddenly flips
forward.
Essential Safety Equipment
Seats
*Some models.2-11
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Child-Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
Mazda recommends use of a Mazda genuine child-restraint system or one that complies
with the UNECE
*1 44 regulation. If you would like to purchase a Mazda genuine
child-restraint system , please contact an Authorised Mazda Deal er.
Check your local and state or provincial laws for specific requ irements regarding the safety
of children riding in your vehicle.
*1 UNECE stands for United Nations Economic Commission for Europe.

Whatever child-restraint system y ou consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.

A child who has outgrown child-r estraint systems should sit in the rear and use seat belts.

The child-restraint system should be installed on the rear seat .
Statistics confirm that the rear seat is the best place for all children up to 12 years of age-the
more so with a supplementary restraint system (air bags).

A rear-facing child-restraint system should NEVER be used in the front passenger seat with
the air bag system activated. The front passenger's seat is als o the least preferred seat for
other child-restraint systems.

(With Front Passenger Occupa nt Classification System)
To reduce the chance of injuries caused by deployment of the fr ont passenger air bag, the
front passenger occupant classification sensor works as a part of the supplementary restraint
system. This system deactivates the front passenger front and side air bags and also the front
passenger seat belt pretensioner system when the front passenge r air bag deactivation OFF
indicator light illuminates.

When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner sy stem, so make sure the front
passenger air bag deactivation OF F indicator light illuminates.

Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-rest raint systems of all kinds are properly secured on the rear
seats which are the best place for children.

For more details, refer to "Front passenger occupant classification sensor" (page 2-58).
Essential Safety Equipment
Child Restraint
2-24
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

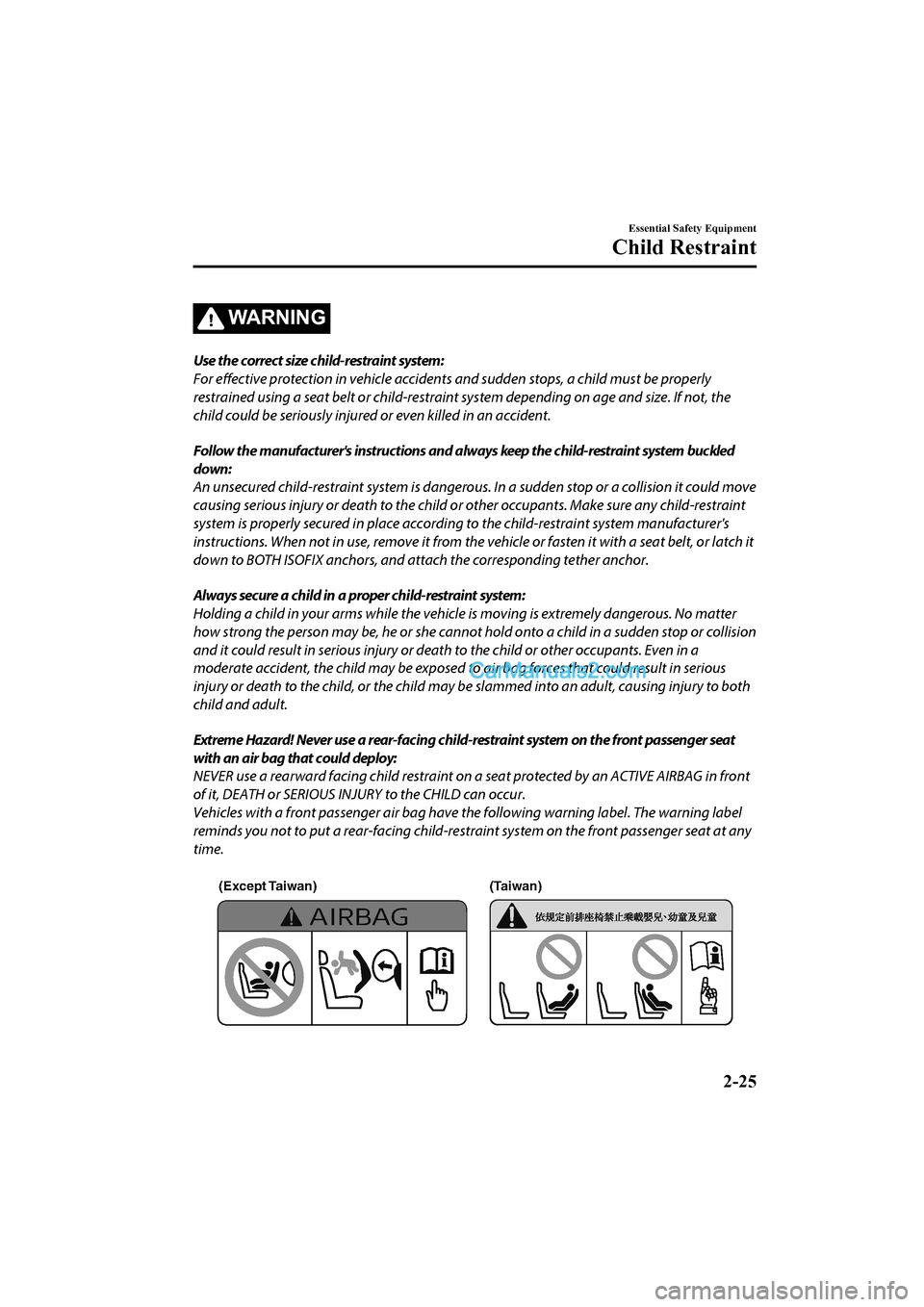

WA R N I N G
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stop s, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not, the
child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous . In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place accordin g to the child-restraint system manufacturer's
instructions. When not in use, remove it from the vehicle or fasten it with a seat belt, or latch it
down to BOTH ISOFIX anchors, and attach the corresponding tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicl e is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.
Extreme Hazard! Never use a rear-facing child-restraint system on the front passenger seat
with an air bag that could deploy:
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a front passenger air bag have th e following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.

(Except Taiwan) (Taiwan)
Essential Safety Equipment
Child Restraint
2-25
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
