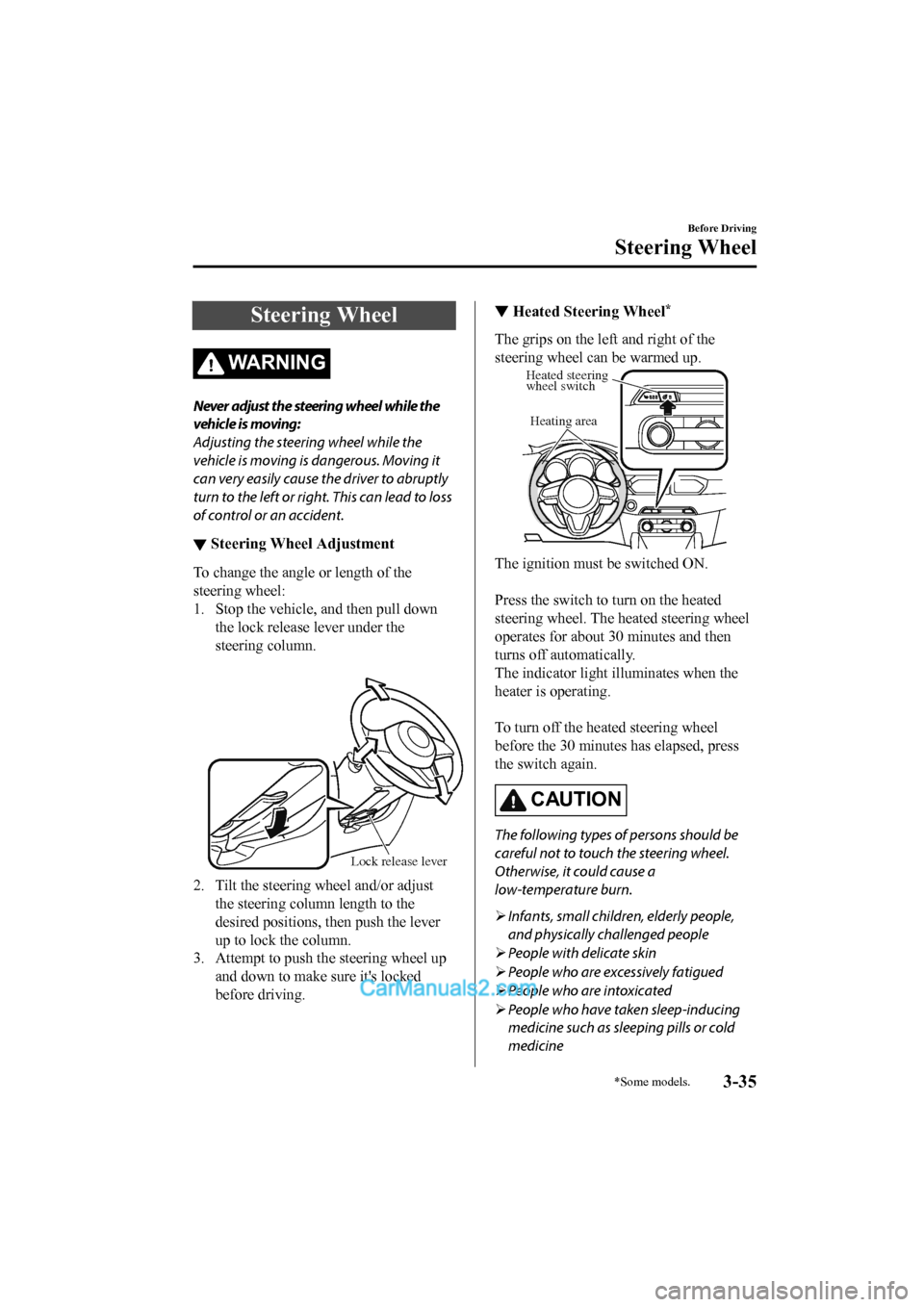

Steering Wheel
WA R N I N G
Never adjust the steering wheel while the
vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous. Moving it
can very easily cause the driver to abruptly
turn to the left or right. This can lead to loss
of control or an accident.
▼Steering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, and then pull down
the lock release lever under the
steering column.

Lock release lever
2. Tilt the steering wheel and/or adjustthe steering column length to the
desired positions, then push the lever
up to lock the column.
3. Attempt to push th e steering wheel up
and down to make sure it's locked
before driving.
▼ Heated Steering Wheel*
The grips on the left and right of the
steering wheel can be warmed up.
Heated steering
wheel switch
Heating area
The ignition must be switched ON.

Press the switch to turn on the heated
steering wheel. The heated steering wheel
operates for about 30 minutes and then
turns off automatically.
The indicator light illuminates when the
heater is operating.

To turn off the heated steering wheel
before the 30 minutes has elapsed, press
the switch again.
CAUTION
The following types of persons should be
careful not to touch the steering wheel.
Otherwise, it could cause a
low-temperature burn.
 Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Before Driving
Steering Wheel
*Some models.3-35
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

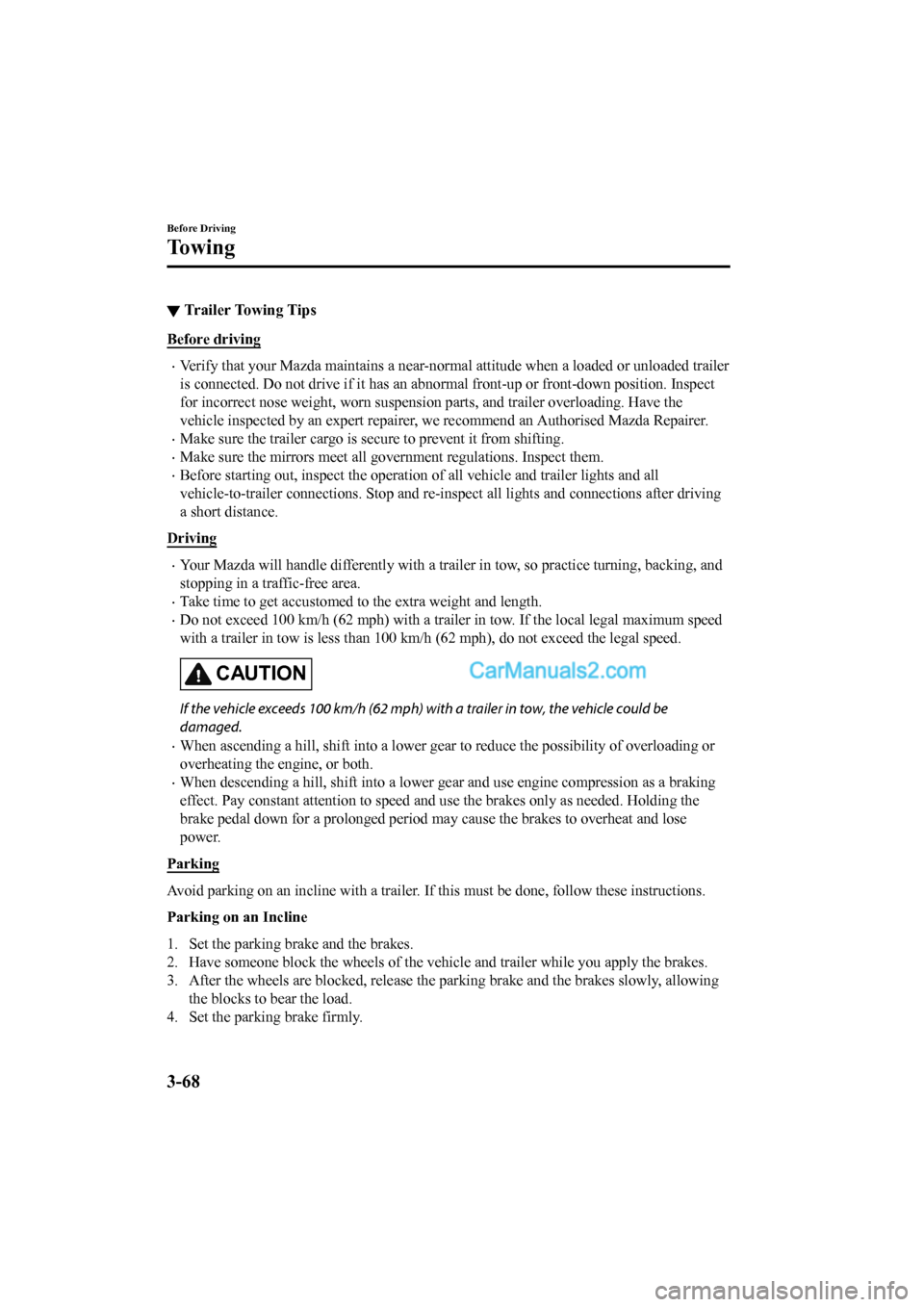

▼Trailer Towing Tips
Before driving
•Verify that your Mazda maintains a near-normal attitude when a
loaded or unloaded trailer
is connected. Do not drive if it h as an abnormal front-up or front-down position. Inspect
for incorrect nose weight, worn suspension parts, and trailer o verloading. Have the
vehicle inspected by an expert re pairer, we recommend an Author ised Mazda Repairer.
•Make sure the trailer cargo is secure to prevent it from shifting.
•Make sure the mirrors meet all g overnment regulations. Inspect them.
•Before starting out, inspect the operation of all vehicle and t railer lights and all
vehicle-to-trailer connections. Stop and re-inspect all lights and connections after driving
a short distance.
Driving
•Your Mazda will handle differentl y with a trailer in tow, so practice turning, backing, and
stopping in a traffic-free area.
•Take time to get accustomed to the extra weight and length.
•Do not exceed 100 km/h (62 mph) w ith a trailer in tow. If the local legal maximum speed
with a trailer in tow is less than 100 km/h (62 mph), do not ex ceed the legal speed.
CAUTION
If the vehicle exceeds 100 km/h (62 mph) with a trailer in tow, the vehicle could be
damaged.
•When ascending a hill, shift into a lower gear to reduce the po ssibility of overloading or
overheating the engine, or both.
•When descending a hill, shift into a lower gear and use engine compression as a braking
effect. Pay constant attention to speed and use the brakes only as needed. Holding the
brake pedal down for a prolonged period may cause the brakes to overheat and lose
power.
Parking
Avoid parking on an incline with a trailer. If this must be done, follow these instructions.
Parking on an Incline
1. Set the parking brake and the brakes.
2. Have someone block the wheels of the vehicle and trailer whil e you apply the brakes.
3. After the wheels are blocked, release the parking brake and t he brakes slowly, allowing
the blocks to bear the load.
4. Set the parking brake firmly.
Before Driving
To w i n g
3-68
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

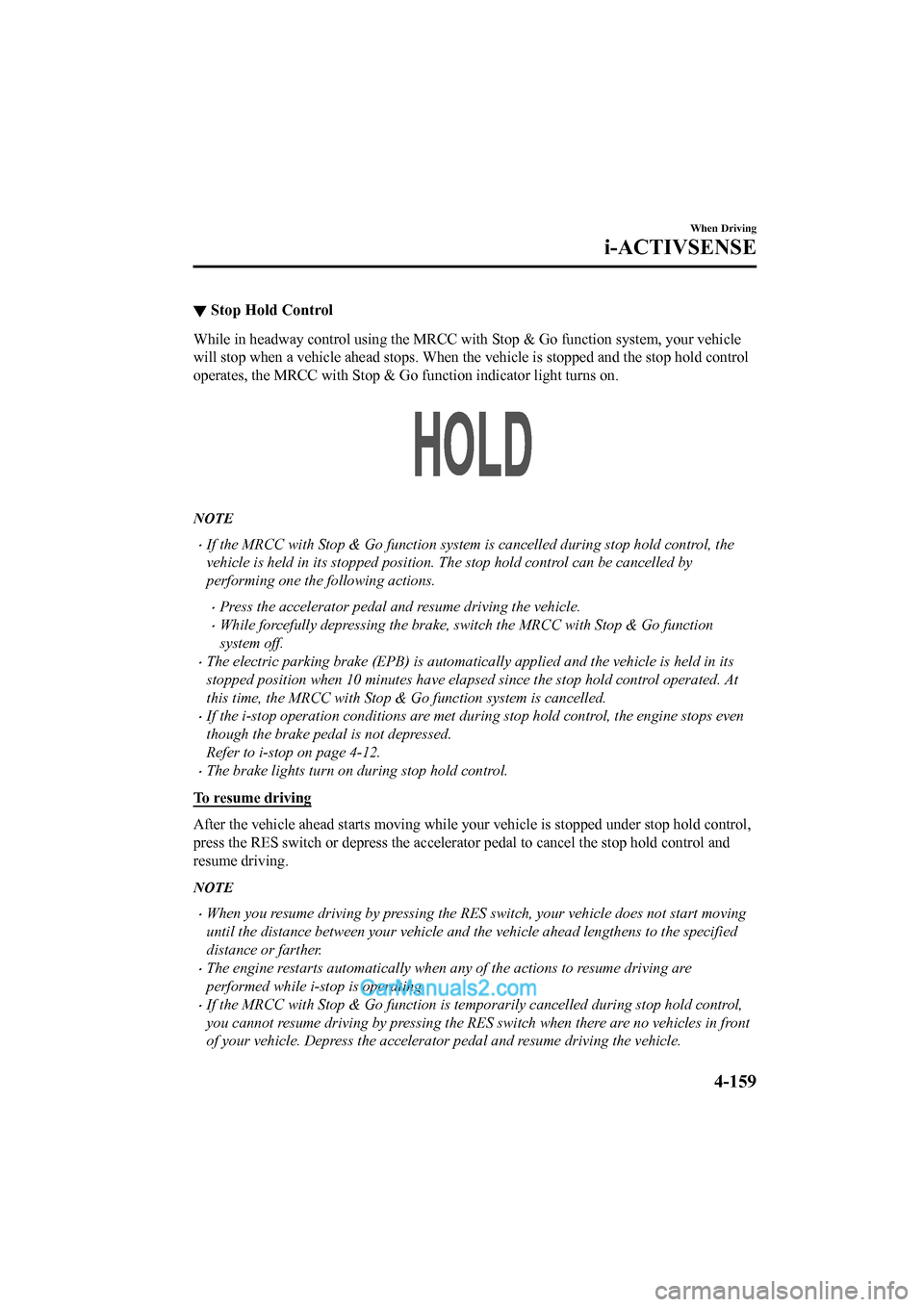

▼Stop Hold Control
While in headway control using the MRCC with Stop & Go function
system, your vehicle
will stop when a vehicle ahead stops. When the vehicle is stopp ed and the stop hold control
operates, the MRCC with Stop & Go function indicator light turn s on.
NOTE
•If the MRCC with Stop & Go function system is cancelled during stop hold control, the
vehicle is held in its stopped position. The stop hold control can be cancelled by
performing one the following actions.
•Press the accelerator pedal and resume driving the vehicle.
•While forcefully depressing the brake, switch the MRCC with Stop & Go function
system off.
•The electric parking brake (EPB) is automatically applied and the vehicle is held in its
stopped position when 10 minutes have elapsed since the stop hold control operated. At
this time, the MRCC with Stop & Go function system is cancelled.
•If the i-stop operation conditions are met du ring stop hold control, the engine stops even
though the brake pedal is not depressed.
Refer to i-stop on page 4-12.
•The brake lights turn on during stop hold control.
To resume driving
After the vehicle ahead starts moving while your vehicle is sto pped under stop hold control,
press the RES switch or depress the accelerator pedal to cancel the stop hold control and
resume driving.
NOTE
•When you resume driving by pressing the RES switch, your vehicle does not start moving
until the distance between your vehicle and the vehicle ahead lengthens to the specified
distance or farther.
•The engine restarts automatically when any of the actions to resume driving are
performed while i-stop is operating.
•If the MRCC with Stop & Go function is temporarily cancelled during stop hold control,
you cannot resume driving by pressing the RES switch when there are no vehicles in front
of your vehicle. Depress the accelerator pedal and resume driving the vehicle.
When Driving
i-ACTIVSENSE
4-159
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

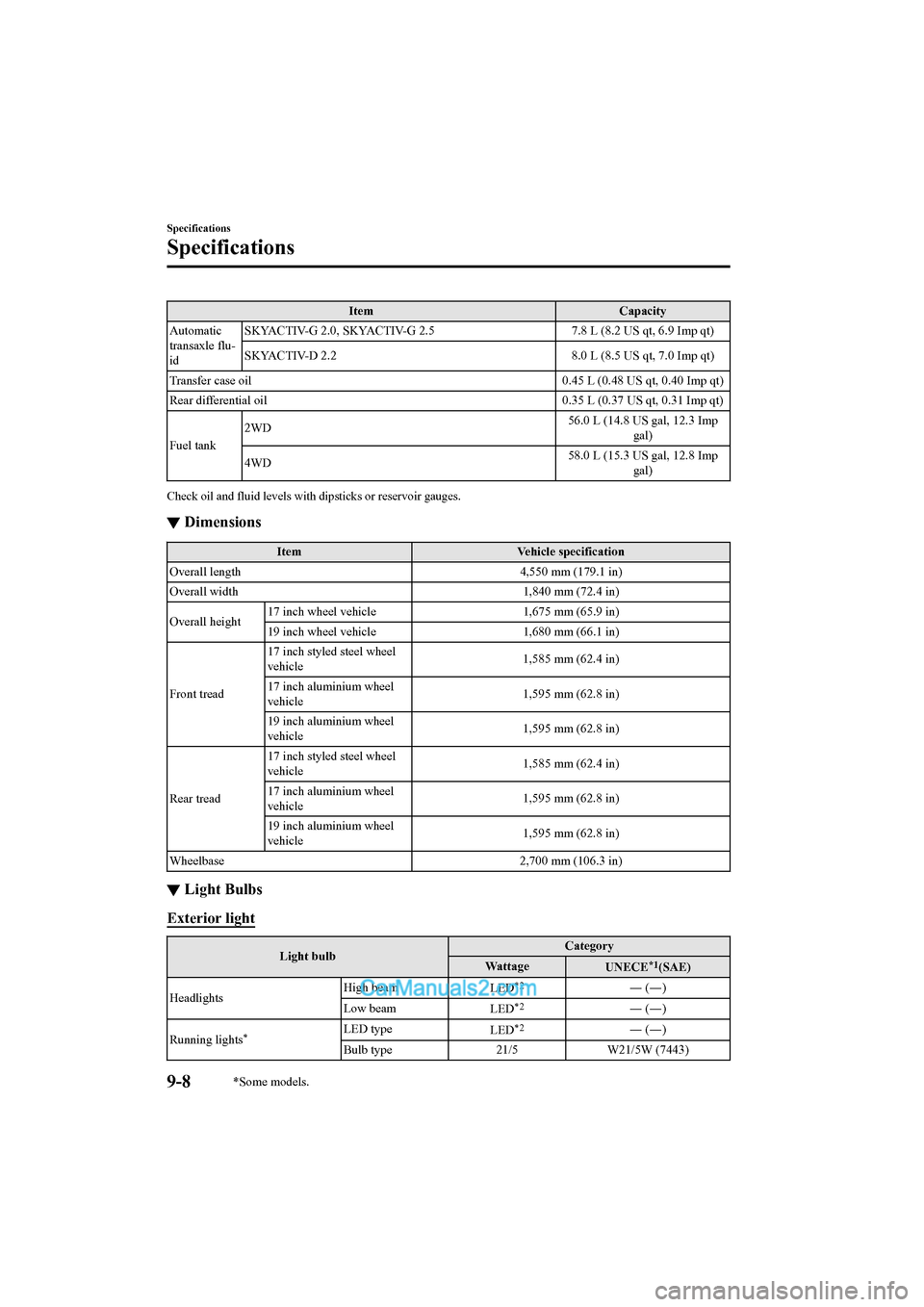

ItemCapacity
Automatic
transaxle flu-
id SKYACTIV-G 2.0, SKYACTIV-G 2.5
7.8 L (8.2 US qt, 6.9 Imp qt)
SKYACTIV-D 2.2 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank 2WD
56.0 L (14.8 US gal, 12.3 Imp
gal)
4WD 58.0 L (15.3 US gal, 12.8 Imp
gal)
Check oil and fluid levels with d ipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,550 mm (179.1 in)
Overall width 1,840 mm (72.4 in)
Overall height 17 inch wheel vehicle
1,675 mm (65.9 in)
19 inch wheel vehicle 1,680 mm (66.1 in)
Front tread 17 inch styled steel wheel
vehicle
1,585 mm (62.4 in)
17 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
19 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
Rear tread 17 inch styled steel wheel
vehicle
1,585 mm (62.4 in)
17 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
19 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
Wheelbase 2,700 mm (106.3 in)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UNECE*1(SAE)
Headlights High beam
LED
*2― (―)
Low beam LED
*2― (―)
Running lights
*LED type LED*2― (―)
Bulb type 21/5W21/5W (7443)
Specifications
Specifications
9-8*Some models.
