▼Operating Tips for WMA
WMA is short for Windows Media*1
Audio and is the audio compression
format used by Microsoft
*1.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays files with the extension
(.wma) as WMA files.
*1 Windows Media and Microsoft are registered trademarks of Microsoft
Corporation U.S. in the United States
and other countries.

CAUTION
Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.
•WMA files written under specifications
other than the indic ated specification
may not play normally or files or folder
names may not display correctly.
•The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.wma”
to the end of the file name, and then
write it to the memory.
▼ Operating Tips for AAC
AAC stands for Advanced Audio Coding,
which is standardized voice compression
established by the ISO
*1 working group
(MPEG). Audio data can be created and
stored at a higher com pression ratio than
MP3.
This unit plays files with the extensions
(.aac/.m4a/.wav
*2) as the AAC files.
CAUTION
Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.
•AAC files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
•The file extension may not be provided
depending on the computer operating
system, version, softw are, or settings. In
this case, add the file extension “.aac”,
“.m4a”, or “.wav
*2” to the end of the file
name, and then write it to the memory.
*1 International Organization for
Standardization
*2 Type B
Interior Features
Appendix
5-125
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

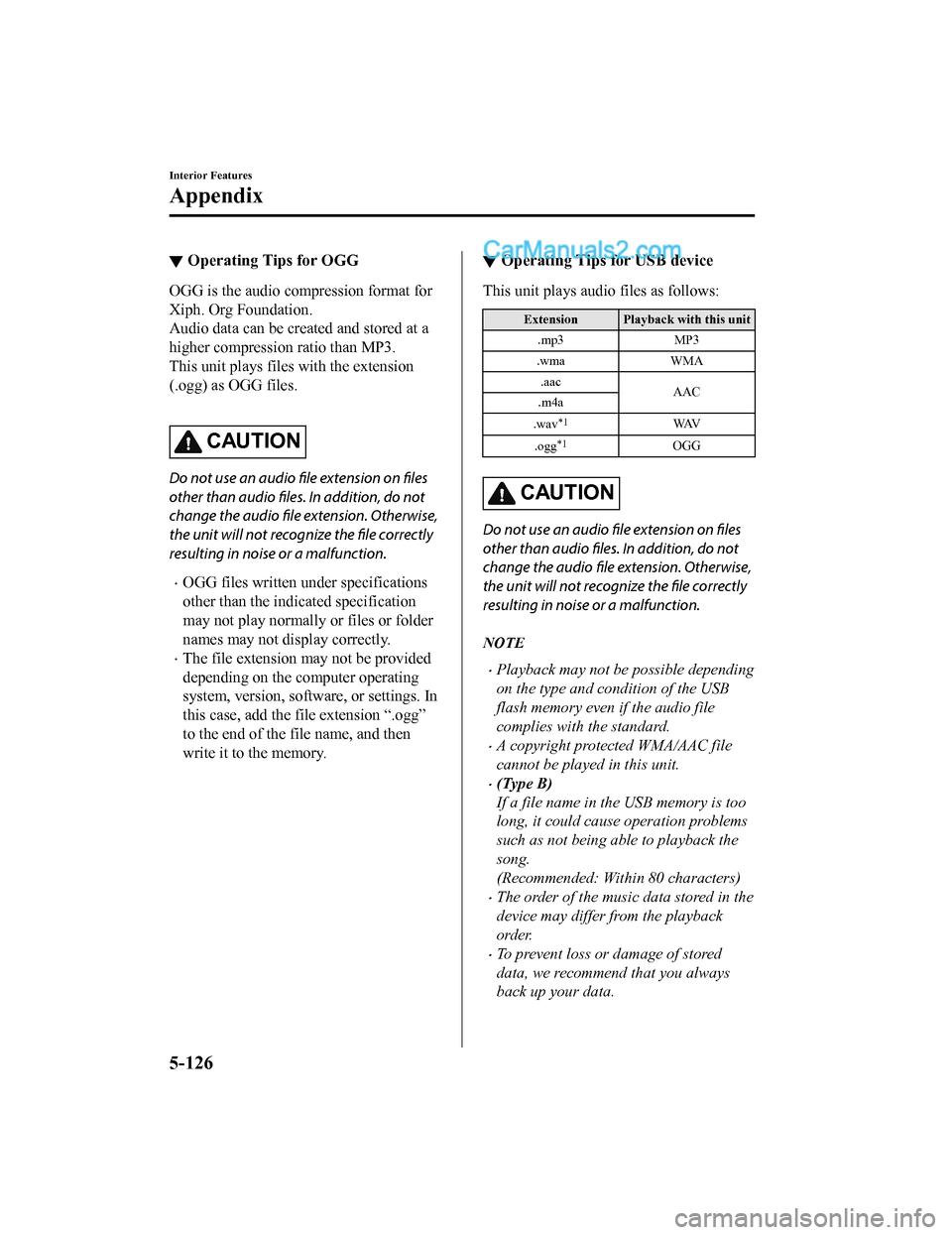

▼Operating Tips for OGG
OGG is the audio compression format for
Xiph. Org Foundation.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays files with the extension
(.ogg) as OGG files.

CAUTION
Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.
•OGG files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
•The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the f
ile extension “.ogg”
to the end of the file name, and then
write it to the memory.
▼ Operating Tips for USB device
This unit plays audio files as follows:
Extension Playback with this unit
.mp3 MP3
.wma WMA
.aac AAC
.m4a
.wav
*1WAV
.ogg
*1OGG
CAUTION
Do not use an audio file extension on
files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.
NOTE
•Playback may not be possible depending
on the type and condition of the USB
flash memory even if the audio file
complies with the standard.
•A copyright protected WMA/AAC file
cannot be played in this unit.
•(Type B)
If a file name in the USB memory is too
long, it could cause operation problems
such as not being able to playback the
song.
(Recommended: Within 80 characters)
•The order of the music data stored in the
device may differ from the playback
order.
•To prevent loss or damage of stored
data, we recommend that you always
back up your data.
Interior Features
Appendix
5-126
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Specifications
▼Engine
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.0
▼Electrical System
Item
Classification
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKY ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate coating on the
iridium alloy and platinum tips could be damaged.
