SignalWarning Page
Master Warning Indication/Warning Light 7-26
Electric Parking Brake (EPB) Warning Indication/Warning Light*17-26
Check Engine Light*17-26
*Selective Catalytic Reduction (SCR) system Warning Indication/Warning
Light*17-26
Automatic Transaxle Wa rning Indication 7-26
*AWD Warning Indication 7-26
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-26
Tire Pressure Monitoring System Warning Light*1
Flashing
7-26
Turns on 7-33
(Amber/White) KEY Warning Indication Amber
7-26
White 7-33
(Amber) High Beam Control System (HBC) Warning Indication/Warning Light
*17-26
Blind Spot Monitoring (BSM) Warning Indication
7-26
(Amber)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) Warning Indication 7-26
*Lane-keep Assist System (LAS)
& Lane Departure Warning System
(LDWS) Warning Indication 7-26
LED Headlight Warning Light*17-26
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning In
‐
dication 7-33
Low Fuel Warnin
g Indication 7-33
Check Fuel Cap Warning Indication/Warning Light*17-33
When Driving
Instrument Cluster and Display
4-42*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning Page
Engine Oil Level Warning Light*17-33
Seat Belt Warning Light (Front seat) 7-33
(Red)Seat Belt Warning Light (Rear seat) 7-33
*Low Washer Fluid Level Warning Indication
7-33
Door-Ajar Warning Indication
7-33
Liftgate-Ajar Warning Indication7-33
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼ Indication/Indicator Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Indicator Page
(Green)Seat Belt Indicator Light (Rear seat) 2-30
*Front Passenger Air Bag Deactivation Indicator Light*12-71
Security Indicator Light*13-47
Wrench Indication
4-46
(Blue)Low Engine Coolant Temperature Indicator Light 4-46
*Glow Indicator Light*14-46
When Driving
Instrument Cluster and Display
*Some models.4-43
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

SignalIndicator Page
*Diesel Particulate Filter Indication 4-260
Shift Position Indication
4-65
Lights-On Indication/Indicator Light 4-74
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-78
Flashing the Headlights 4-78
Turn Signal/Hazard Warning Indicator Lights Turn and
Lane-Change Signals4-81
Hazard Warning Flasher4-89
AUTOHOLD Active Indicator Light*14-104
*Mazda Radar Cruise Control with St op & Go function (MRCC with Stop
& Go function) indicator Light 4-158
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-109
Dynamic Stabili ‐
ty Control (DSC)4-111
Turns on 7-26
*TCS OFF Indicator Light*14-109
*Off-Road Traction Assist Indicator Light*14-112
Select Mode Indication 4-115
(Green)High Beam Control System (HBC) Indicator Light
4-124
When Driving
Instrument Cluster and Display
4-44*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalIndicator Page
Blind Spot Monitoring (BSM) OFF Indicator Light*1
Malfunction
7-26
Except malfunc ‐
tion
4-130
(White)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) Main Indication 4-152
(Green)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) Set Indication 4-152
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Indication 4-164
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) OFF Indicator Light*14-169
*Smart City Brake Support (SCBS) Indication Advanced Smart
City Brake Sup ‐
port (Advanced
SCBS)4-175
Smart City
Brake Support (SCBS)4-178
*Smart Brake Support/Smart City Br ake Support (SBS/SCBS) OFF Indica ‐
tor Light*1
Advanced Smart City Brake Sup ‐
port (Advanced SCBS)4-175
Smart City
Brake Support (SCBS)
4-178
Smart Brake
Support (SBS) System4-184
(White)
*Cruise Main Indication 4-252
(Green)
*Cruise Set Indication4-252
When Driving
Instrument Cluster and Display
*Some models.4-45
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

*1 The light turns on when the ignition is switched on for an operation check, and turns off
a few seconds later or when the engine is sta rted. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.

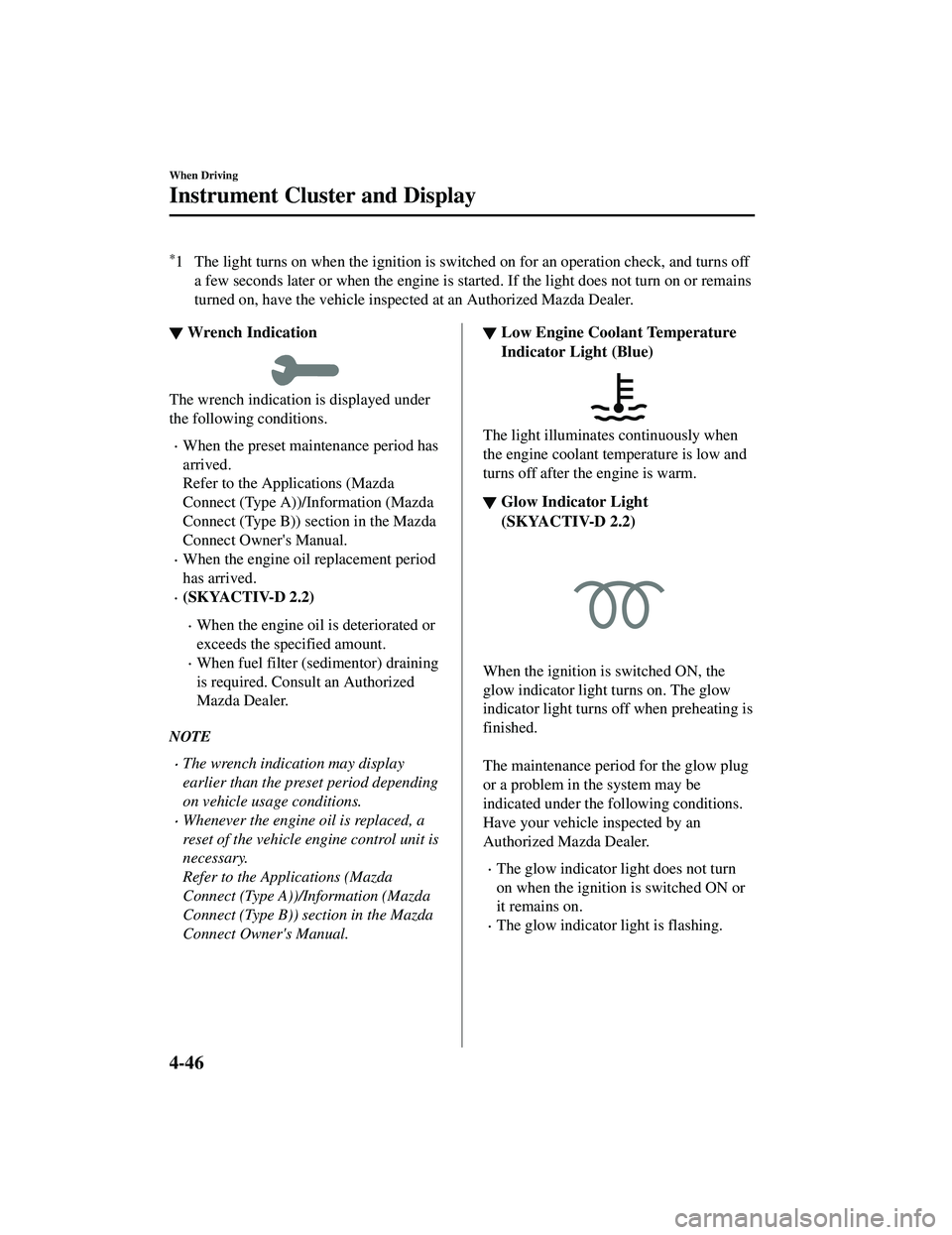

▼ Wrench Indication
The wrench indication is displayed under
the following conditions.
When the preset maintenance period has
arrived.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) s
ection in the Mazda
Connect Owner's Manual.
When the engine oil replacement period
has arrived.
(SKYACTIV-D 2.2)
When the engine oil is deteriorated or
exceeds the specified amount.
When fuel filter (sedimentor) draining
is required. Consult an Authorized
Mazda Dealer.
NOTE
The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) section in the Mazda
Connect Owner's Manual.

▼ Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
▼Glow Indicator Light
(SKYACTIV-D 2.2)
4-46
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

NOTE
If the vehicle is left with the ignition
switched ON without starting the engine
and a long period of time has elapsed
since preheating finished, the preheating
may be performed again and the glow
indicator light may turn on.
When Driving
Instrument Cluster and Display
4-47
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Instrument Cluster (Type C)

ƒSpeedometer.......................................................................................................... page 4-48
„ Tachometer............................................................................................................ page 4-48
… Multi-information Display (Type C)..................... ................................................ page 4-49
† Dashboard Illumination.........................................................................................page 4-52
▼Speedometer
The speedometer indicates the speed of the
vehicle.
▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

STRIPED
ZONE
RED ZONE
*
1The range varies depending on the type
of gauge. *
1
*1
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-48
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

▼Multi-information Display (Type C)
The multi-information display indi
cates the following information.
Odometer
Trip meter
Engine coolant temperature gauge
Fuel gauge
Outside temperature
Trip Computer
Cruise Control Display
Compass Display
▼Odometer, Trip Meter and Trip
Meter Selector
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
When Driving
Instrument Cluster and Display
4-49
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

selector while one of them is displayed.
The selected mode will be displayed.

Dashboard illumination knob
Press the dashboard illumination knob
Press the dashboard illumination knob
Press the dashboard illumination knob
Odometer
Trip meter A
Trip meter B

Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, pressing the
selector again within 1 second will change
to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0” by
depressing and holding the selector for 1
second or more. Use this meter to measure
trip distances and to compute fuel
consumption.
NOTE
If TRIP A is reset using the trip meter
when the function which synchronizes
(resets) the fuel economy monitor and
the trip meter (TRIP A) is on, the fuel
economy data resets in conjunction with
TRIP A.
Refer to the Applications (Mazda
Connect (Type A))/Information (Mazda
Connect (Type B)) section in the Mazda
Connect Owner's Manual.
Only the trip meters record tenths of
kilometers (miles).
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 9999.9 km
(mile).
When Driving
Instrument Cluster and Display
4-50
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

▼Engine Coolant Temperature Gauge
Displays the engine coolant temperature.
The white range of the gauge indicates
that the engine coolant temperature is low,
and the red range of the gauge indicates
that the engine coolant temperature is high
and overheating.

CAUTION
If the engine coolant temperature gauge
needle (white) flashes, there is a possibility
of overheating. Drive slowly to reduce
engine load until you can
find a safe place
to stop the vehicle and wait for the engine
to cool down.
Refer to Overheating on page 7-18.
NOTE
(SKYACTIV-G 2.5T)
If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.
The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with the
temperature unit of the outside
temperature display.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Fuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full
1/4 Full
Empty
If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
If inconsistency in engine performance or
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Refer to Taking Action on page 7-33.
NOTE
After refueling, it may require some time
for the indicator to
stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fuel level in greater
detail.
When Driving
Instrument Cluster and Display
4-51
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53
