MAZDA MODEL CX-5 2021 Owners Manual

Engine Compartment Overview
Windshield washer fluid reservoirEngine oil-filler capBrake fluid reservoir
Engine oil-dipstick Battery
Fuse block
Cooling system cap Engine coolant reservoir
SKYACTIV-G 2.5
Windshield washer fluid reservoir
Engine oil-filler cap
Engine oil dipstick BatteryFuse block
Cooling system cap
Engine coolant reservoir
SKYACTIV-G 2.5T
Brake fluid reservoir
Maintenance and Care
Owner Maintenance
6-20
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Windshield washer fluid reservoir
Engine oil-filler cap
Engine oil dipstick Battery
Cooling system cap
Engine coolant reservoir
SKYACTIV-D 2.2
Brake fluid reservoir
Fuse block
Maintenance and Care
Owner Maintenance
6-21
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Engine Oil
NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
investment.
▼Recommended Oil
U.S.A., Canada
SKYACTIV-G 2.5
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts and
Oil.

(ILSAC)
Only use SAE 0W-20 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
SKYACTIV-G 2.5T
Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 5W-30 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts and
Oil.

(ILSAC)
Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this tradem
ark symbol conforms
to the current engine and emission system
protection standards and fuel economy
Maintenance and Care
Owner Maintenance
6-22
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40

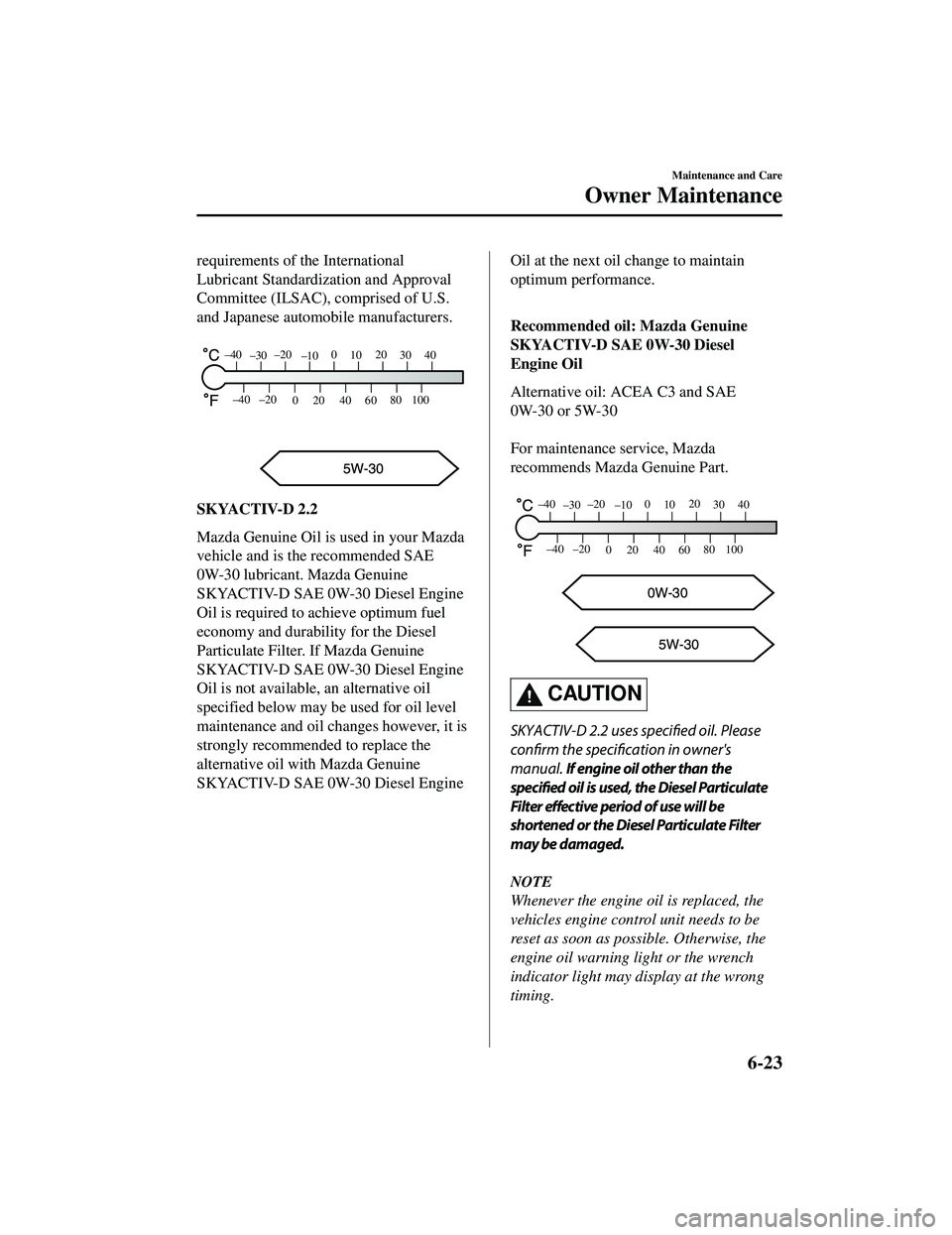

SKYACTIV-D 2.2
Mazda Genuine Oil is used in your Mazda
vehicle and is the recommended SAE
0W-30 lubricant.
Mazda Genuine
SKYACTIV-D SAE 0W-30 Diesel Engine
Oil is required to achieve optimum fuel
economy and durability for the Diesel
Particulate Filter. If Mazda Genuine
SKYACTIV-D SAE 0W-30 Diesel Engine
Oil is not available, an alternative oil
specified below may be used for oil level
maintenance and oil changes however, it is
strongly recommended to replace the
alternative oil with Mazda Genuine
SKYACTIV-D SAE 0W-30 Diesel Engine
Oil at the next oil change to maintain
optimum performance.

Recommended oil: Mazda Genuine
SKYACTIV-D SAE 0W-30 Diesel
Engine Oil
Alternative oil: ACEA C3 and SAE
0W-30 or 5W-30

For maintenance service, Mazda
recommends Mazda Genuine Part.

80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
CAUTION
SKYACTIV-D 2.2 uses specified oil. Please
confirm the specification in owner's
manual.
If engine oil other than the
specified oil is used, the Diesel Particulate
Filter effective period of use will be
shortened or the Diesel Particulate Filter
may be damaged.
NOTE
Whenever the engine oil is replaced, the
vehicles engine control unit needs to be
reset as soon as possible. Otherwise, the
engine oil warning light or the wrench
indicator light may display at the wrong
timing.
Maintenance and Care
Owner Maintenance
6-23
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Refer to the Information section in the
Mazda Connect Owner's Manual for the
details.
Except U.S.A., Canada
SKYACTIV-G 2.5
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.

For maintenance service, Mazda
recommends Mazda Genuine Parts.

(ILSAC)
(Mexico)
80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
SKYACTIV-G 2.5
Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 5W-20
engine oil.

The quality designation SM or SN, or
ILSAC must be on the label.

SKYACTIV-G 2.5T
Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 0W-30
or SAE 10W-30 engine oil.

The quality designation SM or SN, or
ILSAC must be on the label.

▼ Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal operating temperature.
3. Turn it off and wait at least 5 minutes for the oil to retu rn to the oil pan.
4. Pull out the dipstick, wipe it clean, and reinsert it fully.
SKYACTIV-G 2.5 and
SKYACTIV-G 2.5T

MAX
OK
MIN
Maintenance and Care
Owner Maintenance
6-24
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SKYACTIV-D 2.2

MINOK
MAX
X Mark
NOTE
(SKYACTIV-D 2.2)
When inspecting the engine oil level,
pull out the dipstick straight without
twisting. In addition, when inserting
the dipstick, always insert it without
twisting so that the “X” mark faces the
front of the vehicle.
5. Pull it out again and examine the level.
The level is normal if it is between the
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.
CAUTION
Do not overfill the engine oil. This may
cause engine damage.
6. Make sure the O-ring on the dipstick is positioned properly before reinserting
the dipstick.
7. Reinsert the dipstick fully.
NOTE
(SKYACTIV-D 2.2)
Inspect the engine oil level
periodically. When inspecting the
engine oil, if the engine oil level is
exceeds the “X” mark on the dipstick,
replace the engine oil. This should be
done by an Authorized Mazda Dealer.
When replacing the en gine oil, inspect
the oil level using the oil dipstick and
refill so that the engine oil level is
within the range between MIN and
MAX as shown in the figure.
X Mark
MAX
MIN
Maintenance and Care
Owner Maintenance
6-25
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Engine Coolant
▼Inspecting Coolant Level
WA R N I N G
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the engine has
been running, parts of the engine
compartment can become very hot. You
could be burned. Carefully inspect the
engine coolant in the coolant reservoir, but
do not open it.
Pull over to a safe location, then switch
the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.
NOTE
Changing the coolant should be done by
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year ―at the beginning of the
winter season ―and before traveling where
temperatures may drop below freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.
SKYACTIV-G 2.5

Maintenance and Care
Owner Maintenance
6-26
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SKYACTIV-G 2.5T

SKYACTIV-D 2.2

If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
CAUTION
Radiator coolant will damage paint.
Rinse it off quickly if spilled.
If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
6-27
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Brake Fluid
▼Inspecting Brake Fluid Level
WA R N I N G
If the brake fluid level is low, have the
brakes inspected:
A low brake
fluid level is dangerous.
A low level could indica te brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.
Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda Dealer.
Washer Fluid
▼ Inspecting Washer Fluid Level
WA R N I N G
Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer
fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.
Using Washer Fluid Without Anti-freeze
Protection in Cold Weather:
Operating your vehicle in temperatures
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is dangerous
as it could cause impaired windshield
vision and result in an accident. In cold
weather, always use washer fluid with
anti-freeze protection.
NOTE
State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.
Maintenance and Care
Owner Maintenance
6-28
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
L
F
The top of the float should be between F
and L.

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied
from the same reservoir.
Diesel Exhaust Fluid
(DEF)
*
Diesel Exhaust Fluid (DEF) Handling
CAUTION
If DEF gets in your mouth, wash your
mouth with a large amount of water
immediately and seek medical attention.
If DEF is mistakenly swallowed, drink 1 to
2 cups of water i mmediately and seek
medical attention.
 If DEF gets in your eyes, rinse them with
running water immediately and seek
medical attention.
 Do not use DEF when 2 years have
elapsed from the production date
indicated on the container or the use
period has expired. If DEF with an expired
use period is used, the Selective Catalytic
Reduction (SCR) System may not operate
normally.
 Do not store DEF in the vehicle. DEF may
deteriorate or the interior may be
damaged due to
fluid leakage from the
container.
 If DEF gets on the painted surface or the
interior, wash it off with water or wipe it
off with a wet cloth immediately.
Otherwise, it may damage the painted
surface or the interior.
 If DEF crystals form on the painted
surface or the interior, wipe them off with
a wet cloth. Otherwise, it may damage
the painted surface or the interior.
 Store DEF in a place out of the reach of
children.
Maintenance and Care
Owner Maintenance
*Some models.6-29
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53
