Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator ligh ts in the instrument
cluster flash simultaneously.
NOTE
The turn signals do not work when the
hazard warning lights are on.
Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Tiedown eyelet Flat tire hold-down bolt
Jack lever
Lug wrench Spare tire
Jack
Type A
Type B
Spare tire
Tiedown eyelet
Flat tire hold-down bolt
Jack lever
Lug wrench Jack
Some models.
If Trouble Arises
Flat Tire
7-3
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

▼Jack
To remove the jack
1. Open the luggage board, and lift it.
2. Remove the jack.
To secure the jack
Perform the removal procedure in reverse.
Maintenance
Always keep the jack clean.
Make sure the moving parts are kept
free from dirt or rust.
Make sure the screw thread is
adequately lubricated.
▼ Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used fo
r long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tire on
the front wheels (driving wheels):
Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
If Trouble Arises
Flat Tire
7-4
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.
 Do not use a tire chain on this tire
because it will not fit properly.
 Do not use your temporary spare tire
on any other vehicle, it has been
designed only for your Mazda.
 Use only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
1. Open the luggage board, and remove it.
2. For vehicles equipped with asub-woofer, uncouple the connector.
Connector
NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
3. For vehicles equipped with a sub-woofer, loosen the hold-down bolt
and remove the woofer and spare tire.
For vehicles not equipped with a
sub-woofer, turn the spare tire
If Trouble Arises
Flat Tire
7-5
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

hold-down bolt counterclockwise and
remove the spare tire.
Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
Steering becomes difficult.
The vehicle begins to vibrate
excessively.
The vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WA R N I N G
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not done
properly. The vehicle can slip off the jack
and seriously injure someone.
No person should plac e any portion of their
body under a vehicle that is supported by a
jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a vehicle
supported by a jack is dangerous. The
occupant could cause the vehicle to fall
resulting in serious injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the right-of-way and firmly set the parking
brake.
If Trouble Arises
Flat Tire
7-6

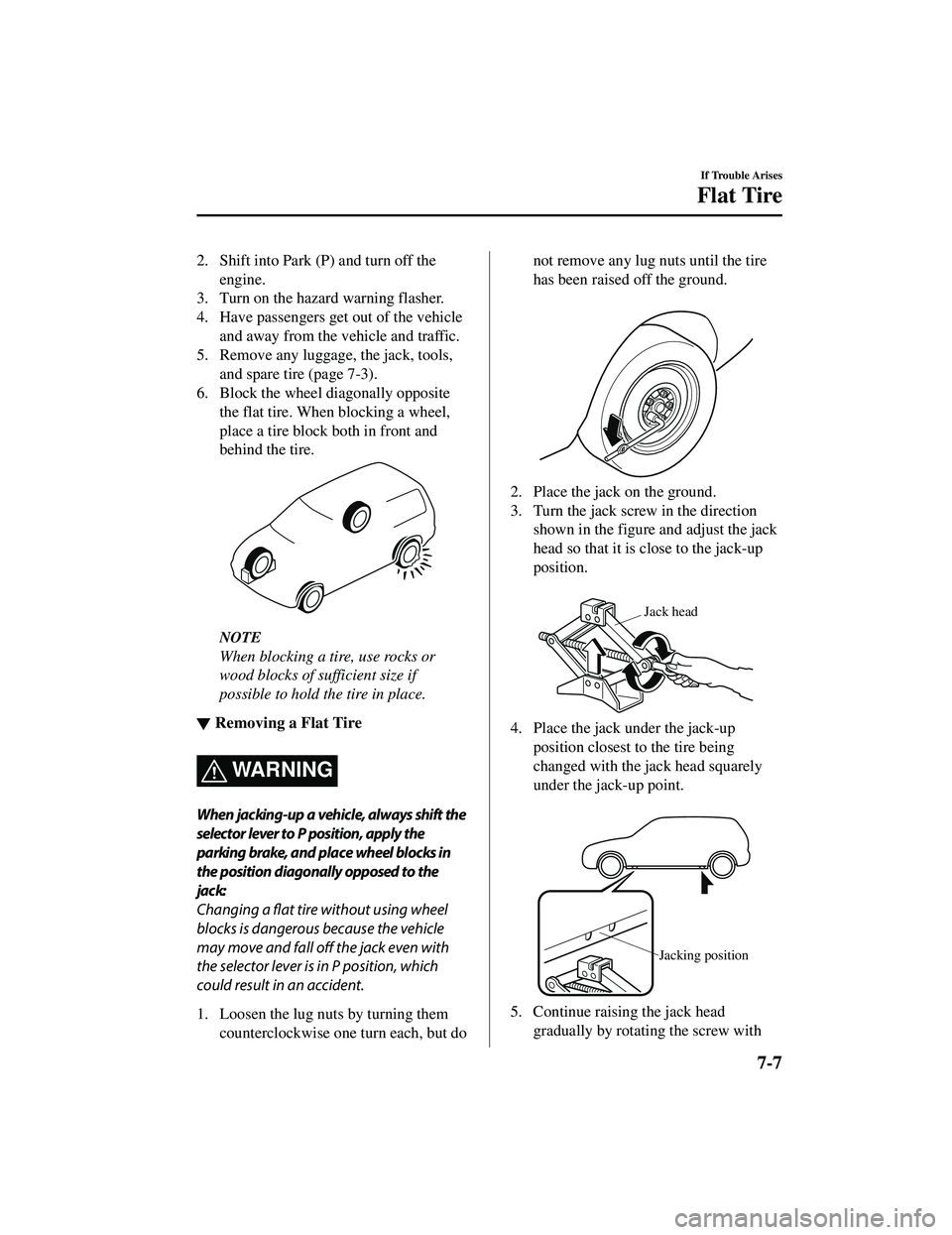

CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

2. Shift into Park (P) and turn off theengine.
3. Turn on the hazard warning flasher.
4. Have passengers get out of the vehicle and away from the vehicle and traffic.
5. Remove any luggage, the jack, tools, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size if
possible to hold the tire in place.
▼Removing a Flat Tire
WARNING
When jacking-up a vehicle, always shift the
selector lever to P position, apply the
parking brake, and place wheel blocks in
the position diagonally opposed to the
jack:
Changing a
flat tire without using wheel
blocks is dangerous because the vehicle
may move and fall off the jack even with
the selector lever is in P position, which
could result in an accident.
1. Loosen the lug nuts by turning them counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

2. Place the jack on the ground.
3. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.

Jack head
4. Place the jack under the jack-upposition closest to the tire being
changed with the jack head squarely
under the jack-up point.

Jacking position
5. Continue raising the jack head
gradually by rotati ng the screw with
If Trouble Arises
Flat Tire
7-7
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

your hand until the jack head is
inserted into the jack-up position.

Tire blocksJacking position
WA R N I N G
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or under
the jack is dangerous as it could deform
the vehicle body or the vehicle could fall
off the jack resulting in an accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
NOTE
When raising the jack head into the
jacking position and aligning the
groove in the jack head with the rail
under the vehicle body, the top of the
jack head contacts the vehicle's
underbody without
the rail contacting
the bottom of the groove.
6. Insert the jack lever and attach the lug wrench to tire jack.

7. Turn the jack handle clockwise andraise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
If Trouble Arises
Flat Tire
7-8
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Mazda is firmly in position and that it
cannot slip or move.

WA R N I N G
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could result
in death or serious injury if the vehicle
were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise; then remove the
wheel and center cap.
▼Locking Lug Nuts
If your vehicle has Mazda optional
antitheft wheel lug nuts, each wheel will
have one locking lug nut that locks the
wheel and tire, and you must use a special
key to unlock the locking lug nut. This key
is stored in the glove compartment.
Register the key and lug nuts with the lock
manufacturer by filling out the card
provided in the glove compartment and
mailing it in the accompanying envelope.
If you lose this key, consult an Authorized
Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. When installing
a spare tire, original lug nut must be used
in place of the wheel lock.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
If Trouble Arises
Flat Tire
7-9
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

To install the antitheft lug nut
1. Place the special key on top of the nut,and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N

5. Use the lug wrench to tighten the nutsin the order shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N
