Headway control is not possible if the vehicle ahead is driving faster than your vehicle's
set speed. Adjust the system to the desired vehicle speed using the accelerator pedal.
How to set the distance-between-ve hicles during headway control
Steering wheel (Type A)
The distance-between-vehicles is set to a shorter distance by pressing the
switch. The
distance-between-vehicles is set to a longer distance by pressing the
switch. The
distance-between-vehicles can be set to 4 leve ls; Long, medium, short, and extremely short
distance.
Steering wheel (Type B)
The distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely
short distance.
The distance-between-vehicles is set to a shorter distance by pressing the
switch. The
distance-between-vehicles is set to a longer distance by pressing the
switch.
Distance-between-vehi ‐
cles guideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information display
Indication on active driv‐
ing display
*1Ty p e A Ty p e B
Long (about 50 m (164
ft))
Medium (about 40 m
(131 ft))
Short (about 30 m (98
ft))
When Driving
i-ACTIVSENSE
4-153
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Distance-between-vehi‐cles guideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information display
Indication on active driv‐
ing display
*1Ty p e A Ty p e B
Extremely short (about
25 m (82 ft))
*1 Displays a pop-up image in the active driving display only when the driver operates the switch.
NOTE
The distance-between-vehicles differs depending on the vehicle speed, and the slower the
vehicle speed, the shorter the distance.
When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance-between-vehicles to the previous setting.
How to change the set vehicle speed
To accelerate/decelerate using the SET
switch
When you press the SET
switch, the
vehicle accelerates and when you press the
SET
switch, it decelerates.
Short press 1 km/h (1 mph)
Long press 10 km/h (5 mph)
NOTE
For example, the set vehicle speed is
changed by pressing the SET switch four
times as follows:
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
To increase speed using accelerator
pedal
Depress the accelerator pedal and press
and release the SET
switch or SET
switch at the desired speed. If the switch is
not operated, the system returns to the set
speed after you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
NOTE
The setting speed can be changed by
operating the SET
switch or SET
switch during stop hold control.
When accelerating using the SET
switch while in headway control, the set
vehicle speed can be adjusted but
acceleration is not possible. If there is
no longer a vehicle ahead, acceleration
continues until reaching the set vehicle
speed. For the set vehicle speed, check
the set vehicle speed indication in the
display.
When Driving
i-ACTIVSENSE
4-154
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

When depressing the accelerator pedal,
the inter-vehicle distance indication in
the display changes to the white-line
indication.
Canceling the system
When the following operations are
performed, the MRCC with Stop & Go
function system is canceled, and the
MRCC with Stop & Go function set
indication (green) switches to the MRCC
with Stop & Go function main indication
(white) at the same time.
The CANCEL switch is pressed.
The brake pedal is depressed.
The parking brake is applied.
The selector lever is in the P (Park), N
(Neutral), or R (Reverse) position.

Under the following conditions, the
MRCC with Stop & Go function cancel
indication is displayed in the
multi-information display and a single
beep sound is heard.
The DSC has operated.
The Smart Brake Support (SBS) has
operated.
The Smart City Brake Support
[Forward] (SCBS F) or Advanced Smart
City Brake Support (Advanced SCBS)
has operated.
When traveling on a downslope for a
long period of time.
There is a problem with the system.
The engine has stalled.
Any of the doors is opened.
The driver's seat belt is unfastened.
The parking brake is automatically
applied during stop hold control.
The radar sensor (front) cannot detect
target objects (during rain, fog, snow or
other inclement weather conditions, or
when the radiator grille is dirty).
Resuming control
If the MRCC with Stop & Go function
system is canceled, you can resume
control at the previously set speed by
pressing the RES switch and after all of
the operation conditions have been met.
NOTE
If the set speed is not indicated in the
display, the control does not resume even
if the RES switch is pressed.
Turning off the system
Press the CANCEL switch 2 times while
the MRCC with Stop & Go function
system is operating to switch off the
system.
When Driving
i-ACTIVSENSE
4-155
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Resume driving information
If you do not resume driving within a few sec onds after the vehicle ahead starts moving, the
multi-information display vehicle-ahead indicat ion flashes to urge the driver to resume
driving.
▼ Cruise Control Function
While this function is operating, the
headway control operation is canceled and
only the cruise contro
l function operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise control function on
expressways and other highways which do
not require a lot of repeated acceleration
and deceleration.
WARNING
Do not use the cruise control function in
the following locations:
Otherwise, it could lead to an accident.
 Roads with sharp curves and where
vehicle traffic is heavy and there is
insufficient space between vehicles.
(Driving under these conditions using the
cruise control function is not possible)
 Steep down slopes (Set speed may be
exceeded because sufficient engine
braking cannot be applied)
 Slippery roads such as ice or snow-bound
roads (Tires could spin causing you to
lose vehicle control)
Always drive carefully:
The warnings and brake control will not
operate after the headway control function
is canceled and the system is switched to
only the cruise control function. Depress
the brake pedal to decelerate according to
the surrounding conditions while keeping a
safer distance from the vehicle ahead and
always driving carefully.
Switching to cruise control function
Steering wheel (Type A)
When the MODE switch is pressed until
the system switches to the cruise main
indication (white) while the MRCC with
Stop & Go function system is turned on,
the system switches to the cruise control
function.
Steering wheel (Type B)
Use Mazda Connect to switch to the cruise
control function.
Refer to the Settings section in the Mazda
Connect Owner's Manual.

When the system switches to the cruise
control function, the indicator and
multi-information display notify the driver
as follows:
The MRCC with Stop & Go function set
indication (green) or the MRCC with
Stop & Go function main indication
(white) is turned off, and the cruise main
indication (white) is turned on.
A message is displayed in the
multi-information display.
When Driving
i-ACTIVSENSE
4-157
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

The illumination of the headlights is weakened because of dirt or the optical axis is
deviated at night.
Back-light is reflected off the road surface or the road surface is wet and shiny after
rain.
The shade of a guardrail parallel to a white (yellow) lane line is cast on the road.
The width of a lane is excessively narrow or wide.
The road is excessively uneven.
The vehicle is shaken after hitting a road bump.
There are various road markings or division lines (lane markings) of various shapes
near an intersection.
The area in front of the forward sensing camera (FSC) is soiled or an object that
obstructs the field of view is installed.
Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
The surroundings are dark such as during the early evening or early morning.
A vehicle ahead with a certain taillight shape.
A vehicle ahead veers off course from your vehicle's line of travel.
A vehicle ahead is driving erratically.
The vehicle is driven on roads with tight curves.

Headway control function
If a vehicle ahead is detected while traveling at a constant speed, the vehicle-ahead
indication is displayed and h eadway control is performed.

Steering assist function
When lane lines are detected, the function assists the driver in keeping the vehicle within the
lane lines. If lane lines are not detected, th e function provides the driver driving assistance
in keeping the vehicle along the motion path with the vehicle ahead.
When Driving
i-ACTIVSENSE
4-163
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

NOTE
Steering assist limit warning
If the steering assist function cannot keep the vehicle within the lane lines while the steering
assist function is operating, a warning sound is activated and a warning is displayed on the
multi-information display to urge the driver to operate the steering wheel.
Displayed on the basic display.
*1: *1
*1
Instrument Cluster (Type A) Instrument Cluster (Type B)
When Driving
i-ACTIVSENSE
4-164
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

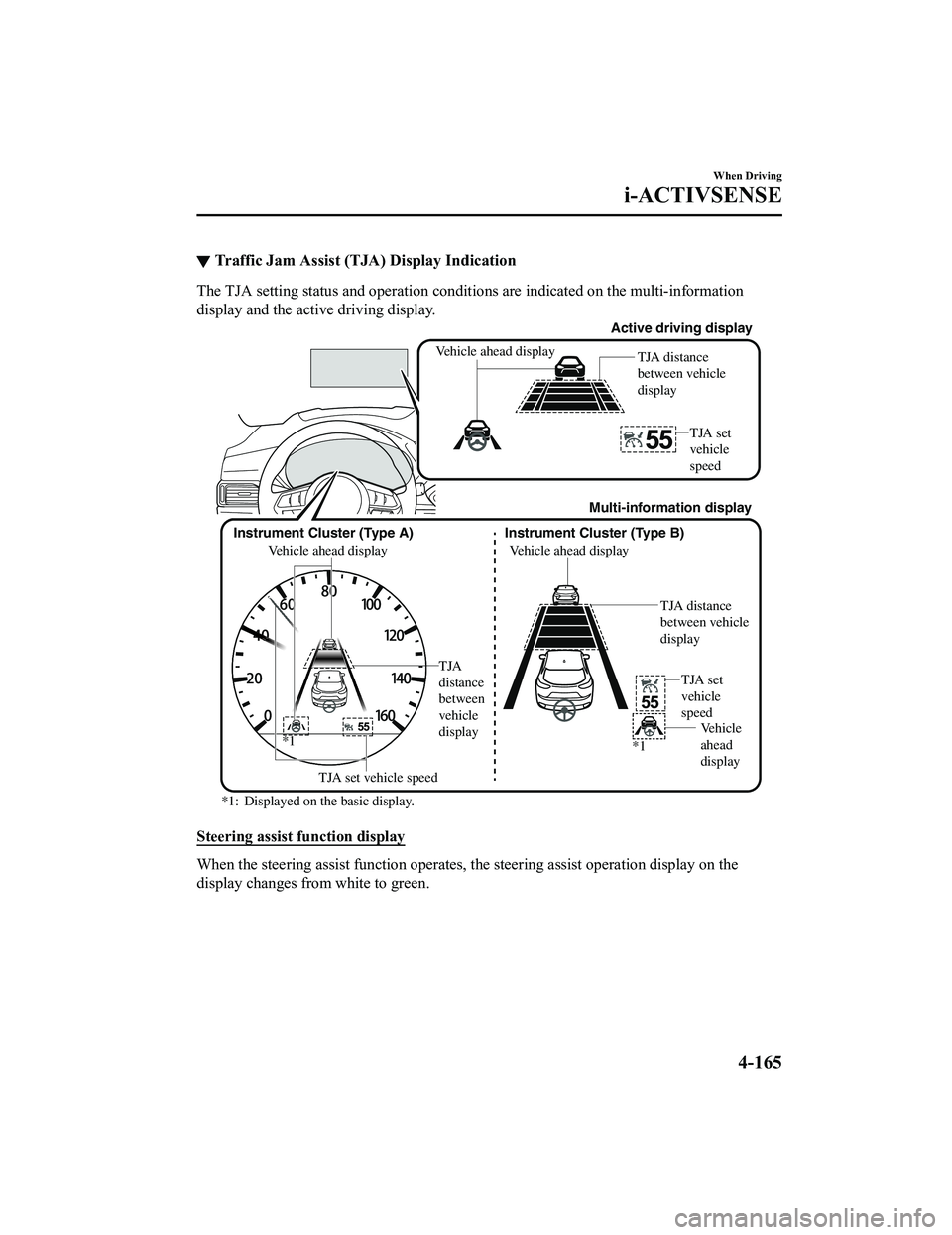

▼Traffic Jam Assist (TJA) Display Indication
The TJA setting status and operation conditi
ons are indicated on the multi-information
display and the active driving display.
TJA distance
between vehicle
display
TJA set
vehicle
speed
Vehicle ahead display
Vehicle ahead display
TJA distance
between vehicle
display
TJA set
vehicle
speed
TJA
distance
between
vehicle
display
TJA set vehicle speed
Vehicle ahead display
Instrument Cluster (Type A) Instrument Cluster (Type B)
Vehicle
ahead
display
Displayed on the basic display.
*1: *1
*1 Active driving display
Multi-information display
Steering assist function display
When the steering assist function operates , the steering assist operation display on the
display changes from white to green.
When Driving
i-ACTIVSENSE
4-165
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Multi-information display
*1*1
Displayed on the basic display.
*1: Instrument Cluster (Type A)
Instrument Cluster (Type B)
Steering assist operation display Steering assist operation display
Active driving display
Steering assist operation display
NOTE
You can view the multi-information display to check whether the steering assist is
performing controls in conjunction with the traffic lane lines or a vehicle ahead.
Inactive
*1
*1
Instrument Cluster (Type A)Instrument Cluster (Type B)
Steering assist operation
display (white)
Displayed on the basic display.
*1: Steering assist operation
display (white)
When Driving
i-ACTIVSENSE
4-166
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Active (vehicle ahead)
*1*1
Instrument Cluster (Type A)Instrument Cluster (Type B)
Steering assist operation
display (green)
Displayed on the basic display.
*1: Steering assist operation
display (green)
Active (lane line)
*1
*1
Instrument Cluster (Type A)Instrument Cluster (Type B)
Steering assist operation
display (green)
Displayed on the basic display.
*1: Steering assist operation
display (green)
If there is a problem with the TJA, a message
is displayed on the display. Check the details
of the problem and then have your vehicle inspected by an Authorized Mazda Dealer.
▼ Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead because the vehicle ahead applies the
brakes suddenly while you are traveling in headway control, the warning sound activates
and the brake warning is indicated in the di
splay. Always verify the safety of the
When Driving
i-ACTIVSENSE
4-167
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

The TJA may not launch directly after the engine starts.

Steering assist function
The steering assist function operates when all of the following conditions are met.
Your vehicle is moving and less than about 56 km/h (35 mph).
White (yellow) lane lines on both sides are detected and you are driving near the center of
the lane, or your vehicle detects a vehicle ahead.
The steering wheel is not turned sharply.
The turn signal lever is not operated.
The headway control function is operating.
The Off-Road Traction Assist is not operating.
When Off-road mode is not selected using Mazda intelligent Drive Select (Mi-Drive).
NOTE
The steering assist function ope rates so that the vehicle remains near the center of the
driving lane, however, depending on conditions such as the road curvature, road slope
and undulations, and vehicle speed, the function might not be able to keep the vehicle
near the center of the driving lane.
Setting method
RES switch
SET- switch
MRCC switch
TJA switch
CANCEL switch
SET+ switch
switch
switch
1. Press the TJA switch.
The TJA standby indication (white) turns on. In addition, the TJA display indication is
displayed on the multi-informati on display at the same time.
(White)
When Driving
i-ACTIVSENSE
4-169
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
