MAZDA MODEL CX-5 2022 Owners Manual

Rinse the wheels thoroughly with
lukewarm or cold water. Also, be sure to
clean the wheels after driving on dusty
or salted roads to help prevent
corrosion.
Avoid washing your vehicle in an
automatic car wash that uses high-speed
or hard brushes.
(19-inch wheel vehicle)
If your aluminum wheels lose luster,
apply wax which contains no polishing
powder.
▼ Plastic Part Maintenance
When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss in
functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.
Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
Maintenance and Care
Appearance Care
6-54
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Interior Care
WARNING
Do not spray water into the vehicle cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as the
audio and switches could get wet resulting
in a malfunction or vehicle fire.
NOTE
Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and gasoline.
Otherwise, it may cause discoloration or
stains.
Rubbing hard with a stiff brush or cloth
may cause damage.
If the vehicle interior becomes soiled by
any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling of
the coating, and it will make it hard to
wipe off later.
Beverage or fragrance
Grease or oil
Soiling
▼ Seat Belt Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
WA R N I N G
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorized Mazda Dealer:
If a seat belt is used under such a condition,
it cannot function at its full capacity which
could result in serious injury or death.
Use a mild detergent to remove soiling
from a seat belt:
If organic solvents are used for cleaning the
seat belts or they become stained or
bleached, there is the possibility of them
becoming weakened and as a result, they
may not function at their full capacity
which could cause serious injury or death.
NOTE
Clean seat belts diligently if they get dirty.
Leaving them uncleaned will make it
difficult to clean them later, and it may
affect the smooth retracting of the seat
belt.
▼Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from
vinyl upholstery
using a leather and vinyl upholstery
cleaner.
▼ Upholstery Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
Maintenance and Care
Appearance Care
6-55
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

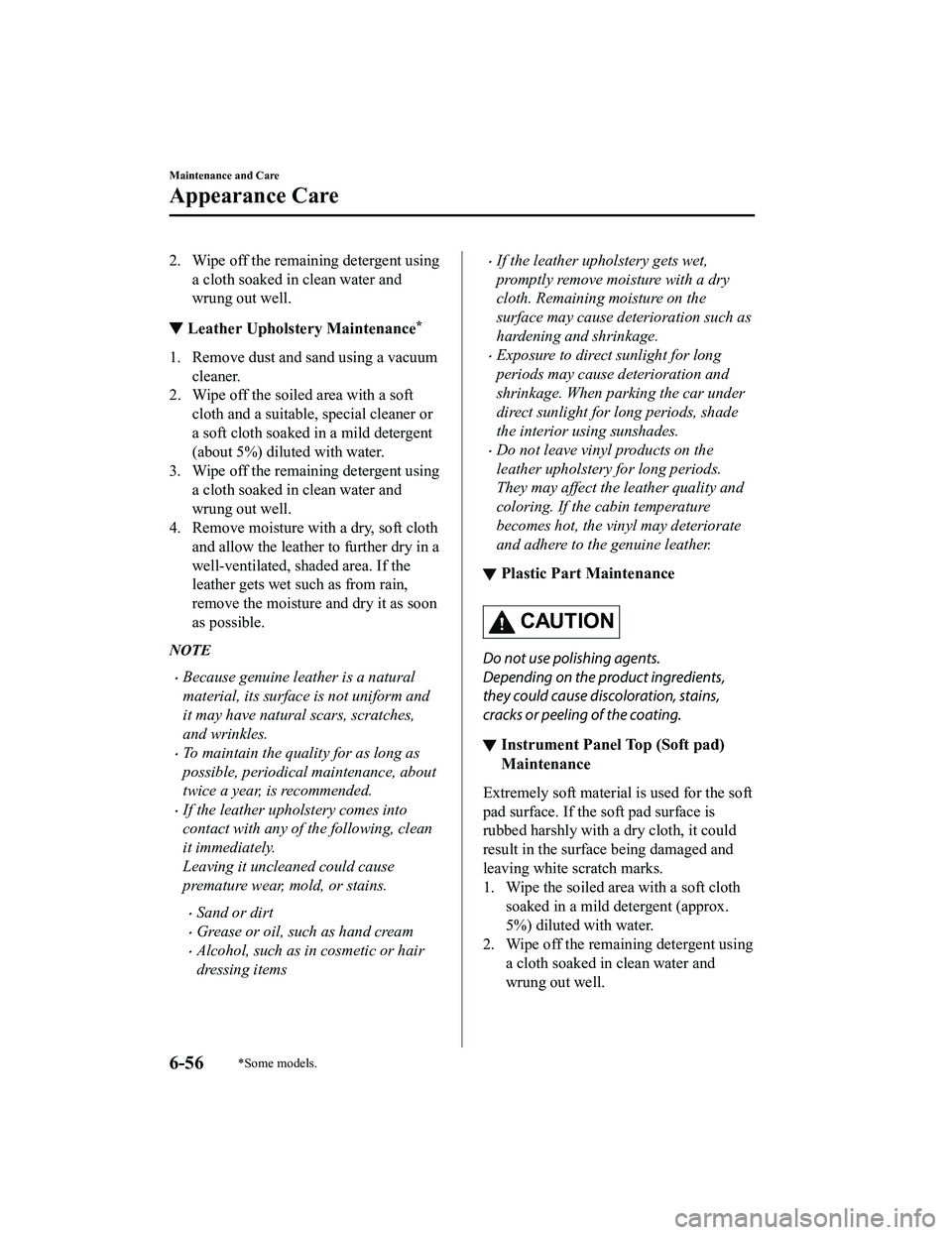

2. Wipe off the remaining detergent usinga cloth soaked in clean water and
wrung out well.
▼Leather Upholstery Maintenance*
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth and allow the leather to further dry in a
well-ventilated, shaded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.
NOTE
Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.
Sand or dirt
Grease or oil, such as hand cream
Alcohol, such as in cosmetic or hair
dressing items
If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.
Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality and
coloring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.
▼Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.
▼Instrument Panel Top (Soft pad)
Maintenance
Extremely soft material is used for the soft
pad surface. If the soft pad surface is
rubbed harshly with a dry cloth, it could
result in the surface being damaged and
leaving white scratch marks.
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
Maintenance and Care
Appearance Care
6-56*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled ar
ea with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Active Driving Display
Maintenance*
The dust-proof sheet has a coating. When
cleaning, do not use a hard or
rough-surface cloth, or cleaning detergent.
In addition, if a chem
ical solvent gets on
the active driving disp lay, wipe it off
immediately. The dust-proof sheet could
be damaged and the surface coating could
be scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning the
dust-proof sheet is recommended.
▼ Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow th
e directions on the
container.
CAUTION
 Do not scrape or scratch the inside of the
window glass. It could damage the
thermal filaments and the antenna lines.
 When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal
filaments and the antenna lines.
Use of glass cleaning products could
damage the thermal filaments and the
antenna lines.
▼ Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WA R N I N G
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning rubber
floor mats:
Cleaning the rubber
floor mats with rubber
cleaning products makes the floor mats
slippery.
This may cause an accident when
depressing the accelerator or brake pedal
or when getting in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them securely
(page 3-47).
Maintenance and Care
Appearance Care
*Some models.6-57
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

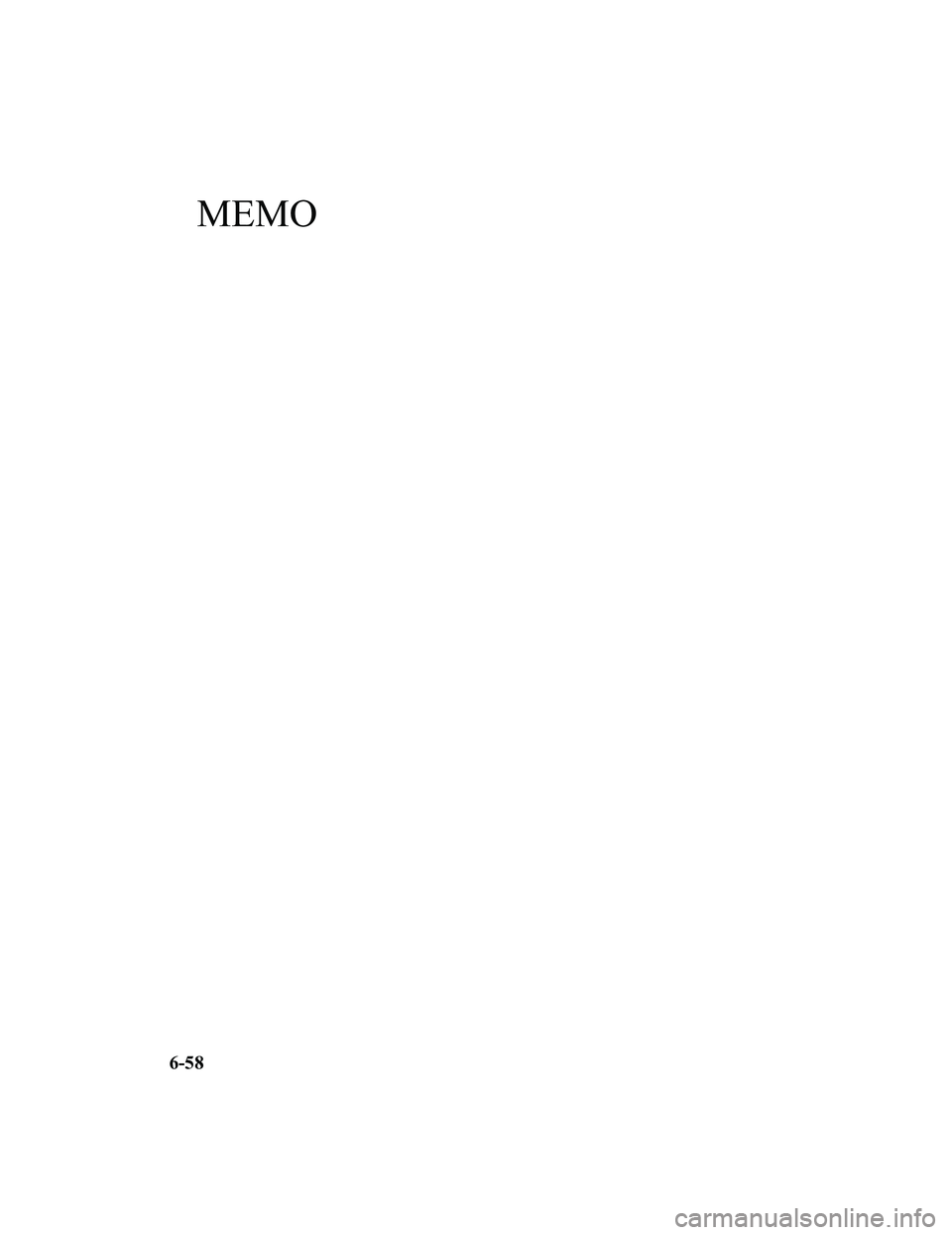

MEMO
6-58
CX-5_8KN5-EA-21K_Edition1_old2021-9-9 8:35:12

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-6
Battery Runs Out............................ 7-13 Jump-Starting............................. 7-13
Emergency Starting.........................7-16 Starting a Flooded Engine.......... 7-16
Push-Starting.............................. 7-16
Overheating......................................7-17 Overheating................................ 7-17
Emergency Towing.......................... 7-19 Towing Description.................... 7-19
Tiedown Hooks
*......................... 7-20
Warning/Indicator Lights and
Warning Sounds.............................. 7-22If a Warning Light Turns On or
Flashes........................................ 7-22
Message Indicated on Multi-
information Display
*.................. 7-37
Message Indicated on Display
*..........
.................................................... 7-39
Warning Sound is Activated....... 7-41
When Liftgate Cannot be
Opened..............................................7-46 When Liftgate Cannot be
Opened........................................7-46
Active Driving Display Does Not
Operate............................................. 7-47 If the Active Driving Display Does
Not Operate................................ 7-47
*Some models.7-1
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator ligh ts in the instrument
cluster flash simultaneously.
NOTE
The turn signals do not work when the
hazard warning lights are on.
Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
If Trouble Arises
Parking in an Emergency
7-2
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Jack leverLug wrench
Type A
Type B
Spare tire
Some models.
Jack lever Lug wrench
Jack
Tiedown eyelet
Tiedown eyelet
Spare tire
Flat tire hold-down
bolt
Flat tire hold-down
bolt
Jack
If Trouble Arises
Flat Tire
7-3
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Jack
To remove the jack
1. Open the luggage board, and lift it.
2. Remove the jack.
To secure the jack
Perform the removal procedure in reverse.
Maintenance
Always keep the jack clean.
Make sure the moving parts are kept
free from dirt or rust.
Make sure the screw thread is
adequately lubricated.
▼ Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used fo
r long drives or
extended periods.
WA R N I N G
Do not install the temporary spare tire on
the front wheels (driving wheels):
Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.
CAUTION
 When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.
 To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:
 Do not exceed 80 km/h (50 mph).
If Trouble Arises
Flat Tire
7-4
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.
 Do not use a tire chain on this tire
because it will not fit properly.
 Do not use your temporary spare tire
on any other vehicle, it has been
designed only for your Mazda.
 Use only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
1. Open the luggage board, and remove it.
2. For vehicles equipped with asub-woofer, uncouple the connector.
Connector
NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.
3. For vehicles equipped with a sub-woofer, loosen the hold-down bolt
and remove the woofer and spare tire.
For vehicles not equipped with a
sub-woofer, turn the spare tire
If Trouble Arises
Flat Tire
7-5
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
