MAZDA MODEL CX-5 2022 Owners Manual

Maintenance IntervalNumber of months or kilometers, whichever comes first
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95 100 105 110 115 120
Bolts and nuts on chassis and body TTT
Exhaust system and heat shields II I
All locks and hinges LLLLLL
Washer fluid level IIIIII
Emergency flat tire repair kit (if equipped)
*4Inspect annually.
Cabin air filter R R R
Chart symbols:
I: Inspect: Inspect and clean, repair, ad just, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1 Reset the engine oil data whenever replacing the engi ne oil regardless of the message/wrench indicator light
display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and fede ral regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recomme nds that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*4 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Maintenance and Care
Scheduled Maintenance
6-14
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.

Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
When Refueling
Brake fluid level (page 6-24)
Engine coolant level (page 6-22)
Engine oil level (page 6-21)
Washer fluid level (page 6-24)
At Least Monthly
Tire inflation pressures (page 6-35)
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical ability
and a few basic tools and if you closely follow the directions in this manual.
Engine coolant (page 6-22)
Engine oil (page 6-20)

Improper or incomplete service may result in problems. Th is section gives instructions only
for items that are easy to perform.

As explained in the Introduc tion (page 6-2), several procedures can be done only by a
qualified service technician with special tools.

Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2) for owner' s responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.

There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.

We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Maintenance and Care
Owner Maintenance
6-15
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

WA R N I N G
Do not perform maintenance work if you lack sufficient knowledge and experience or the
proper tools and equipment to do the work. Have maintenance work done by a qualified
technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you remove all
jewelry (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and
similar loose clothing before getting near the engine or cooling fan which may turn on
unexpectedly:
Working under the hood with the engine ru nning is dangerous. It becomes even more
dangerous when you wear jewelry, loose clot hing or have long hair or a long beard.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is runn ing is dangerous. The fan could continue running
indefinitely even if the engine has stopped and the engine compartment temperature is high.
You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do not forget
and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine co mpartment could cause engine damage or a
fire
leading to an unexpected accident.
Maintenance and Care
Owner Maintenance
6-16
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Hood
WARNING
Always check that the hood is closed and
securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly open
while the vehicle is moving and block the
driver's vision which could result in a
serious accident.
▼Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.

Release handle
2. Insert your hand into the hood
opening, slide the latch lever to the
right, and lift up the hood.

Lever
3. Grasp the support rod in the paddedarea and secure it in the support rod
hole indicated by the arrow to hold the
hood open.

Pad
Support rod
▼Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on the support rod, and secure the support
rod in the clip. Verify that the support
Maintenance and Care
Owner Maintenance
6-17
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

rod is secured in the clip before closing
the hood.

ClipClipClip
3. Lower the hood slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
Maintenance and Care
Owner Maintenance
6-18
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Engine Compartment Overview
Windshield washer fluid reservoirEngine oil-filler capBrake fluid reservoir
Engine oil-dipstick Battery
Fuse block
Cooling system cap Engine coolant reservoir
SKYACTIV-G 2.5
Windshield washer fluid reservoir
Engine oil-filler cap
Engine oil dipstick BatteryFuse block
Cooling system cap
Engine coolant reservoir
SKYACTIV-G 2.5T
Brake fluid reservoir
Maintenance and Care
Owner Maintenance
6-19
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Engine Oil
NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
investment.
▼Recommended Oil
U.S.A., Canada
SKYACTIV-G 2.5
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Genuine Mazda Parts and
Genuine Mazda Premium Oil.

(ILSAC)
Only use SAE 0W-20 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
SKYACTIV-G 2.5T
Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 5W-30 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Genuine Mazda Parts and
Genuine Mazda Premium Oil.

(ILSAC)
Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this tradem
ark symbol conforms
to the current engine and emission system
protection standards and fuel economy
Maintenance and Care
Owner Maintenance
6-20
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

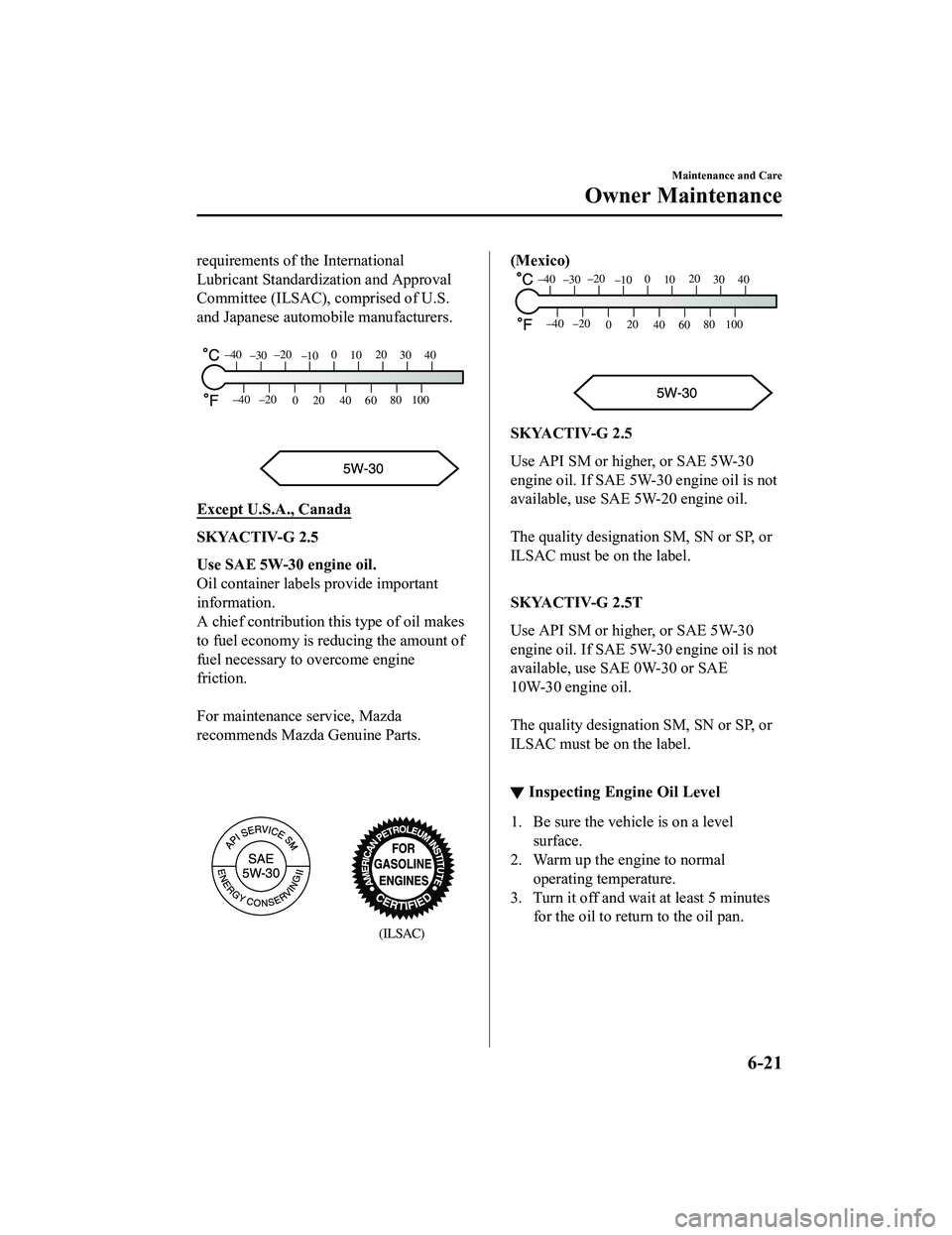

requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
Except U.S.A., Canada
SKYACTIV-G 2.5
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.

For maintenance service, Mazda
recommends Mazda Genuine Parts.

(ILSAC)
(Mexico)
80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
SKYACTIV-G 2.5
Use API SM or higher, or SAE 5W-30
engine oil. If SAE 5W-30 engine oil is not
available, use SAE 5W-20 engine oil.

The quality designation SM, SN or SP, or
ILSAC must be on the label.

SKYACTIV-G 2.5T
Use API SM or higher, or SAE 5W-30
engine oil. If SAE 5W-30 engine oil is not
available, use SAE 0W-30 or SAE
10W-30 engine oil.

The quality designation SM, SN or SP, or
ILSAC must be on the label.

▼ Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal operating temperature.
3. Turn it off and wait at least 5 minutes for the oil to retu rn to the oil pan.
Maintenance and Care
Owner Maintenance
6-21
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

4. Pull out the dipstick, wipe it clean, andreinsert it fully.

MAX
OK
MIN
5. Pull it out again and examine the level. The level is normal if it is between the
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.
CAUTION
Do not overfill the engine oil. This may
cause engine damage.
6. Make sure the O-ri ng on the dipstick is
positioned properly before reinserting
the dipstick.
7. Reinsert the dipstick fully.
Engine Coolant
▼ Inspecting Coolant Level
WA R N I N G
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the engine has
been running, parts of the engine
compartment can become very hot. You
could be burned. Carefully inspect the
engine coolant in the coolant reservoir, but
do not open it.
Pull over to a safe location, then switch
the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.
Maintenance and Care
Owner Maintenance
6-22
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

NOTE
Changing the coolant should be done by
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season ―and before traveling where
temperatures may drop below freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.
SKYACTIV-G 2.5

SKYACTIV-G 2.5T

If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it off quickly if spilled.
 If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
6-23
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
