qTo Resume Cruising Speed at
More Than 30 km/h (19 mph)
If some other method besides the ON/
OFF switch was used to cancel cruising
speed and the system is still activated, the
most recent set speed will automatically
resume when the cruise control switch
pulled up.
If vehicle speed is below 30 km/h (19
mph), increase the vehicle speed up to 30
km/h (19 mph) and pull up the cruise
control switch.
Cruise
control
switch
qTo Cancel
To turn off the system, useoneof these
methods:
lPress the ON/OFF switch.
lSlightly depress the brake pedal.
lPress the CANCEL button.
The system is off when the ignition is off.
NOTE
Cruise control will cancel at about 15
km/h (9 mph) below the preset speed or
below 30 km/h (19 mph).
Driving Your Mazda
Starting and Driving
5-21
CX-7_8V28-EA-06B_Edition2 Page177
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 189 of 406

Black plate (189,1)
NOTE
l(Standard meter)
The odometer and trip meter can be
displayed as follows even when the
ignition switch is in the ACC or
LOCK position.
lDisplays for 10 minutes after the
ignition switch is turned to the
ACC or LOCK position from the
ON position.
lDisplays for 10 minutes after the
driver's door is opened.
l(Black-out meter)
When the ignition switch is in the
ACC or LOCK position, the
odometer or trip meters cannot be
displayed, however, pressing the
selector button can inadvertently
switch the trip meters or reset them
during an approximate ten-minute
period in the following cases:
lAfter the ignition switch is turned
to the ACC or LOCK position
from the ON position.
lAfter the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:
lThe power supply is interrupted
(blown fuse or the battery is
disconnected).
lThe vehicle is driven over 999.9
km (mile).
Driving Your Mazda
Instrument Cluster and Indicators
5-33
CX-7_8V28-EA-06B_Edition2 Page189
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 203 of 406

Black plate (203,1)
NOTE
The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-20).
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-47
CX-7_8V28-EA-06B_Edition2 Page203
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 205 of 406

Black plate (205,1)
NOTE
If the battery is disconnected or a fuse is
replaced, the DSC will be inoperable.
When this happens, the TCS OFF
indicator light flashes and the TCS/DSC
indicator light illuminates.
To reactivate the DSC operable, do the
following procedure with the battery
connected.
1. Turn the ignition switch to the ON
position.
2. Turn the steering clockwise fully,
then turn it counterclockwise fully.
3. Make sure the TCS OFF indicator
turns off.
4. Turn the ignition switch to the OFF
position, then turn it to the ON
position again.
5. Make sure the TCS/DSC indicator
light turns off.
If the TCS/DSC indicator light and the
TCS OFF indicator light remain
illuminated even after turning the
ignition switch to the ON position,
consult an Authorized Mazda Dealer.
qCruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
The indicator light has two colors.
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the ON/OFF switch is pressed and
the cruise control system is activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
qLight-On Indicator Light
This indicator light comes on when the
exterior lights and dashboard illumination
are on.
qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-55).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-59).
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-49
CX-7_8V28-EA-06B_Edition2 Page205
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 210 of 406

Black plate (210,1)
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull back to original position for low
beam.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.
qHeadlight Levelingí
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The headlight leveling switch adjusts this
angle.
Select the proper setting from the following chart.
Front seat
Rear
seatLoadSwitch
Position
Driver Passenger
×―――0
××――0
×× ×―1
×× ×× 2
×――×3
×: Yes
―:No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
5-54
Driving Your Mazda
íSome models.
Switches and Controls
CX-7_8V28-EA-06B_Edition2 Page210
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 211 of 406

Black plate (211,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the
position.
The headlight switch must be in the
position to turn on the front fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the headlight switch is in the
AUTO position, the front fog lights
can be turned on when the
headlights, the exterior lights and
dashboard illumination are on.
Driving Your Mazda
Switches and Controls
5-55íSome models. CX-7_8V28-EA-06B_Edition2 Page211
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 213 of 406

Black plate (213,1)
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.
INT ring
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-20). If it's OK, consult
an Authorized Mazda Dealer.
Rear Window Wiper and
Washer
The ignition switch must be in the ON
position.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON―Normal
INT―Intermittent
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer doesn't work, inspect the
fluid level (page 8-20). If it's OK and the
washer still doesn't work, consult an
Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-57
CX-7_8V28-EA-06B_Edition2 Page213
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 217 of 406

Black plate (217,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí........................................................... 6-11
Audio System ............................................................................... 6-16
Antenna ................................................................................... 6-16
Operating Tips for Audio System ........................................... 6-16
Audio Set ................................................................................ 6-27
Audio Control Switch Operation (Steering Wheel)
í............. 6-45
Safety Certification ................................................................. 6-48
Interior Equipment ..................................................................... 6-49
Sunvisors ................................................................................. 6-49
Interior Lights ......................................................................... 6-50
Information Display ................................................................ 6-52
Cup Holder .............................................................................. 6-54
Bottle Holder ........................................................................... 6-55
Storage Compartments ............................................................ 6-56
Accessory Sockets .................................................................. 6-57
6-1íSome models.
CX-7_8V28-EA-06B_Edition2 Page217
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 223 of 406

Black plate (223,1)

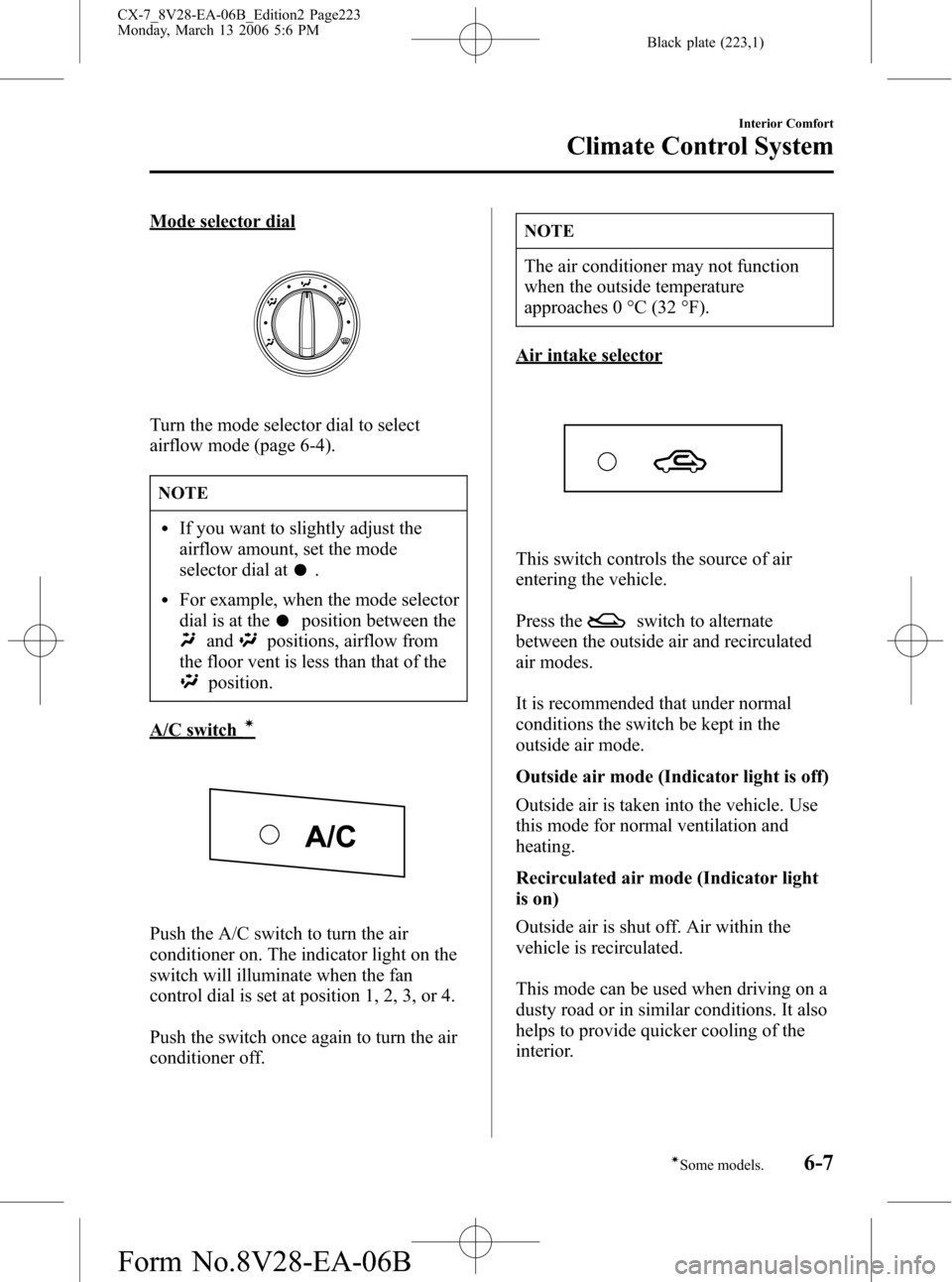

Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
NOTE
lIf you want to slightly adjust the
airflow amount, set the mode
selector dial at
.
lFor example, when the mode selector
dial is at the
position between the
andpositions, airflow from
the floor vent is less than that of the
position.
A/C switchí
Push the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan
control dial is set at position 1, 2, 3, or 4.
Push the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Air intake selector
This switch controls the source of air
entering the vehicle.
Press the
switch to alternate
between the outside air and recirculated
air modes.
It is recommended that under normal
conditions the switch be kept in the
outside air mode.
Outside air mode (Indicator light is off)
Outside air is taken into the vehicle. Use
this mode for normal ventilation and
heating.
Recirculated air mode (Indicator light
is on)
Outside air is shut off. Air within the
vehicle is recirculated.
This mode can be used when driving on a
dusty road or in similar conditions. It also
helps to provide quicker cooling of the
interior.
Interior Comfort
Climate Control System
6-7íSome models. CX-7_8V28-EA-06B_Edition2 Page223
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
Page 224 of 406

Black plate (224,1)
WARNING
Do not use the recirculated air mode
in cold or rainy weather:
Using the recirculated air mode in
cold or rainy weather is dangerous as
it will cause the windows to fog up.
Your vision will be hampered, which
could lead to a serious accident.
qHeating
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
hot position.
3. Set the fan control dial to the desired
speed.
NOTE
lIf the windshield fogs up easily, set
the mode selector dial to the
position.
lIf cooler air is desired at face level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
lThe air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
lIn the,,orposition, the
air conditioner is automatically
turned on (however, the indicator
light does not illuminate) and the
outside air mode is automatically
selected to defrost the windshield.
In the
orposition, the outside
air mode cannot be changed to the
recirculated air mode.
qCooling (With Air Conditioner)í
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. Adjust the fan control dial and
temperature control dial to maintain
maximum comfort.
6-8
Interior Comfort
íSome models.
Climate Control System
CX-7_8V28-EA-06B_Edition2 Page224
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
