73
Audio Operation
nRadio ON
Press a band selector button (FM/AM) to turn the radio on.
nBand selection
Successively pressing the band selector button (FM/AM) switches the bands as follows:
FM1 FM2 AM.
The selected mode will be indicated. If FM stereo is being received, STEREO will be dis-
played.

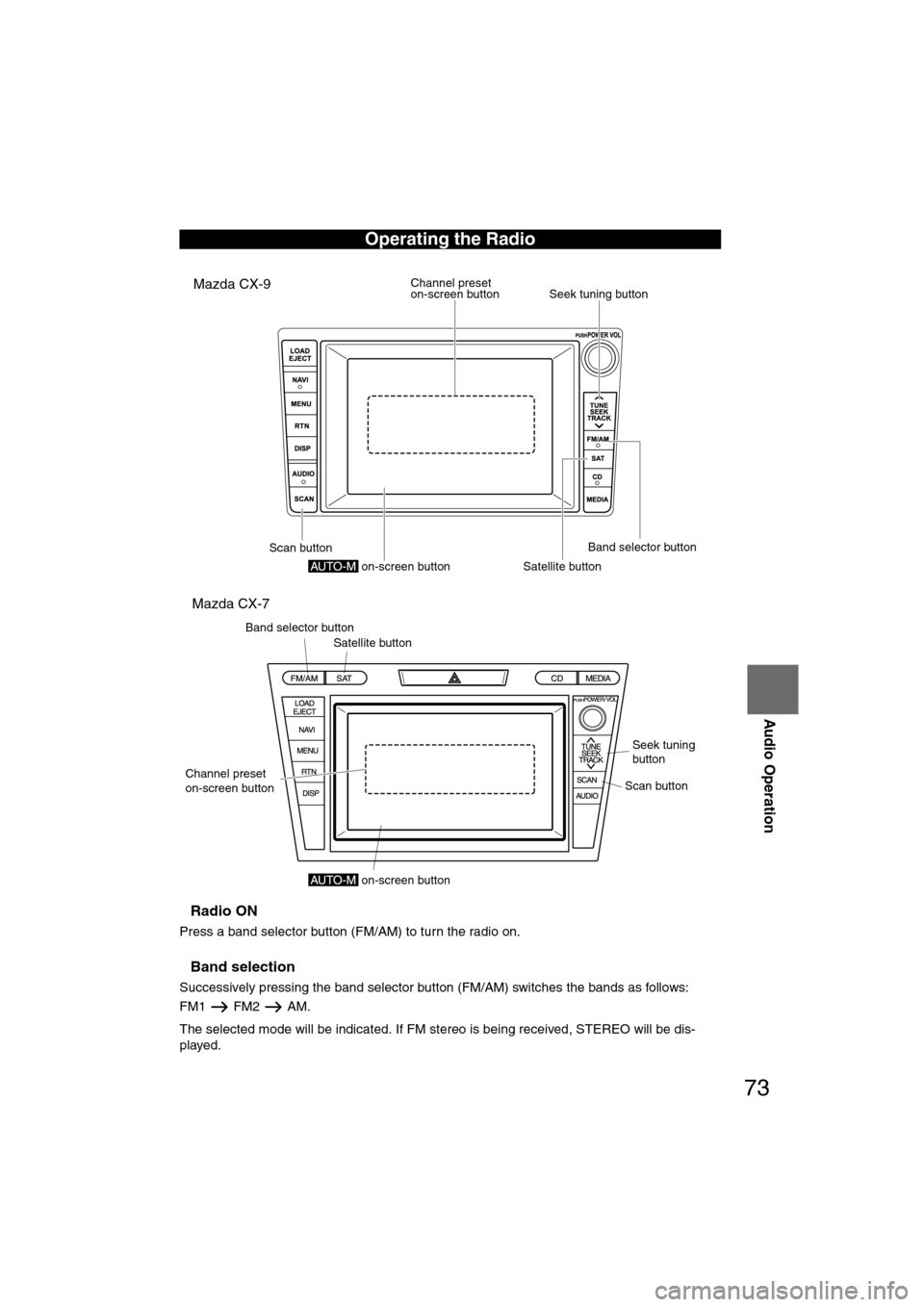

Operating the Radio
Channel preset
on-screen button Mazda CX-9Seek tuning buttonBand selector button
Satellite button
on-screen button
Scan button
on-screen button
Band selector button
Mazda CX-7
Satellite button
Channel preset
on-screen button Seek tuning
button
Scan button
'<C)%FSSO4EKI8LYVWHE]1EVGL41

74
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nTu n i n g
The radio has the following tuning methods: Manual, Seek, Scan, Preset channel, and Auto
memory tuning. The easiest way to tune stations is to set them on preset channels.
Note
l
If the FM broadcast signal becomes weak, reception automatically changes from STEREO
to MONO for reduced noise, and the STEREO indicator will go out.
l To clear the information, press the NAVI button.
l If the power supply is interrupted (fuse blows or the battery is disconnected), the preset
channels will be canceled.
nManual tuning
Pressing the seek tuning button will change the frequency higher or lower.
nSeek tuning
Pressing and holding the seek tuning button ( , ) will cause the tuner to seek a higher
or lower frequency automatically.
Note
If you continue to press and hold the button, the frequency will continue changing without
stopping.
nScan tuning
Press the (SCAN) button to automatically sample strong stations.
Scanning stops at each station for about 5 seconds. To hold a station, press the (SCAN)
button again during this interval.
nPreset channel tuning
The 8 preset channels can be used to store 8 AM and 16 FM stations.
1. To set a channel first select AM, FM1, or FM2. Tune to the desired station.
2.Select any channel preset on-screen button for about 2 seconds until a beep sound is
heard. The selected preset channel number and station frequency will be displayed. The
station is now held in the memory.
3.Repeat this operation for the other stations and bands you want to store. To tune one in the memory, select AM, FM1, or FM2 and then press its channel preset button. The station
frequency and the channel number will be displayed.
Note
If the power supply is interrupted (fuse blows or the battery is disconnected), the preset
channels will be canceled.
'<C)%FSSO4EKI8LYVWHE]1EVGL41

75
Audio Operation
nAuto memory tuning
This is especially useful when driving in an area where the local stations are not known. Addi-
tional AM/FM stations can be stored without disturbing the previously set channels.
Select and hold the on-screen button for about 2 seconds until a beep sound is heard;
the system will automatically scan and temporarily store up to 8 stations with the strongest
frequencies in each selected band in that area.
nAudio Sound Adjustment
Refer to “Power/Volume/Sound Controls”.
nSatellite Radio (SAT)
Vehicles equipped with the separately purchased SIRIUS digital satellite radio unit have the
ability to receive up to 100 channels of digital quality programming coast to coast via satellite.
For information on use, read the Satellite Radio Kit manual accompanying the SIRIUS digital
satellite radio unit. A subscription to SIRIUS digital satellite radio service is required (available
in the U.S. - Except Alaska and Hawaii) to enable this feature once the separately purchased
SIRIUS digital satellite radio unit has been installed. For subscription information or digital
satellite radio technical issues contact SIRIUS directly at:
-Web: www.siriusradio.com
-Phone (24 hrs/day, 7 days/week): 888-539-SIRI (7474)
-E-mail: [email protected]
-Mailing Address: Sirius Satellite Radio
1221 Avenue Of The Americas
New York, NY 10020
Attention: Customer Care
Include your Sirius Radio ESN (Electronic Serial Number) when subscribing or requesting
technical assistance. See the Satellite Radio Kit manual accompanying the SIRIUS unit for
complete satellite radio activation procedures and information on how to display the ESN#.
'<C)%FSSO4EKI8LYVWHE]1EVGL41

82
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
Adjusting the Volume
To increase the volume, pull up the volume switch.
To decrease the volume, press down the volume switch.
Changing the Source
Press the mode switch (MODE) to change the audio source (FM1 radio > FM2 radio >
AM radio > CD changer > SIRIUS > cyclical).
Seek Switch
When listening to the radio
Pull up or press down the seek switch, the radio switches to the next/previous stored station
in the order that it was stored (1-6).
Pull up or press down the seek switch for about 2 seconds until a beep sound is heard to seek
all usable stations at a higher or lower frequency whether programmed or not.
When playing a CD
Pull up the seek switch to skip to the next track.
Press down the seek switch to repeat the current track.
'<C)%FSSO4EKI8LYVWHE]1EVGL41

83
Audio Operation
nSafety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Note
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasona-
ble protection against harmful interference in a residential installation. This equipment gener-
ates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.l
This CD player should not be adjusted or repaired by anyone except
qualified service personnel.
If servicing is required, contact an Authorized Mazda Dealer.
l Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous laser exposure. Never
operate the CD player with the top case of the unit removed.
l Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Cautions
'<C)%FSSO4EKI8LYVWHE]1EVGL41

92
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Bluetooth Hands-Free (Mazda CX-9 only)
Bluetooth Hands-Free
If the Bluetooth Hands-Free is operated, information such as radio wave reception conditions
of the Bluetooth Hands-Free are displayed on the screen. For details, refer to the "Bluetooth
Hands-Free" in the owner’s manual.
Screen display of Bluetooth Hands-Free information
Bluetooth Hands-Free information
