MAZDA MODEL CX-7 2009 Owners Manual (in English)

Black plate (441,1)
qEngine Number
Forward
Identification Numbers
10-3
CX-7_8Z60-EA-08D_Edition2 Page441
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (442,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 9.5
qElectrical System
Item Classification
Battery12V-48AH/5HR MF
12V-55AH/5HR MF
Spark-plug numberL3K9 18 110A
*1
L3Y3 18 110
Spark-plug gap 0.70―0.80 mm (0.028―0.031 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-19.
Automatic transaxle fluid JWS3309
Transfer case oil API Service GL-5 (SAE 80W-90)
Rear differential oil API Service GL-5 (SAE 80W-90)
Power steering fluid ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications
CX-7_8Z60-EA-08D_Edition2 Page442
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (443,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 9.0 L (9.5 US qt, 7.9 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 1.2 L (1.3 US qt, 1.1 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluidWith low washer fluid level
warning light4.5 L (4.8 US qt, 4.0 Imp qt)
Without low washer fluid level
warning light2.5 L (2.6 US qt, 2.2 Imp qt)
Fuel tank 69.0 L (18.2 US gal, 15.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall lengthWith license plate holder 4,680 mm (184.3 in)
Without license plate holder 4,675 mm (184.1 in)
Overall width 1,872 mm (73.7 in)
Overall height 1,645 mm (64.8 in)
Front tread 1,617 mm (63.7 in)
Rear tread 1,612 mm (63.5 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,168 kg (4,780 lbs) 2,267 kg (4,998 lbs)
GAWR (Gross Axle Weight Rating)Front 1,150 kg (2,535 lbs) 1,189 kg (2,621 lbs)
Rear 1,022 kg (2,253 lbs) 1,083 kg (2,388 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
CX-7_8Z60-EA-08D_Edition2 Page443
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (444,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 60 HB3 (#9005)
Low beamHalogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Parking lights 27/8―(#1157NA)
Front side-marker lights 5 W5W (#168)
Fog lights
í55 H11 (H11)
Side turn signal lights (Integrated with outside mirrors)íLED*1―(―)
High-mount brake light LED*1―(―)
Rear turn signal lights 21 WY21W (―)
Brake lights/Taillights 21/5 W21/5W (#7743)
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W (#168)
Rear side-marker lights 5 W5W (#168)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Overhead lights/Map lights (Front) 5 W5W
Overhead light (Rear) 10―
Luggage compartment light 10―
Vanity mirror light 2―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-34.
Standard tire
(Except Mexico)
Tire sizeInflation pressure
Front Rear
P235/60R18 102H 220 kPa (32 psi) 220 kPa (32 psi)
10-6íSome models.
Specifications
CX-7_8Z60-EA-08D_Edition2 Page444
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (445,1)
(Mexico)
Tire sizeInflation pressure
Front Rear
235/60R18 103H 230 kPa (34 psi) 230 kPa (34 psi)
Temporary spare tire
(Except Mexico)
Tire size Inflation pressure
T155/90D18 103M 420 kPa (60 psi)
(Mexico)
Tire size Inflation pressure
205/80R16 100M 250 kPa (36 psi)
qFuses
Refer to the fuse rating on page 8-45.
Specifications
10-7
CX-7_8Z60-EA-08D_Edition2 Page445
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (446,1)
10-8
CX-7_8Z60-EA-08D_Edition2 Page446
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (447,1)
11Index
11-1
CX-7_8Z60-EA-08D_Edition2 Page447
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

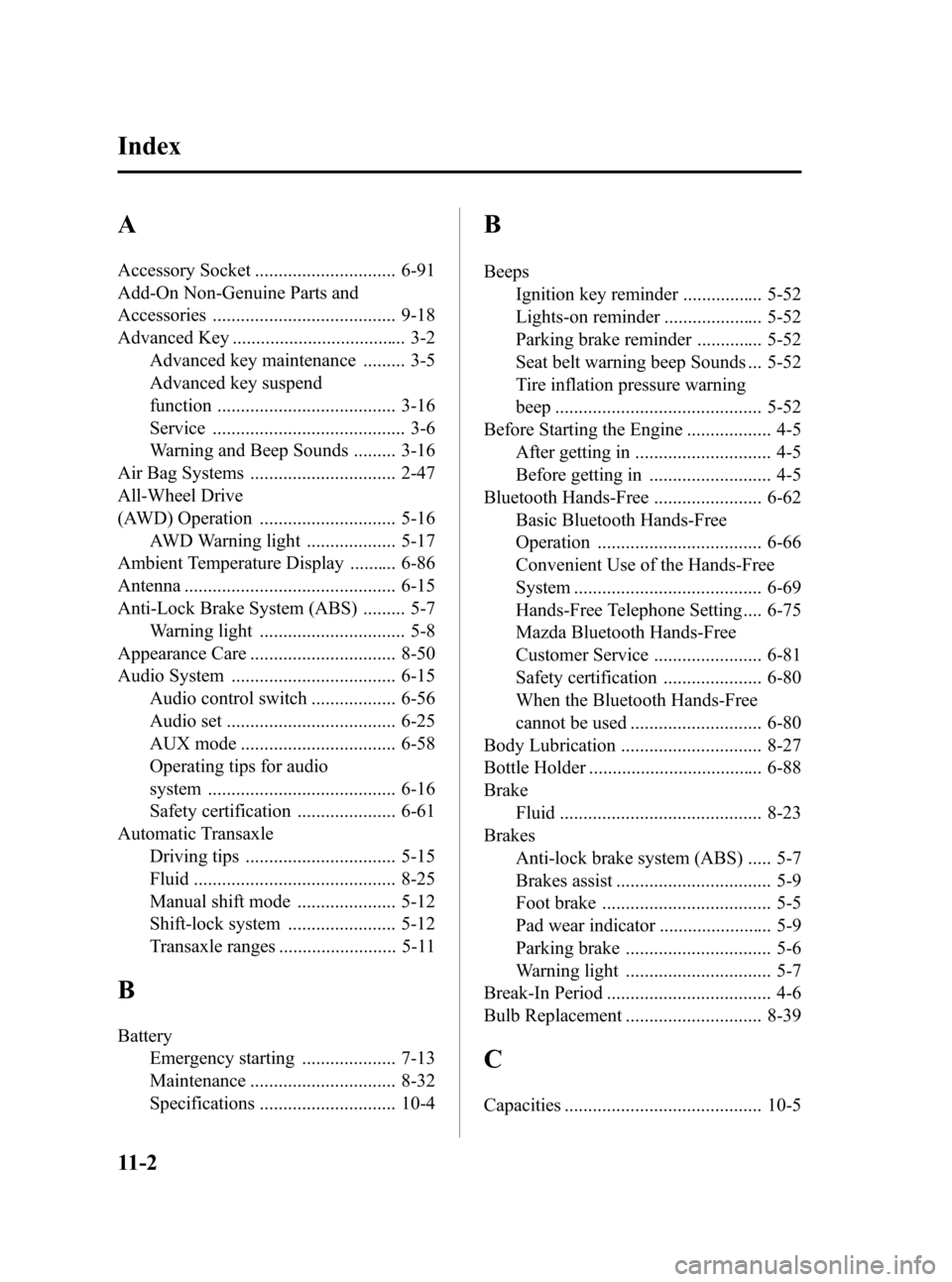

Black plate (448,1)
A
Accessory Socket .............................. 6-91
Add-On Non-Genuine Parts and
Accessories ....................................... 9-18
Advanced Key ..................................... 3-2
Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-16
Service ......................................... 3-6
Warning and Beep Sounds ......... 3-16
Air Bag Systems ............................... 2-47
All-Wheel Drive
(AWD) Operation ............................. 5-16
AWD Warning light ................... 5-17
Ambient Temperature Display .......... 6-86
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-7
Warning light ............................... 5-8
Appearance Care ............................... 8-50
Audio System ................................... 6-15
Audio control switch .................. 6-56
Audio set .................................... 6-25
AUX mode ................................. 6-58
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-61
Automatic Transaxle
Driving tips ................................ 5-15
Fluid ........................................... 8-25
Manual shift mode ..................... 5-12
Shift-lock system ....................... 5-12
Transaxle ranges ......................... 5-11
B
Battery
Emergency starting .................... 7-13
Maintenance ............................... 8-32
Specifications ............................. 10-4
B
Beeps
Ignition key reminder ................. 5-52
Lights-on reminder ..................... 5-52
Parking brake reminder .............. 5-52
Seat belt warning beep Sounds ... 5-52
Tire inflation pressure warning
beep ............................................ 5-52
Before Starting the Engine .................. 4-5
After getting in ............................. 4-5
Before getting in .......................... 4-5
Bluetooth Hands-Free ....................... 6-62
Basic Bluetooth Hands-Free
Operation ................................... 6-66
Convenient Use of the Hands-Free
System ........................................ 6-69
Hands-Free Telephone Setting .... 6-75
Mazda Bluetooth Hands-Free
Customer Service ....................... 6-81
Safety certification ..................... 6-80
When the Bluetooth Hands-Free
cannot be used ............................ 6-80
Body Lubrication .............................. 8-27
Bottle Holder ..................................... 6-88
Brake
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-9
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
11-2
Index
CX-7_8Z60-EA-08D_Edition2 Page448
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (449,1)
C
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-90
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-19
Center Console .................................. 6-89
Child Restraint
Child restraint precautions ......... 2-28
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-41
Child Safety Locks for Rear Doors ... 3-30
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ................................................. 6-86
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-87
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-36
Daytime Running Lights ................... 5-55
Defroster
Mirror ......................................... 5-59
Rear window .............................. 5-59
Dimensions ....................................... 10-5
Door Locks ....................................... 3-27
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-6
Automatic transaxle ................... 5-15
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Turbocharged vehicles ............... 4-12
Winter driving .............................. 4-9
D
Dynamic Stability Control (DSC) ..... 5-25
TCS/DSC Indicator light ............ 5-26
E
Emergency Starting ........................... 7-13
Flooded engine ........................... 7-13
Jump-starting .............................. 7-14
Push-starting .............................. 7-17
Emergency Towing ........................... 7-18
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-4
Hood release .............................. 3-42
Oil .............................................. 8-19
Overheating ................................ 7-11
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-18
Engine Coolant
Overheating ................................ 7-11
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-52
F
Flasher
Hazard warning .......................... 5-60
Headlights .................................. 5-53
Flat Tire ............................................... 7-3
Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-16
Index
11-3
CX-7_8Z60-EA-08D_Edition2 Page449
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (450,1)
F
Fog Lights ......................................... 5-56
Front ........................................... 5-56
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-41
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-45
Panel description ........................ 8-47
Replacement ............................... 8-45
G
Glove Box ......................................... 6-89
H
Hazard Warning Flasher .................... 5-60
Hazardous Driving .............................. 4-7
Headlights
Control ....................................... 5-53
Flashing ...................................... 5-55
High-low beam .......................... 5-55
Leveling ..................................... 5-55
On reminder ............................... 5-54
HomeLink Wireless Control
System .............................................. 5-61
Hood Release .................................... 3-42
Horn .................................................. 5-60
I
Ignition
Keys ........................................... 3-21
Switch .......................................... 5-2
Illuminated Entry System ................. 6-83
Immobilizer System
(with Advanced Key) ........................ 3-49
Immobilizer System
(without Advanced Key) ................... 3-51
Indicator Lights ................................. 5-38
Cruise ......................................... 5-51
Headlight high-beam .................. 5-49
Security ...................................... 5-49
Shift position .............................. 5-49
TCS OFF .................................... 5-50
TCS/DSC ................................... 5-50
Turn-signal/hazard warning ....... 5-51
Information Display .......................... 6-85
Ambient temperature display ..... 6-86
Audio display ............................. 6-87
Climate control display .............. 6-87
Clock .......................................... 6-86
Information display functions .... 6-85
Instrument Cluster ............................. 5-33
Interior Care ...................................... 8-55
Interior Lights ................................... 6-83
J
Jump-Starting .................................... 7-14
K
Keyless Entry System ....................... 3-22
Keys .................................................. 3-21
L
Label Information ............................. 10-2
11-4
Index
CX-7_8Z60-EA-08D_Edition2 Page450
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D
