Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area except for the luggage compartment.
Interior transmitter
Operational range
NOTElThe luggage compartment is out of the
operational range, however, starting the
engine may be possible.
lThe engine may not start if the advanced
key is placed in the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
lStarting the engine may be possible even if
the advanced key is outside of the vehicle
and extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and driven away
while the advanced key is not in the vehicle,
the vehicle will not restart after it is turned
off and the ignition switch is turned to the
Lock position.
lIf the advanced key is detected within
operational range, the operation indicator
light on the transmitter flashes
momentarily.
qLocking, Unlocking with Request
Switch
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors or the liftgate while the
advanced key is being carried.
Front doors
Request switch
Liftgate
Request switch
To lock
To lock the doors and the liftgate, press
the request switch. A beep sound will be
heard once and the hazard warning lights
will flash once.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8AS7-EA-09E_Edition2 Page84
Friday, June 5 2009 2:24 PM
Form No.8AS7-EA-09E

Black plate (222,1)
qLights-On Indicator Light
This indicator light illuminates when the
exterior lights and dashboard illumination
are on.
qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-64).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-71).
NOTE
If an indicator light remains illuminated (does
not flash) or if it flashes abnormally, one of the
turn signal bulbs may be burned out.
Beep Sounds
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
5-58
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
CX-7_8AS7-EA-09E_Edition2 Page222
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (227,1)

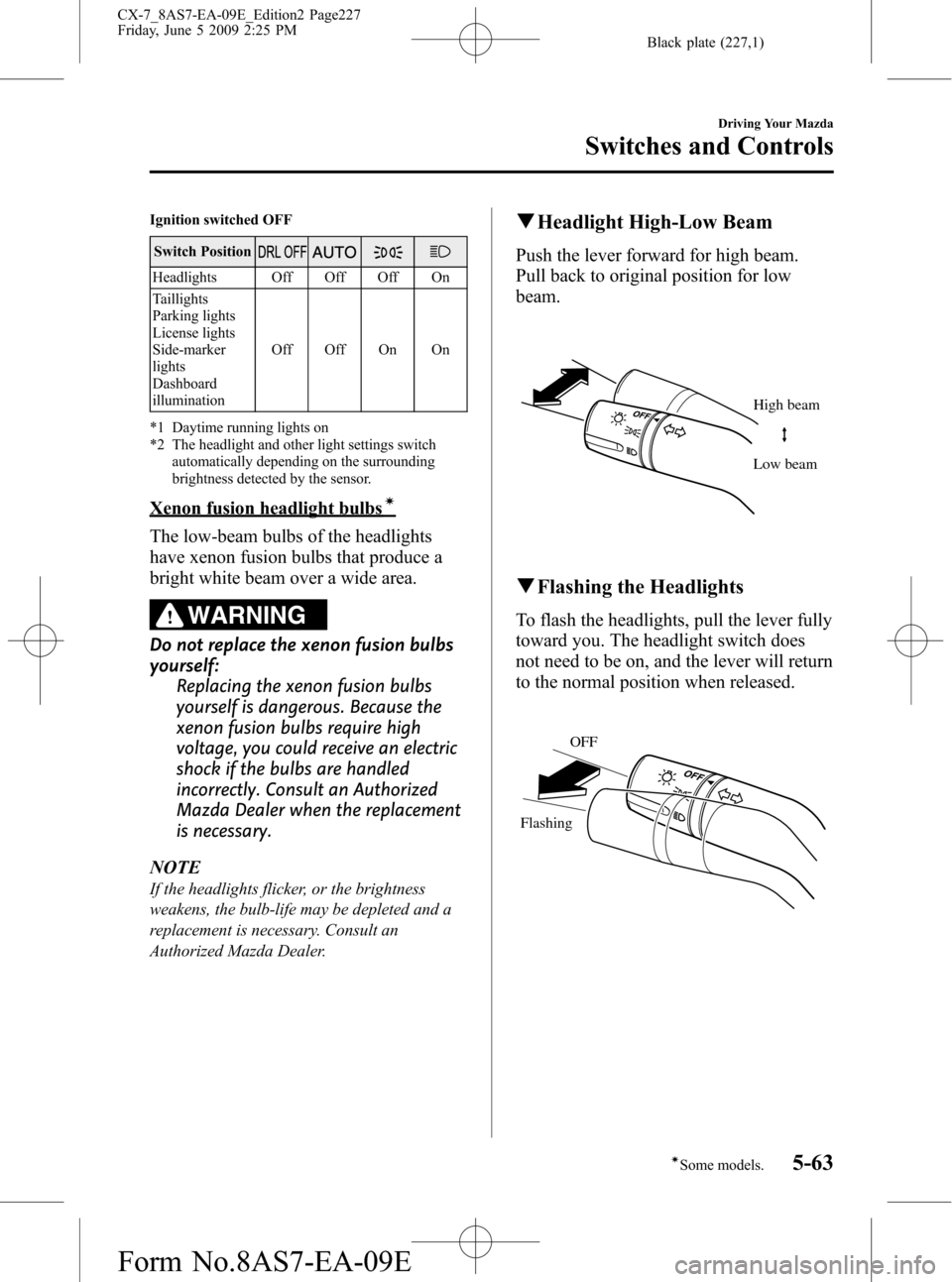

Ignition switched OFF
Switch Position
Headlights Off Off Off On
Taillights
Parking lights
License lights
Side-marker
lights
Dashboard
illuminationOff Off On On
*1 Daytime running lights on
*2 The headlight and other light settings switch
automatically depending on the surrounding
brightness detected by the sensor.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
NOTE
If the headlights flicker, or the brightness
weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an
Authorized Mazda Dealer.
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull back to original position for low
beam.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.
OFF
Flashing
Driving Your Mazda
Switches and Controls
5-63íSome models. CX-7_8AS7-EA-09E_Edition2 Page227
Friday, June 5 2009 2:25 PM
Form No.8AS7-EA-09E

Black plate (229,1)
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position to turn on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
Windshield Wipers and
Washer
The ignition switch must be in the ON
position.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.
Driving Your Mazda
Switches and Controls
5-65íSome models. CX-7_8AS7-EA-09E_Edition2 Page229
