Setting Change (Function Customization)
The following function settings are possible. These settings can only be changed by an
Authorized Mazda Dealer.
Setting Function At Initial SettingAfter Setting
Change
Advanced key battery
dead indicatorKEY indicator light (green) flashes to indicate
that the advanced key battery power is low.Activated Deactivated
Lock/unlock operation
confirmation beep
sound
*1
A beep sound is heard to confirm that all doors or
the liftgate have been locked/unlocked. Activated Deactivated
Autolock function
*2
When all doors and the liftgate are closed and the
advanced key is being carried and out of
operational range, all the doors and the liftgate
automatically lock after 3 seconds.
(Even if the driver is in the operational range, all
doors and the liftgate are locked automatically
after about 30 seconds.)Deactivated Activated
*1: When the autolock function is operating, the warning sound will be heard regardless of the setting.
*2: When Autolock function is enabled, windows will not automatically close. You must close before leaving
vehicle.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
CX-9_8V83-EA-06I_Edition3 Page101
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (102,1)
When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-16).
Warning How to check
When a door is open, a continuous beep sound will be
heard.Check whether the start knob has been returned to the
LOCK position.
When a door is open, 3 beep sounds are heard, and the
KEY warning light (red) in the instrument cluster
flashes.Check whether the advanced key has been removed
from the vehicle.
When a door is closed, a beep sound is heard 6 times,
and the KEY warning light (red) in the instrument
cluster flashes.Check whether the advanced key has been removed
from the vehicle.
When locking the doors, the chime sounds for about 10
seconds.Check whether the advanced key has been left in the
vehicle.
When attempting to lock the doors, a beep sound is
heard 6 times.Check whether the advanced key has been left in the
vehicle.
Check whether the start knob has been returned to the
LOCK position.
Check whether a door or the liftgate is open.
When the KEY indicator light (green) flashes in the
instrument cluster.The advanced key battery power is low. Replace the
battery with a new one.
Refer to Advanced Key Maintenance on page 3-5.
When the KEY warning light (red) remains illuminated
in the instrument cluster.The advanced key is malfunctioning. Park the vehicle in
a safe place, and use the auxiliary key to continue
driving the vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8V83-EA-06I_Edition3 Page102
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (103,1)
Keys
WARNING
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. These new kinds of keys are
fascinating to children. They could
play with power windows or other
controls, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-52) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-55)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
Key code number plate
Retractable
type key
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
Write down the code number and keep it in a
separate safe and convenient place, but not in
the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Knowing Your Mazda
Doors and Locks
3-21
CX-9_8V83-EA-06I_Edition3 Page103
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (104,1)
Keyless Entry Systemí
This system remotely locks and unlocks
the doors and the liftgate, and opens the
power windows and the moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
ØGet the transmitter wet.
ØExpose the transmitter to any kind
of magnetic field.
ØExpose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system doesn't operate when the key is
in the ignition switch.
lDoors and the liftgate cannot be locked by
pressing the lock button while any other
door or the liftgate is open. Also, the hazard
warning lights will not flash.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-24).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-39)
Opening/Closing the Moonroof (page 3-46)
The operation indicator light flashes when
the buttons are pressed.
3-22
Knowing Your Mazda
íSome models.
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page104
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (105,1)
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that all doors and the liftgate are
locked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-55).
NOTElAll doors and the liftgate cannot be locked
when any door or the liftgate is open and
the key is in the ignition switch.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds.NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-55).
NOTE
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
Turning on the alarm
Pressing the panic button once will trigger
the alarm for about 2 minutes and 30
seconds, and the following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
Knowing Your Mazda
Doors and Locks
3-23
CX-9_8V83-EA-06I_Edition3 Page105
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (106,1)
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
ØInstall the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
ØWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
ØThere is the danger of explosion if
the battery is not correctly
replaced.
ØReplace only with the same type
battery (CR1620 or equivalent).
ØDispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-21).2. Insert a screwdriver into the slot and
push the tab to remove the key from
the transmitter.
Ta b
3. Insert a screwdriver into the slot and
gently pry open the transmitter.
4. Remove the battery.
A
3-24
Knowing Your Mazda
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page106
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (107,1)
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended:
Knowing Your Mazda
Doors and Locks
3-25
CX-9_8V83-EA-06I_Edition3 Page107
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (108,1)
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, push the
door-lock knob.
To unlock, pull it out.
This does not operate the other door
locks.
Unlock Lock
To lock any door with the door-lock knob
from the outside, push the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
NOTEl(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.
lWhen locking the doors this way, be careful
not to leave the key inside the vehicle.
3-26
Knowing Your Mazda
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page108
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (109,1)

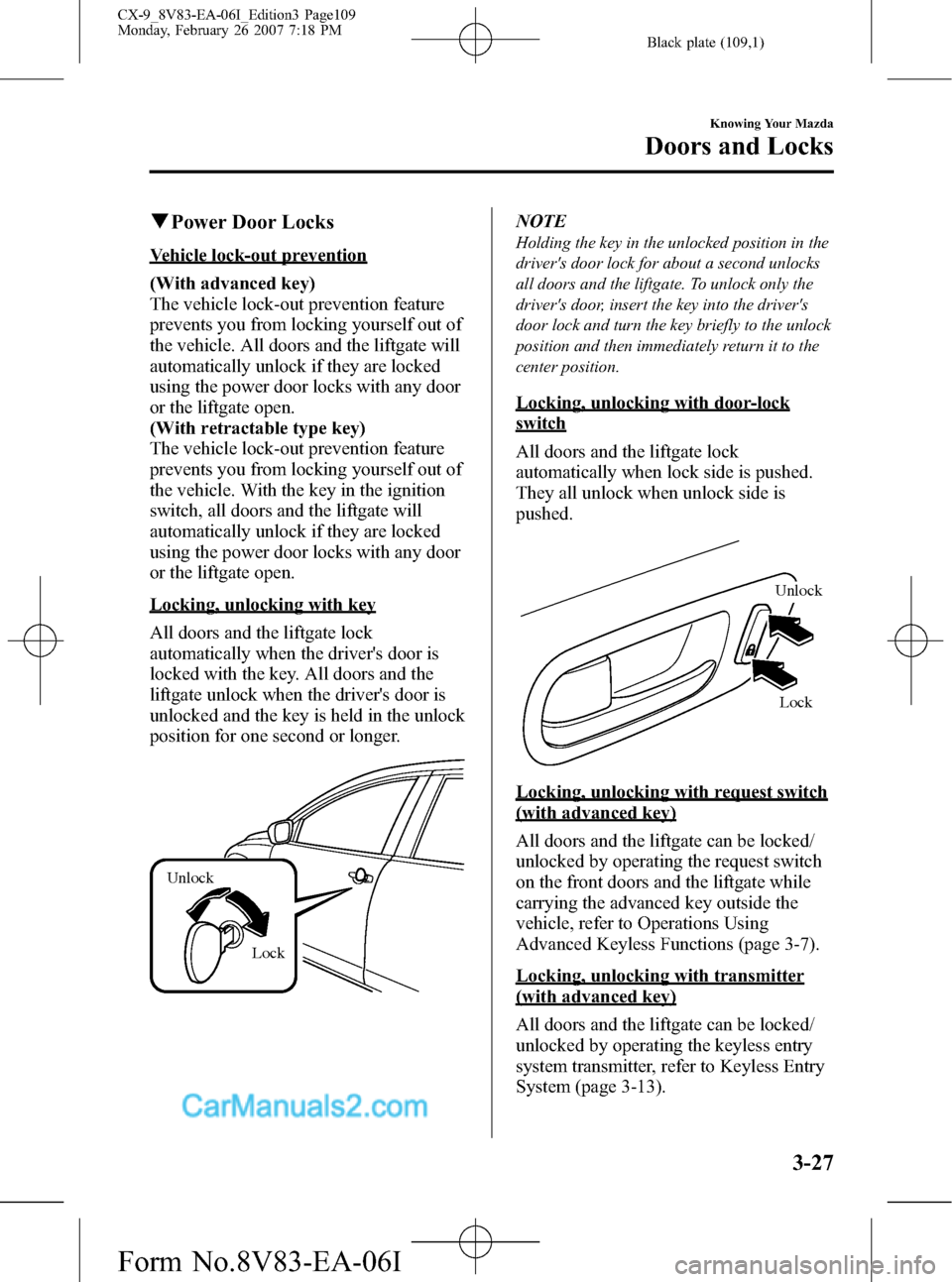

qPower Door Locks
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
(With retractable type key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Locking, unlocking with key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key. All doors and the
liftgate unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when lock side is pushed.
They all unlock when unlock side is
pushed.
Unlock
Lock
Locking, unlocking with request switch
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the request switch
on the front doors and the liftgate while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-13).
Knowing Your Mazda
Doors and Locks
3-27
CX-9_8V83-EA-06I_Edition3 Page109
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (110,1)
Locking, unlocking with transmitter
(with retractable type key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-22).
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
Lock
Unlock
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
qLocking, Unlocking with Request
Switch (with Advanced Key)
The liftgate can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
3-28
Knowing Your Mazda
Doors and Locks
CX-9_8V83-EA-06I_Edition3 Page110
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I
