Black plate (203,1)
qEngine Oil Pressure Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
This warning light indicates low engine
oil pressure.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 8-20).
If it's low, add oil.
4. Start the engine and check the warning
light.
If the light remains illuminated even after
you add oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
CAUTION
Don't run the engine if oil pressure is
low. It could result in extensive
engine damage.
qCheck Engine Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41
CX-9_8V83-EA-06I_Edition3 Page203
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

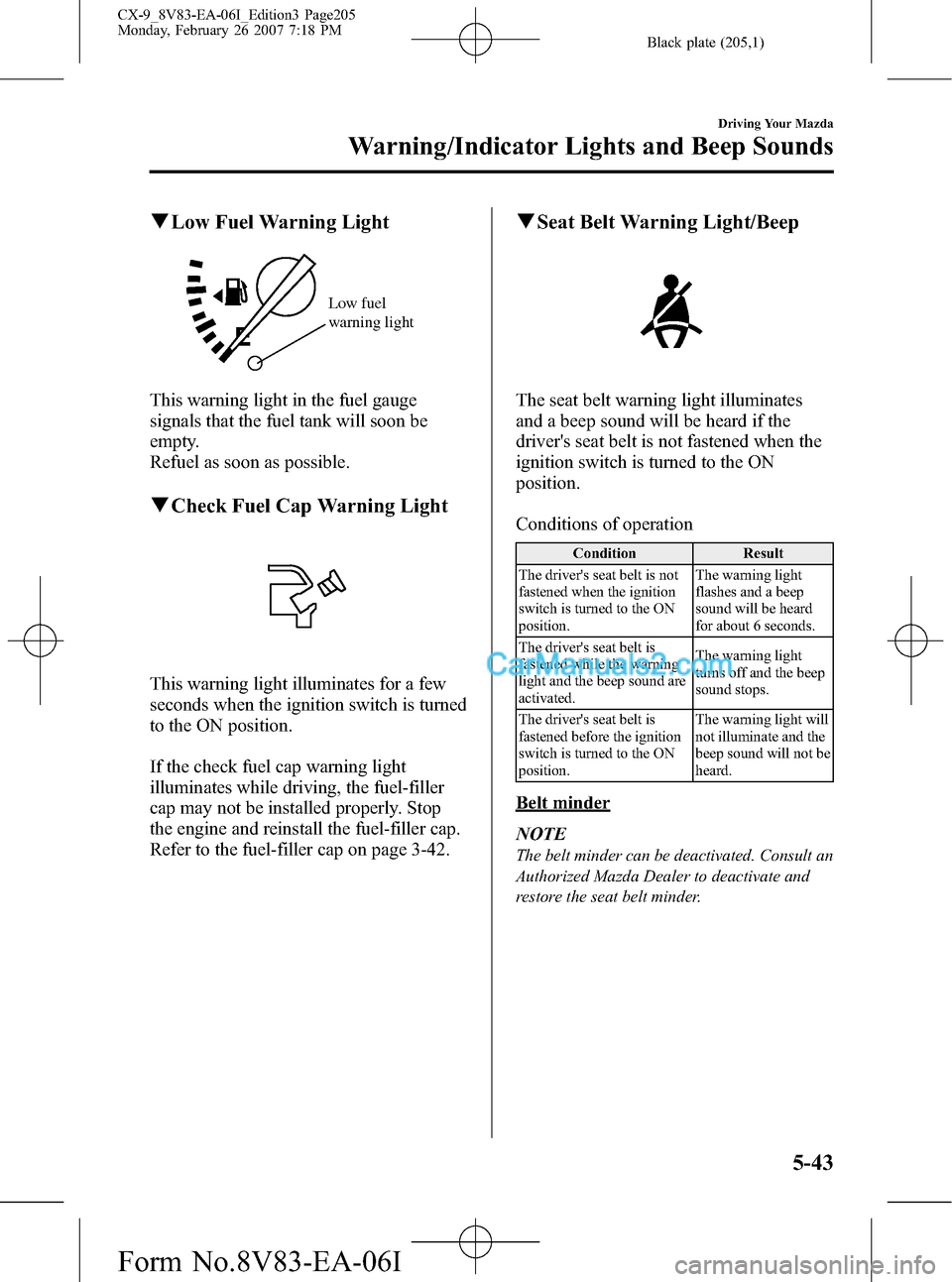

Black plate (205,1)
qLow Fuel Warning Light
Low fuel
warning light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Refuel as soon as possible.
qCheck Fuel Cap Warning Light
This warning light illuminates for a few
seconds when the ignition switch is turned
to the ON position.
If the check fuel cap warning light
illuminates while driving, the fuel-filler
cap may not be installed properly. Stop
the engine and reinstall the fuel-filler cap.
Refer to the fuel-filler cap on page 3-42.
qSeat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
Condition Result
The driver's seat belt is not
fastened when the ignition
switch is turned to the ON
position.The warning light
flashes and a beep
sound will be heard
for about 6 seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated.The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
switch is turned to the ON
position.The warning light will
not illuminate and the
beep sound will not be
heard.
Belt minder
NOTE
The belt minder can be deactivated. Consult an
Authorized Mazda Dealer to deactivate and
restore the seat belt minder.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43
CX-9_8V83-EA-06I_Edition3 Page205
Monday, February 26 2007 7:18 PM
Form No.8V83-EA-06I

Black plate (228,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ACC position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page228
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (372,1)
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
WARNING
Turn off the ignition switch and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either cooling
system caps when the engine and
radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the temperature gauge indicates
overheating:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don't go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it's low, look for coolant leaks from
the radiator and hoses.
7-14
In Case of an Emergency
Overheating
CX-9_8V83-EA-06I_Edition3 Page372
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (406,1)
Power Steering Fluid
qInspecting Power Steering Fluid
Level
CAUTION
To avoid damage to the power
steering pump, don't operate the
vehicle for long periods when the
power steering fluid level is low.
NOTE
Use specified power steering fluid (page 10-4).
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
The level must be kept between MAX and
MIN.
Visually examine the lines and hoses for
leaks and damage.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Automatic Transaxle Fluid
(ATF)
qInspecting Automatic Transaxle
Fluid Level
The automatic transaxle fluid level should
be inspected regularly. Measure it as
described below.
The volume of fluid changes with
temperature. Fluid must be checked while
idling the engine without driving at
normal operating temperature.
CAUTION
ØLow fluid level causes transaxle
slippage. Overfilling can cause
foaming, loss of fluid, and
transaxle malfunction.
ØUse specified fluid (page 10-4). A
nonspecified fluid could result in
transaxle malfunction and failure.
1. Park on a level surface and set the
parking brake firmly.
2. Start the engine and depress the brake
pedal.
3. Move the shift lever through all ranges,
then set it at P.
WARNING
Make sure the brake pedal is applied
before shifting the shift lever:
Shifting the shift lever without first
depressing the brake pedal is
dangerous. The vehicle could move
suddenly and cause an accident.
4. With the engine still idling, pull out the
dipstick, wipe it clean, and put it back.
8-24
Maintenance and Care
Owner Maintenance
CX-9_8V83-EA-06I_Edition3 Page406
Monday, February 26 2007 7:21 PM
Form No.8V83-EA-06I

Black plate (491,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 5.2 L (5.5 US qt, 4.6 Imp qt)
Without oil filter replacement 4.7 L (5.0 US qt, 4.2 Imp qt)
CoolantWith Towing Package 11.7 L (12.4 US qt, 10.3 Imp qt)
Without Towing Package 11.1 L (11.7 US qt, 9.77 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 0.532 L (0.562 US qt, 0.468 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluid 4.5 L (4.8 US qt, 4.0 Imp qt)
Fuel tank 76.0 L (20.1 US gal, 16.7 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall length 5,074 mm (199.8 in)
Overall width 1,936 mm (76.2 in)
Overall height 1,728 mm (68.0 in)
Front tread 1,654 mm (65.1 in)
Rear tread 1,644 mm (64.7 in)
Wheelbase 2,875 mm (113.2 in)
qWeights
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,633 kg (5,805 lbs) 2,733 kg (6,025 lbs)
GAWR (Gross Axle Weight Rating)Front 1,271 kg (2,802 lbs) 1,307 kg (2,881 lbs)
Rear 1,390 kg (3,064 lbs) 1,456 kg (3,210 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
CX-9_8V83-EA-06I_Edition3 Page491
Monday, February 26 2007 7:22 PM
Form No.8V83-EA-06I

Black plate (501,1)
T
Towing
Description ................................. 7-20
Emergency towing ..................... 7-20
Recreational towing ................... 7-23
Trailer towing
(Except Mexico) ......................... 4-12
Traction Control System (TCS) ........ 5-22
TCS OFF indicator light ............ 5-23
TCS OFF switch ........................ 5-24
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-34
Turn and Lane-Change Signals ......... 5-56
V
Vanity Mirrors ................................. 6-120
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-37
ABS ............................................ 5-39
Air bag system ........................... 5-42
Automatic transaxle ................... 5-45
AWD .......................................... 5-45
Brake system .............................. 5-39
Charging system ......................... 5-40
Check engine .............................. 5-41
Check fuel cap ........................... 5-43
Door-ajar .................................... 5-45
Engine oil pressure ..................... 5-41
Front seat belt pretensioner
system ........................................ 5-42
KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-48
Low fuel ..................................... 5-43
Low washer fluid level ............... 5-45
Powertrain malfunction/reduced
power .......................................... 5-42
Seat belt ...................................... 5-43
Tire pressure monitoring
system ........................................ 5-46
Warranty ............................................ 9-12
Washer Fluid ..................................... 8-26
Weights ............................................. 10-5
Wheel Replacement .......................... 8-36
Windows
Power windows .......................... 3-35
Windshield Washer ........................... 5-60
Windshield Wipers ............................ 5-58
Blades replacement .................... 8-27
Winter Driving .................................... 4-9
Index
11-7
CX-9_8V83-EA-06I_Edition3 Page501
Monday, February 26 2007 7:22 PM
Form No.8V83-EA-06I
