Black plate (341,1)
10.Say:[Beep]“Ye s”
11.Prompt:“Deleted”
qLanguage setting
English, Spanish, and Canadian French
are available. If the language setting is
changed, all of the voice guidance and
voice input commands are done in the
selected language.
Method 1
Refer to Bluetooth Hands-Free
preparation on page 6-106.
Method 2
1. Press the phone button (Short press).
2.Say:[Beep]“French”(Say the desired
language:“English”,“French”,or
“Spanish”.)
3.Prompt:“Would you like to change
the language to French (Desired
language) ?”
4.Say:[Beep]“Ye s”
5.Prompt:“Please wait. Switching to
French phone book. French selected,
returning to main menu.”
qSecurity setting
If a passcode is set, the system cannot be
activated unless the passcode is input.
Passcode setting
1. Press the phone button (Short press).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”4.Say:[Beep]“Passcode”
5.Prompt:“Passcode is disabled. Would
you like to enable it?”
6.Say:[Beep]“Ye s”
7.Prompt:“Please say a 4-digit passcode.
Remember this passcode. It will be
required to use this system.”
8.Say:[Beep]“XXXX”(Say a desired 4-
digit passcode,“PCode”.)
9.Prompt:“Passcode XXXX (Passcode,
PCode). Is this correct?”
10.Say:[Beep]“Ye s”
11.Prompt:“Passcode is enabled,
returning to main menu.”
Using the Bluetooth Hands-Free system
with a passcode
1. Press the phone button (Short press).
2.Prompt:“Hands-Free system is locked.
State the passcode to continue.”
3.Say:[Beep]“XXXX”(Say the set
passcode“PCode”.)
4. If the correct passcode is input, voice
guidance“XXXXXX... (Ex.“Mary's
phone) (Phone tag) is connected”is
announced.
If the passcode is incorrect, voice
guidance“XXXX (4-digit passcode,
Pcode) incorrect passcode, please try
again”is announced.
Canceling the passcode
1. Press the phone button (Short press).
2.Say:[Beep]“Setup”
Interior Comfort
Bluetooth Hands-Free
6-115
CX-9_8V83-EA-06I_Edition3 Page341
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

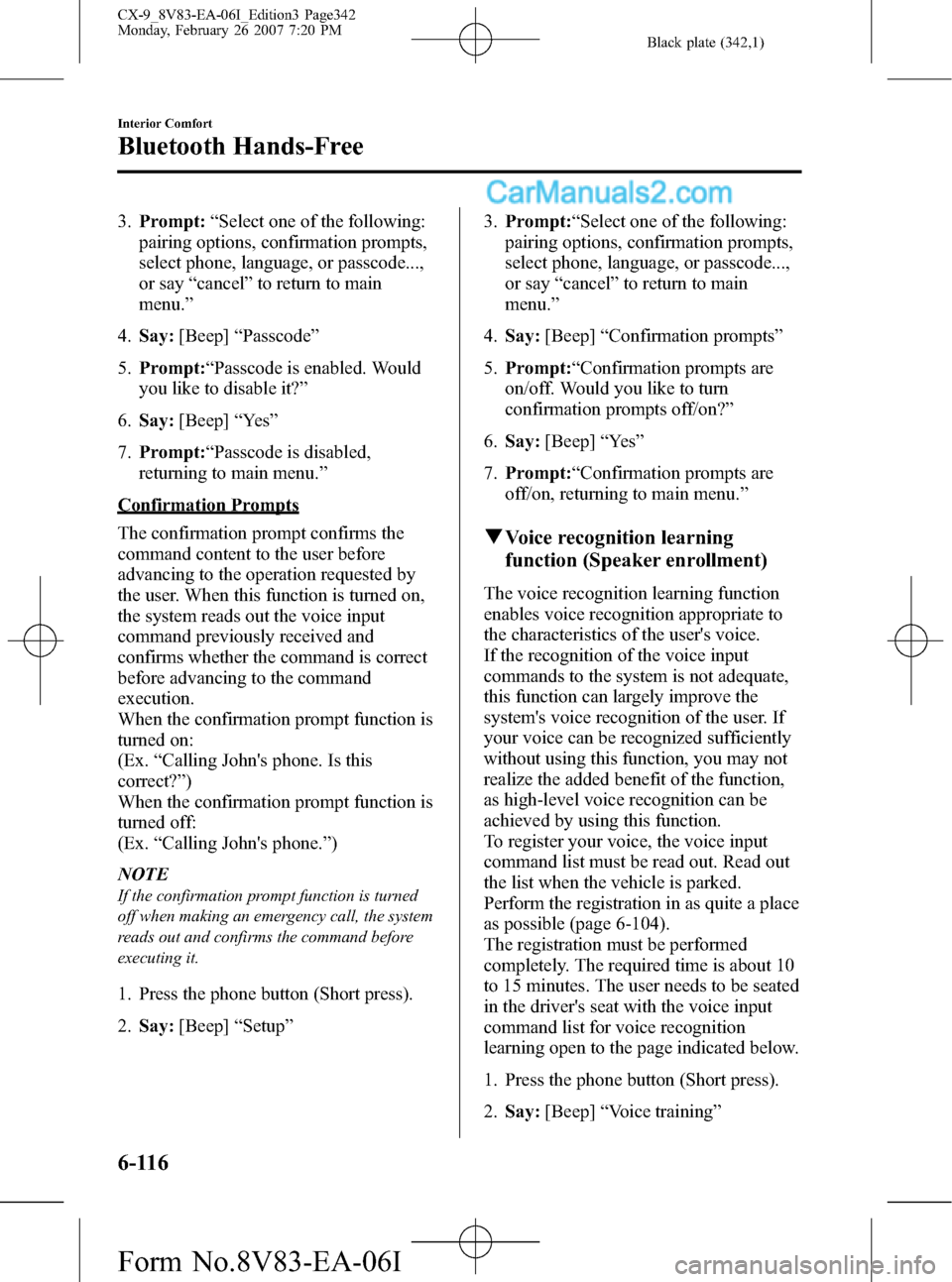

Black plate (342,1)
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Passcode”
5.Prompt:“Passcode is enabled. Would
you like to disable it?”
6.Say:[Beep]“Ye s”
7.Prompt:“Passcode is disabled,
returning to main menu.”
Confirmation Prompts
The confirmation prompt confirms the
command content to the user before
advancing to the operation requested by
the user. When this function is turned on,
the system reads out the voice input
command previously received and
confirms whether the command is correct
before advancing to the command
execution.
When the confirmation prompt function is
turned on:
(Ex.“Calling John's phone. Is this
correct?”)
When the confirmation prompt function is
turned off:
(Ex.“Calling John's phone.”)
NOTE
If the confirmation prompt function is turned
off when making an emergency call, the system
reads out and confirms the command before
executing it.
1. Press the phone button (Short press).
2.Say:[Beep]“Setup”3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Confirmation prompts”
5.Prompt:“Confirmation prompts are
on/off. Would you like to turn
confirmation prompts off/on?”
6.Say:[Beep]“Ye s”
7.Prompt:“Confirmation prompts are
off/on, returning to main menu.”
qVoice recognition learning
function (Speaker enrollment)
The voice recognition learning function
enables voice recognition appropriate to
the characteristics of the user's voice.
If the recognition of the voice input
commands to the system is not adequate,
this function can largely improve the
system's voice recognition of the user. If
your voice can be recognized sufficiently
without using this function, you may not
realize the added benefit of the function,
as high-level voice recognition can be
achieved by using this function.
To register your voice, the voice input
command list must be read out. Read out
the list when the vehicle is parked.
Perform the registration in as quite a place
as possible (page 6-104).
The registration must be performed
completely. The required time is about 10
to 15 minutes. The user needs to be seated
in the driver's seat with the voice input
command list for voice recognition
learning open to the page indicated below.
1. Press the phone button (Short press).
2.Say:[Beep]“Voice training”
6-116
Interior Comfort
Bluetooth Hands-Free
CX-9_8V83-EA-06I_Edition3 Page342
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (343,1)
3.Prompt:“This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the phone
button when you are ready to begin.
Press and hold the phone button to
cancel at any time.”
4. Press the phone button (Short press).
5. The voice guidance reads out the voice
input command (refer to the voice
input command list for voice
recognition learning). (Ex.“Please read
phrase 1”)
6.Say:[Beep]“#790”(Say the voice
input command for voice recognition
learning (1 to 45) according to the
voice guidance.)
7.Prompt:“Speaker enrollment is
complete, returning to main menu.”
Voice input command list for voice
recognition learning
When reading out, the following points
must be observed:
lRead out the numbers one at a time
correctly and naturally.
(For example,“1234”must be read out
“one, two, three, four”, not“twelve, thirty
four”.)
l“#”Must be read out“Pound”.l“”Must be read out“Star”.lDo not read out parentheses.“(”and
hyphens“-”are used for separating
numbers in a phone number.
Ex.“(888) 555-1212”must be called out
“Eight, eight, eight, five, five, five, one,
two, one, two.”
Explanation English
1 #790
2
671
3 212-4903
4 235-3494
5 315-5657
6 456-7930
7 793-5462
8 794-1826
9 826-3145
10 962-7305
11 (531) 742-9860
12 (632) 807-4591
13 (800) 222-5015
14 (888) 555-1212
15 0123456789
16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293-5804
19 Call
350
20 Call 1 (234) 567-8901
21 Dial 639-1542
22 Dial #780
23 Dial (987) 654-3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency
29 Erase All
30 Help
31 Home, Work, Mobile, Pager
32 List Names
33 No
34 Phonebook: Delete
35 Phonebook: New Entry
36 Previous
37 Phonebook: Erase All
38 Redial
Interior Comfort
Bluetooth Hands-Free
6-117
CX-9_8V83-EA-06I_Edition3 Page343
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (344,1)
Explanation English
39 Retrain
40 Setup Confirmation Prompts
41 Setup Language
42 Setup Pairing Options
43 Pair A Phone
44 Transfer Call
45 Yes
NOTE
After user voice registration is completed,
voice guidance“Speaker enrollment is
complete, returning to main menu”is
announced.
qDTMF (dial tone multi-frequency
signal) transmission
This function is used when transmitting
DTMF via the user's voice. The receiver
of a DTMF transmission is generally a
home telephone answering machine or a
company's automated guidance call center
(When you send tone signals back
according to the voice guidance
recording).
1. Press the phone button (Short press).
2.Say:[Beep]“Send XXXX...”(Say
DTMF code)
3.Prompt:“Sending XXXX... (DTMF
code)”
When the Bluetooth
Hands-Free cannot be used
The Bluetooth Hands-Free cannot be used
under the following conditions:
lOutside of the communication area.lMobile telephone has a malfunction.lMobile telephone is not connected to
the hands-free unit equipped on the
vehicle.
lThe mobile telephone battery is weak.lThe mobile telephone is turned off.lThe mobile telephone is placed where
radio reception is difficult.
6-118
Interior Comfort
Bluetooth Hands-Free
CX-9_8V83-EA-06I_Edition3 Page344
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (345,1)
Safety Certification
FCC ID: CB2MBLUEC07 IC:279B-
MBLUEC07
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
The term“IC:”before the radio
certification number only signifies that
Industry Canada technical specifications
were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. End-users and installers must
be provided with installation instructions
and transmitter operating conditions for
satisfying RF exposure compliance.
Interior Comfort
Bluetooth Hands-Free
6-119
CX-9_8V83-EA-06I_Edition3 Page345
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (346,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qSide Extention Sunvisors
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, reinsert
the visor extender, otherwise the
visor extender could hit the rearview
mirror.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.
6-120
Interior Comfort
Interior Equipment
CX-9_8V83-EA-06I_Edition3 Page346
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (347,1)
Interior Lights
qIlluminated Entry System
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) and the courtesy
lights turn on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition
switch is in the LOCK position (with
the ignition key removed).
lAbout 15 seconds after all doors are
closed (If your vehicle is equipped with
the advanced key, the overhead light
turns on for about 5 seconds when the
advanced key is outside of the vehicle).
lAbout 15 seconds after the ignition
switch is in the LOCK position (with
the ignition key removed) with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes out
after about 30 minutes to save the battery.
The light turns on again when the ignition
switch is turned to the ON position, or when
any door is opened after all doors have been
closed.
qOverhead Lights
When the center/rear overhead light
switch is in the DOOR position, the
center/rear overhead light can be turned
on or off using the front overhead light
switch.
Front
Switch
PositionOverhead Lights
lLight offlAll overhead lights are off when
the center/rear overhead light
switch is in the DOOR position
lLight is on when any door is openlLight is on or off when the
illuminated entry system is on
lLight onlAll overhead lights are on when
the center/rear overhead light
switch is in the DOOR position
Interior Comfort
Interior Equipment
6-121
CX-9_8V83-EA-06I_Edition3 Page347
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (348,1)
Center/Rear
Switch
PositionOverhead Lights
Light off
Light on or off in accordance with the
operation of front overhead light
switch
Light on
qMap Lights
The map lights are switched on or off by
pressing the switches.
qLuggage Compartment Light
Switch
PositionLuggage Compartment Light
Light off
Light on when the liftgate is open
qCourtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
Courtesy Light
6-122
Interior Comfort
Interior Equipment
CX-9_8V83-EA-06I_Edition3 Page348
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (349,1)
Information Display
Climate control display
(Driver)Audio display Clock
Without
navigation systemClimate control display (Front
passenger)/ Ambient temperature
display
qInformation Display Functions
The information display has the following functions:lClocklAmbient Temperature Display (Outside Temperature Display)lClimate Control DisplaylAudio Display
Interior Comfort
Interior Equipment
6-123
CX-9_8V83-EA-06I_Edition3 Page349
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (350,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Without navigation system
Time setting
1. Press the CLK switch until a beep
sounds, and“12Hr”and“24Hr”will be
displayed.
2. Press the SET switch to switch between
“12Hr”and“24Hr”displays. The
selected display will flash.
To select the desired clock setting,
press the CLK switch again while the
preferred setting is flashing.
3.“Hr. ADJUST”will be displayed next,
and the hour portion of the display will
flash. Press the SET switch to set the
hour, then press the CLK switch.
4.“Min. ADJUST”will be displayed
next, and the minutes portion of the
display will flash. Press the SET switch
to set the minutes, then press the CLK
switch.Time resetting
While the clock is displayed, press the
SET switch 1.5 seconds or more. When
the switch is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the SET switch is released, the seconds
are reset to“00”.
With navigation system
Refer to the separate manual
“NAVIGATION SYSTEM”.
NOTE
Minutes and seconds are adjusted by the GPS,
however, it is necessary to adjust hours under
the following conditions:
lDriving across different time zoneslDaylight saving time start and end
qAmbient Temperature Display
When the ignition switch is in the ON
position, press the OUTSIDE switch
(page 6-6) to display the ambient
temperature.
6-124
Interior Comfort
Interior Equipment
CX-9_8V83-EA-06I_Edition3 Page350
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I
