MAZDA MODEL CX-9 2007 Owners Manual (in English)

Black plate (331,1)
lClose the windows and/or the
moonroof to shut out loud noises from
outside the vehicle, or turn down the
airflow of the climate control system
while the Bluetooth Hands-Free is
being used. Voice recognition may not
function correctly or voice quality may
deteriorate under the following
conditions.
lA passenger is speaking.lDriving with the window and/or the
moonroof open.
lDriving on bumpy roads.lNoise outside of the vehicle is loud.
(Construction sites, inside tunnels,
excess oncoming traffic, or heavy
rain.)
lOperation noise from turn signals,
wipers, or the horn is heard.
lA/C airflow is strong or wind is
blowing on the microphone.
lThere is noise coming from cargo
loaded inside of the vehicle.
lVoice commands may not be
recognized depending on the voice. If
the voice commands are not recognized
correctly, repeat the commands in a
louder voice.
lDialects or different wording other than
hands-free prompts cannot be
recognized by voice recognition. Call
out in the wording specified by the
voice commands.
Please be aware that the voice recognition
may error despite following the above
points.
qFunction restrictions while using
Bluetooth Hands-Free
Functions are limited as follows while the
Bluetooth Hands-Free is being used.
lBeep sound and voice guidance related
to the audio unit and navigation system
are not heard.
lBeep sound related to the A/C
operation is not heard.
lThe VOICE switch of the navigation
system located on the steering wheel
cannot be used.
qHow to use this section
Descriptions in the text are as follows:
Say: Voice commands to be called out by
you.
Prompt: Voice guidance output from the
speaker.
A beep sound [Beep] is output from the
speaker. Call out after the beep sound is
heard.
Example)
Say: [Beep]“Dial”
Prompt:“Number, please”
Say: [Beep]“XXXXXXXXXXX (Ex.
“555-1234”) (Telephone number)”
Interior Comfort
Bluetooth Hands-Free
6-105
CX-9_8V83-EA-06I_Edition3 Page331
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (332,1)
Basic Bluetooth Hands-
Free Operation
qBluetooth Hands-Free preparation
Language setting
1. Press the phone button (Short press).
2.Say: [Beep]“Setup”
3.Prompt:“Select one of the following:
Pairing options, confirmation prompts,
select phone, language, or passcode, or
say“cancel”to return to the main
menu.”
4.Say: [Beep]“Language”
5.Prompt:“Select a language: English,
French, or Spanish.”
6.Say: [Beep]“French”(Call out the
desired language:“English”,“French”
or“Spanish”)
7.Prompt:“French (Desired language)
selected. Is this correct?”
8.Say: [Beep]“Ye s”
9.Prompt:“French (Desired language)
selected, returning to main menu.”
Mobile telephone programming
(Pairing)
To use a Bluetooth Hands-Free, the phone
has to be programmed to the hands-free
unit using the following procedure.
Up to seven Bluetooth equipped mobile
telephones can be programmed to your
vehicle.NOTE
lA mobile telephone can be programmed
only when the vehicle is parked.
lSince the communication range of a
Bluetooth equipped mobile telephone is
about 10 meters (32 ft), if a mobile
telephone is placed within a 10-meter (32
ft) radius of the vehicle, it may be detected/
programmed unintentionally while another
telephone is being programmed.
1. Activate the Bluetooth application of
the mobile telephone.
NOTE
For the operation of the mobile telephone,
refer to its instruction manual.
2. Press the phone button (Short press).
3.Say: [Beep]“Setup”
4.Prompt:“Select one of the following:
Pairing options, confirmation prompts,
select phone, language, or passcode, or
say“cancel”to return to the main
menu.”
5.Say: [Beep]“Pairing options”
6.Prompt:“Do you want to pair a phone,
delete a phone, or list paired phones?”
7.Say: [Beep]“Pair a phone”
8.Prompt:“Please say a 4-digit pairing
code.”
9.Say: [Beep]“XXXX”(Call out an
arbitrary 4-digit pairing code. This can
be any combination of 4 numbers.)
NOTE
Record the code as it will be used to program
your phone in Step 16.
10.Prompt:“Pairing code XXXX (4-
digit number). Is this correct?”
6-106
Interior Comfort
Bluetooth Hands-Free
CX-9_8V83-EA-06I_Edition3 Page332
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (333,1)
11.Say: [Beep]“Ye s”or“No”
12. If“Ye s”, go to Step 13.
If“No”, the procedure returns to Step
8.
13.Prompt:“Start pairing procedure on
phone. See phone's manual for
instructions.”
14. Using the mobile telephone, perform
a search for the Bluetooth device
(Peripheral device).
NOTE
For the operation of the mobile telephone,
refer to its instruction manual.
15. Select“Mazda”from the device list
searched by the mobile phone.
16. Input the 4-digit pairing code set in
Step 9 to the mobile telephone.
17.Prompt:“Please say the name of the
phone after the beep.”
18.Say: [Beep]“XXXX - - -”(Call out a
“phone tag”, an arbitrary name for the
phone.)
Example:“Stan's phone.”
NOTE
Call out a programmed“phone tag”within 10
seconds.
If more than two mobile telephones are to be
programmed, they cannot be programmed with
the same or similar“phone tag”.
19.Prompt:“Adding XXXXXX - - -
(Ex.“Mary's phone”) (Phone tag). Is
this correct?”
20.Say: [Beep]“Ye s”
21.Prompt:“Assign a priority for this
phone between 1 and 7, where 1 is
the phone used most often.”22.Say: [Beep]“1”(Call out a number of
the desired priority from 1 to 7.)
NOTE
lNormally,“1”is to be input (Highest
priority).
lIf more than two mobile telephones are
registered, input the priority order from 1 to
7.
23.Prompt:“XXXXXX - - - (Ex.
“Mary's phone”) (Phone tag) set to
priority X (Priority number). Is this
correct?”
24.Say: [Beep]“Ye s”
25.Prompt:“Pairing complete”
After a mobile telephone is registered, the
system automatically identifies the phone.
By pressing the phone button again, or by
pressing the phone button first after
turning the ignition switch from the
LOCK to the ACC position, the system
reads out a voice guidance“XXXXXX - -
- (Ex.“Mary's phone”) (Phone tag) is
connected”. If two or more telephones are
registered, the one with the highest
priority is selected.
qMaking a call using a telephone
number
1. Press the phone button (Short press).
2.Say: [Beep]“Dial”
3.Prompt:“Number, please”
4.Say: [Beep]“XXXXXXXXXXX (Ex.
“555-1234”) (Telephone number)”
5.Prompt:“Dialing XXXXXXXXXXX
(Ex.“555-1234”) (Telephone number)
is this correct?”
6.Say: [Beep]“Ye s”or“No”.
Interior Comfort
Bluetooth Hands-Free
6-107
CX-9_8V83-EA-06I_Edition3 Page333
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (334,1)
7. When“Ye s”is called out, the call is
made.
When“No”is called out, the procedure
returns to Step 3.
qReceiving an incoming call
1.Prompt: Incoming call, press the
phone button to answer.
2. To accept the call, press the phone
button (Short press).
To reject the call, press the phone
button (Long press).
qHanging up a call
Press the phone button during the call
(Long press).
Beep will confirm call is ended.
qVolume adjustment
Turn the power/volume dial of the audio
unit or navigation system to adjust the
volume.
Turn the power/volume dial to the right to
increase volume, to the left to decrease it.
Audio unit Navigation system
NOTE
The volume can also be adjusted using the
volume button on the steering wheel.
qHelp function use
The help function informs the user of all
the available voice commands under the
current conditions.
1. Press the phone button (Short press).
2.Say: [Beep]“Help”
3. Follow prompts to get the appropriate
voice guidance.
6-108
Interior Comfort
Bluetooth Hands-Free
CX-9_8V83-EA-06I_Edition3 Page334
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (335,1)

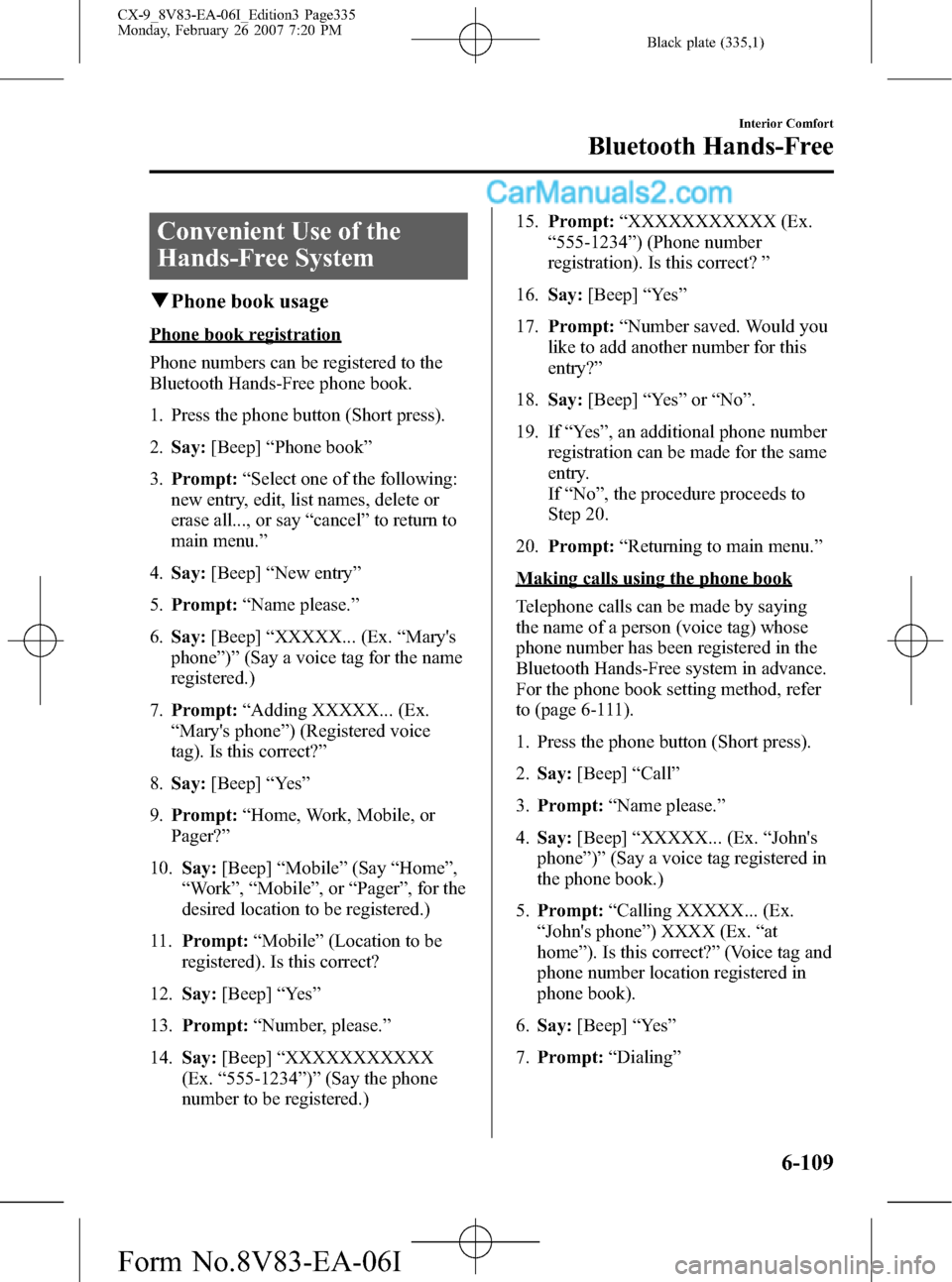

Convenient Use of the
Hands-Free System
qPhone book usage
Phone book registration
Phone numbers can be registered to the
Bluetooth Hands-Free phone book.
1. Press the phone button (Short press).
2.Say:[Beep]“Phone book”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“New entry”
5.Prompt:“Name please.”
6.Say:[Beep]“XXXXX... (Ex.“Mary's
phone”)”(Say a voice tag for the name
registered.)
7.Prompt:“Adding XXXXX... (Ex.
“Mary's phone”) (Registered voice
tag). Is this correct?”
8.Say:[Beep]“Ye s”
9.Prompt:“Home, Work, Mobile, or
Pager?”
10.Say:[Beep]“Mobile”(Say“Home”,
“Work”,“Mobile”,or“Pager”, for the
desired location to be registered.)
11.Prompt:“Mobile”(Location to be
registered). Is this correct?
12.Say:[Beep]“Ye s”
13.Prompt:“Number, please.”
14.Say:[Beep]“XXXXXXXXXXX
(Ex.“555-1234”)”(Say the phone
number to be registered.)15.Prompt:“XXXXXXXXXXX (Ex.
“555-1234”) (Phone number
registration). Is this correct?”
16.Say:[Beep]“Ye s”
17.Prompt:“Number saved. Would you
like to add another number for this
entry?”
18.Say:[Beep]“Ye s”or“No”.
19. If“Ye s”, an additional phone number
registration can be made for the same
entry.
If“No”, the procedure proceeds to
Step 20.
20.Prompt:“Returning to main menu.”
Making calls using the phone book
Telephone calls can be made by saying
the name of a person (voice tag) whose
phone number has been registered in the
Bluetooth Hands-Free system in advance.
For the phone book setting method, refer
to (page 6-111).
1. Press the phone button (Short press).
2.Say:[Beep]“Call”
3.Prompt:“Name please.”
4.Say:[Beep]“XXXXX... (Ex.“John's
phone”)”(Say a voice tag registered in
the phone book.)
5.Prompt:“Calling XXXXX... (Ex.
“John's phone”) XXXX (Ex.“at
home”). Is this correct?”(Voice tag and
phone number location registered in
phone book).
6.Say:[Beep]“Ye s”
7.Prompt:“Dialing”
Interior Comfort
Bluetooth Hands-Free
6-109
CX-9_8V83-EA-06I_Edition3 Page335
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (336,1)
qRedialing function
Redialing the number of the person
previously dialed is possible.
1. Press the phone button (Short press).
2.Say:[Beep]“Redial”
3.Prompt:“Dialing”
qEmergency calls
A call can be made to the emergency
phone number (911) using the voice input
command.
1. Press the phone button (Short press).
2.Say:[Beep]“Emergency”
3.Prompt:“Calling“911”, is this
correct?”
4.Say:[Beep]“Ye s”
5.Prompt:“Dialing”
qRefusing an incoming call
For incoming call refusal, refer to
“Receiving an incoming call”(page
6-108).
qMute
The microphone can be muted during a
call.
1. Press the phone button (Short press).
2.Say:[Beep]“Mute”
3.Prompt:“Microphone muted”
Canceling mute
1. Press the phone button (Short press).
2.Say:[Beep]“Mute off”
3.Prompt:“Microphone unmuted”
qTransferring a call
Transferring a call from the Hands-
Free system to a mobile phone
Communication between the hands-free
unit and a mobile phone is canceled, and
the line can be switched to a standard call
using a mobile phone.
1. Press the phone button (Short press).
2.Say:[Beep]“Transfer call”
3.Prompt:“Transferred call to phone”
Transferring a call from a mobile
phone to the Hands-Free system
Communication between mobile phones
can be switched to the Bluetooth Hands-
Free system.
1. Press the phone button (Short press).
2.Say:[Beep]“Transfer call”
3.Prompt:“Transferred call to Hands
Free system”
Call waiting
A call can be interrupted to receive and
incoming call from a third party.
Call interrupt
A call can be switched to a new incoming
call.
lPress the phone button (Short press).
NOTE
lTo refuse an incoming call, press the phone
button (Long press).
lAfter receiving a new incoming call, the
previous call is placed on hold.
Switching calls
Switching back to the previous call can
also be done.
lPress the phone button (Short press).
6-110
Interior Comfort
Bluetooth Hands-Free
CX-9_8V83-EA-06I_Edition3 Page336
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (337,1)
Ending the current call
lPress the phone button during the call
(Long press).
qVoice guidance interrupt operation
Voice guidance can be stopped by
pressing the phone button (Short press)
while it is being heard. A new voice input
command can then be called out by the
user.
· Press the phone button (Short press).
qPhone book settings
Editing phone book
The data registered to the Bluetooth
Hands-Free phone book can be edited.
1. Press the phone button (Short press).
2.Say:[Beep]“Phone book”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“Edit”
5.Prompt:“Please say the name of the
entry you would like to edit, or say
“List names”..., or say“cancel”to
return to main menu.”
6.Say:[Beep]“XXXXX... (Ex.“Mary's
phone”)”(Say the voice tag for the
registered name to be edited in the
phone book.)
7.Prompt:“Home, Work, Mobile, or
Pager?”
8.Say:[Beep]“Home”(Say the
registered location to be edited:
“Home”,“Work”,“Mobile”,or
“Pager”).9.Prompt:“XXXXX... (Ex.“Mary's
phone”) (Registered voice tag) XXXX
(Ex.“home”) (Registered location). Is
this correct?”
10.Say:[Beep]“Ye s”
11.Prompt:“The current number is
XXXXXXXXXXX (Ex.“555-1234”)
(Currently registered number). New
number, please.”
NOTE
If there was no previous phone number
registered to a location (Ex.“Work”), the
prompt will only read out“Number, please”.
12.Say:[Beep]“XXXXXXXXXXX
(Ex.“555-1234”)”(Say the new
phone number to be registered.)
13.Prompt:“XXXXXXXXXXX (Ex.
“555-1234”) (The new phone number
to be registered). Is this correct?”
14.Say:[Beep]“Ye s”
15.Prompt:“Number changed. Would
you like to call this number, edit
another entry..., or say“cancel”to
return to main menu.”
Phone book data deletion
Erasing individual phone book data
Individual data registered to the Bluetooth
Hands-Free phone book can be cleared.
1. Press the phone button (Short press).
2.Say:[Beep]“Phone book”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“Delete”
Interior Comfort
Bluetooth Hands-Free
6-111
CX-9_8V83-EA-06I_Edition3 Page337
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (338,1)
5.Prompt:“Please say the name of the
entry you would like to delete, or say
“List names”..., or say“cancel”to
return to main menu.”
6.Say:[Beep]“XXXXX... (Ex.“John's
phone”)”(Say the registered voice tag
to be deleted from the phone book.)
7.Prompt:“Deleting XXXXX... (Ex.
“John's phone”) (Registered voice tag)
Home (Registered location). Is this
correct?”
8.Say:[Beep]“Ye s”
9.Prompt:“XXXXX... (Ex.“John's
phone”) (Registered voice tag) Home
(Registered location) deleted, returning
to main menu.”
Complete deletion of the phone book
data
All data registered to the Bluetooth
Hands-Free phone book can be erased.
1. Press the phone button (Short press).
2.Say:[Beep]“Phone book”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“Erase all”
5.Prompt:“Are you sure you want to
erase everything from your Hands Free
system phone book?”
6.Say:[Beep]“Ye s”
7.Prompt:“You are about to delete
everything from your Hands Free
system phone book. Do you want to
continue?”
8.Say:[Beep]“Ye s”9.Prompt:“Please wait, erasing the
Hands Free system phone book.”
10.Prompt:“Hands-Free system phone
book erased, returning to main
menu.”
Read-out of names registered to the
Bluetooth Hands-Free phone book
The Bluetooth Hands-Free system can
read out the list of names registered to its
phone book.
1. Press the phone button (Short press).
2.Say:[Beep]“Phone book”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“List names”
5.Prompt:“XXXXX..., XXXXX...,
XXXXX... (Ex.“John's phone”, Mary's
phone, Bill's phone)”(Voice guidance
reads out the voice tags registered to
the phone book.)
Press the phone button during the read-out
at the desired name, and then say one of
the following voice commands to execute
it.
l“Continue”: Continues the voice
guidance.
l“Call”: Calls the registered phone
number.
l“Edit”: Edits the registered phone
number.
l“Delete”: Deletes the registered phone
number.
l“Previous”: Returns to the previous
phone number.
l“Cancel”: Returns to main menu.
6.Prompt:“End of list, would you like
to start from the beginning?”
6-112
Interior Comfort
Bluetooth Hands-Free
CX-9_8V83-EA-06I_Edition3 Page338
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (339,1)
7.Say:[Beep]“No”
8.Prompt:“Returning to main menu.”Hands-Free Telephone Setting
qMobile phone
Mobile phone registration
For the registration of a Bluetooth
equipped mobile telephone to the
Bluetooth Hands-Free system, refer to
“Bluetooth Hands-Free preparation”(page
6-106).
Registered mobile phone read-out
The Bluetooth Hands-Free system can
read-out the mobile phones registered to
its system.
1. Press the phone button (Short press).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Pairing options”
5.Prompt:“Do you want to pair a
phone, delete a phone, or list paired
phones?”
6.Say:[Beep]“List phones”
7.Prompt:“XXXXX..., XXXXX...,
XXXXX... (Ex. Phone A, phone B,
phone C)”(The voice guidance reads
out the phone tags registered to the
phone book.)
Press the phone button during the read-out
at the desired phone, and then say one of
the following voice commands to execute
it.
l“Select”: Registers the mobile phone
when the phone button was pressed.
Interior Comfort
Bluetooth Hands-Free
6-113
CX-9_8V83-EA-06I_Edition3 Page339
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I

Black plate (340,1)
l“Continue”: Continues the voice
guidance.
l“Delete”: Deletes the registered mobile
phone.
l“Previous”: Returns to the previous
mobile phone.
8.Prompt:“End of list, would you like
to start from the beginning?”
9.Say:[Beep]“No”
10.Prompt:“Returning to main menu.”
Mobile phone selection
This function is for switching to a
different mobile phone which has been
registered beforehand. The selected
mobile phone will remain in effect until
the ignition switch is turned off.
1. Press the phone button (Short press).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Select phone”
5.Prompt:“Please say 1 (priority 1) for
XXXXX... (Ex. phone A), 2 (priority
2) for XXXXX... (Ex. phone B...)”
6.Say:[Beep]“2”(Say the priority
number for the mobile phone to be
used as first priority.)
7.Prompt:“XXXXX... (Ex. phone B...)
(Registered phone tag) selected, is this
correct?”
8.Say:[Beep]“Ye s”9.Prompt:“XXXXX... (Ex. phone B...)
(Phone tag) will temporarily override
phone priorities, returning to main
menu.”
Registered mobile phone deletion
Registered mobile phones can be deleted
individually or collectively.
1. Press the phone button (Short press).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Pairing options”
5.Prompt:“Do you want to pair a
phone, delete a phone, or list paired
phones?”
NOTE
A registered mobile phone can be deleted
using the registration list.
6.Say:[Beep]“Delete phone”
7.Prompt:“Please say 1 (priority 1) for
XXXXX... (Ex. phone A), 2 (priority
2) for XXXXX... (Ex. phone B...)”
(The voice guidance reads out each
phone in the order of priority and the
phone tag).
8.Say:[Beep]“2”(Say the order of
priority of the mobile phone to be
deleted.)
NOTE
Say“All”to delete all mobile phones.
9.Prompt:“Removing XXXXX... (Ex.
phone B...) (Registered phone tag). Is
this correct?”
6-114
Interior Comfort
Bluetooth Hands-Free
CX-9_8V83-EA-06I_Edition3 Page340
Monday, February 26 2007 7:20 PM
Form No.8V83-EA-06I
