Page 121 of 130
121
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
Bluetooth Hands-Free

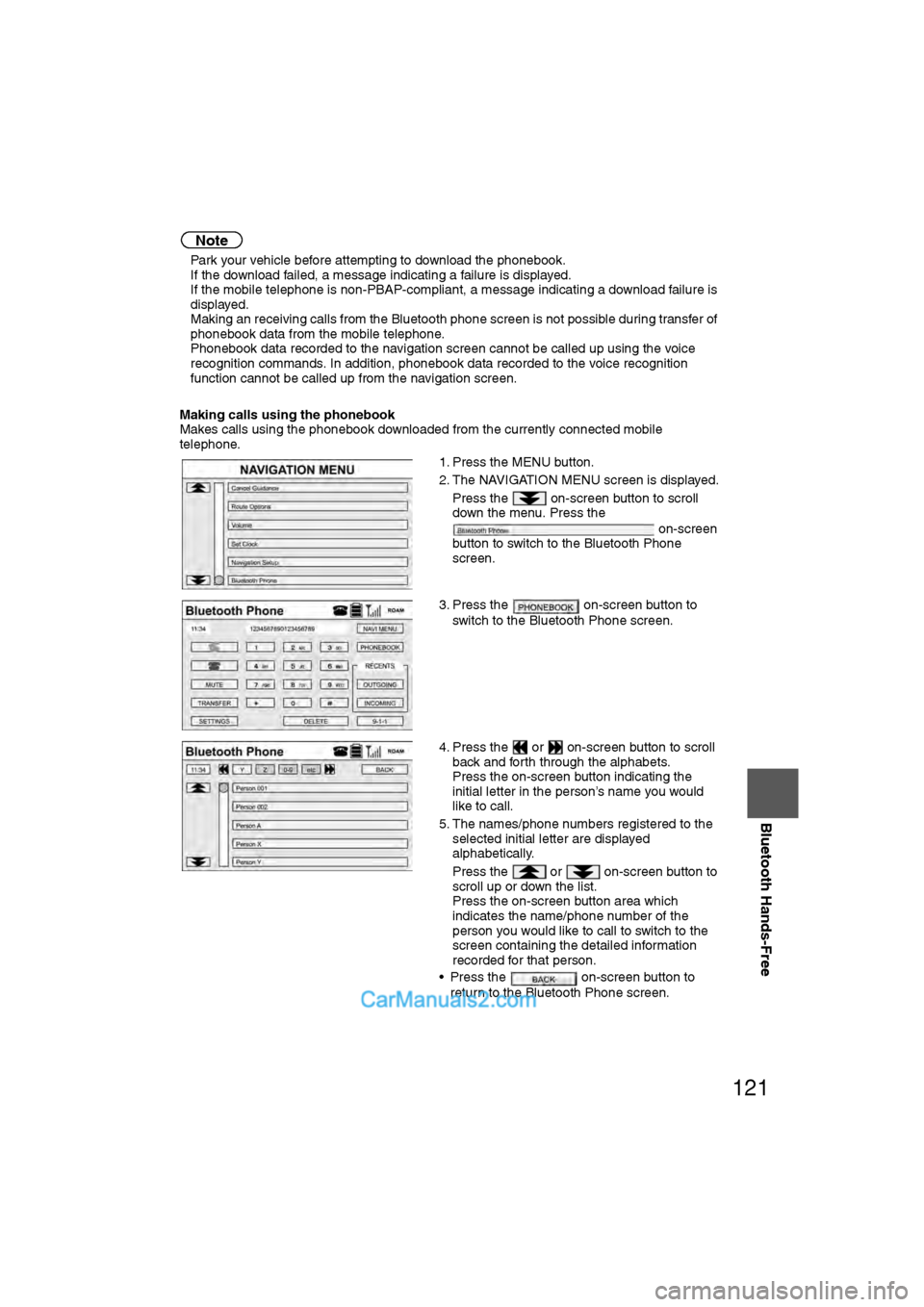

Note
l
Park your vehicle before attempting to download the phonebook.
l If the download failed, a message indicating a failure is displayed.
l If the mobile telephone is non-PBAP-compliant, a message indicating a download failure is
displayed.
l Making an receiving calls from the Bluetooth phone screen is not possible during transfer of
phonebook data from the mobile telephone.
l Phonebook data recorded to the navigation screen cannot be called up using the voice
recognition commands. In addition, phonebook data recorded to the voice recognition
function cannot be called up from the navigation screen.
Making calls using the phonebook
Makes calls using the phonebook downloaded from the currently connected mobile
telephone. 1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu. Press the on-screen
button to switch to the Bluetooth Phone
screen.
3. Press the on-screen button to switch to the Bluetooth Phone screen.
4. Press the or on-screen button to scroll back and forth through the alphabets.
Press the on-screen button indicating the
initial letter in the person’s name you would
like to call.
5. The names/phone numbers registered to the selected initial letter are displayed
alphabetically.
Press the or on-screen button to
scroll up or down the list.
Press the on-screen button area which
indicates the name/phone number of the
person you would like to call to switch to the
screen containing the detailed information
recorded for that person.
• Press the on-screen button to return to the Bluetooth Phone screen.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 122 of 130
122
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Bluetooth Hands-Free
Note
l

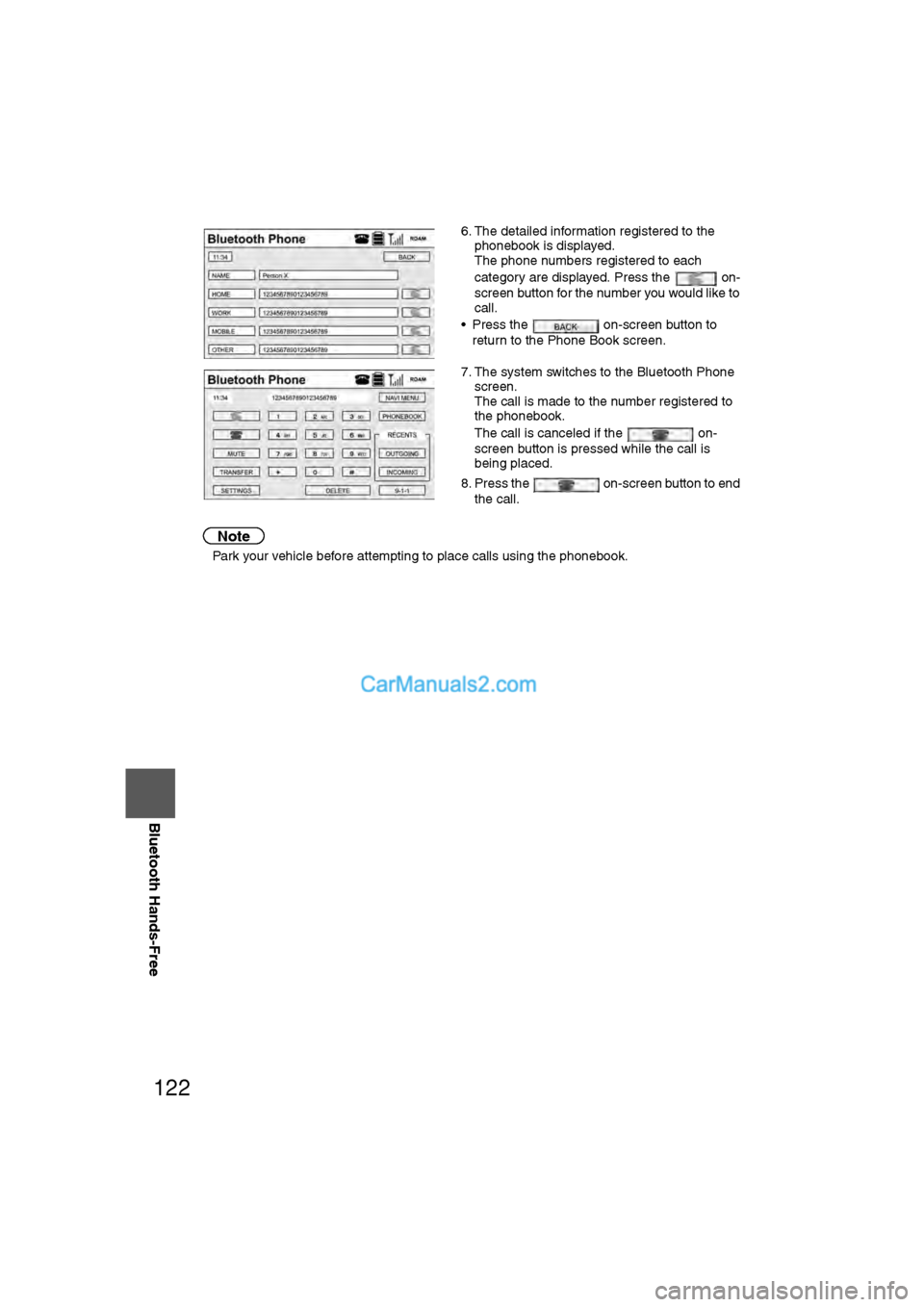

Park your vehicle before attempting to place calls using the phonebook. 6. The detailed information registered to the
phonebook is displayed.
The phone numbers registered to each
category are displayed. Press the on-
screen button for the number you would like to
call.
• Press the on-screen button to return to the Phone Book screen.
7. The system switches to the Bluetooth Phone screen.
The call is made to the number registered to
the phonebook.
The call is canceled if the on-
screen button is pressed while the call is
being placed.
8. Press the on-screen button to end the call.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 123 of 130
123
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
Bluetooth Hands-Free

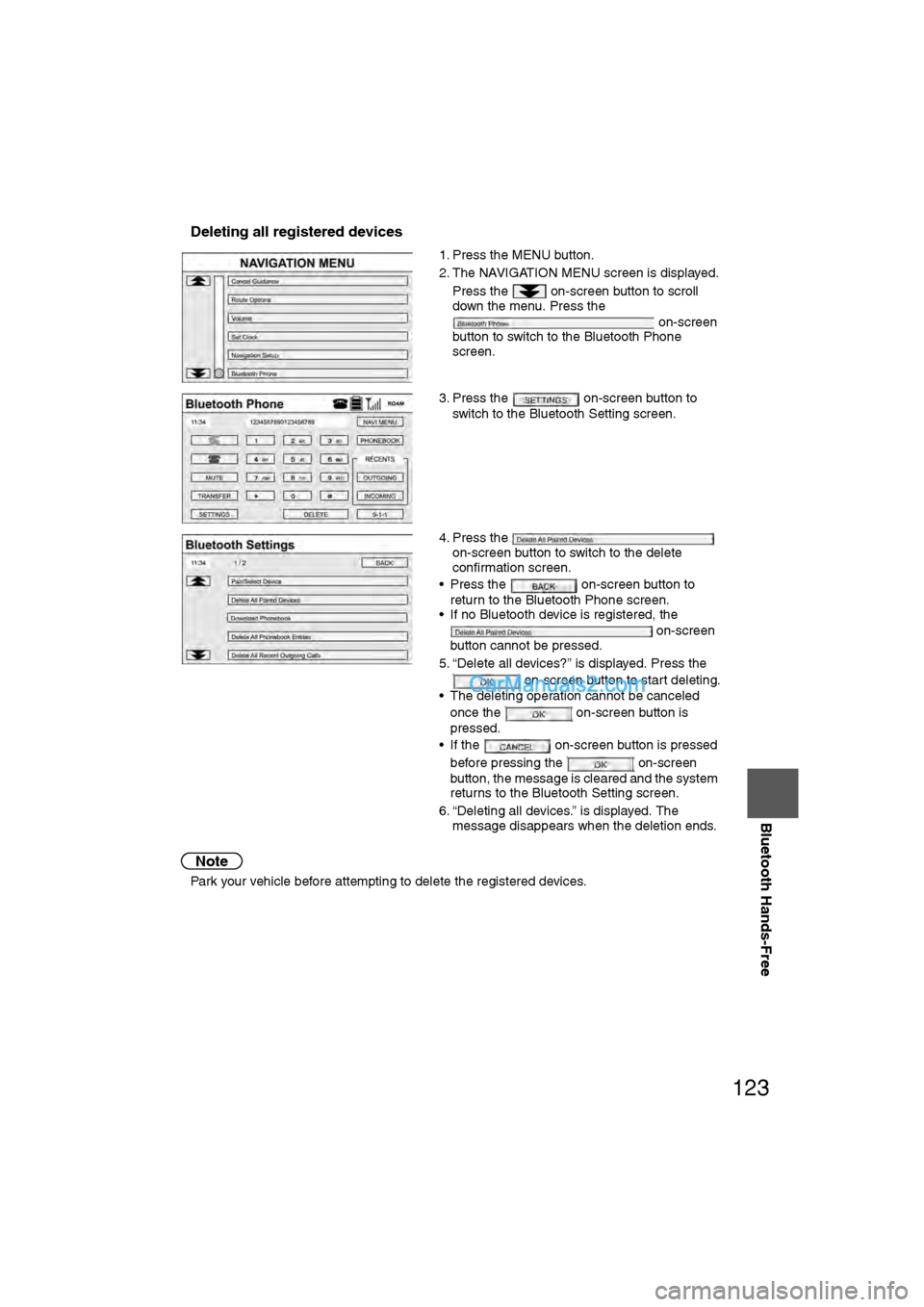

nDeleting all registered devices
Note
l
Park your vehicle before attempting to delete the registered devices. 1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu. Press the on-screen
button to switch to the Bluetooth Phone
screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to switch to the delete
confirmation screen.
• Press the on-screen button to return to the Bluetooth Phone screen.
• If no Bluetooth device is registered, the
on-screen
button cannot be pressed.
5. “Delete all devices?” is displayed. Press the on-screen button to start deleting.
• The deleting operation cannot be canceled
once the on-screen button is
pressed.
• If the on-screen button is pressed
before pressing the on-screen
button, the message is cleared and the system
returns to the Bluetooth Setting screen.
6. “Deleting all devices.” is displayed. The message disappears when the deletion ends.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 124 of 130
124
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Bluetooth Hands-Free

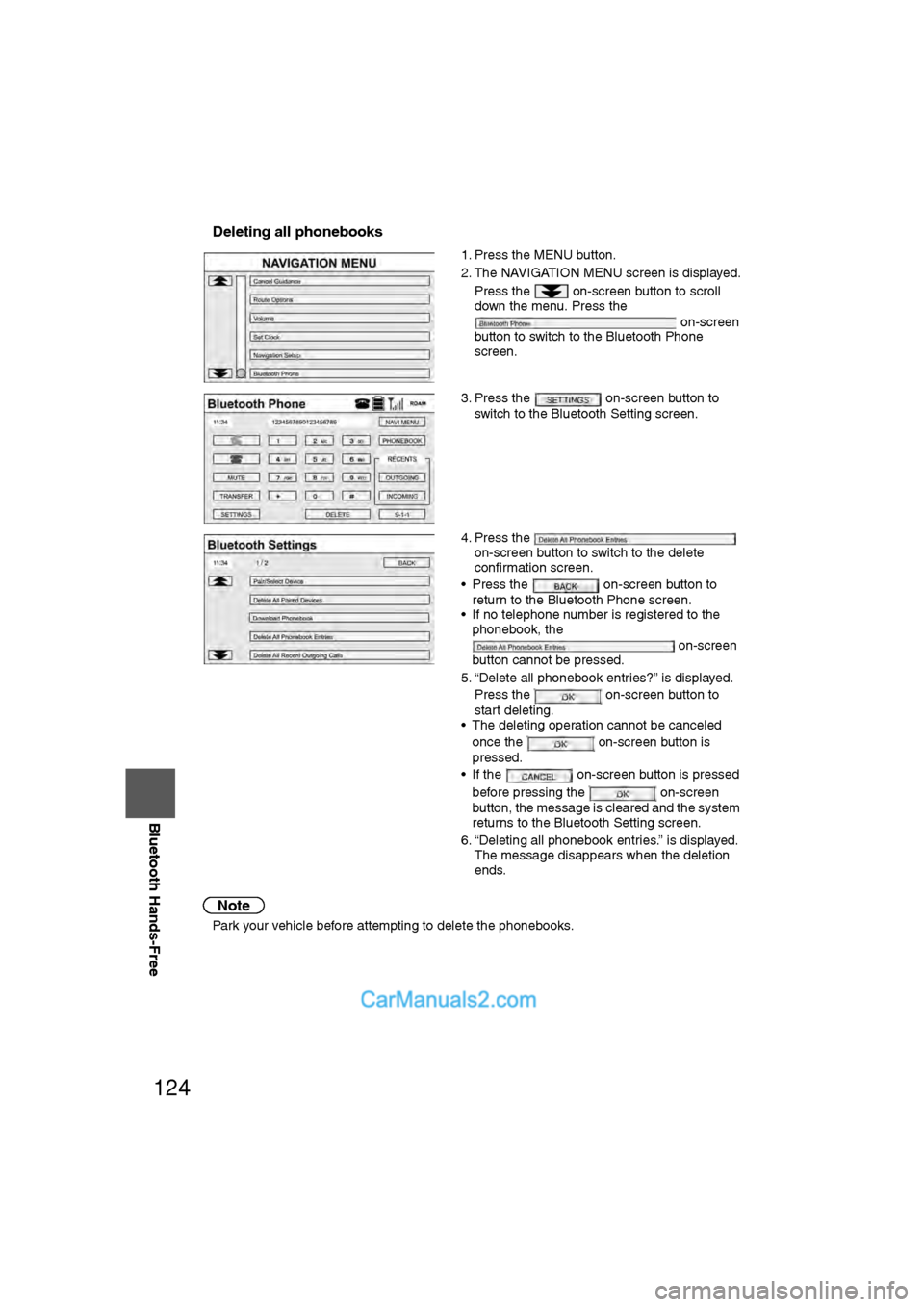

nDeleting all phonebooks
Note
l
Park your vehicle before attempting to delete the phonebooks. 1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu. Press the on-screen
button to switch to the Bluetooth Phone
screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to switch to the delete
confirmation screen.
• Press the on-screen button to return to the Bluetooth Phone screen.
• If no telephone number is registered to the phonebook, the
on-screen
button cannot be pressed.
5. “Delete all phonebook entries?” is displayed. Press the on-screen button to
start deleting.
• The deleting operation cannot be canceled
once the on-screen button is
pressed.
• If the on-screen button is pressed
before pressing the on-screen
button, the message is cleared and the system
returns to the Bluetooth Setting screen.
6. “Deleting all phonebook entries.” is displayed. The message disappears when the deletion
ends.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 125 of 130
125
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
Bluetooth Hands-Free
nDeleting all outgoing call records
Note
l
Park your vehicle before attempting to delete the outgoing call records. 1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu. Press the on-screen
button to switch to the Bluetooth Phone
screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to switch to the delete
confirmation screen.
• Press the on-screen button to return to the Bluetooth Phone screen.
• If there is no outgoing call record, the
on-screen
button cannot be pressed.
5. “Delete all recent outgoing calls?” is displayed. Press the on-screen
button to start deleting.
• The deleting operation cannot be canceled
once the on-screen button is
pressed.
• If the on-screen button is pressed
before pressing the on-screen
button, the message is cleared and the system
returns to the Bluetooth Setting screen.
6. “Deleting all recent outgoing calls.” is displayed. The message disappears when the
deletion ends.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 126 of 130
126
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Bluetooth Hands-Free

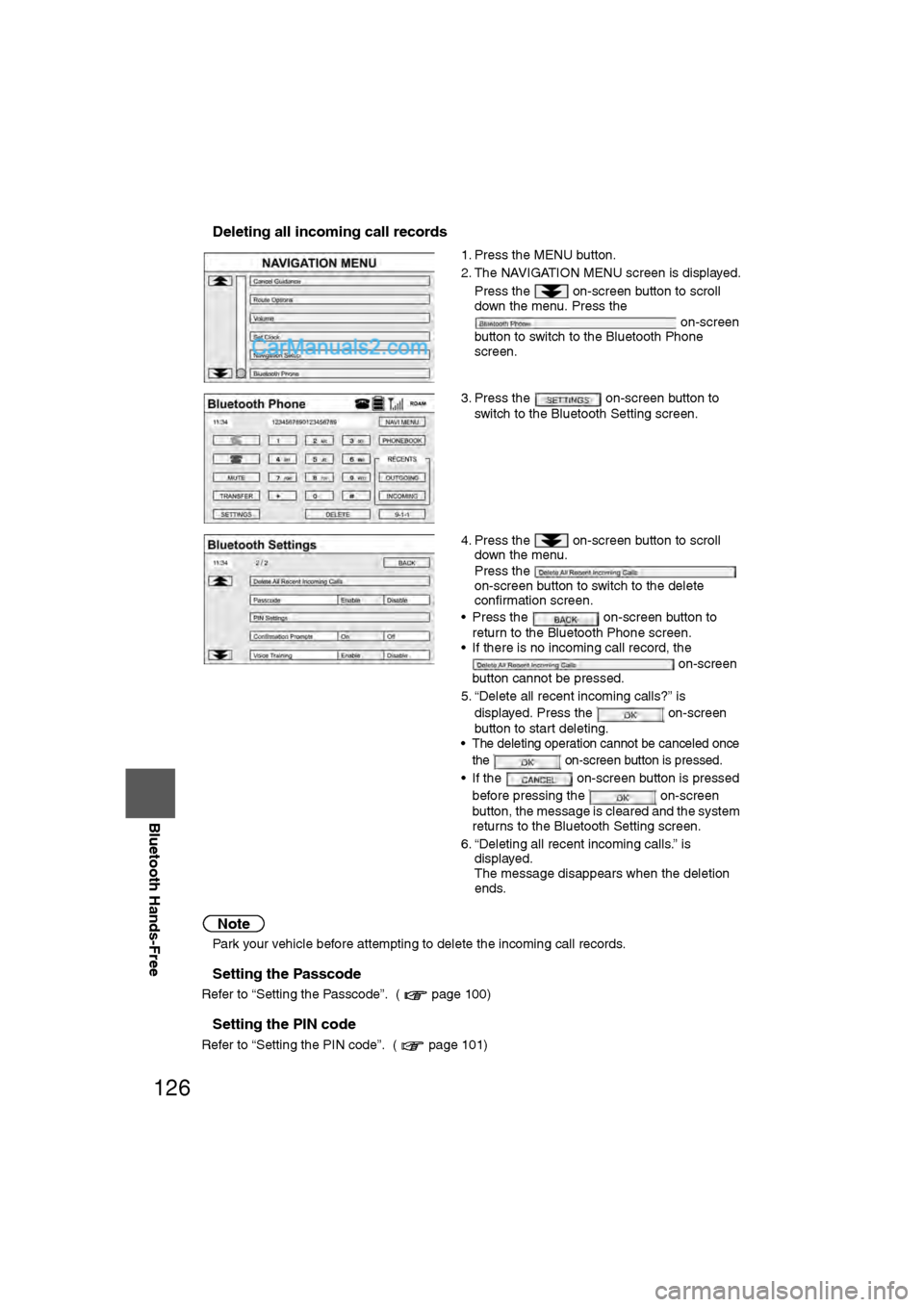

nDeleting all incoming call records
Note
l
Park your vehicle before attempting to delete the incoming call records.
nSetting the Passcode
Refer to “Setting the Passcode”. ( page 100)
nSetting the PIN code
Refer to “Setting the PIN code”. ( page 101) 1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu. Press the on-screen
button to switch to the Bluetooth Phone
screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to scroll down the menu.
Press the
on-screen button to switch to the delete
confirmation screen.
• Press the on-screen button to return to the Bluetooth Phone screen.
• If there is no incoming call record, the
on-screen
button cannot be pressed.
5. “Delete all recent incoming calls?” is displayed. Press the on-screen
button to start deleting.
• The deleting operation cannot be canceled once the on-screen button is pressed.
• If the on-screen button is pressed
before pressing the on-screen
button, the message is cleared and the system
returns to the Bluetooth Setting screen.
6. “Deleting all recent incoming calls.” is displayed.
The message disappears when the deletion
ends.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 127 of 130
127
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
Bluetooth Hands-Free

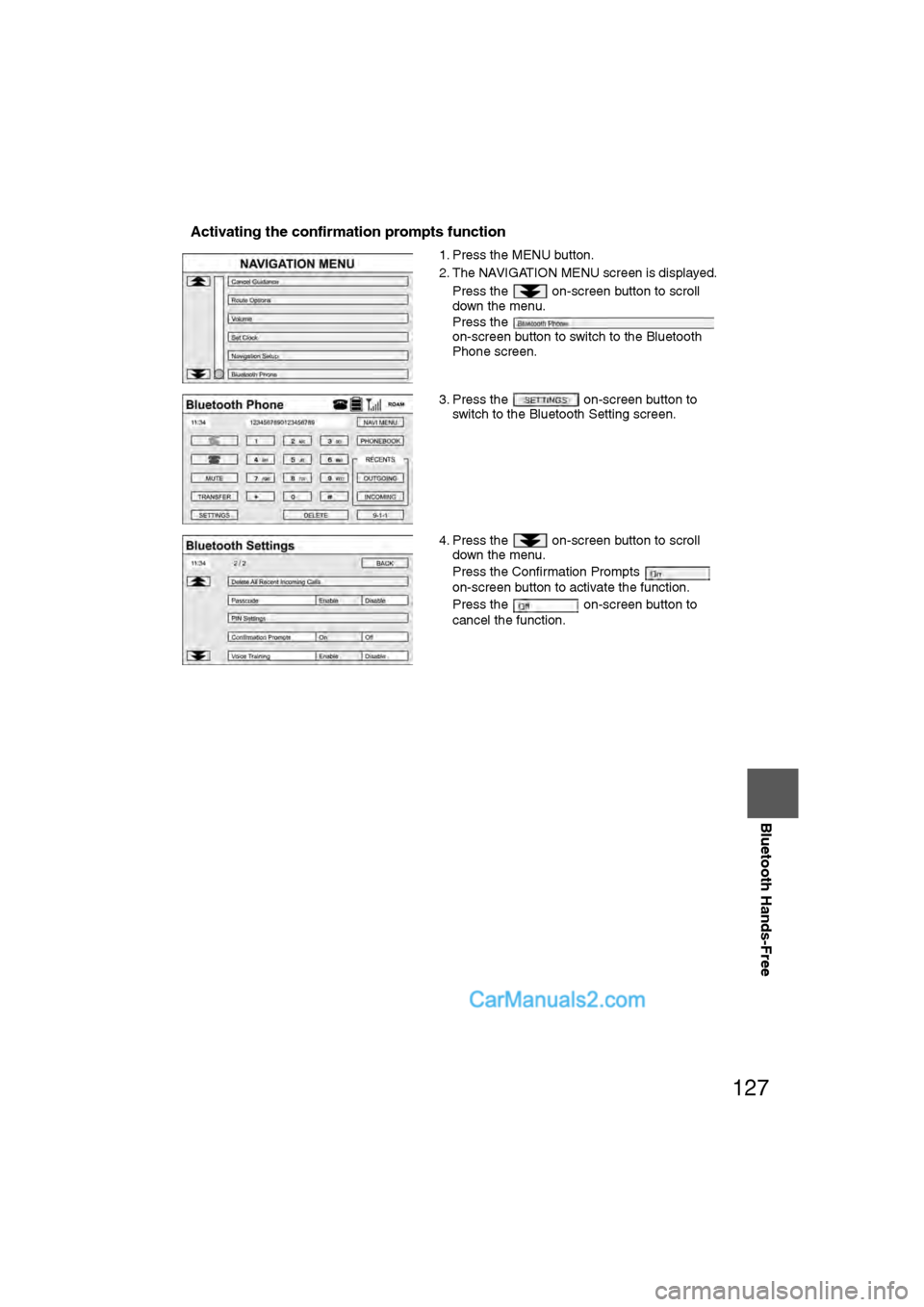

nActivating the confirmation prompts function
1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu.
Press the
on-screen button to switch to the Bluetooth
Phone screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to scroll down the menu.
Press the Confirmation Prompts
on-screen button to activate the function.
Press the on-screen button to
cancel the function.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 128 of 130
128
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Bluetooth Hands-Free

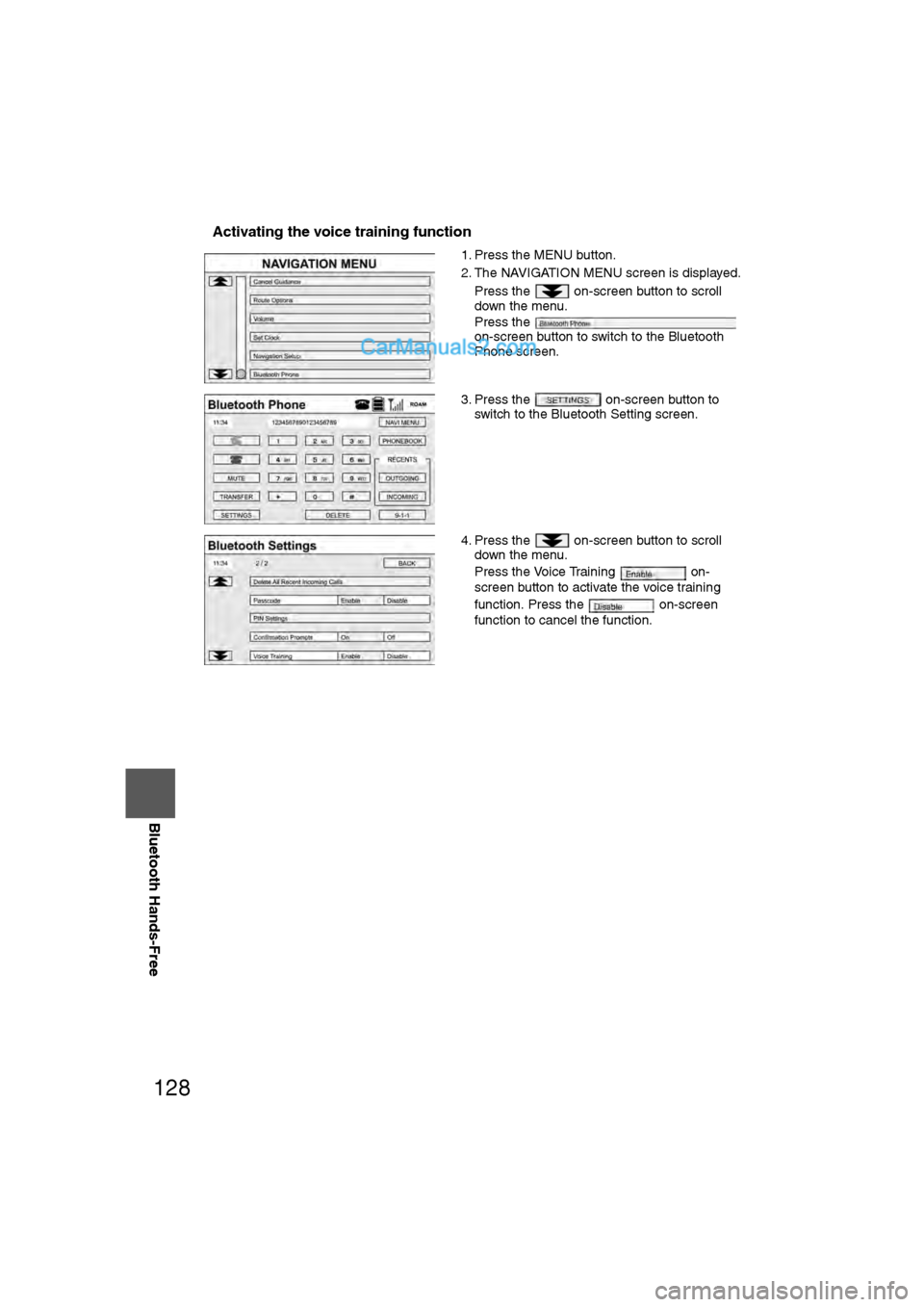

nActivating the voice training function
1. Press the MENU button.
2. The NAVIGATION MENU screen is displayed.
Press the on-screen button to scroll
down the menu.
Press the
on-screen button to switch to the Bluetooth
Phone screen.
3. Press the on-screen button to switch to the Bluetooth Setting screen.
4. Press the on-screen button to scroll down the menu.
Press the Voice Training on-
screen button to activate the voice training
function. Press the on-screen
function to cancel the function.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 129 of 130
129
Steering Switch
Steering Switch
nAdjusting the Volume
To increase the volume, pull up the volume switch.
To decrease the volume, press down the volume switch.
nChanging the Source
Press the mode switch (MODE) to change the audio source (FM1 radio > FM2 radio >
AM radio > SIRIUS1 > SIRIUS2 > SIRIUS3 > CD > AUX1 > AUX2 > OFF > cyclical).
nSeek Switch
When listening to the radio
Pull up or press down the seek switch, the radio switches to the next/previous stored station
in the order that it was stored (1-8).
Pull up or press down the seek switch for about 2 seconds until a beep sound is heard to seek
all usable stations at a higher or lower frequency whether programmed or not.
When playing a CD
Pull up the seek switch to skip to the next track.
Press down the seek switch to repeat the current track.
Operating the Steering Switch
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 130 of 130
130
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Steering Switch
nSafety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Note
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasona-
ble protection against harmful interference in a residential installation. This equipment gener-
ates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. l
This CD player should not be adjusted or repaired by anyone except
qualified service personnel.
If servicing is required, contact an Authorized Mazda Dealer.
l Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous laser exposure. Never
operate the CD player with the top case of the unit removed.
l Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Cautions
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
