MAZDA MODEL CX-9 2009 Owners Manual (in English)

Black plate (241,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System .......................... 6-2
Operating Tips .................................... 6-2
Vent Operation (Front) ........................ 6-4
Fully Automatic Type ......................... 6-6
Vent Operation (Rear) ....................... 6-12
Control Panel (Rear) ......................... 6-14
Audio System ......................................... 6-17
Antenna ............................................. 6-17
Operating Tips for Audio System ..... 6-17
Audio Set .......................................... 6-27
Audio Control Switch Operation (Steering
Wheel) ............................................... 6-58
AUX Mode (Auxiliary input) ........... 6-61
Safety Certification ........................... 6-63
Rear Entertainment System ................. 6-64
Rear Entertainment System
í............ 6-64
Part Names ........................................ 6-73
Before Operation ............................... 6-76
Sound Output .................................... 6-82
Rear Entertainment System
Functions ........................................... 6-86
DVD video, DVD audio, Video CD, Audio
CD and MP3/WMA CD Playback (Disc
Mode) ................................................ 6-87
Auxiliary Input (AUX mode) .......... 6-101
Language Code List ........................ 6-105
Country Code List ........................... 6-107
Error Message ................................. 6-111
Symptoms and Actions ................... 6-113Bluetooth Hands-Free ......................... 6-116
Bluetooth Hands-Free
í.................. 6-116
Basic Bluetooth Hands-Free
Operation ........................................ 6-120
Convenient Use of the Hands-Free
System ............................................. 6-124
Hands-Free Setting .......................... 6-130
When Bluetooth Hands-Free Cannot be
Used ................................................ 6-136
Safety Certification ......................... 6-137
Mazda Bluetooth Hands-Free Customer
Service ............................................ 6-137
Interior Equipment ............................. 6-138
Sunvisors ......................................... 6-138
Interior Lights ................................. 6-139
Information Display ........................ 6-141
Cup Holder ...................................... 6-146
Bottle Holder ................................... 6-147
Storage Compartments .................... 6-148
Accessory Sockets .......................... 6-151
Power Outlet
í................................ 6-152
6-1íSome models.
CX-9_8Z66-EA-08F_Edition3 Page241
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (242,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ON position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page242
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (243,1)
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and the intensity of direct
sunlight. It then sets temperatures inside
the passenger compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-3
CX-9_8Z66-EA-08F_Edition3 Page243
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (244,1)
Vent Operation (Front)
Open
Close
qAdjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Opening/closing vents
The two outside vents can be opened and closed with wheel.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
6-4
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page244
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (245,1)
qSelecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents
Defroster and Floor Vents
Defroster Vents
Interior Comfort
Climate Control System
6-5
CX-9_8Z66-EA-08F_Edition3 Page245
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (246,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Temperature setting display (driver)Ambient temperature /Temperature
setting display (front passenger)
Mode selector display
Airflow display A/C
DUALAU TO
Air intake display
Information display
Front passenger temperature control dial
Windshield defroster switchFan control dial Driver temperature control dial
Air intake selector OFF switch AUTO switch
Mode selector
switchA/C switch
DUAL switch
OUTSIDE (Ambient
temperature) switch
6-6
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page246
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (247,1)
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial, A/C switch and windshield
defroster switch. Other functions will
continue to operate automatically.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold
Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
lWhen the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
lWhen the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The system changes to the individual operation
mode (DUAL switch indicator light
illuminated) by turning the front passenger
temperature control dial even when the DUAL
switch is off, which allows individual control
of the set temperature for the driver and front
passenger.
Fan control dial
SlowFast
The fan has seven speeds. The selected
speed will be displayed.
Interior Comfort
Climate Control System
6-7
CX-9_8Z66-EA-08F_Edition3 Page247
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (248,1)
Mode selector switch
The desired airflow mode can be selected
(page 6-5).
NOTE
lWith the airflow mode set to the
position and the temperature control dial
set at a medium temperature, heated air is
directed to the feet and a comparably lower
air temperature will flow through the
central, left and right vents.
lTo set the air vent to, press the
windshield defroster switch.
lIn theposition, the air conditioner is
automatically turned on and the outside air
mode is automatically selected to defrost
the windshield. In the
position, the
outside air mode cannot be changed to the
recirculated air mode.
A/C switch
Pressing the A/C switch while the AUTO
switch is turned on will turn off the air
conditioning (cooling/dehumidifying
functions). The air conditioning can be
turned on and off by pressing the A/C
switch while the fan control dial is on.NOTE
lThe air conditioning operates when the A/C
switch is pressed even if the fan is off.
lThe air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F). (Indicator light remains on even
when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position
(indicator light illuminated)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position
(indicator
light turned off)
Use this position for normal conditions
and defogging.
WARNING
Do not use theposition in cold or
rainy weather:
Using the
position in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
6-8
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page248
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (249,1)

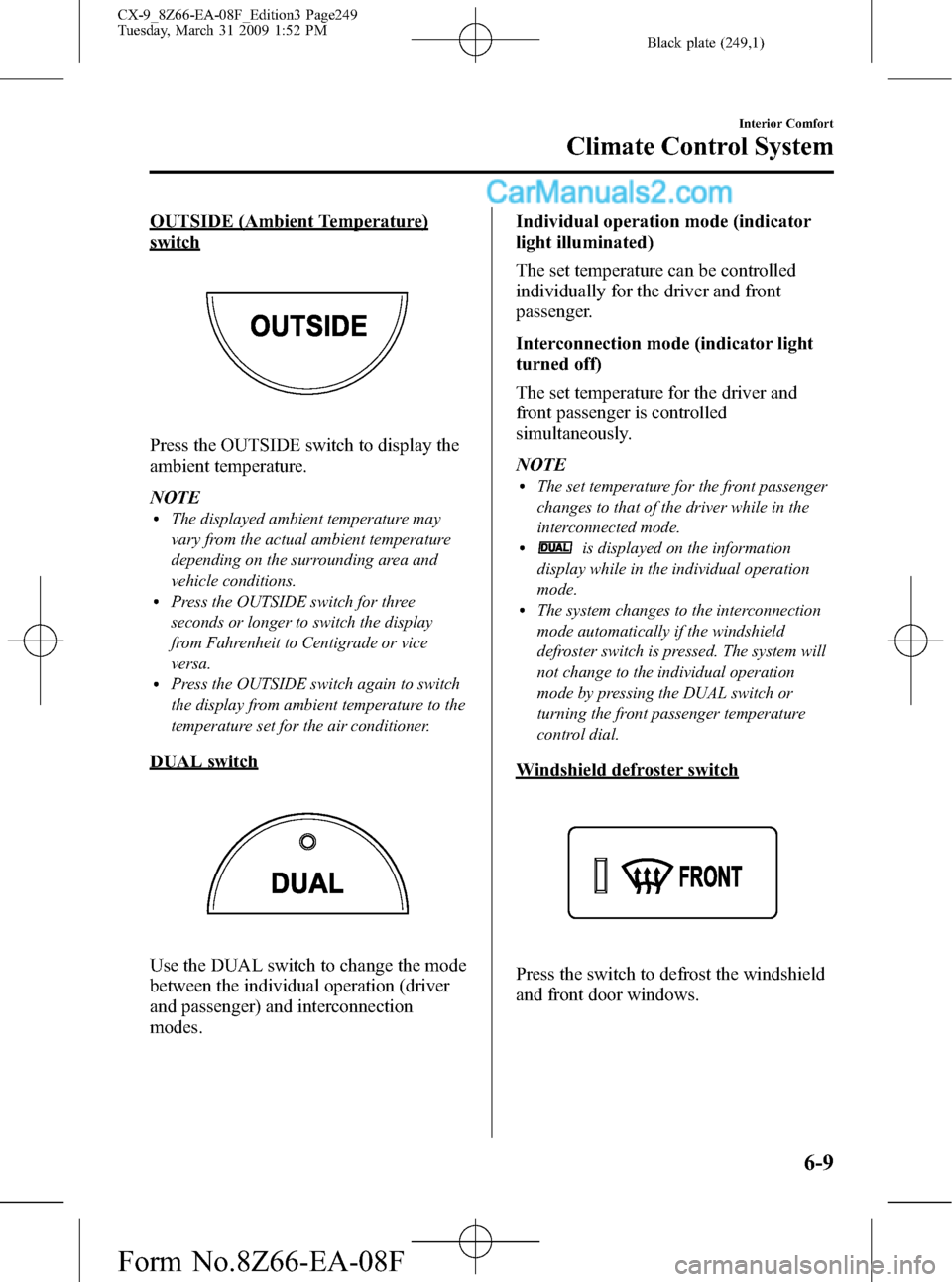

OUTSIDE (Ambient Temperature)
switch
Press the OUTSIDE switch to display the
ambient temperature.
NOTE
lThe displayed ambient temperature may
vary from the actual ambient temperature
depending on the surrounding area and
vehicle conditions.
lPress the OUTSIDE switch for three
seconds or longer to switch the display
from Fahrenheit to Centigrade or vice
versa.
lPress the OUTSIDE switch again to switch
the display from ambient temperature to the
temperature set for the air conditioner.
DUAL switch
Use the DUAL switch to change the mode
between the individual operation (driver
and passenger) and interconnection
modes.Individual operation mode (indicator
light illuminated)
The set temperature can be controlled
individually for the driver and front
passenger.
Interconnection mode (indicator light
turned off)
The set temperature for the driver and
front passenger is controlled
simultaneously.
NOTE
lThe set temperature for the front passenger
changes to that of the driver while in the
interconnected mode.
lis displayed on the information
display while in the individual operation
mode.
lThe system changes to the interconnection
mode automatically if the windshield
defroster switch is pressed. The system will
not change to the individual operation
mode by pressing the DUAL switch or
turning the front passenger temperature
control dial.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
Interior Comfort
Climate Control System
6-9
CX-9_8Z66-EA-08F_Edition3 Page249
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (250,1)
NOTE
In theposition, the air conditioner is
automatically turned on and the outside air
mode is automatically selected to defrost the
windshield. In the
position, the outside air
mode cannot be changed to the recirculated
air mode.
qOperation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
Press the DUAL switch or turn the
front passenger temperature control
dial to control the set temperature
individually for the driver and front
passenger.
Cold
Hot
To turn off the system, press the OFF
switch.NOTE
lSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the
position is
automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows (page 6-5). Airflow amount will
be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident.
6-10
Interior Comfort
Climate Control System
CX-9_8Z66-EA-08F_Edition3 Page250
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F
