Fuse block (Glove box)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 OUTLET FR 15A Accessory socket (Front)
2 MIRROR 7.5A Power control mirror
3―― ―
4 METER 10A Instrument cluster
5 SAS 7.5A ABS, Air bag
6 ENG.IGA 7.5A Engine control system
7 STA 7.5A Ignition system
8―― ―
9 A/C 7.5A Air conditioner
10 R.WIPER 15A Rear window wiper and washer
11 TRAILER――
12 P.LIFT GATE 20A Power lift gate
í
13 SUNROOF 15A Moonroofí
14 AUDIO 10A Audio system
15 M.DEF 10A Mirror defrosterí
16―― ―
17 TAIL 10A Taillight
18 ILLUMI 10A Dashboard illumination
19 INJ 7.5A Injectors
8-50
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8Z66-EA-08F_Edition3 Page464
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (471,1)
qUndercoating
This special coating is applied to the
critical parts of the underside to protect
vehicles from damage caused by
chemicals or stones. This coating is liable
to be damaged with time. Check this
coating periodically.
An Authorized Mazda Dealer are well
informed on how repairs should be made.
Consult an Authorized Mazda Dealer.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lOnly use a mild soap or neutral detergent
and always use a sponge or soft cloth to
clean the wheels.
Rinse thoroughly with lukewarm or cold
water. Also, be sure to clean the wheels
after driving on dusty or salted roads. This
helps prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with adampsoft cloth; then dry
and buff it with adrysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
Maintenance and Care
Appearance Care
8-57íSome models. CX-9_8Z66-EA-08F_Edition3 Page471
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (524,1)

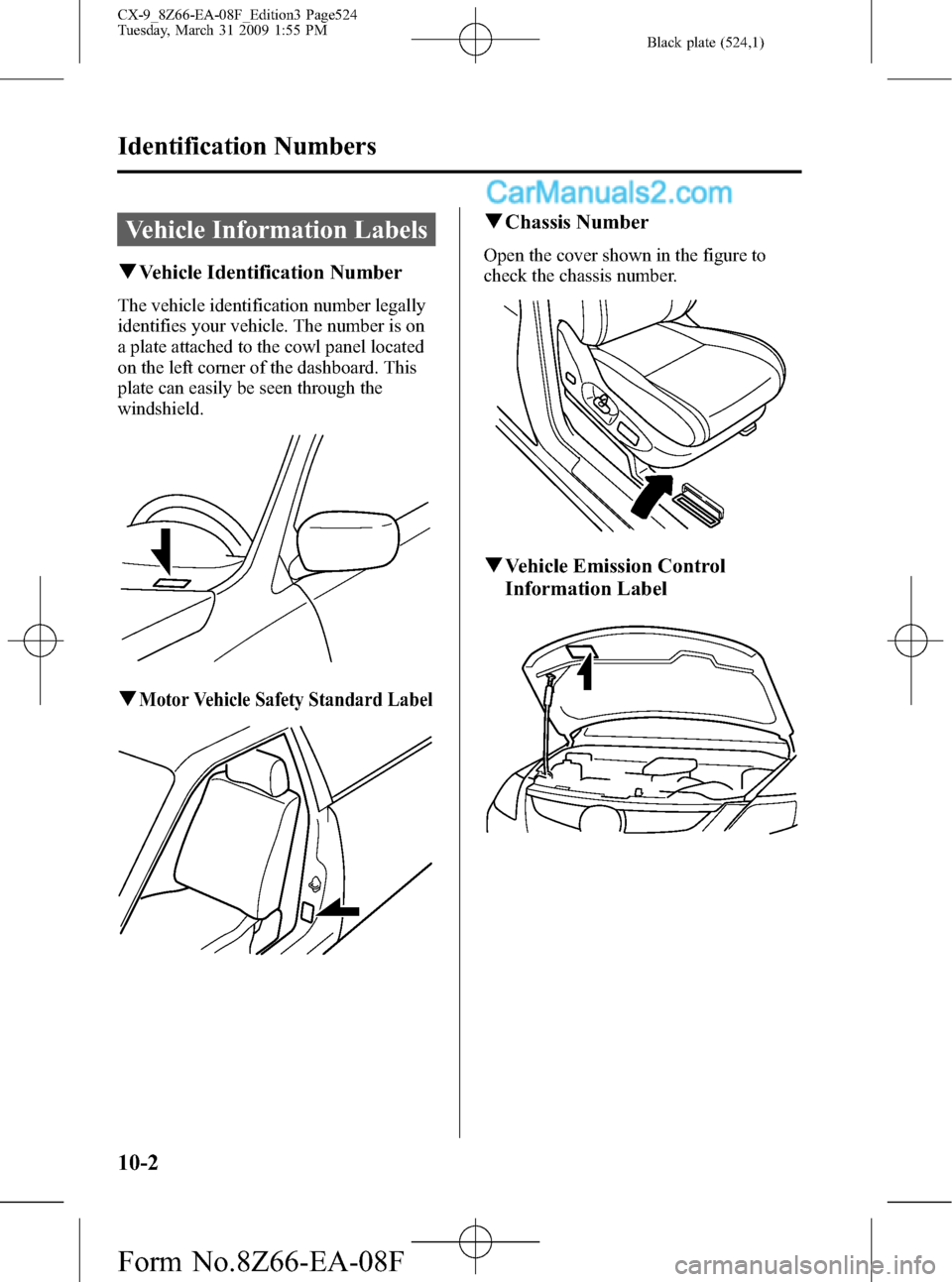

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
Open the cover shown in the figure to
check the chassis number.
qVehicle Emission Control
Information Label
10-2
Identification Numbers
CX-9_8Z66-EA-08F_Edition3 Page524
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (533,1)
B
Bluetooth Hands-Free ..................... 6-116
Basic Bluetooth Hands-Free
Operation ................................. 6-120
Convenient Use of the Hands-Free
System ...................................... 6-124
Hands-Free Setting ................... 6-130
Mazda Bluetooth Hands-Free
Customer Service ..................... 6-137
Safety Certification .................. 6-137
When Bluetooth Hands-Free Cannot
be Used .................................... 6-136
Body Lubrication .............................. 8-27
Bottle Holder ................................... 6-147
Brake
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-9
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-37
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops .................... 6-149
Cargo Sub-Compartment ................ 6-149
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-21
Center Console ................................ 6-149
C
Child Restraint
Child restraint precautions ......... 2-34
Installing child-restraint
systems ....................................... 2-38
LATCH child-restraint
systems ....................................... 2-45
Child Safety Locks for Rear Doors ... 3-30
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ............................................... 6-142
Coin Box ......................................... 6-148
Courtesy Lights ............................... 6-140
Cruise Control ................................... 5-19
Cup Holder ...................................... 6-146
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-41
Daytime Running Lights ................... 5-63
Defroster
Mirror ......................................... 5-69
Rear window .............................. 5-69
Dimensions ....................................... 10-5
Door Locks ....................................... 3-27
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-6
Automatic transaxle ................... 5-15
Break-in period ............................ 4-6
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-9
Winter driving ............................ 4-10
Index
11-3
